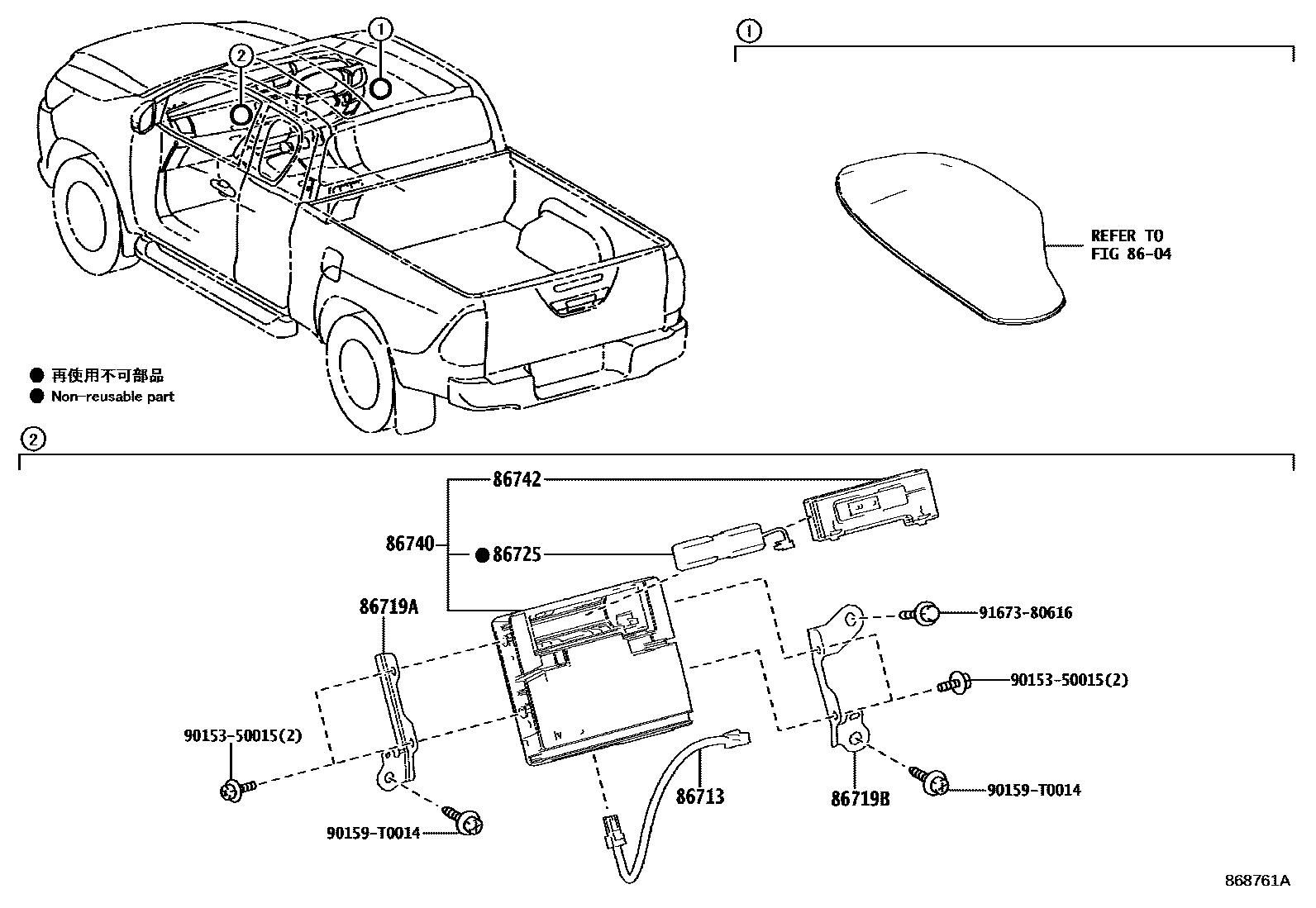

TELEPHONE & MAYDAY

0001 1 0002 1

8604

86713WIRE, TELEPHONE COMPUTER

main86713-71010iGUN125,126,13#,TGN121..ARL202108-202207

DATA COMMUNICATION MODULE-WITH(G-DCM)

86719BRACKET, TELEPHONE

main86719-0K090iGUN112,12#,135,TGN121..TH202108-202207

86719ABRACKET, TELEPHONE NO.1

main86719-0K100iGUN125,126,13#,TGN121..ARL202108-202207

DATA COMMUNICATION MODULE-WITH(G-DCM)

86719BBRACKET, TELEPHONE NO.2

main86719-0K120iGUN125,126,13#,TGN121..ARL202108-202207

DATA COMMUNICATION MODULE-WITH(G-DCM)

86725BATTERY, MOBILEPHONE

main86725-78010iGUN125,126,13#,TGN121..ARL202108-202208

DATA COMMUNICATION MODULE-WITH(G-DCM)

86740TRANSCEIVER ASSY, TELEPHONE

main86741-0K050iGUN120,122,125,126,135..XTR..TH202108-202207

sub86741-0K110

main86741-0K070iGUN112,120,121,122,126,TGN121..SCB..TH202108-202207

sub86741-0K120

main86741-0K080iGUN125,126,13#,TGN121..ARL202108-202207

DATA COMMUNICATION MODULE-WITH(G-DCM)

86742COVER, TRANSCEIVER

main86742-0D020iGUN125,126,13#,TGN121..ARL202108

DATA COMMUNICATION MODULE-WITH(G-DCM)

9015350015

main90153-50015

90159T0014

main90159-T0014

9167380616

main91673-80616

11 parts on this diagram · 2 diagrams in section
