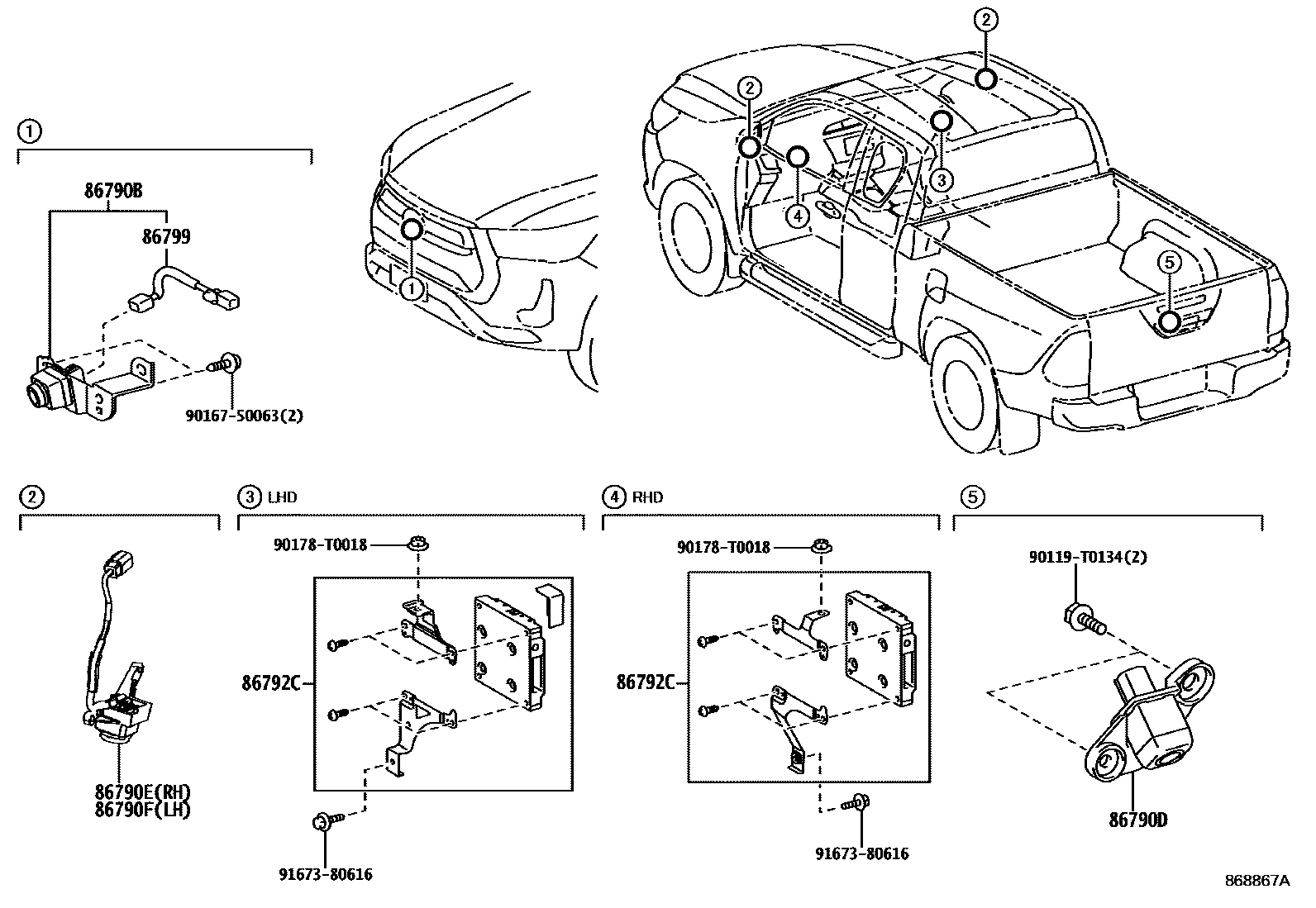

CAMERA & REAR MONITOR DISPLAY

86790BCAMERA ASSY, TELEVISION, FR

main86790-0K140iGUN125..XTR..H;GUN125,126,135..(H,S)..TH202108-202201

BACK MONITOR-WITH(*PVM)

main86790-0K141iGUN125..XTR..H;GUN125,126,135..(H,S)..TH202202-202207

BACK MONITOR-WITH(*PVM)

main86790-0K170iGUN126,135..6FC..H..TH202108-202201

MLM ADVENTURE PACKAGE&BACK MONITOR-WITH(*PVM)

main86790-0K171iGUN126,135..6FC..H..TH202202-202207

MLM ADVENTURE PACKAGE&BACK MONITOR-WITH(*PVM)

86790DCAMERA ASSY, TELEVISION, RR

main86790-0K050iGUN136..ARL..CBU;GUN126,135..THP..H202108-202207

BACK MONITOR-WITH(*PVM)

sub86790-0K051

86790ECAMERA ASSY, TELEVISION, SIDE RH

main86790-0K160iGUN125..XTR..H;GUN125,126,135..(H,S)..TH202108-202207

BACK MONITOR-WITH(*PVM)

86790FCAMERA ASSY, TELEVISION, SIDE LH

main86790-0K150iGUN125..XTR..H;GUN125,126,135..(H,S)..TH202108-202207

BACK MONITOR-WITH(*PVM)

86792CCOMPUTER, PARKING ASSIST

main86792-71070iGUN126,135..H..TH202108-202207

AUDIO-*DA(8INCH) & *BT&BACK MONITOR-WITH(*PVM)

main86792-71090iGUN125..XTR..H202108-202207

AUDIO-*DA(8INCH) & *BT&BACK MONITOR-WITH(*PVM)

main86792-71130iGUN126,135..6FC..H..TH202108-202207

MLM ADVENTURE PACKAGE&BACK MONITOR-WITH(*PVM)

86799WIRE, TELEVISION CAMERA

main86799-0K040iGUN125..XTR..H;GUN125,126,135..(H,S)..TH202108-202207

BACK MONITOR-WITH(*PVM)

90119T0134

main90119-T0134

9016750063

main90167-50063

90178T0018

main90178-T0018

9167380616

main91673-80616

10 parts on this diagram · 1 diagram in section
