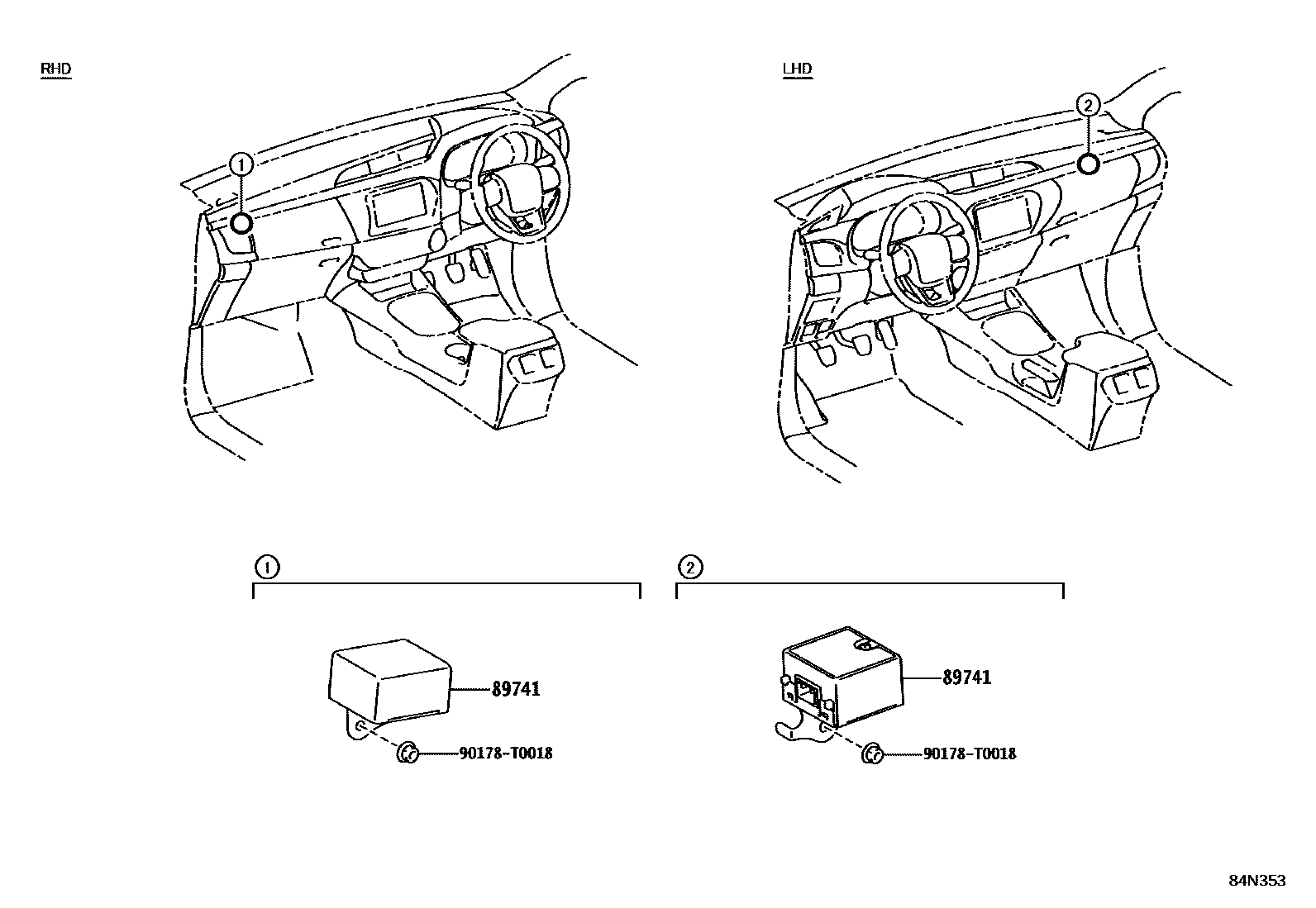

WIRELESS DOOR LOCK

0001 1W/O(SMART ENTRY) 0002 1W(SMART ENTRY) 0003 1W(SMART ENTRY)

89741RECEIVER, DOOR CONTROL

main89741-0K280iGUN125,126,135,TGN126..AGTP..LA202108-202210

WIRELESS DOOR LOCK-WITH

main89741-0K290iGUN122,125..RHD..MTM..L..GEN202108-202207

WIRELESS DOOR LOCK-WITH

main89741-0K310iGUN125,126,13#,TGN121..(L,S)..ARL202108-202207

90178T0018

main90178-T0018

2 parts on this diagram · 3 diagrams in section
