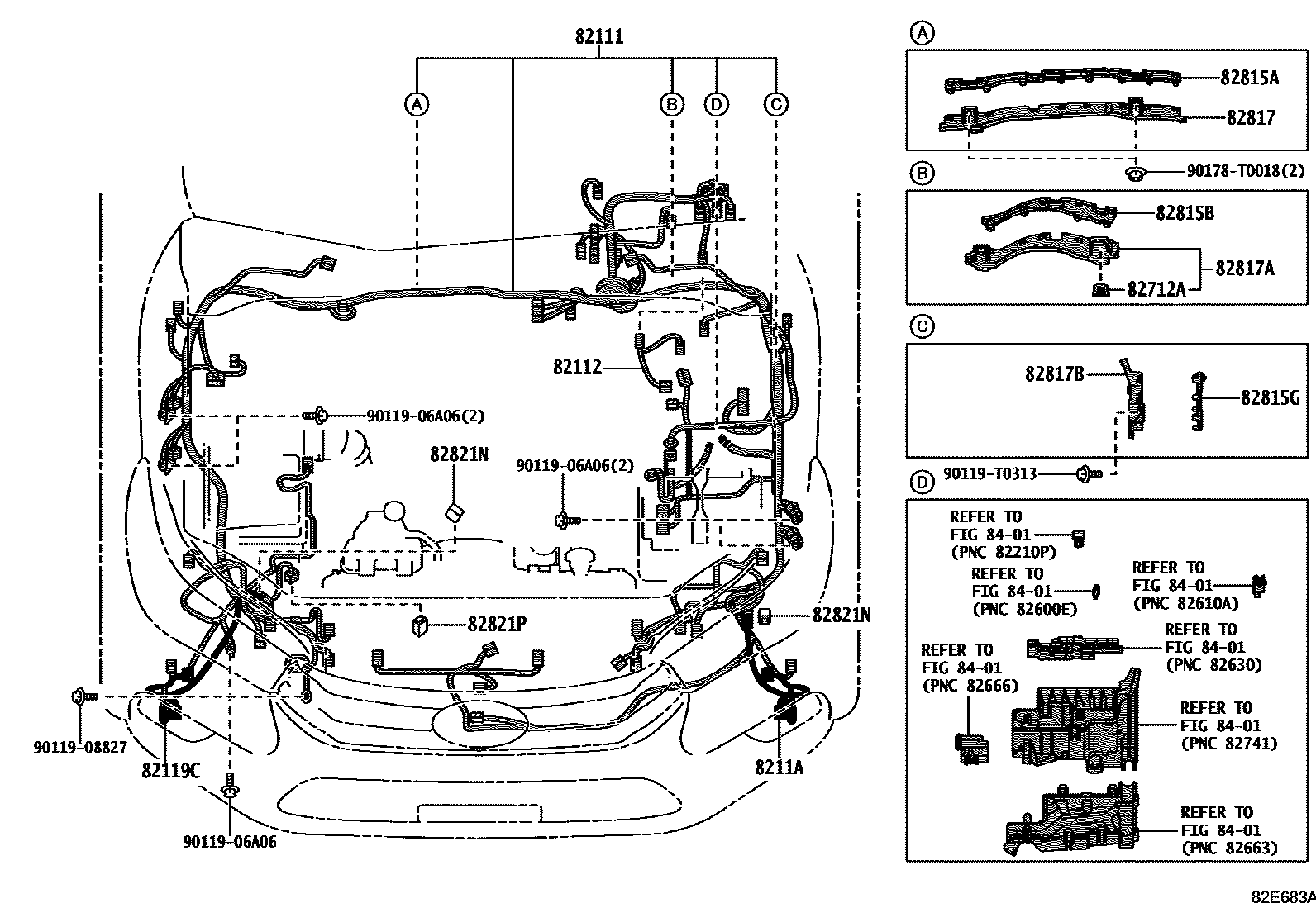

WIRING & CLAMP
82111WIRE, ENGINE ROOM MAIN
HEADLAMP LEVELING DEVICE-WITH(MANUAL),##
##
##
HEADLAMP LEVELING DEVICE-WITH(MANUAL)&DAYTIME RUNNING LIGHT SYSTEM-WITH,##
FRONT BUMPER-PAINTED & WITH(WIDE FENDER),##
##
FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
VSC-W(*HSAC & *TSC),##
##
VSC-W(*HSAC & *TSC)&HEADLAMP-LED&HEADLAMP LEVELING DEVICE-WITH(AUTO),##
##
##
##
FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
main8211E-KK750iGUN125..AGTP..LA;GUN125..LHD..SCB..S;GUN122,135..LHD..(AGTP,SAP)..(LA,SA)202108-202207
HEADLAMP LEVELING DEVICE-WITHOUT&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT,##
##
EXHAUST EMISSION CONTROL-WITHOUT&HEADLAMP LEVELING DEVICE-WITHOUT&DAYTIME RUNNINGLIGHT SYSTEM-WITHOUT,##
HEADLAMP LEVELING DEVICE-WITHOUT&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
##
HEADLAMP LEVELING DEVICE-WITH(MANUAL)&DAYTIME RUNNING LIGHT SYSTEM-WITH,##
ACTIVE SAFETY PACKAGE-WITHOUT&VSC-WITHOUT,##
EXHAUST EMISSION CONTROL-WITHOUT&VSC-WITHOUT,##
##
SUDAN SPEC&VSC-WITHOUT,##
SYRIA SPEC&VSC-WITHOUT,##
EXHAUST EMISSION CONTROL-WITHOUT&VSC-WITHOUT&HEADLAMP LEVELING DEVICE-WITHOUT&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT,##
VSC-WITHOUT,##
VSC-WITHOUT&HEADLAMP LEVELING DEVICE-WITHOUT&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT,##
VSC-WITHOUT
##
VSC-W(*HSAC & *TSC),##
##
CENTRAL AND SOUTH AMERICA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT,##
BOLIVIA URUGUAY SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT,##
##
VSC-W(*HSAC & *TSC)&DAYTIME RUNNING LIGHT SYSTEM-WITH,##
DAYTIME RUNNING LIGHT SYSTEM-WITH,##
FRONT BUMPER-MATERIAL COLOR
FRONT BUMPER-MATERIAL COLOR
VSC-W(*HSAC & *TSC)
VSC-WITHOUT
82112WIRE, ENGINE ROOM, NO.2
82119CWIRE, ENGINE ROOM, NO.5
FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH
TIRE & DISC WHEEL-265/65R17 ALUMINUM&CLEARANCE & BACK SONAR-WITH
8211AWIRE, ENGINE ROOM, NO.6
FRONT FOG LAMP-WITH(LED)&CLEARANCE & BACK SONAR-WITH
FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&CLEARANCE & BACK SONAR-WITH
TIRE & DISC WHEEL-265/65R17 ALUMINUM&CLEARANCE & BACK SONAR-WITH
82712ASUPPORT, WIRING HARNESS
HEADLAMP-2-BULB HALOGEN(VALEO)&HEADLAMP LEVELING DEVICE-WITHOUT&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
DAYTIME RUNNING LIGHT SYSTEM-WITH
CENTRAL AND SOUTH AMERICA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&VSC-WITHOUT&HEADLAMP-2-BULB HALOGEN(VALEO)
BOLIVIA URUGUAY SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&VSC-WITHOUT&HEADLAMP-2-BULB HALOGEN(VALEO)
COSTA RICA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&VSC-WITHOUT&HEADLAMP-2-BULB HALOGEN(VALEO)
PERU SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&VSC-WITHOUT&HEADLAMP-2-BULB HALOGEN(VALEO)
NIGERIA SPEC
TOYOTA STOP & START SYSTEM-WITH
TOYOTA STOP & START SYSTEM-WITH&BACK MONITOR-WITH(*PVM)
VSC-W(*HSAC & *TSC)
VSC-WITHOUT
BACK MONITOR-WITH(*PVM)
NIGERIA SPEC&VSC-W(*HSAC & *TSC)
VSC-W(*HSAC & *TSC)&HEADLAMP-LED&HEADLAMP LEVELING DEVICE-WITH(AUTO)
HEADLAMP LEVELING DEVICE-WITH(MANUAL)
HEADLAMP LEVELING DEVICE-WITH(MANUAL)&DAYTIME RUNNING LIGHT SYSTEM-WITH
CENTRAL AND SOUTH AMERICA SPEC&HEADLAMP-2-BULB HALOGEN(VALEO)&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
CENTRAL AND SOUTH AMERICA SPEC&HEADLAMP LEVELING DEVICE-WITH(MANUAL)&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
MEXICO SPEC&EXHAUST EMISSION CONTROL-TIER 2.0
MEXICO SPEC&EXHAUST EMISSION CONTROL-TIER 2.0&VSC-W(*HSAC & *TSC)
MEXICO SPEC&EXHAUST EMISSION CONTROL-TIER 2.0&VSC-W(*HSAC & *TSC)&DAYTIME RUNNINGLIGHT SYSTEM-WITH
MEXICO SPEC&EXHAUST EMISSION CONTROL-TIER 2.0&DAYTIME RUNNING LIGHT SYSTEM-WITH
BOLIVIA URUGUAY SPEC&HEADLAMP-2-BULB HALOGEN(VALEO)&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)&HEADLAMP LEVELING DEVICE-WITH(MANUAL)&DAYTIME RUNNING LIGHT SYSTEM-WITH
EXHAUST EMISSION CONTROL-WITHOUT&VSC-WITHOUT&DAYTIME RUNNING LIGHT SYSTEM-WITH
EXHAUST EMISSION CONTROL-WITHOUT&VSC-WITHOUT&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
VSC-WITHOUT&HEADLAMP-2-BULB HALOGEN(VALEO)
VSC-WITHOUT&HEADLAMP LEVELING DEVICE-WITHOUT
HEADLAMP-2-BULB HALOGEN(VALEO)
82815ACOVER, WIRING HARNESS PROTECTOR
MEXICO SPEC&EXHAUST EMISSION CONTROL-TIER 2.0&DAYTIME RUNNING LIGHT SYSTEM-WITH
main82815-0K530iTGN121,136..GCC,GEN,LA;GUN11#,122,125,126,135,TGN11#,120,126..LHD..(L,S)202108-202301
BACK MONITOR-WITH(*PVM)
NIGERIA SPEC&VSC-W(*HSAC & *TSC)
CENTRAL AND SOUTH AMERICA SPEC&HEADLAMP-2-BULB HALOGEN(VALEO)&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
CENTRAL AND SOUTH AMERICA SPEC&HEADLAMP LEVELING DEVICE-WITH(MANUAL)&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
MEXICO SPEC&EXHAUST EMISSION CONTROL-TIER 2.0
MEXICO SPEC&EXHAUST EMISSION CONTROL-TIER 2.0&VSC-W(*HSAC & *TSC)
MEXICO SPEC&EXHAUST EMISSION CONTROL-TIER 2.0&VSC-W(*HSAC & *TSC)&DAYTIME RUNNINGLIGHT SYSTEM-WITH
BOLIVIA URUGUAY SPEC&HEADLAMP-2-BULB HALOGEN(VALEO)&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)&HEADLAMP LEVELING DEVICE-WITH(MANUAL)&DAYTIME RUNNING LIGHT SYSTEM-WITH
TOYOTA STOP & START SYSTEM-WITH
EXHAUST EMISSION CONTROL-WITHOUT&VSC-WITHOUT&DAYTIME RUNNING LIGHT SYSTEM-WITH
EXHAUST EMISSION CONTROL-WITHOUT&VSC-WITHOUT&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
VSC-WITHOUT&HEADLAMP-2-BULB HALOGEN(VALEO)
VSC-WITHOUT&HEADLAMP LEVELING DEVICE-WITHOUT
HEADLAMP-2-BULB HALOGEN(VALEO)
HEADLAMP-2-BULB HALOGEN(VALEO)&HEADLAMP LEVELING DEVICE-WITHOUT&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
DAYTIME RUNNING LIGHT SYSTEM-WITH
CENTRAL AND SOUTH AMERICA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&VSC-WITHOUT&HEADLAMP-2-BULB HALOGEN(VALEO)
BOLIVIA URUGUAY SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&VSC-WITHOUT&HEADLAMP-2-BULB HALOGEN(VALEO)
COSTA RICA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&VSC-WITHOUT&HEADLAMP-2-BULB HALOGEN(VALEO)
PERU SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&VSC-WITHOUT&HEADLAMP-2-BULB HALOGEN(VALEO)
NIGERIA SPEC
VSC-W(*HSAC & *TSC)
main82815-0K560iGUN135..L..TH;GUN125,126..RHD..SCB..THP..6F..CBU;GUN112,120,121,122,TGN110,121..RHD..THP¥3,200202108-202303
HEADLAMP LEVELING DEVICE-WITH(MANUAL)
HEADLAMP LEVELING DEVICE-WITH(MANUAL)&DAYTIME RUNNING LIGHT SYSTEM-WITH
TOYOTA STOP & START SYSTEM-WITH
TOYOTA STOP & START SYSTEM-WITH&BACK MONITOR-WITH(*PVM)
VSC-WITHOUT
BACK MONITOR-WITH(*PVM)
VSC-W(*HSAC & *TSC)
VSC-W(*HSAC & *TSC)&HEADLAMP-LED&HEADLAMP LEVELING DEVICE-WITH(AUTO)
82815BCOVER, WIRING HARNESS PROTECTOR
CENTRAL AND SOUTH AMERICA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&VSC-WITHOUT&HEADLAMP-2-BULB HALOGEN(VALEO)
main82815-0K520iTGN121,136..GCC,GEN,LA;GUN11#,122,125,126,135,TGN11#,120,126..LHD..(L,S)202108-202301
CENTRAL AND SOUTH AMERICA SPEC&HEADLAMP-2-BULB HALOGEN(VALEO)&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
CENTRAL AND SOUTH AMERICA SPEC&HEADLAMP LEVELING DEVICE-WITH(MANUAL)&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
MEXICO SPEC&EXHAUST EMISSION CONTROL-TIER 2.0
MEXICO SPEC&EXHAUST EMISSION CONTROL-TIER 2.0&VSC-W(*HSAC & *TSC)
MEXICO SPEC&EXHAUST EMISSION CONTROL-TIER 2.0&VSC-W(*HSAC & *TSC)&DAYTIME RUNNINGLIGHT SYSTEM-WITH
MEXICO SPEC&EXHAUST EMISSION CONTROL-TIER 2.0&DAYTIME RUNNING LIGHT SYSTEM-WITH
BOLIVIA URUGUAY SPEC&HEADLAMP-2-BULB HALOGEN(VALEO)&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)&HEADLAMP LEVELING DEVICE-WITH(MANUAL)&DAYTIME RUNNING LIGHT SYSTEM-WITH
TOYOTA STOP & START SYSTEM-WITH
EXHAUST EMISSION CONTROL-WITHOUT&VSC-WITHOUT&DAYTIME RUNNING LIGHT SYSTEM-WITH
EXHAUST EMISSION CONTROL-WITHOUT&VSC-WITHOUT&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
VSC-WITHOUT&HEADLAMP-2-BULB HALOGEN(VALEO)
VSC-WITHOUT&HEADLAMP LEVELING DEVICE-WITHOUT
HEADLAMP-2-BULB HALOGEN(VALEO)
HEADLAMP-2-BULB HALOGEN(VALEO)&HEADLAMP LEVELING DEVICE-WITHOUT&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
DAYTIME RUNNING LIGHT SYSTEM-WITH
BOLIVIA URUGUAY SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&VSC-WITHOUT&HEADLAMP-2-BULB HALOGEN(VALEO)
COSTA RICA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&VSC-WITHOUT&HEADLAMP-2-BULB HALOGEN(VALEO)
PERU SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&VSC-WITHOUT&HEADLAMP-2-BULB HALOGEN(VALEO)
NIGERIA SPEC
VSC-W(*HSAC & *TSC)
BACK MONITOR-WITH(*PVM)
NIGERIA SPEC&VSC-W(*HSAC & *TSC)
HEADLAMP LEVELING DEVICE-WITH(MANUAL)
TOYOTA STOP & START SYSTEM-WITH&BACK MONITOR-WITH(*PVM)
TOYOTA STOP & START SYSTEM-WITH
main82815-0K550iGUN125..6FC..GEN;GUN122,136..RHD..(ARL,SA);GUN125,135..RHD..L..(ARL,SA);GUN125,126,135..RHD..(H,S)..(ARL,KEN,SA,TH)¥700202108-202303
VSC-WITHOUT
BACK MONITOR-WITH(*PVM)
VSC-W(*HSAC & *TSC)
VSC-W(*HSAC & *TSC)&HEADLAMP-LED&HEADLAMP LEVELING DEVICE-WITH(AUTO)
HEADLAMP LEVELING DEVICE-WITH(MANUAL)&DAYTIME RUNNING LIGHT SYSTEM-WITH
82815GCOVER, WIRING HARNESS PROTECTOR NO.5
BOLIVIA URUGUAY SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&VSC-WITHOUT&HEADLAMP-2-BULB HALOGEN(VALEO)
main82815-0K540iTGN121,136..GCC,GEN,LA;GUN11#,122,125,126,135,TGN11#,120,126..LHD..(L,S)202108-202301
CENTRAL AND SOUTH AMERICA SPEC&HEADLAMP-2-BULB HALOGEN(VALEO)&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
CENTRAL AND SOUTH AMERICA SPEC&HEADLAMP LEVELING DEVICE-WITH(MANUAL)&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
MEXICO SPEC&EXHAUST EMISSION CONTROL-TIER 2.0
MEXICO SPEC&EXHAUST EMISSION CONTROL-TIER 2.0&VSC-W(*HSAC & *TSC)
MEXICO SPEC&EXHAUST EMISSION CONTROL-TIER 2.0&VSC-W(*HSAC & *TSC)&DAYTIME RUNNINGLIGHT SYSTEM-WITH
MEXICO SPEC&EXHAUST EMISSION CONTROL-TIER 2.0&DAYTIME RUNNING LIGHT SYSTEM-WITH
BOLIVIA URUGUAY SPEC&HEADLAMP-2-BULB HALOGEN(VALEO)&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)&HEADLAMP LEVELING DEVICE-WITH(MANUAL)&DAYTIME RUNNING LIGHT SYSTEM-WITH
TOYOTA STOP & START SYSTEM-WITH
EXHAUST EMISSION CONTROL-WITHOUT&VSC-WITHOUT&DAYTIME RUNNING LIGHT SYSTEM-WITH
EXHAUST EMISSION CONTROL-WITHOUT&VSC-WITHOUT&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
VSC-WITHOUT&HEADLAMP-2-BULB HALOGEN(VALEO)
VSC-WITHOUT&HEADLAMP LEVELING DEVICE-WITHOUT
HEADLAMP-2-BULB HALOGEN(VALEO)
HEADLAMP-2-BULB HALOGEN(VALEO)&HEADLAMP LEVELING DEVICE-WITHOUT&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
DAYTIME RUNNING LIGHT SYSTEM-WITH
CENTRAL AND SOUTH AMERICA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&VSC-WITHOUT&HEADLAMP-2-BULB HALOGEN(VALEO)
COSTA RICA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&VSC-WITHOUT&HEADLAMP-2-BULB HALOGEN(VALEO)
PERU SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&VSC-WITHOUT&HEADLAMP-2-BULB HALOGEN(VALEO)
NIGERIA SPEC
VSC-W(*HSAC & *TSC)
BACK MONITOR-WITH(*PVM)
NIGERIA SPEC&VSC-W(*HSAC & *TSC)
82817PROTECTOR, WIRING HARNESS, NO.1
TOYOTA STOP & START SYSTEM-WITH
EXHAUST EMISSION CONTROL-WITHOUT&VSC-WITHOUT&DAYTIME RUNNING LIGHT SYSTEM-WITH
EXHAUST EMISSION CONTROL-WITHOUT&VSC-WITHOUT&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
VSC-WITHOUT&HEADLAMP-2-BULB HALOGEN(VALEO)
VSC-WITHOUT&HEADLAMP LEVELING DEVICE-WITHOUT
HEADLAMP-2-BULB HALOGEN(VALEO)
HEADLAMP-2-BULB HALOGEN(VALEO)&HEADLAMP LEVELING DEVICE-WITHOUT&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
DAYTIME RUNNING LIGHT SYSTEM-WITH
CENTRAL AND SOUTH AMERICA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&VSC-WITHOUT&HEADLAMP-2-BULB HALOGEN(VALEO)
BOLIVIA URUGUAY SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&VSC-WITHOUT&HEADLAMP-2-BULB HALOGEN(VALEO)
COSTA RICA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&VSC-WITHOUT&HEADLAMP-2-BULB HALOGEN(VALEO)
PERU SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&VSC-WITHOUT&HEADLAMP-2-BULB HALOGEN(VALEO)
NIGERIA SPEC
VSC-W(*HSAC & *TSC)
BACK MONITOR-WITH(*PVM)
NIGERIA SPEC&VSC-W(*HSAC & *TSC)
CENTRAL AND SOUTH AMERICA SPEC&HEADLAMP-2-BULB HALOGEN(VALEO)&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
CENTRAL AND SOUTH AMERICA SPEC&HEADLAMP LEVELING DEVICE-WITH(MANUAL)&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
MEXICO SPEC&EXHAUST EMISSION CONTROL-TIER 2.0
MEXICO SPEC&EXHAUST EMISSION CONTROL-TIER 2.0&VSC-W(*HSAC & *TSC)
MEXICO SPEC&EXHAUST EMISSION CONTROL-TIER 2.0&VSC-W(*HSAC & *TSC)&DAYTIME RUNNINGLIGHT SYSTEM-WITH
MEXICO SPEC&EXHAUST EMISSION CONTROL-TIER 2.0&DAYTIME RUNNING LIGHT SYSTEM-WITH
BOLIVIA URUGUAY SPEC&HEADLAMP-2-BULB HALOGEN(VALEO)&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)&HEADLAMP LEVELING DEVICE-WITH(MANUAL)&DAYTIME RUNNING LIGHT SYSTEM-WITH
BACK MONITOR-WITH(*PVM)
main82817-0K560iGUN125..6FC..GEN;GUN122,136..RHD..(ARL,SA);GUN125,135..RHD..L..(ARL,SA);GUN125,126,135..RHD..(H,S)..(ARL,KEN,SA,TH)¥970202108-202303
TOYOTA STOP & START SYSTEM-WITH
TOYOTA STOP & START SYSTEM-WITH&BACK MONITOR-WITH(*PVM)
VSC-WITHOUT
VSC-W(*HSAC & *TSC)
VSC-W(*HSAC & *TSC)&HEADLAMP-LED&HEADLAMP LEVELING DEVICE-WITH(AUTO)
HEADLAMP LEVELING DEVICE-WITH(MANUAL)
HEADLAMP LEVELING DEVICE-WITH(MANUAL)&DAYTIME RUNNING LIGHT SYSTEM-WITH
82817APROTECTOR, WIRING HARNESS, NO.2
HEADLAMP-2-BULB HALOGEN(VALEO)
main82817-0K520iTGN121,136..GCC,GEN,LA;GUN11#,122,125,126,135,TGN11#,120,126..LHD..(L,S)202108-202301
EXHAUST EMISSION CONTROL-WITHOUT&VSC-WITHOUT&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
VSC-WITHOUT&HEADLAMP-2-BULB HALOGEN(VALEO)
VSC-WITHOUT&HEADLAMP LEVELING DEVICE-WITHOUT
HEADLAMP-2-BULB HALOGEN(VALEO)&HEADLAMP LEVELING DEVICE-WITHOUT&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
DAYTIME RUNNING LIGHT SYSTEM-WITH
CENTRAL AND SOUTH AMERICA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&VSC-WITHOUT&HEADLAMP-2-BULB HALOGEN(VALEO)
BOLIVIA URUGUAY SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&VSC-WITHOUT&HEADLAMP-2-BULB HALOGEN(VALEO)
COSTA RICA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&VSC-WITHOUT&HEADLAMP-2-BULB HALOGEN(VALEO)
PERU SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&VSC-WITHOUT&HEADLAMP-2-BULB HALOGEN(VALEO)
NIGERIA SPEC
VSC-W(*HSAC & *TSC)
BACK MONITOR-WITH(*PVM)
NIGERIA SPEC&VSC-W(*HSAC & *TSC)
CENTRAL AND SOUTH AMERICA SPEC&HEADLAMP-2-BULB HALOGEN(VALEO)&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
CENTRAL AND SOUTH AMERICA SPEC&HEADLAMP LEVELING DEVICE-WITH(MANUAL)&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
MEXICO SPEC&EXHAUST EMISSION CONTROL-TIER 2.0
MEXICO SPEC&EXHAUST EMISSION CONTROL-TIER 2.0&VSC-W(*HSAC & *TSC)
MEXICO SPEC&EXHAUST EMISSION CONTROL-TIER 2.0&VSC-W(*HSAC & *TSC)&DAYTIME RUNNINGLIGHT SYSTEM-WITH
MEXICO SPEC&EXHAUST EMISSION CONTROL-TIER 2.0&DAYTIME RUNNING LIGHT SYSTEM-WITH
BOLIVIA URUGUAY SPEC&HEADLAMP-2-BULB HALOGEN(VALEO)&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)&HEADLAMP LEVELING DEVICE-WITH(MANUAL)&DAYTIME RUNNING LIGHT SYSTEM-WITH
TOYOTA STOP & START SYSTEM-WITH
EXHAUST EMISSION CONTROL-WITHOUT&VSC-WITHOUT&DAYTIME RUNNING LIGHT SYSTEM-WITH
HEADLAMP LEVELING DEVICE-WITH(MANUAL)
main82817-0K550iGUN135..L..TH;GUN125,126..RHD..SCB..THP..6F..CBU;GUN112,120,121,122,TGN110,121..RHD..THP¥1,070202108-202303
HEADLAMP LEVELING DEVICE-WITH(MANUAL)&DAYTIME RUNNING LIGHT SYSTEM-WITH
main82817-0K550iGUN125..6FC..GEN;GUN122,136..RHD..(ARL,SA);GUN125,135..RHD..L..(ARL,SA);GUN125,126,135..RHD..(H,S)..(ARL,KEN,SA,TH)¥1,070202202-202207
TOYOTA STOP & START SYSTEM-WITH
main82817-0K550iGUN125..6FC..GEN;GUN122,136..RHD..(ARL,SA);GUN125,135..RHD..L..(ARL,SA);GUN125,126,135..RHD..(H,S)..(ARL,KEN,SA,TH)¥1,070202202-202207
TOYOTA STOP & START SYSTEM-WITH&BACK MONITOR-WITH(*PVM)
main82817-0K550iGUN125..6FC..GEN;GUN122,136..RHD..(ARL,SA);GUN125,135..RHD..L..(ARL,SA);GUN125,126,135..RHD..(H,S)..(ARL,KEN,SA,TH)¥1,070202202-202207
VSC-WITHOUT
main82817-0K550iGUN125..6FC..GEN;GUN122,136..RHD..(ARL,SA);GUN125,135..RHD..L..(ARL,SA);GUN125,126,135..RHD..(H,S)..(ARL,KEN,SA,TH)¥1,070202202-202207
BACK MONITOR-WITH(*PVM)
main82817-0K550iGUN125..6FC..GEN;GUN122,136..RHD..(ARL,SA);GUN125,135..RHD..L..(ARL,SA);GUN125,126,135..RHD..(H,S)..(ARL,KEN,SA,TH)¥1,070202202-202207
VSC-W(*HSAC & *TSC)
main82817-0K550iGUN125..6FC..GEN;GUN122,136..RHD..(ARL,SA);GUN125,135..RHD..L..(ARL,SA);GUN125,126,135..RHD..(H,S)..(ARL,KEN,SA,TH)¥1,070202202-202207
VSC-W(*HSAC & *TSC)&HEADLAMP-LED&HEADLAMP LEVELING DEVICE-WITH(AUTO)
82817BPROTECTOR, WIRING HARNESS, NO.3
main82817-0K540iTGN121,136..GCC,GEN,LA;GUN11#,122,125,126,135,TGN11#,120,126..LHD..(L,S)202202-202207
EXHAUST EMISSION CONTROL-WITHOUT&VSC-WITHOUT&DAYTIME RUNNING LIGHT SYSTEM-WITH
CENTRAL AND SOUTH AMERICA SPEC&HEADLAMP-2-BULB HALOGEN(VALEO)&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
CENTRAL AND SOUTH AMERICA SPEC&HEADLAMP LEVELING DEVICE-WITH(MANUAL)&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
MEXICO SPEC&EXHAUST EMISSION CONTROL-TIER 2.0
MEXICO SPEC&EXHAUST EMISSION CONTROL-TIER 2.0&VSC-W(*HSAC & *TSC)
MEXICO SPEC&EXHAUST EMISSION CONTROL-TIER 2.0&VSC-W(*HSAC & *TSC)&DAYTIME RUNNINGLIGHT SYSTEM-WITH
MEXICO SPEC&EXHAUST EMISSION CONTROL-TIER 2.0&DAYTIME RUNNING LIGHT SYSTEM-WITH
BOLIVIA URUGUAY SPEC&HEADLAMP-2-BULB HALOGEN(VALEO)&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
IRAN SPEC&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)&HEADLAMP LEVELING DEVICE-WITH(MANUAL)&DAYTIME RUNNING LIGHT SYSTEM-WITH
TOYOTA STOP & START SYSTEM-WITH
EXHAUST EMISSION CONTROL-WITHOUT&VSC-WITHOUT&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
VSC-WITHOUT&HEADLAMP-2-BULB HALOGEN(VALEO)
VSC-WITHOUT&HEADLAMP LEVELING DEVICE-WITHOUT
HEADLAMP-2-BULB HALOGEN(VALEO)
HEADLAMP-2-BULB HALOGEN(VALEO)&HEADLAMP LEVELING DEVICE-WITHOUT&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT
DAYTIME RUNNING LIGHT SYSTEM-WITH
CENTRAL AND SOUTH AMERICA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&VSC-WITHOUT&HEADLAMP-2-BULB HALOGEN(VALEO)
BOLIVIA URUGUAY SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&VSC-WITHOUT&HEADLAMP-2-BULB HALOGEN(VALEO)
COSTA RICA SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&VSC-WITHOUT&HEADLAMP-2-BULB HALOGEN(VALEO)
PERU SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&VSC-WITHOUT&HEADLAMP-2-BULB HALOGEN(VALEO)
NIGERIA SPEC
VSC-W(*HSAC & *TSC)
BACK MONITOR-WITH(*PVM)
NIGERIA SPEC&VSC-W(*HSAC & *TSC)
82821NCOVER, CONNECTOR
VSC-W(*HSAC & *TSC)&HEADLAMP LEVELING DEVICE-WITHOUT
main82821-KK030iGUN135..S..TH;GUN125..RHD..THP;GUN135..SCB..THP;GUN125,TGN110,121..LHD..THP..(L,S);GUN11#,120,121,122,126,136,TGN111,120,126..THP..(L,S)202108-202301
VSC-W(*HSAC & *TSC)
main82821-KK030iGUN135..S..TH;GUN125..RHD..THP;GUN135..SCB..THP;GUN125,TGN110,121..LHD..THP..(L,S);GUN11#,120,121,122,126,136,TGN111,120,126..THP..(L,S)202108-202207
HEADLAMP LEVELING DEVICE-WITHOUT
82821PCOVER, CONNECTOR
main82821-71080iTGN126..S;GUN112..L..GCC;GUN122,TGN126..L..GCC..IV3;GUN125,TGN111..THP..(GCC,LA);TGN121,126..THP..(GEN,LA)..CBU¥200202202-202301
FRONT AIR CONDITIONER-COOLER LESS
main82821-71080iTGN126..S;GUN112..L..GCC;GUN122,TGN126..L..GCC..IV3;GUN125,TGN111..THP..(GCC,LA);TGN121,126..THP..(GEN,LA)..CBU¥200202202-202207
FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)
main82821-71080iTGN126..S;GUN112..L..GCC;GUN122,TGN126..L..GCC..IV3;GUN125,TGN111..THP..(GCC,LA);TGN121,126..THP..(GEN,LA)..CBU¥200202202-202207
FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)
8401
9011906A06
9011908827
90119T0313
main90119-T0313
90178T0018
18 parts on this diagram · 19 diagrams in section
