SIDE WINDOW

62731CHINGE, QUARTER WINDOW, RH

main62733-0K010iGUN125,126,13#..XTR..SA202108-202301

UPPER

main62733-0K020iGUN125,126,13#..XTR..SA202108-202301

LOWER

62732EHINGE, QUARTER WINDOW, LH

main62734-0K010iGUN125,126,13#..XTR..SA202108-202301

UPPER

main62734-0K020iGUN120,122,125,126,13#..XTR..THP202108-202301

LOWER

62735JRETAINER, QUARTER WINDOW HINGE, LH

main62735-0K040iGUN125,126,13#..XTR..SA202108-202301

(L)

main62735-35010iGUN125,126,13#..XTR..SA202108-202301

(J)

62735LRETAINER, QUARTER WINDOW HINGE, RH

main62735-0K040iGUN120,122,125,126,13#..XTR..THP202108-202301

(L)

main62735-35010iGUN120,122,125,126,13#..XTR..THP202108-202301

(J)

62741WEATHERSTRIP, QUARTER WINDOW, RH

main62741-0K030iGUN120,122,125,126,13#..XTR..THP202108-202207

main62741-0K040iGUN125,126,13#..XTR..SA202109-202301

62742WEATHERSTRIP, QUARTER WINDOW, LH

main62741-0K030iGUN120,122,125,126,13#..XTR..THP202108-202207

main62741-0K040iGUN125,126,13#..XTR..SA202109-202301

62786DSPACER, QUARTER WINDOW GLASS, NO.2

main62786-0K010iGUN120,122,125,126,13#..XTR..THP202108-202301

62910KLOCK ASSY, QUARTER WINDOW, RH

main62910-0K040-B0iGUN126,135..6FC..H..TH202108-202301

LT.GRAY,TRIM2#

main62910-0K040-B0iGUN126,135..6FC..H..TH202108-202301

LT.GRAY,TRIM20

main62910-0K040-C0iGUN126,135..6FC..H..TH202108-202301

BLACK,TRIM21

62920LOCK ASSY, QUARTER WINDOW, LH

main62920-0K040-B0iGUN126,135..6FC..H..TH202108-202301

LT.GRAY,TRIM2#

main62920-0K040-B0iGUN126..XTR..6FC..ARL;GUN135..6FC..(L,S)..TH;GUN126,135..XTR..THP..6F;GUN120,122,125,136..XTR..THP202108-202301

LT.GRAY,TRIM20

main62920-0K040-C0iGUN126,135..6FC..H..TH202108-202301

BLACK,TRIM21

67873GWEATHERSTRIP, QUARTER WINDOW, FRONT RH

main67865-0K030iGUN120,122,125,126,13#..XTR..THP202108-202207

main67865-0K040iGUN125,126,13#..XTR..SA202109-202301

67874GWEATHERSTRIP, QUARTER WINDOW, FRONT LH

main67866-0K030iGUN120,122,125,126,13#..XTR..THP202108-202207

main67866-0K040iGUN125,126,13#..XTR..SA202109-202301

68113GLASS, QUARTER WINDOW, RH

main68113-0K260iGUN126..H..TH;GUN126..XTR..IV3;GUN120,122,125,13#..XTR..THP202108-202207

main68113-0K270iGUN126..ARL..CBU202108-202207

main68113-0K280iGUN125,126,13#..XTR..SA202109-202301

main68113-0K290iGUN125,126,13#..XTR..(H,S)..SA202109-202301

BACK GLASS-SLIDING TYPE(PRIVACY)

68114GLASS, QUARTER WINDOW, LH

main68114-0K260iGUN126..H..TH;GUN126..XTR..IV3;GUN120,122,125,13#..XTR..THP202108-202207

main68114-0K270iGUN126..ARL..CBU202108-202207

main68114-0K280iGUN125,126,13#..XTR..SA202109-202301

main68114-0K290iGUN125,126,13#..XTR..(H,S)..SA202109-202301

BACK GLASS-SLIDING TYPE(PRIVACY)

90105T0107

main90105-T0107

9015706002

main90157-06002

90157T0002

main90157-T0002

90178T0042

main90178-T0042

90202T0002

main90202-T0002

90385T0011

main90385-T0011

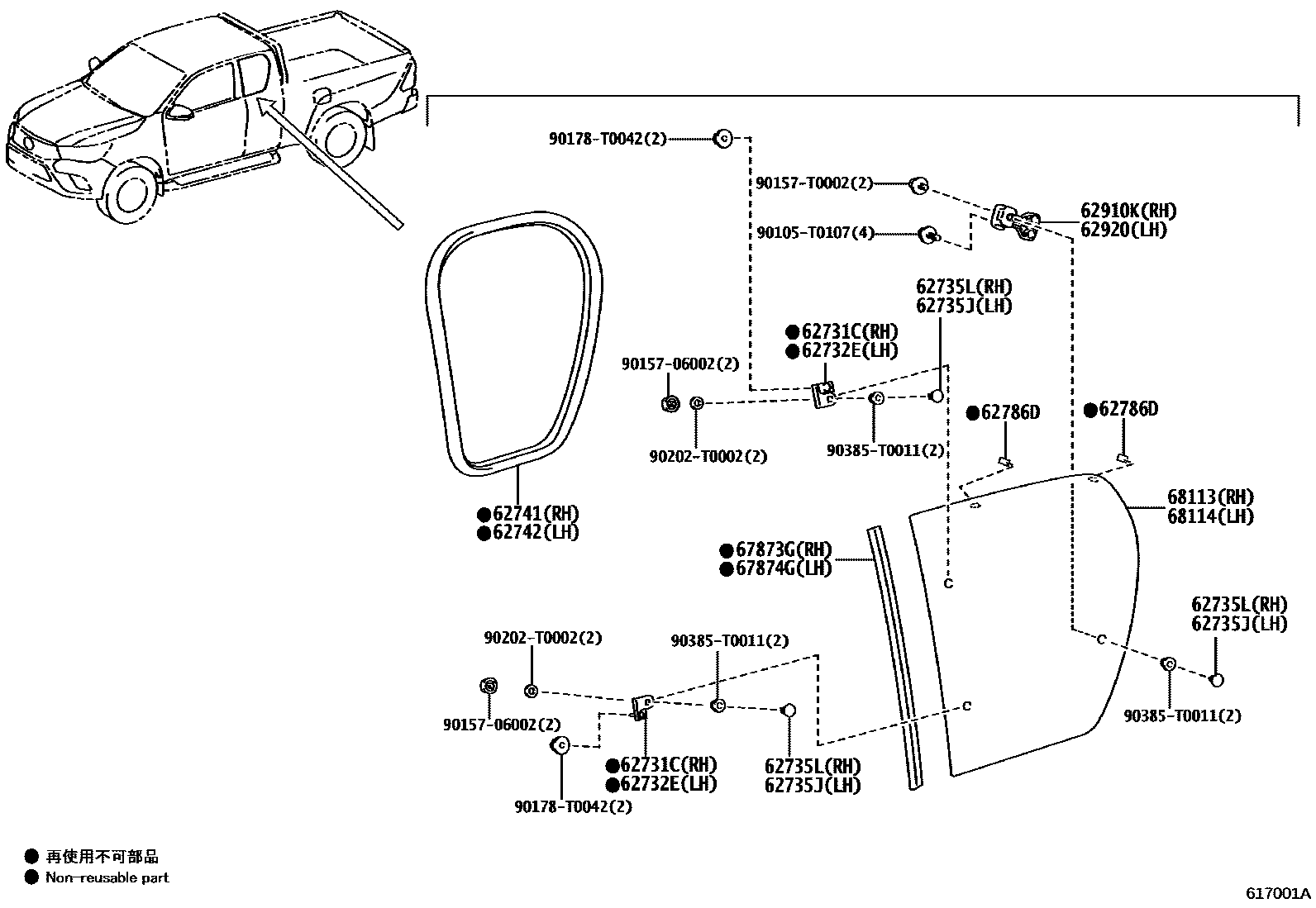

19 parts on this diagram · 1 diagram in section
