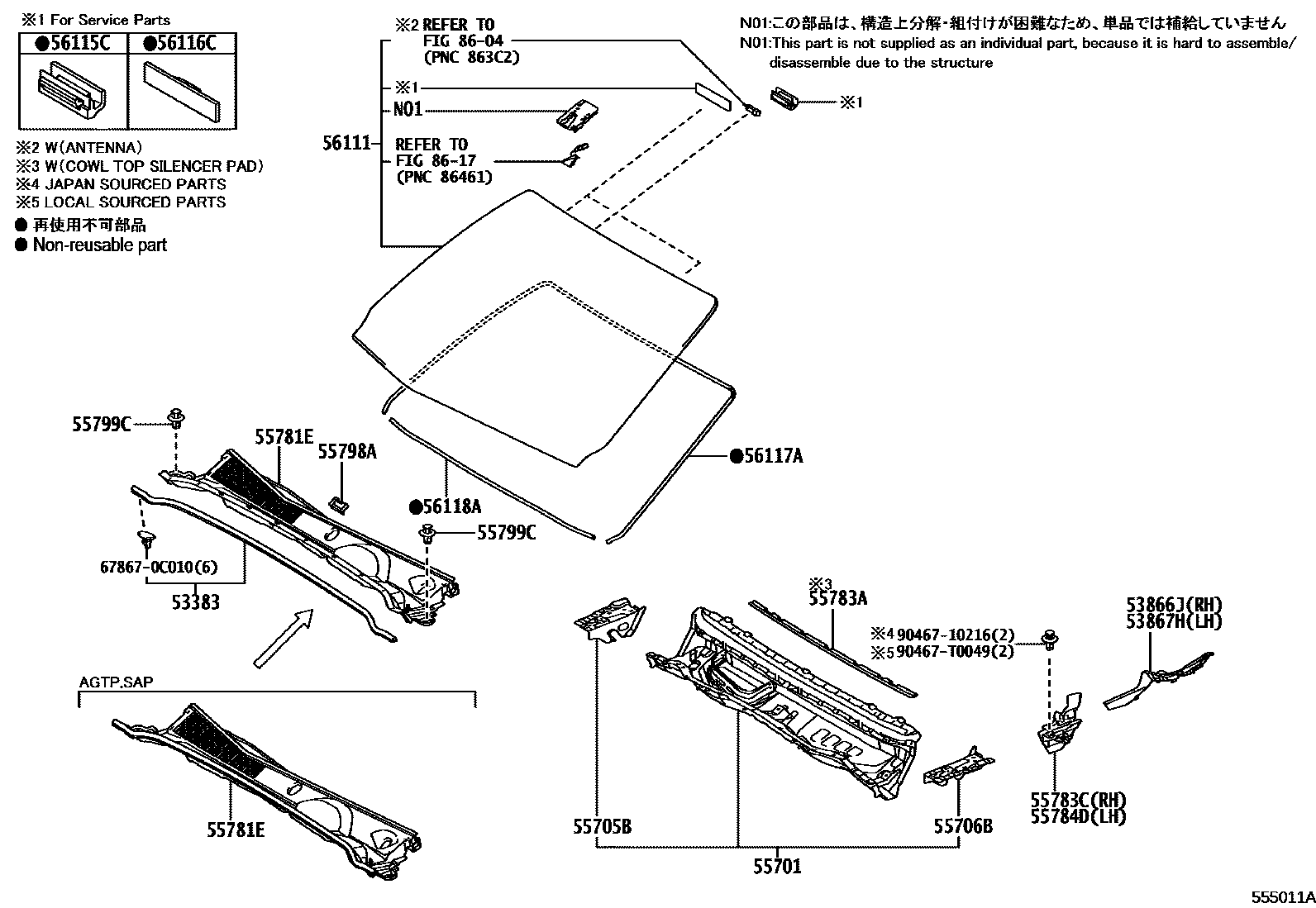

COWL PANEL & WINDSHIELD GLASS
53383SEAL, HOOD TO COWL TOP
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
55701PANEL SUB-ASSY, COWL
MEXICO SPEC
REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL & ID PLATE
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55783APAD, COWL TOP SILENCER
55783CBRACKET, COWL TOP VENTILATOR LOUVER, RH
55784DBRACKET, COWL TOP VENTILATOR LOUVER, LH
55798ASUPPORT, COWL WATER EXTRACT SEAL
55799CCLIP, COWL TOP VENTILATOR LOUVER
(J)
(L)
56111GLASS, WINDSHIELD
ACTIVE SAFETY PACKAGE-WITHOUT
MEXICO SPEC
REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL & ID PLATE
ACTIVE SAFETY PACKAGE-WITHOUT
UAE SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB
AUDIO-*DA(FOR EMERGING MARKET) & DAB
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
ACTIVE SAFETY PACKAGE-WITH&AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
ACTIVE SAFETY PACKAGE-WITH
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-*DA(8INCH) & *BT
ACTIVE SAFETY PACKAGE-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
ACTIVE SAFETY PACKAGE-WITH
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
ACTIVE SAFETY PACKAGE-WITH
ACTIVE SAFETY PACKAGE-WITH
AUDIO-*DA(8INCH) & *BT
AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
AUDIO-*DA(FOR EMERGING MARKET)
main56101-0KP40iGUN125..KEN;GUN126..S..SA;GUN135..RHD..SCB..L..CBU;GUN122,125,TGN120..RHD..L..SA202109-202303
AUDIO-*DA(FOR EMERGING MARKET) & DAB
56115CSTOPPER, WINDSHIELD GLASS
MEXICO SPEC
56116CSTOPPER, WINDSHIELD GLASS, NO.2
MEXICO SPEC
56117ADAM, WINDOW GLASS ADHESIVE
L=2620,AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
L=2620,AUDIO-*DA(FOR EMERGING MARKET) & DAB
L=2620
L=2620,UAE SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB
L=2620,MEXICO SPEC
L=2620,ACTIVE SAFETY PACKAGE-WITH
L=2620,ACTIVE SAFETY PACKAGE-WITHOUT
L=2620,REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL & ID PLATE
L=2620,NIGERIA SPEC
L=2620,ALGERIA SPEC (EURO 3 REGULATION)
L=2620,ACTIVE SAFETY PACKAGE-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
L=2620,ACTIVE SAFETY PACKAGE-WITH&AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
L=2620,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
L=2620,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-*DA(8INCH) & *BT
L=2620,AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
L=2620,AUDIO-*DA(8INCH) & *BT
L=2620,AUDIO-*DA(FOR EMERGING MARKET)
56118ADAM, WINDOW GLASS ADHESIVE, NO.2
L=1248
L=1248,UAE SPEC&AUDIO-*DA(FOR EMERGING MARKET) & DAB
L=1248,MEXICO SPEC
L=1248,ACTIVE SAFETY PACKAGE-WITH
L=1248,ACTIVE SAFETY PACKAGE-WITHOUT
L=1248,AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
L=1248,AUDIO-*DA(FOR EMERGING MARKET) & DAB
L=1248,REGULATION COMPLIANCE LABEL & NAME PLATE-GENERAL & ID PLATE
L=1248,NIGERIA SPEC
L=1248,ALGERIA SPEC (EURO 3 REGULATION)
L=1248,ACTIVE SAFETY PACKAGE-WITH&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
L=1248,ACTIVE SAFETY PACKAGE-WITH&AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
L=1248,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
L=1248,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&AUDIO-*DA(8INCH) & *BT
L=1248,AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
L=1248,AUDIO-*DA(8INCH) & *BT
L=1248,AUDIO-*DA(FOR EMERGING MARKET)
8604
8617
678670C010CLIP, DOOR WEATHERSTRIP
main67867-0C010
9046710216
main90467-10216
90467T0049
main90467-T0049
22 parts on this diagram · 2 diagrams in section
