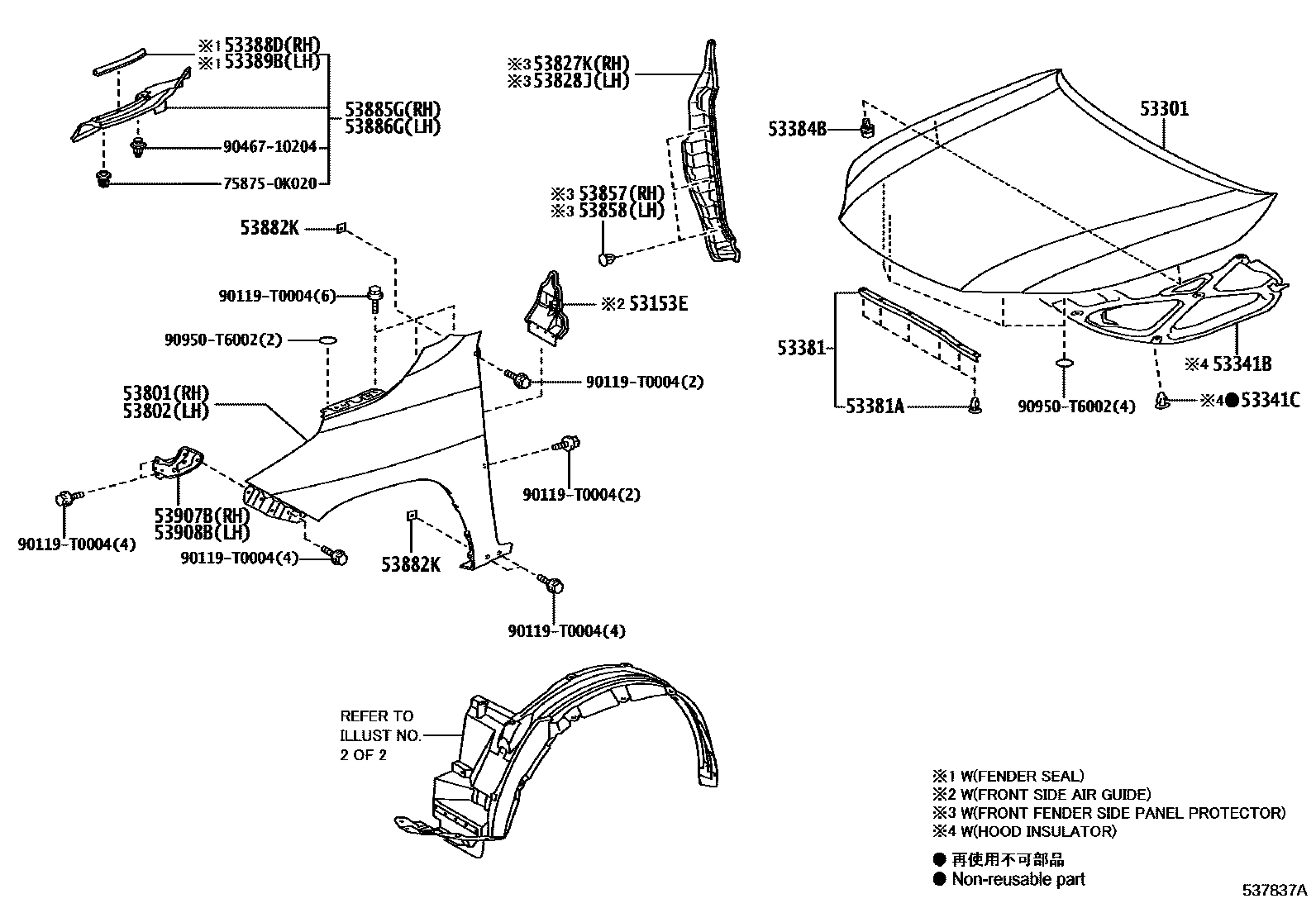

HOOD & FRONT FENDER
53153EGUIDE, FRONT SIDE AIR
TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
TIRE & DISC WHEEL-265/65R17 ALUMINUM
TIRE & DISC WHEEL-265/65R17 STEEL
53301HOOD SUB-ASSY
FRONT BUMPER-PAINTED(MLM)
MLM PACKAGE
MLM PACKAGE&FRONT BUMPER-PAINTED(MLM)
POWER SUPPLY PACKAGE
COLD CHAIN PACKAGE
TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
IRAN SPEC
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53384BCUSHION, HOOD, CENTER
53388DSEAL, HOOD TO FRONT FENDER, RH
53389BSEAL, HOOD TO FRONT FENDER, LH
53801FENDER SUB-ASSY, FRONT RH
main53811-KK010iGUN122..L..GCC;GUN120,122..GEN,PH,TH;GUN126,136..RHD..SCB..THP;GUN112,121,125,135,TGN110,12#..SCB..THP..L202108-202303
OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL)
OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL)
OUTSIDE REAR VIEW MIRROR- *RCM(*CR) & W(*SITL) & W(LOGO LAMP)
TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL)
TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL)
53802FENDER SUB-ASSY, FRONT LH
OUTSIDE REAR VIEW MIRROR- *RCM(*CR) & W(*SITL) & W(LOGO LAMP)
OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL)
OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL)
TIRE & DISC WHEEL-265/65R17 ALUMINUM&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL)
sub53812-KK050
TIRE & DISC WHEEL-265/65R17 STEEL&OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL)
sub53812-KK050
TIRE & DISC WHEEL-265/65R17 STEEL&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL)
sub53812-KK050
TIRE & DISC WHEEL-265/65R17 ALUMINUM&OUTSIDE REAR VIEW MIRROR-*551(BLACK) & W(*SITL)
sub53812-KK050
TIRE & DISC WHEEL-265/65R17 ALUMINUM&OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL)
sub53812-KK050
TIRE & DISC WHEEL-265/65R17 ALUMINUM&OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL)
sub53812-KK050
TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL)
TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL)
53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH
53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH
53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH
(L)
(J)
53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH
(L)
(J)
53882KSEAL, FRONT FENDER
53885GSEAL SUB-ASSY, FENDER APRON MUDGUARD, RH
main53807-0K110iGUN135..THP..L;GUN125..LHD..THP..L;GUN126,136..SCB..THP;GUN125..RHD..THP..(H,L);GUN11#,120,121,122,TGN11#,12#..THP202108-202301
main53807-0K120iGUN125..LHD..SCB..SA;GUN125..RHD..(KEN,SA);GUN122,126,13#,LAN125,TGN120,121,136..SCB..(KEN,SA)202109-202303
53886GSEAL, FENDER APRON MUDGUARD, LH
main53808-0K120iGUN125..LHD..SCB..SA;GUN125..RHD..(KEN,SA);GUN122,126,13#,LAN125,TGN120,121,136..SCB..(KEN,SA)202109-202303
53907BEXTENSION SUB-ASSY, FRONT END PANEL, RH
main53907-KK010iGUN135..RHD..SCB..L..CBU;GUN122,125,126,LAN125,TGN120,121..SCB..(L,S)..(KEN,SA)202108-202303
TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL)
TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL)
53908BEXTENSION SUB-ASSY, FRONT END PANEL, LH
TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL)
TIRE & DISC WHEEL-215/65R16C ALUMINUM&FRONT BUMPER-PAINTED & WITH(WIDE FENDER)&OUTSIDE REAR VIEW MIRROR-*RCM(*CR) & W(*SITL)
758750K020MOULDING, BACK DOOR OUTSIDE, UPPER
main75875-0K020
90119T0004
main90119-T0004
9046710204
main90467-10204
90950T6002
main90950-T6002
24 parts on this diagram · 4 diagrams in section
