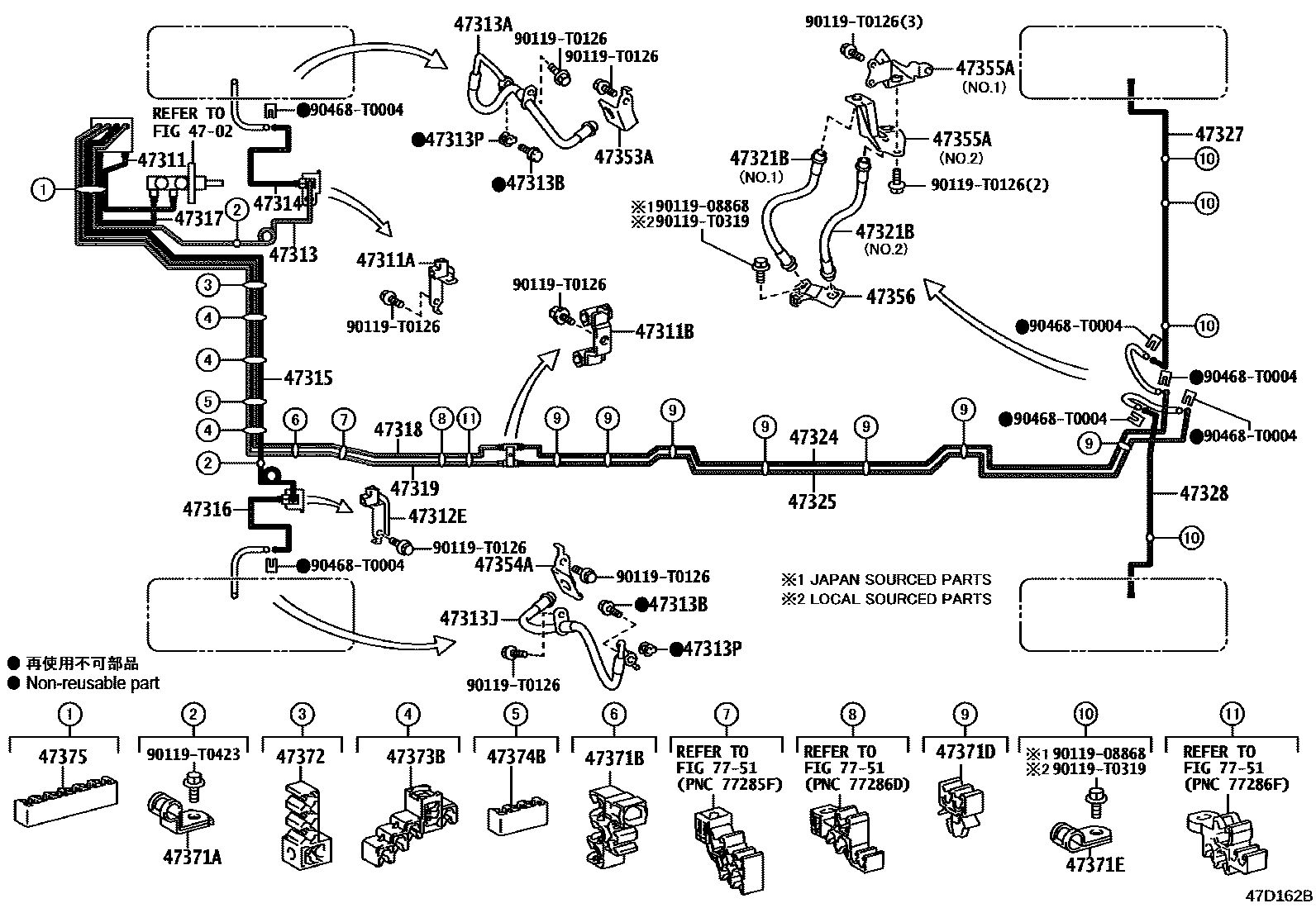

BRAKE TUBE & CLAMP
4702
47311TUBE, FRONT BRAKE, NO.1
VSC-W(*HSAC & *TSC)
main47311-KK030iGUN125,135,TGN110..L..(IDN,TH);GUN112,120,121,122,126,TGN121..(L,S)..TH202108-202301
VSC-WITHOUT
main47311-KK050iGUN125..XTR..GEN;GUN122..LHD..(GCC,GEN);GUN11#,125,126,135,TGN11#,12#..THP..(GCC,LA)202108-202301
VSC-W(*HSAC & *TSC)
BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)&VSC-WITHOUT
SUDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT&VSC-WITHOUT
SYRIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT&VSC-WITHOUT
EXHAUST EMISSION CONTROL-WITHOUT&VSC-WITHOUT
VSC-WITHOUT
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT&VSC-WITHOUT
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)&VSC-WITHOUT
PERU SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)&VSC-WITHOUT
47311AWAY(FOR FRONT BRAKE TUBE)
47311BWAY, NO.1(FOR FRONT BRAKE TUBE)
47312EWAY, NO.2(FOR FRONT BRAKE TUBE)
47313TUBE, FRONT BRAKE, NO.3
main47313-KK010iGUN125,135,TGN110..L..(IDN,TH);GUN112,120,121,122,126,TGN121..(L,S)..TH202108-202301
VSC-WITHOUT
main47313-KK030iGUN125..RHD..(ARL,GEN,TH);GUN126,135..RHD..THP..(H,S);GUN112,122,13#,TGN121..RHD..(ARL,GEN,IDN)202108-202301
VSC-W(*HSAC & *TSC)
SUDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT&VSC-WITHOUT
SYRIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT&VSC-WITHOUT
EXHAUST EMISSION CONTROL-WITHOUT&VSC-WITHOUT
VSC-WITHOUT
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT&VSC-WITHOUT
BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)&VSC-WITHOUT
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)&VSC-WITHOUT
PERU SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)&VSC-WITHOUT
VSC-W(*HSAC & *TSC)
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47314TUBE, FRONT BRAKE, NO.4
47315TUBE, FRONT BRAKE, NO.5
VSC-WITHOUT
main47315-KK030iGUN125..RHD..(ARL,GEN,TH);GUN126,135..RHD..THP..(H,S);GUN112,122,13#,TGN121..RHD..(ARL,GEN,IDN)202108-202301
VSC-W(*HSAC & *TSC)
SYRIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT&VSC-WITHOUT
EXHAUST EMISSION CONTROL-WITHOUT&VSC-WITHOUT
VSC-WITHOUT
SUDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT&VSC-WITHOUT
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT&VSC-WITHOUT
BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)&VSC-WITHOUT
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)&VSC-WITHOUT
PERU SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)&VSC-WITHOUT
main47315-KK060iGUN125..XTR..GEN;GUN122..LHD..(GCC,GEN);GUN11#,125,126,135,TGN11#,12#..THP..(GCC,LA)202108-202301
VSC-W(*HSAC & *TSC)
47316TUBE, FRONT BRAKE, NO.6
47317TUBE, FRONT BRAKE, NO.7
VSC-WITHOUT
VSC-W(*HSAC & *TSC)
VSC-WITHOUT
SUDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT&VSC-WITHOUT
SYRIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT&VSC-WITHOUT
EXHAUST EMISSION CONTROL-WITHOUT&VSC-WITHOUT
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT&VSC-WITHOUT
BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)&VSC-WITHOUT
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)&VSC-WITHOUT
PERU SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)&VSC-WITHOUT
main47321-KK040iGUN125..XTR..GEN;GUN122..LHD..(GCC,GEN);GUN11#,125,126,135,TGN11#,12#..THP..(GCC,LA)202108-202301
VSC-W(*HSAC & *TSC)
47318TUBE, FRONT BRAKE, NO.8
main47322-KK010iGUN125..RHD..(ARL,GEN,TH);GUN126,135..RHD..THP..(H,S);GUN112,122,13#,TGN121..RHD..(ARL,GEN,IDN)202108-202301
VSC-W(*HSAC & *TSC)
main47322-KK020iGUN125,135,TGN110..L..(IDN,TH);GUN112,120,121,122,126,TGN121..(L,S)..TH202108-202301
VSC-WITHOUT
main47322-KK040iGUN125..XTR..GEN;GUN122..LHD..(GCC,GEN);GUN11#,125,126,135,TGN11#,12#..THP..(GCC,LA)202108-202301
VSC-W(*HSAC & *TSC)
EXHAUST EMISSION CONTROL-WITHOUT&VSC-WITHOUT
SUDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT&VSC-WITHOUT
SYRIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT&VSC-WITHOUT
VSC-WITHOUT
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT&VSC-WITHOUT
BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)&VSC-WITHOUT
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)&VSC-WITHOUT
PERU SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)&VSC-WITHOUT
47319TUBE, FRONT BRAKE, NO.9
sub47323-KK180
sub47323-KK190
VSC-W(*HSAC & *TSC)
SUDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT&VSC-WITHOUT
SYRIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT&VSC-WITHOUT
EXHAUST EMISSION CONTROL-WITHOUT&VSC-WITHOUT
VSC-WITHOUT
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT&VSC-WITHOUT
BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)&VSC-WITHOUT
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)&VSC-WITHOUT
PERU SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)&VSC-WITHOUT
47321BHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
NO.1:REFER ILLUST.
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.2:REFER ILLUST.
47324TUBE, REAR BRAKE, NO.4
47325TUBE, REAR BRAKE, NO.5
47327TUBE, REAR BRAKE, NO.7
47328TUBE, REAR BRAKE, NO.8
47353ABRACKET, FLEXIBLE HOSE, FRONT RH NO.2
47354ABRACKET, FLEXIBLE HOSE, FRONT LH NO.2
47355ABRACKET, FLEXIBLE HOSE, NO.5
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
47356BRACKET, FLEXIBLE HOSE, NO.6
47371ACLAMP, BRAKE TUBE, NO.1
47371BCLAMP, BRAKE TUBE, NO.6
47371DCLAMP, BRAKE TUBE, NO.8
47371ECLAMP, BRAKE TUBE, NO.9
47372CLAMP, BRAKE TUBE, NO.2
VSC-W(*HSAC & *TSC)
SUDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT&VSC-WITHOUT
SYRIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT&VSC-WITHOUT
EXHAUST EMISSION CONTROL-WITHOUT&VSC-WITHOUT
VSC-WITHOUT
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT&VSC-WITHOUT
BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)&VSC-WITHOUT
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)&VSC-WITHOUT
PERU SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)&VSC-WITHOUT
47373BCLAMP, BRAKE TUBE, NO.3
47374BCLAMP, BRAKE TUBE, NO.4
47375CLAMP, BRAKE TUBE, NO.5
VSC-W(*HSAC & *TSC)
VSC-WITHOUT
7751
9011908868
main90119-08868
90119T0126
main90119-T0126
90119T0319
main90119-T0319
90119T0423
main90119-T0423
90468T0004
main90468-T0004
39 parts on this diagram · 14 diagrams in section
