FRONT AXLE HUB

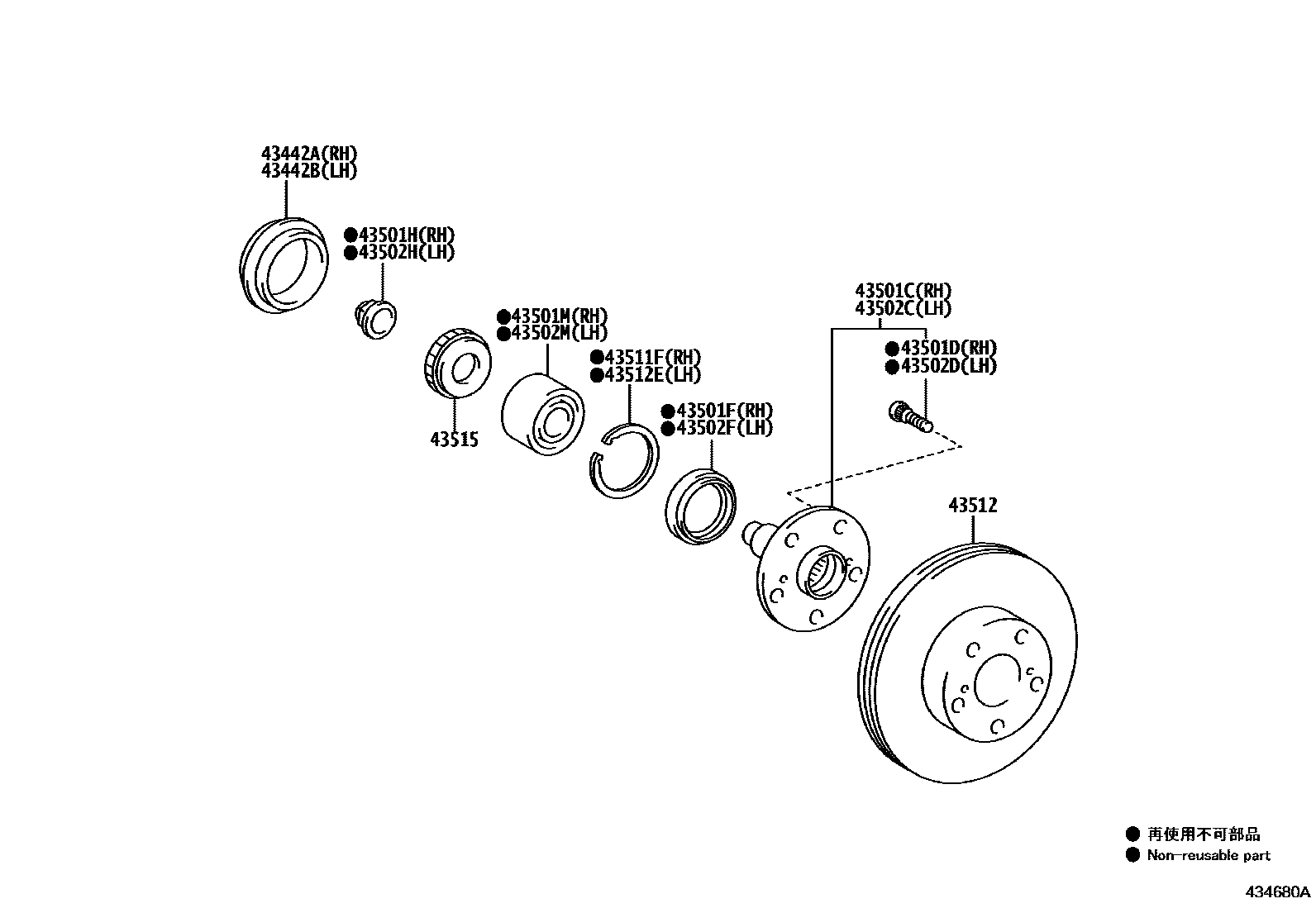

Parts diagram

43442ACAP, KNUCKLE GREASE RETAINER, INNER, RH

main43442-0K010i202108-202301

43442BCAP, KNUCKLE GREASE RETAINER, INNER, LH

main43442-0K010i202108-202303

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-KK010i202108-202301

main43502-KK020i202108-202207

main43502-KK030i202108-202301

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02081×6supersedes 90942-02049i202108-202207

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90311-T0090i202108-202207

main90312-T0001i202108-202301

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90178-T0113i202108-202210

main90179-24010i202108-202207

43501MBEARING (FOR FRONT AXLE HUB INNER RH)

main90080-36205i202109-202301

main90366-F0002i202109-202303

main90366-T0007i202108-202301

main90366-T0061i202108-202210

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-KK010i202108-202301

main43502-KK020i202108-202303

main43502-KK030i202108-202207

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02081×6i202108-202207

TYPE A:REFER ILLUST.

main90942-02082×6i202108-202109

BOLIVIA URUGUAY SPEC,TYPE B:REFER ILLUST.

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90311-T0090i202108-202207

main90312-T0001i202108-202303

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90178-T0113i202108-202208

main90179-24010i202108-202207

43502MBEARING (FOR FRONT AXLE HUB INNER LH)

main90080-36205i202109-202301

main90366-F0002i202109-202303

main90366-T0007i202108-202301

main90366-T0061i202108-202301

43511FRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-T0003i202108-202301

43512DISC, FRONT

main43512-0K071×2i202109-202303

main43512-0K160×2i202108-202207

VSC-WITHOUT

main43512-0K230×2i202108-202301

main43512-0K270×2i202108-202207

BOLIVIA URUGUAY SPEC

main43512-0K280×2i202111-202210

main43512-0K290×2supersedes 43512-0K240i202108-202207

COLOMBIA SPEC&VSC-W(*HSAC & *TSC)&TIRE & DISC WHEEL-215/65R16C ALUMINUM

main43512-0K330×2i202109-202303

main43512-0K060×2i202108-202207

VSC-WITHOUT&TIRE & DISC WHEEL-205R16C STEEL

43512ERING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-T0003i202108-202207

43515ROTOR, SKID CONTROL, FRONT

main43515-0K010×2i202108-202207

16 parts on this diagram · 3 diagrams in section
