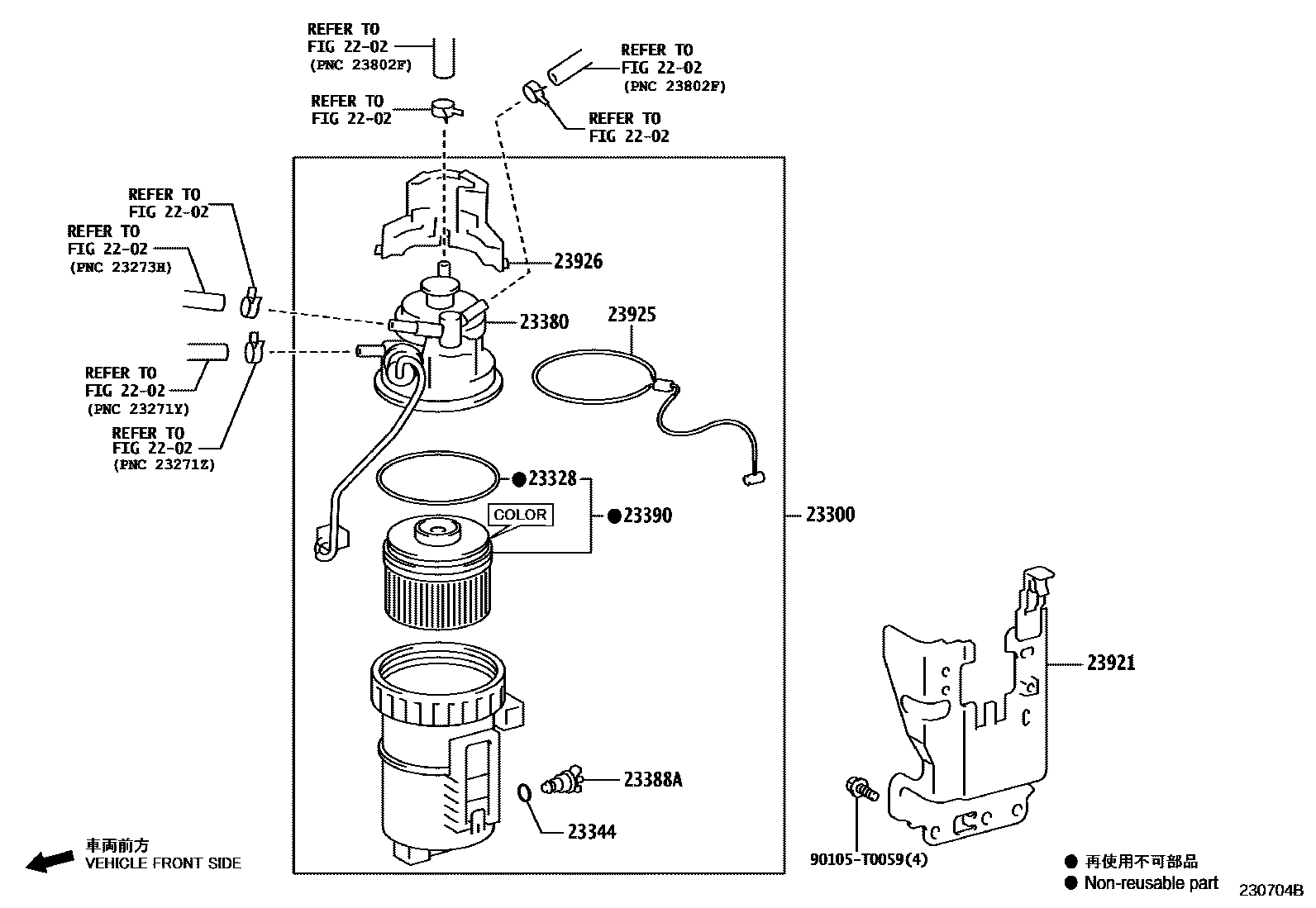

FUEL FILTER

0001 1FUEL FILTER 0002 1PRESSURIZED FUEL FILTER 0004 1

2202

23300FILTER ASSY, FUEL

main23300-0L101i1GDFTV,2GDFTV..GUN112,12#,13#..ARL,TH202108-202301

main23300-0L111i1GDFTV,2GDFTV..GUN11#,122,125,126,135..GCC,GEN,IDN,LA,MA,PH202108-202111

sub23300-0L112¥12,500

main23300-0L112i5LE..LAN125¥12,500202111-202303

23328GASKET(FOR FUEL FILTER)

main23344-0L070i5LE..LAN125¥270202108-202303

23344GASKET, CLAMPING NUT(FOR FUEL FILTER)

main23344-0L041i1GDFTV,2GDFTV..GUN11#,12#,13#..THP¥340202108-202303

23380CAP ASSY, FUEL FILTER

main23380-0L091i2GDFTV..GUN125,135..BZAG¥4,560202108-202301

main23380-0L111i1GDFTV..GUN126..AGTP;2GDFTV..GUN125,135..AGTP..LA202108-202303

23388APLUG, FUEL FILTER DRAIN

main23388-0L041i2GDFTV..GUN125..MA¥390202108-202303

23390ELEMENT ASSY, FUEL FILTER

main23390-0L070i1GDFTV,2GDFTV..GUN112,12#,13#..ARL,TH¥5,700202108-202301

main23390-0L070i1GDFTV,2GDFTV..GUN11#,122,125,126,135..GCC,GEN,IDN,LA,MA,PH¥5,700202108-202111

COLOR = YELLOW

main23390-0L100i1GDFTV,2GDFTV..GUN122,126..PKN¥5,700202111-202303

COLOR = PURPLE

23921SUPPORT, FUEL FILTER

main23921-0L130i1GDFTV,2GDFTV..GUN11#,12#,13#..THP202108-202303

23925STAY, FUEL FILTER SUPPORT

main23925-0L020i1GDFTV,2GDFTV..GUN11#,12#,13#..THP¥280202108-202303

23926STAY, FUEL FILTER SUPPORT, NO.2

main23926-0L020i1GDFTV,2GDFTV..GUN11#,12#,13#..THP¥1,680202108-202303

90105T0059

main90105-T0059

11 parts on this diagram · 3 diagrams in section
