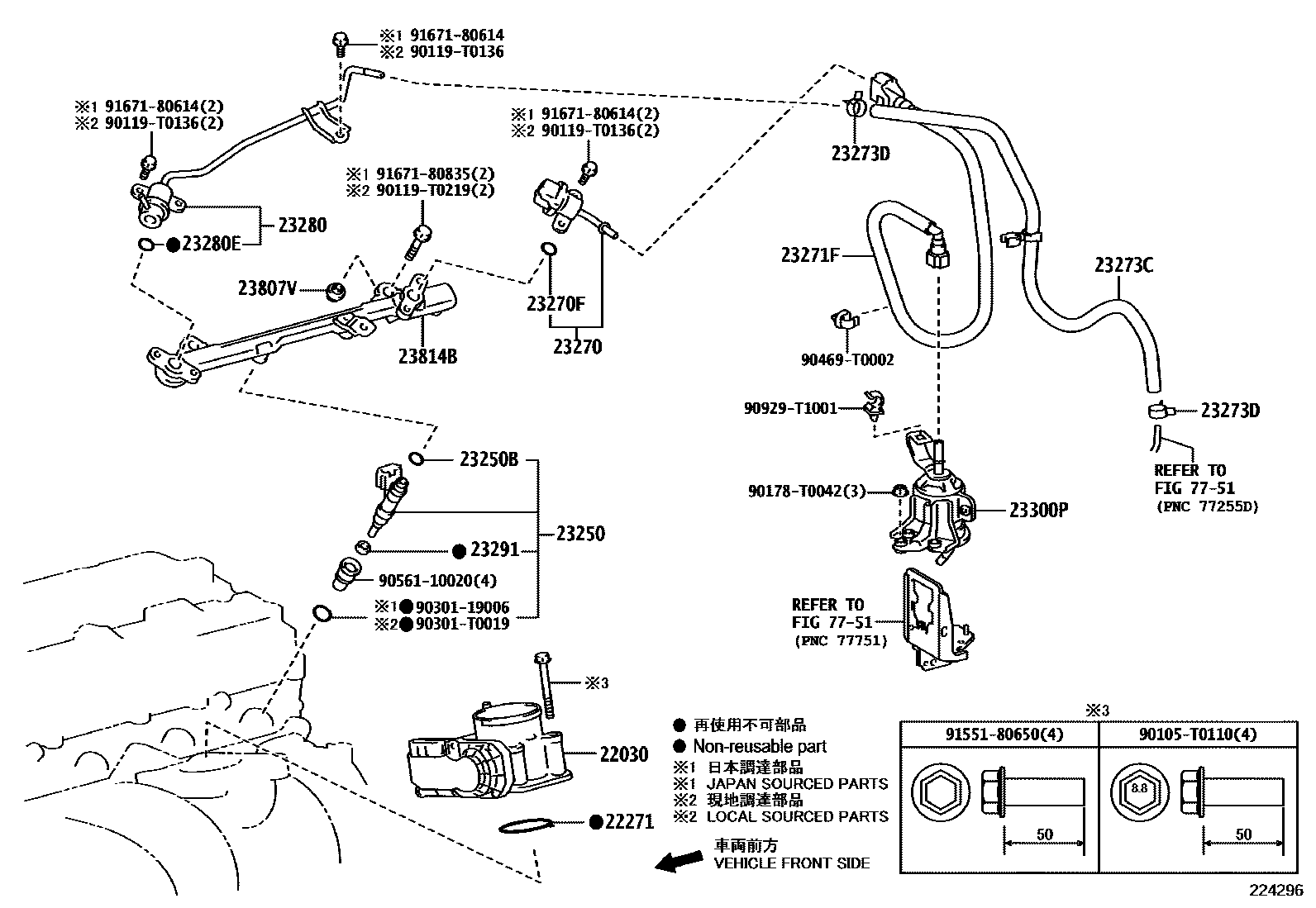

FUEL INJECTION SYSTEM

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0C030i2TRFE..TGN126,136..AGTP202108-202210

(L)

main22030-0C050i1TRFE..TGN110..IDN202108-202207

main22030-0C060i2TRFE..TGN121..TH202108-202207

main22030-0T120i1TRFE..TGN110,120..GCC202108-202207

(L)

main22030-37050i1TRFE..TGN110,120..GCC202108-202207

(J)

main22030-75040i2TRFE..TGN111,121,126..THP..(ARL,GCC,GEN,LA)202108-202207

(J)

22271GASKET, THROTTLE BODY

main22271-0C021i2TRFE..TGN111,121,126..THP202108-202207

main22271-37010i1TRFE..TGN120..SA202108-202301

23250INJECTOR ASSY, FUEL

main23209-09300×4i1TRFE..TGN120..SA202108-202301

IDN SOURCED PARTS

main23209-09310×4i1TRFE..TGN110,120..THP202108-202207

THA SOURCED PARTS

main23209-09320×4i2TRFE..TGN121,136..PKN,SA202108-202301

(L)

main23209-79215×4i2TRFE..TGN111,121,126..THP202108-202207

(J)

main23209-79225×4i1TRFE..TGN110,120..THP202108-202207

JAPAN SOURCED PARTS

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4i2TRFE..TGN111,121,126..THP202108-202207

(J)

main90301-07042×4i1TRFE..TGN120..SA202108-202301

main90301-T0051×4i2TRFE..TGN111,121,126..THP202108-202207

(L)

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-75050i1TRFE,2TRFE..TGN11#,12#..THP202108-202207

23270FRING, O(FOR PULSATION DAMPER)

main90301-07037i1TRFE,2TRFE..TGN11#,12#..THP202108-202207

23271FHOSE, FUEL

main23271-0C071i1TRFE,2TRFE..TGN11#,12#..THP202108-202207

23273CHOSE, FUEL, NO.2

main23273-0C171i2TRFE..TGN126,136..AGTP202108-202210

23273DCLIP(FOR FUEL HOSE NO.2)

main90466-T0040×2i1TRFE,2TRFE..TGN11#,12#..THP202108-202207

23280REGULATOR ASSY, FUEL PRESSURE

main23280-75100i1TRFE,2TRFE..TGN11#,12#..THP202108-202207

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07037i1TRFE,2TRFE..TGN11#,12#..THP202108-202207

23291INSULATOR, INJECTOR VIBRATION

main23291-0C010×4i2TRFE..TGN126,136..AGTP202108-202210

THA SOURCED PARTS

main23291-0C020×4i1TRFE,2TRFE..TGN120,121,136..PKN,SA202108-202301

IDN SOURCED PARTS

main23291-73010×4i1TRFE,2TRFE..TGN11#,12#..THP202108-202207

JAPAN SOURCED PARTS

23300PFILTER, FUEL(FOR EFI)

main23300-75140i2TRFE..TGN126,136..AGTP202108-202210

main23300-75160i1TRFE..TGN110..IDN202108-202207

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-0C010×2i1TRFE,2TRFE..TGN11#,12#..THP..(GCC,GEN,LA,TH)202204-202207

(L)

main23891-75020×2i1TRFE,2TRFE..TGN12#,136..AGTP,PKNP,SAP202108-202204

23814BPIPE, FUEL DELIVERY

main23814-0C030i1TRFE,2TRFE..TGN11#,12#..THP202108-202207

(L)

main23814-75110i2TRFE..TGN126,136..AGTP202108-202210

(J)

7751

90105T0110

main90105-T0110

90119T0136

main90119-T0136

90119T0219

main90119-T0219

90178T0042

main90178-T0042

9030119006

main90301-19006

90301T0019

main90301-T0019

90469T0002

main90469-T0002

9056110020

main90561-10020

90929T1001

main90929-T1001

9155180650

main91551-80650

9167180614

main91671-80614

9167180835

main91671-80835

28 parts on this diagram · 1 diagram in section
