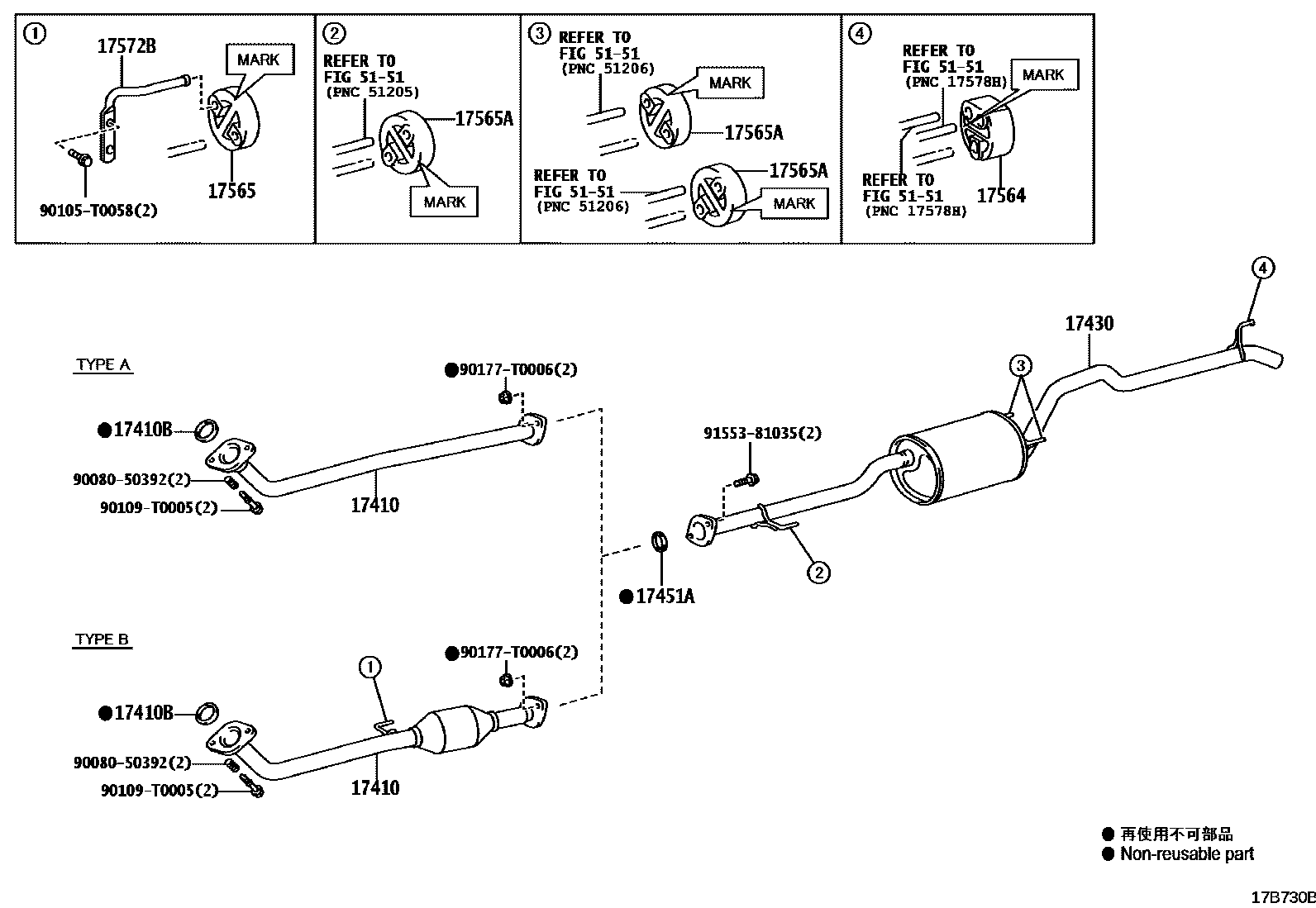

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
sub17401-05111
ECUADOR SPEC
COLOMBIA SPEC
SUDAN SPEC
AFRICA SPEC
SYRIA SPEC
CENTRAL AND SOUTH AMERICA SPEC
BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),TYPEA:REFER ILLUST.
main17401-0L180i2GDFTV..GUN122..LHD..L..GEN;2GDFTV..GUN125..THP..(GCC,LA,TH);1GDFTV,2GDFTV..GUN11#,120,121,122,126,135..GCC,PH,TH202108-202207
TYPE A:REFER ILLUST.
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.
EXHAUST EMISSION CONTROL-TIER1.5,TYPE A:REFER ILLUST.
PERU SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
BOLIVIA URUGUAY SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),TYPEA:REFER ILLUST.
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
SUDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT,TYPE B:REFER ILLUST.
CENTRAL AND SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,TYPE B:REFER ILLUST.
JORDAN SPEC&EXHAUST EMISSION CONTROL-WITHOUT,TYPE B:REFER ILLUST.
SYRIA SPEC&EXHAUST EMISSION CONTROL-WITHOUT,TYPE B:REFER ILLUST.
ASEAN GENERAL SPEC&EXHAUST EMISSION CONTROL-WITHOUT,TYPE B:REFER ILLUST.
CAMBODIA SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),TYPE B:REFER ILLUST.
IRAQ SPEC&EXHAUST EMISSION CONTROL-WITHOUT,TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
main17401-0L260i2GDFTV..GUN122..S..GEN;2GDFTV..GUN135..THP..LA;2GDFTV..GUN125..6F..(GEN,IDN);2GDFTV..GUN112,122..RHD..(GEN,IDN)202108-202207
EGYPT SPEC&EXHAUST EMISSION CONTROL-WITHOUT,TYPE B:REFER ILLUST.
17410BGASKET, EXHAUST PIPE
17430PIPE ASSY, EXHAUST, TAIL
OCEANIA(EURO 5)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
17451GASKET, EXHAUST PIPE
17451AGASKET, EXHAUST PIPE, NO.2
17564SUPPORT,EXHAUST PIPE, NO.4
MARK:17565-0L100
MARK:17565-0L110
MARK:17565-0L120
MARK:17565-0L130
17565SUPPORT, EXHAUST PIPE, NO.5
main17565-0L070i2GDFTV..GUN122..S..GEN;2GDFTV..GUN135..THP..LA;1TRFE,2TRFE..TGN11#,12#..THP;2GDFTV..GUN125..6F..(GEN,IDN);2GDFTV..GUN112,122..RHD..(GEN,IDN)202108-202207
EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),MARK:17565-0L070
main17565-0L070i2GDFTV..GUN122..S..GEN;2GDFTV..GUN135..THP..LA;1TRFE,2TRFE..TGN11#,12#..THP;2GDFTV..GUN125..6F..(GEN,IDN);2GDFTV..GUN112,122..RHD..(GEN,IDN)202108-202303
MARK:17565-0L070
main17565-0L070i2GDFTV..GUN122..S..GEN;2GDFTV..GUN135..THP..LA;1TRFE,2TRFE..TGN11#,12#..THP;2GDFTV..GUN125..6F..(GEN,IDN);2GDFTV..GUN112,122..RHD..(GEN,IDN)202108-202210
EXHAUST EMISSION CONTROL-WITHOUT,MARK:17565-0L070
MARK:17565-0L080
MARK:17565-0L090
EXHAUST EMISSION CONTROL-WITHOUT,MARK:17565-0L090
main17565-0L090i2GDFTV..GUN122..S..GCC;2GDFTV..GUN125..THP..LA;2GDFTV..GUN112,122..LHD..L..(GCC,GEN)202108-202207
EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),MARK:17565-0L090
main17565-0P240i2GDFTV..GUN122..S..GCC;2GDFTV..GUN125..THP..LA;2GDFTV..GUN112,122..LHD..L..(GCC,GEN)202108-202207
EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),NO MARK
main17565-0P240i2GDFTV..GUN122..S..GEN;2GDFTV..GUN135..THP..LA;1TRFE,2TRFE..TGN11#,12#..THP;2GDFTV..GUN125..6F..(GEN,IDN);2GDFTV..GUN112,122..RHD..(GEN,IDN)202108-202303
NO MARK
main17565-0P240i2GDFTV..GUN122..S..GEN;2GDFTV..GUN135..THP..LA;1TRFE,2TRFE..TGN11#,12#..THP;2GDFTV..GUN125..6F..(GEN,IDN);2GDFTV..GUN112,122..RHD..(GEN,IDN)202108-202210
EXHAUST EMISSION CONTROL-WITHOUT,NO MARK
17565ASUPPORT, EXHAUST PIPE, NO.4
MARK:17565-0L070
MARK:17565-0L080
main17565-0L090i1GDFTV,2GDFTV,5LE,1TRFE,2TRFE..GUN122,125,126,13#,LAN125,TGN120,121,136..KEN,SA202108-202303
MARK:17565-0L090
NO MARK
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
main17572-0L030i2GDFTV..GUN122..S..GEN;2GDFTV..GUN135..THP..LA;2GDFTV..GUN125..6F..(GEN,IDN);2GDFTV..GUN112,122..RHD..(GEN,IDN)202108-202210
EXHAUST EMISSION CONTROL-WITHOUT
main17572-0L030i2GDFTV..GUN122..S..GEN;2GDFTV..GUN135..THP..LA;2GDFTV..GUN125..6F..(GEN,IDN);2GDFTV..GUN112,122..RHD..(GEN,IDN)202108-202207
EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS)
5151
9008050392
main90080-50392
90105T0058
main90105-T0058
90109T0005
main90109-T0005
90177T0006
main90177-T0006
9155381035
main91553-81035
16 parts on this diagram · 4 diagrams in section
