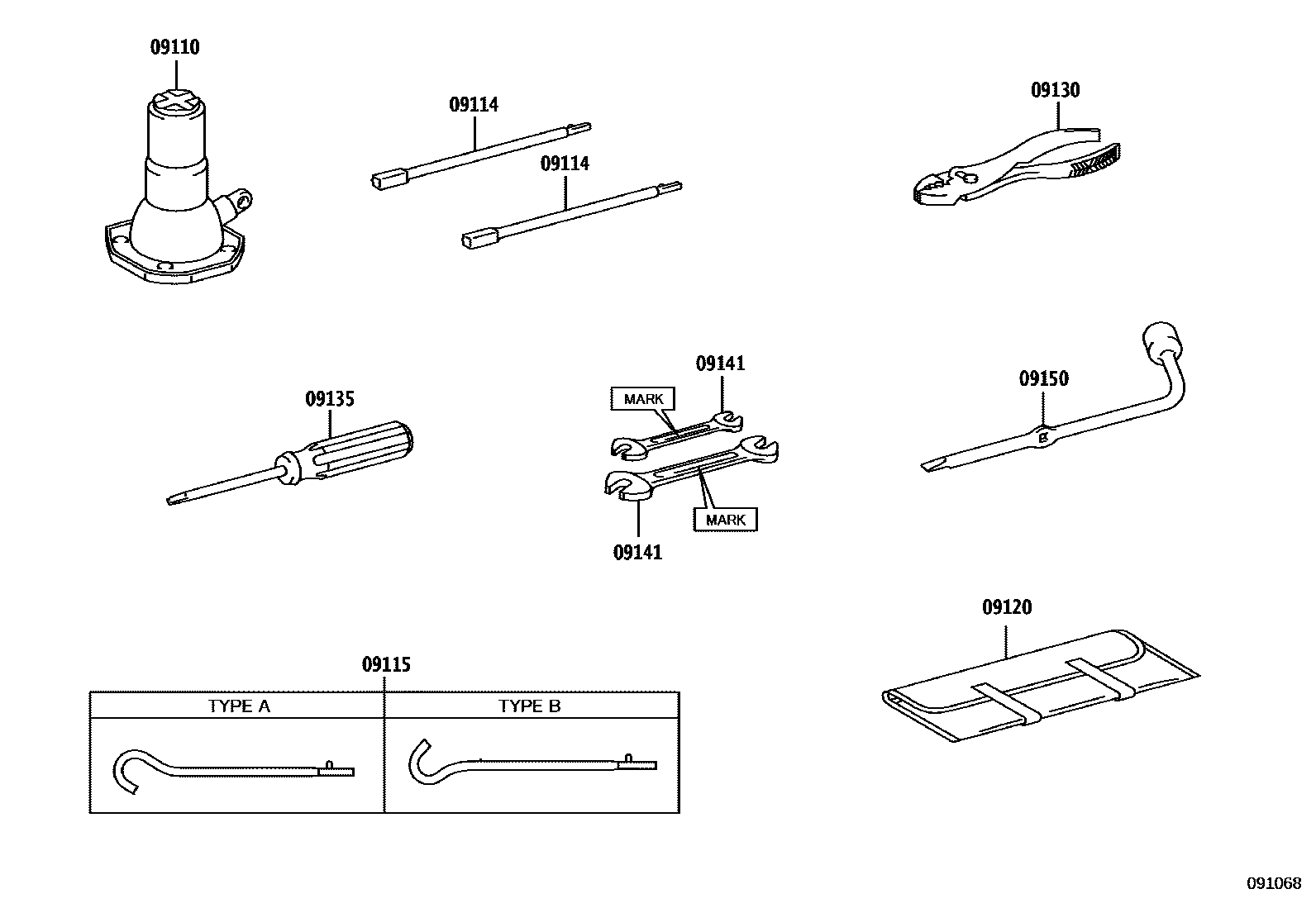

STANDARD TOOL

09110JACK ASSY

main09111-0K131iGUN125,126,135,TGN126,136..AGTP202111-202210

main09111-0K151iGUN11#,120,121,122,TGN11#,120,121..THP202108-202301

main09111-0K161iGUN125,126,13#,LAN125,TGN126,136..KENP,MAP,SAP,THP¥5,500202108-202112

sub09111-0K162¥5,500

main09111-0K162iGUN125..MA¥5,500202201-202303

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-0K150iGUN125..MA¥660202108-202208

main09114-0K150iGUN125,126,135,TGN126,136..AGTP¥660202111-202210

PNC 09115=TYPE B

main09114-0K170iGUN125,126,135,TGN126,136..AGTP202111-202210

PNC 09115=TYPE A

main09114-0K190iGUN122,125,126,13#,LAN125,TGN120,121,136..KEN,SA202109-202303

main09114-0K330iGUN122,126,TGN121..PKN202202-202301

09115ROD SUB-ASSY, JACK HANDLE

main09115-0K170iGUN125..MA¥1,140202108-202210

TYPE B:REFER ILLUST.

main09115-0K180iGUN125,126,135,TGN126,136..AGTP202111-202210

TYPE A:REFER ILLUST.

main09115-0K190iGUN122,125,126,13#,LAN125,TGN120,121,136..KEN,SA202109-202303

main09115-0K300iGUN122,126,TGN121..PKN202202-202301

09120BAG, TOOL

main09120-0K120iGUN122,126,TGN121..PKN202202-202301

main09120-0K200iGUN125,126,135,TGN126,136..AGTP202111-202210

PNC 09115=TYPE A

main09120-0K240iGUN125..MA¥1,180202108-202208

main09120-0K240iGUN125,126,135,TGN126,136..AGTP¥1,180202111-202210

PNC 09115=TYPE B

main09120-0K320iGUN122,125,126,13#,LAN125,TGN120,121,136..KEN,SA202109-202303

09130PLIERS

main90080-99020iGUN125,126,135,TGN126,136..AGTP..LA202111-202210

PNC 09115=TYPE A

main90089-99010iGUN125..MA¥440202108-202301

main90089-99010iGUN125,126,135,TGN126,136..AGTP..LA¥440202111-202210

PNC 09115=TYPE B

09135DRIVER, SCREW

main09135-0K070iGUN125,126,135,TGN126,136..AGTP202111-202210

PNC 09115=TYPE A

main90089-99009iGUN125,126,135,TGN126,136..AGTP¥500202111-202210

PNC 09115=TYPE B

main90089-99009iGUN11#,12#,13#,TGN11#,12#..THP¥500202108-202303

09141SPANNER

main09141-0K030iGUN11#,12#,13#,TGN11#,12#..THP¥530202108-202303

8 X 10

main09141-0K030iGUN125,126,135,TGN126,136..AGTP¥530202111-202210

8 X 10,MARK = ATC

main09141-0K040iGUN122,125,126,13#,LAN125,TGN120,121,136..KEN,SA¥800202108-202303

12 X 14

main09141-0K040iGUN125,126,135,TGN126,136..AGTP¥800202111-202210

12 X 14,MARK = ATC

main09141-0K110iGUN125,126,135,TGN126,136..AGTP202111-202210

12 X 14,MARK = TOYOTA

main09141-0K120iGUN125,126,135,TGN126,136..AGTP202111-202210

8 X 10,MARK = TOYOTA

main90089-99006iGUN122,126,TGN121..PKN¥440202202-202301

8 X 10

main90089-99007iGUN122,126,TGN121..PKN¥260202202-202301

12 X 14

09150WRENCH, HUB NUT BOX

main09150-0B050iGUN122,125,126,13#,LAN125,TGN120,121,136..KEN,SA202109-202303

main09150-0K010iGUN125..MA¥1,300202108-202208

main09150-0K010iGUN125,126,135,TGN126,136..AGTP¥1,300202111-202210

PNC 09115=TYPE B

main09150-0K030iGUN125,126,135,TGN126,136..AGTP202111-202210

PNC 09115=TYPE A

main09150-0K070iGUN122,126,TGN121..PKN202202-202301

8 parts on this diagram · 1 diagram in section
