ANTENNA
86101CORD SUB-ASSY, ANTENNA
AUDIO-*DA(8INCH) & *BT
AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
main86101-0K861iGUN126..AD..LA;TGN126,136..AD,AS;GUN125..(AD,AS)..L;GUN126,135..L..BZAG;GUN135..(AD,AS)..6F..LA;GUN125,136..AD..(H,S)..LA;GUN126,135,TGN138..6FC..S..BZAG202011-202110
AUDIO-AVN(8INCH) & *BT & DIGITAL TV
AUDIO-*DA(FOR EMERGING MARKET) & DAB
main86101-0KF31iGUN126..RHD..H..GEN;GUN126,135..RHD..(L,S)..(GEN,TH);GUN112,120,122,123,125,TGN110,121..RHD..(GEN,IDN,TH)202006-202108
ASIA COLD COUNTRY SPEC&AUDIO-*DA(8INCH) & *BT
AUDIO-*DA(8INCH) & *BT & ENTUNE
AUDIO-AVN(8INCH) & *BT & DAB & ENTUNE
main86101-0KJ91iGUN126..MA,PKN;GUN126,136..S..SA;GUN135..RHD..L..(KEN,SA);GUN125..RHD..(KD,KS,MD,MS,SX);GUN122,125,TGN120,121..RHD..(PS,SD,SS)..L202009-202201
AUDIO-*DA(8INCH) & *BT & DAB
AUDIO-*DA(8INCH) & *BT & DAB
AUDIO-*DA(8INCH) & *BT & DAB
AUDIO-*DA(FOR EMERGING MARKET) & DAB
86101JCORD SUB-ASSY, ANTENNA, NO.2
AUDIO-*DA(8INCH) & *BT & ENTUNE
AUDIO-*DA(8INCH) & *BT
AUDIO-AVN(8INCH) & *BT & DIGITAL TV
UAE SPEC&AUDIO-*DA(8INCH) & *BT & DAB
AUDIO-*DA(8INCH) & *BT & DAB
8620AANTENNA SUB-ASSY, DIGITAL TELEVISION, NO.1
AUDIO-AVN(8INCH) & *BT & DIGITAL TV
86300BANTENNA ASSY, AMPLIFIER, NO.1
ASIA COLD COUNTRY SPEC
FRONT PERSONAL LAMP-WITH(BULB TYPE) & WITH(ROOF CONSOLE BOX)
main86300-0K270iGUN122..PKN;GUN122..SA..IV3;GUN122..LHD..SS;GUN125,126,135,LAN125,TGN121..(KS,PS,SS)..L202009-202201
86309EPOLE SUB-ASSY, ROOF ANTENNA
ASIA COLD COUNTRY SPEC
86396NUT, ANTENNA
863C2BASE, DIGITAL AUDIO BROADCASTING ANTENNA
AUDIO-*DA(FOR EMERGING MARKET) & DAB
9011906915
main90119-06915
9011906A06
main90119-06A06
90119T0130
main90119-T0130

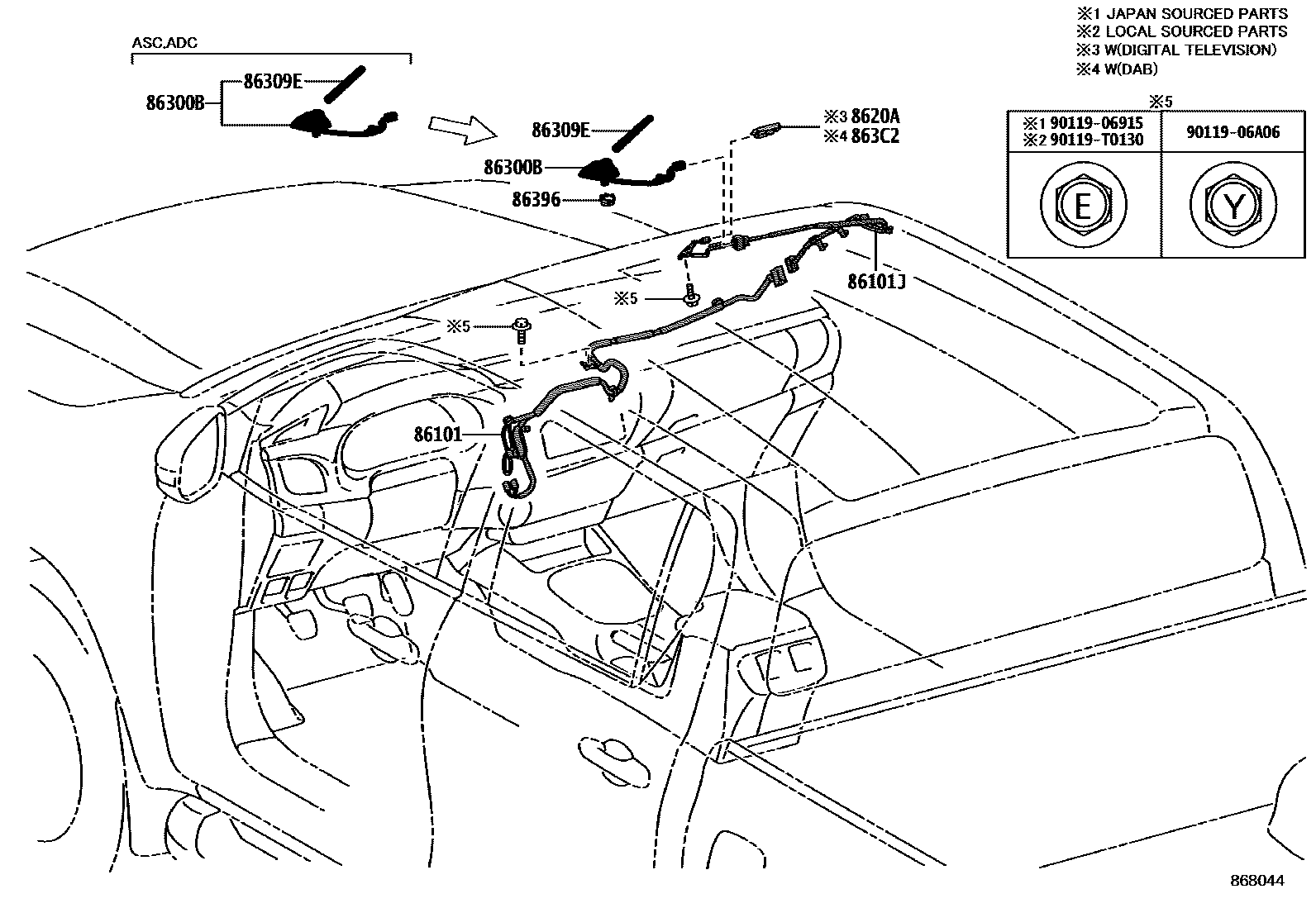

10 parts on this diagram · 1 diagram in section
