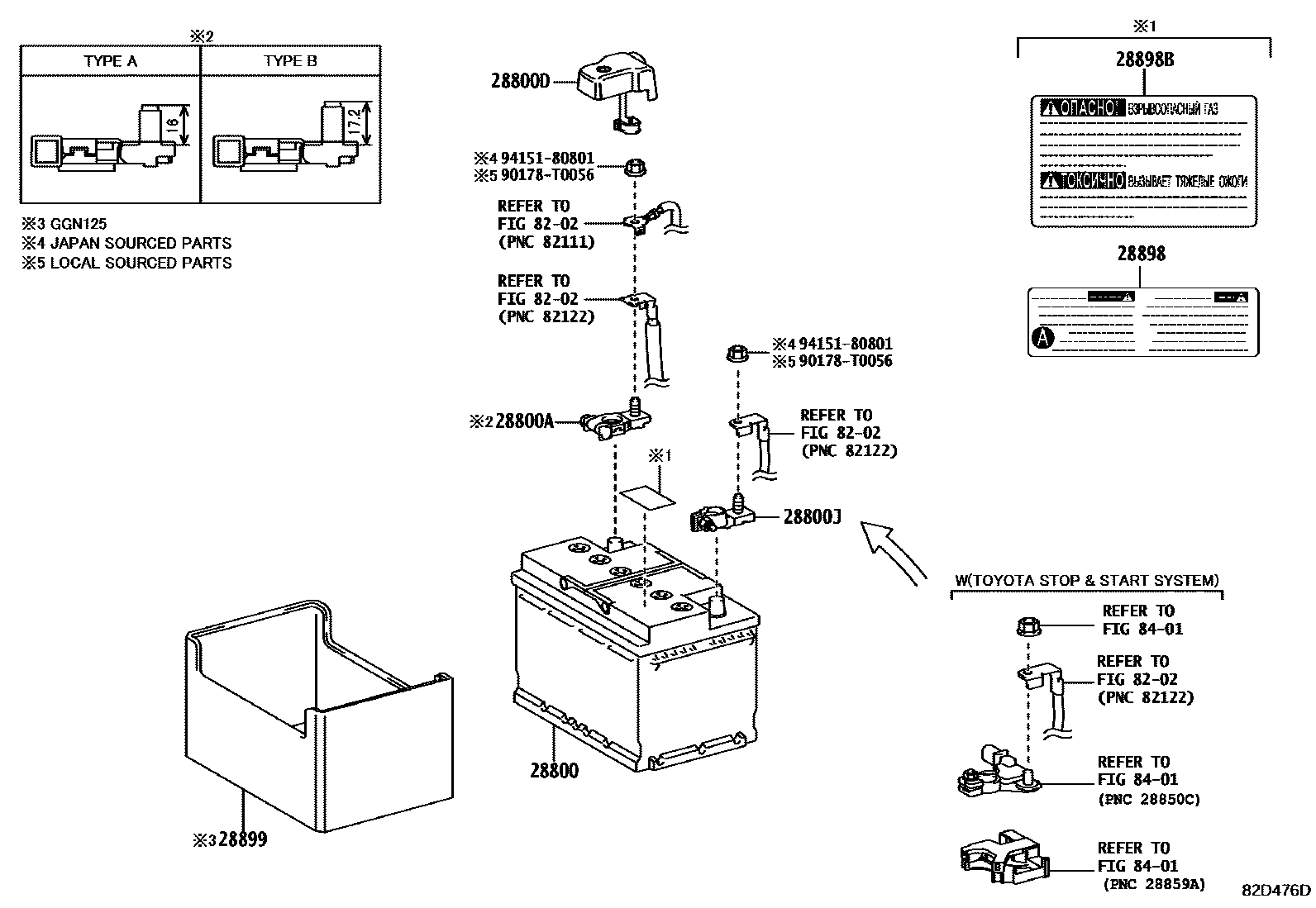

BATTERY & BATTERY CABLE

28800BATTERY

main28800-0C210i1TRFE..TGN110..IDN202006-202108

LN0

sub28800-0C211

main28800-0C240i2TRFE..TGN126..TD..S..LA;2TRFE..TGN126..(TD,TS)..5F..(H,L)..(GEN,LA);2TRFE..TGN121,136..(TD,TS)..(ARL,GEN,LA,TH)202006-202108

LN2,GS

sub28800-0C241

main28800-0C251i2TRFE..TGN126,128,13#..AD,AS202011-202110

LN2,JOHNSON CONTROLS

main28800-0C260i1TRFE,2TRFE..TGN120,121,126,136..SA202009-202109

LN2

sub28800-0C261

main28800-0C272i2TRFE..TGN126..S..LA;2TRFE..TGN121,136..ARL,GEN,LA,TH;2TRFE..TGN126..5F..(H,L)..(GEN,LA)202006-202007

LN2,FURUKAWA

main28800-0C273i2TRFE..TGN126..TD..S..LA;2TRFE..TGN126..(TD,TS)..5F..(H,L)..(GEN,LA);2TRFE..TGN121,136..(TD,TS)..(ARL,GEN,LA,TH)202007-202108

LN2,FURUKAWA

sub28800-0C274

main28800-0C280i2TRFE..TGN126,136..AD,AS202011-202110

LN2,UNION BATTERY

sub28800-0C281

main28800-0C360i1TRFE,2TRFE..TGN11#,120,121,126..5F..GCC202006-202108

LN0

sub28800-0C361

main28800-0L380i1GDFTV,2GDFTV,2TRFE..GUN122,126,TGN121..PKN202106-202201

80D26L

main28800-0L461i1G#,2GDFTV..GGN125,GUN125,126,13#..AD,AS202011-202110

LN3,JOHNSON CONTROLS

main28800-0L480i1G#,2GDFTV..GGN125,GUN122,125,126,13#..KEN,SA202009-202108

LN3

main28800-0L481i1GDFTV,2GDFTV..GUN125,126,135..GHA,KEN202109-202111

LN3

main28800-0L490i5LE..LAN125202009-202109

LN4

sub28800-0L491

main28800-0L502i2TRFE..TGN126..L..GEN202006-202007

LN3,ASIA COLD COUNTRY SPEC,FURUKAWA

main28800-0L503i1GDFTV..GUN126..MMD,TS,TX;2TRFE..TGN126..(H,S)..GEN;1GDFTV..GUN126..TD..6F..TH;1GDFTV..GUN126..TD..(ARL,GEN,LA,PH,TWN,VN);2GDFTV..GUN125..(TD,TX)..6FC..(ARL,GEN,IDN202007-202301

LN3,FURUKAWA

sub28800-0L504

main28800-0L510i2GDFTV..GUN125..LHD..L..GEN202006-202108

LN4,POWER SUPPLY PACKAGE,GS

sub28800-0L511

main28800-0L570supersedes 28800-0L520i1GDFTV..GUN126..MMD,TS,TX;2TRFE..TGN126..(H,S)..GEN;1GDFTV..GUN126..TD..6F..TH;1GDFTV..GUN126..TD..(ARL,GEN,LA,PH,TWN,VN);2GDFTV..GUN125..(TD,TX)..6FC..(ARL,GEN,IDN202006-202301

LN3,YUASA

sub28800-0L571

main28800-0L600i1GDFTV..GUN126..6FC..S..BZAG202011-202110

LN3,ARGENTINA SPEC,UNION BATTERY

sub28800-0L601

main28800-0L720i1G#,2GDFTV..GGN125,GUN112,122,125,126..GCC202006-202108

LN3

sub28800-0L721

main28800-0L730i2TRFE..TGN121,126..6FC..GCC202006-202108

LN2

sub28800-0L731

main28800-31460i1GDFTV,2GDFTV..GUN125,126..6FC..H..GCC202006-202108

LN4,TOYOTA STOP & START SYSTEM-WITH

sub28800-31461

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i1GDFTV,2GDFTV..GUN125,126..GHA202006-202111

TYPE A:REFER ILLUST.

main90982-05061i1G#,2GDFTV,5LE,1TRFE,2TRFE..GGN125,GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX202006-202301

TYPE B:REFER ILLUST.

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-33350i1GDFTV,2GDFTV..GUN125,126..GHA202006-202111

28800JTERMINAL, BATTERY NEGATIVE

main90982-06059i1G#,2GDFTV,2TRFE..GGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202006-202110

28898PLATE, BATTERY

main28897-36030i1G#,2GDFTV,1TRFE,2TRFE..GGN125,GUN112,122,125,126,TGN11#,120,121,126..GCC202006-202108

28898BPLATE, BATTERY

main28897-31040i2TRFE..TGN126..(H,S)..GEN202006-202108

28899INSULATOR, BATTERY

main28899-27020i1GRFE..GGN125202006-202110

8202

8401

90178T0056

main90178-T0056

9415180801

main94151-80801

11 parts on this diagram · 1 diagram in section
