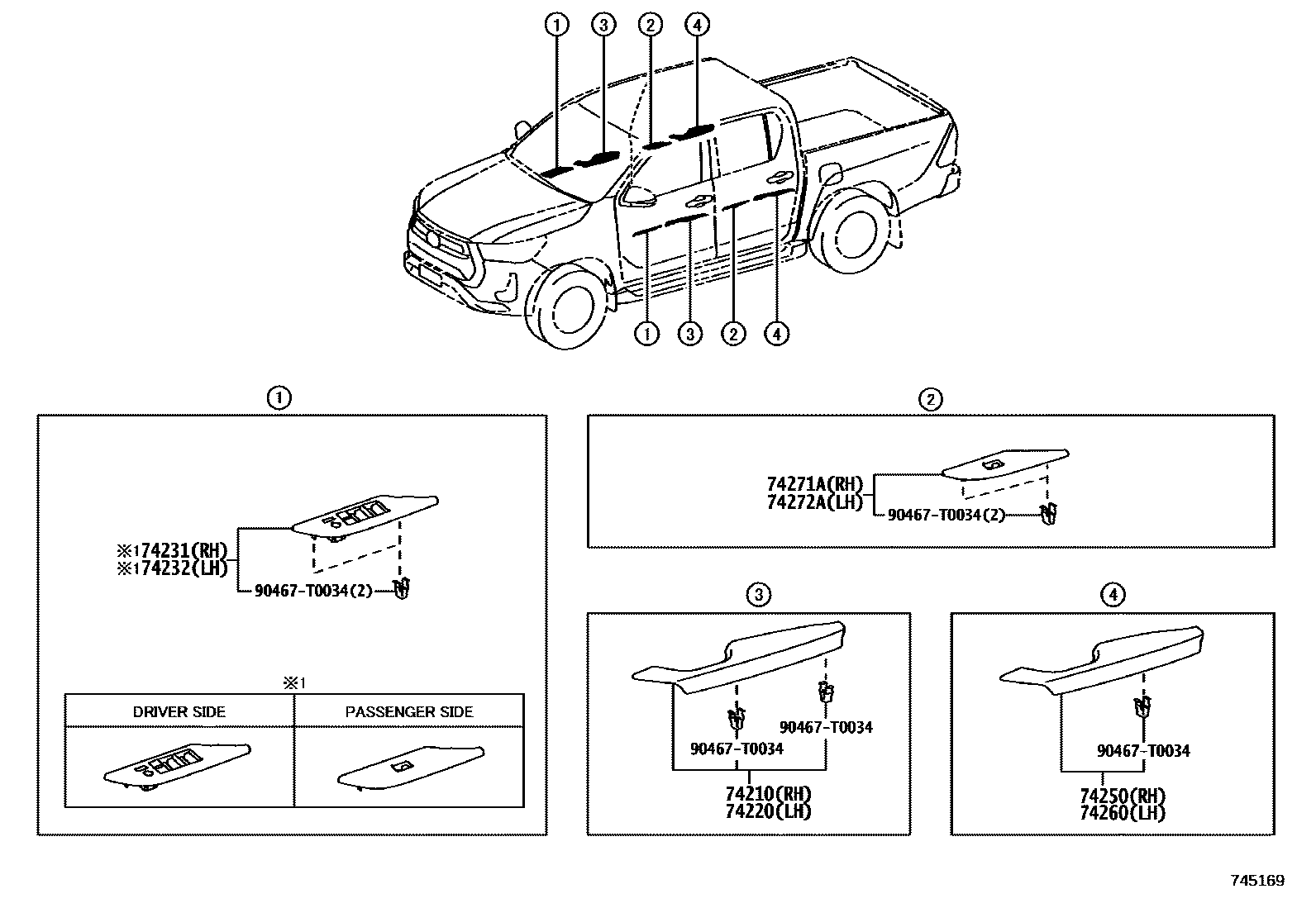

ARMREST & VISOR
74210ARMREST ASSY, FRONT, RH
main74210-0K010-C0iGUN112,122,125,126,135,TGN110,120,121,126..(PS,TS)..MTM..L..(GCC,GEN,IDN,LA,PH,PKN)202006-202201
BLACK,TRIM2#
main74210-0K020-C2iGUN126..L..TH;GUN125..TS..6FC;GUN112,122,125,TGN121..(MS,TS,TX)..(ARL,MA,TH);GUN120,123,13#,TGN111..(TS,TX)..(L,S)..(ARL,GCC,TH);GUN112,122,125,126,TGN121,126..(TS,202006-202110
BLACK,TRIM2#
MAROON,TRIM3#
main74210-0K050-C0iGUN135..TD..L..LA;GUN125,TGN126,136..TD..(5F,6FC)..L..(GCC,LA);GUN122,125,126,TGN120,121..(PD,TD)..MTM..L..(GCC,GEN,LA,PH,PKN)202006-202201
BLACK,TRIM2#
main74210-0K060-C3iGUN126..S..PKN;GUN126..6FC..GEN;GUN126..6F..S..GEN;GUN126..TD..6FC..L;GUN126..LHD..6F..H..GEN;GUN125,135..H..(GCC,PH);GUN125..RHD..TD..(H,S)..GEN;GUN135..TD..(H,S).202006-202201
BLACK,TRIM2#
MAROON,TRIM3#
main74210-0K080-C2iGUN125..LHD..TD..H..GEN;GUN126..RHD..6F..H..GEN;GUN125,126,135..(MD,MMD,TD)..H..(IDN,MA,MMR,TH,TWN,VN)202006-202301
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
main74210-0K230-C0iGUN125..KS;GUN125..SS..L;GUN135..(KS,SS)..L;GUN122,LAN125,TGN121..LHD..SS202009-202111
BLACK,TRIM2#
BLACK,TRIM2#
main74210-0K270-C3supersedes 74210-0K260-C0iGUN125..GD,KD;GUN126..(KD,SD)..6F;GUN125,126..(GD,SD)..6FC;GUN125..LHD..SD..6F..(H,S);GGN125,GUN13#,LAN125,TGN126,136..SD..(H,S)202009-202111
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH&POWERWINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
main74210-0K450-C0iGUN126..(SS,SX)..H;GUN125,135..RHD..(SS,SX)..S;GUN122,136,TGN120,136..RHD..(SS,SX)202009-202109
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR TRIM-LEATHER & PAINT(SILVER),BLACK,TRIM2#
74220ARMREST ASSY, FRONT, LH
main74220-0K010-C0iGUN112,122,125,126,135,TGN110,120,121,126..(PS,TS)..MTM..L..(GCC,GEN,IDN,LA,PH,PKN)202006-202201
BLACK,TRIM2#
main74220-0K020-C2iGUN126..L..TH;GUN125..TS..6FC;GUN112,122,125,TGN121..(MS,TS,TX)..(ARL,MA,TH);GUN120,123,13#,TGN111..(TS,TX)..(L,S)..(ARL,GCC,TH);GUN112,122,125,126,TGN121,126..(TS,202006-202110
BLACK,TRIM2#
MAROON,TRIM3#
main74220-0K050-C0iGUN135..TD..L..LA;GUN125,TGN126,136..TD..(5F,6FC)..L..(GCC,LA);GUN122,125,126,TGN120,121..(PD,TD)..MTM..L..(GCC,GEN,LA,PH,PKN)202006-202201
BLACK,TRIM2#
main74220-0K060-C3iGUN126..S..PKN;GUN126..6FC..GEN;GUN126..6F..S..GEN;GUN126..TD..6FC..L;GUN126..LHD..6F..H..GEN;GUN125,135..H..(GCC,PH);GUN125..RHD..TD..(H,S)..GEN;GUN135..TD..(H,S).202006-202201
BLACK,TRIM2#
MAROON,TRIM3#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
main74220-0K230-C0iGUN125..KS;GUN125..SS..L;GUN135..(KS,SS)..L;GUN122,LAN125,TGN121..LHD..SS202009-202111
BLACK,TRIM2#
BLACK,TRIM2#
main74220-0K270-C3supersedes 74220-0K260-C0iGUN125..GD,KD;GUN126..(KD,SD)..6F;GUN125,126..(GD,SD)..6FC;GUN125..LHD..SD..6F..(H,S);GGN125,GUN13#,LAN125,TGN126,136..SD..(H,S)202009-202111
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH&POWERWINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
main74220-0K450-C0iGUN126..(SS,SX)..H;GUN125,135..RHD..(SS,SX)..S;GUN122,136,TGN120,136..RHD..(SS,SX)202009-202109
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&DOOR TRIM-LEATHER & PAINT(SILVER),BLACK,TRIM2#
74231PANEL, FRONT ARMREST BASE, UPPER RH
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
main74231-0K611iGUN125,TGN126..TD..S..LA;GUN126..LHD..(MMD,TD)..(H,S);GUN135..TD..(H,S)..(GEN,LA,PH);GGN125,GUN122,125,136,TGN121,126..LHD..(TD,TX)..H202006-202301
main74231-0K620iGUN125..TS..6FC;GUN135..ARL..IV3;GUN126,136..(TS,TX)..(L,S);GUN112,120,122,123,125,TGN121..(MS,TS,TX)..L..(ARL,MA,TH)202006-202110
main74231-0K660iGUN126,136..TD..S..ARL;GUN125..TD..6FC..L..GEN;GUN126..RHD..6FC..S..GEN;GUN135..L..(ARL,GEN)..CBU;GUN122,125,TGN121..(MD,TD)..L..(ARL,IDN,MA,TH)202006-202110
DOOR TRIM-FABRIC & PAINT(SILVER)
main74231-0K720supersedes 74231-0K710iGUN126..H..BZAG;GUN126..6F..S..BZAG;GUN126..AD..(H,S)..LA;GGN125,GUN125,13#,TGN126,128,13#..AD..(H,S)202011-202110
DOOR TRIM-FABRIC & PAINT(SILVER)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
DOOR TRIM-LEATHER & PAINT(SILVER)
OUTSIDE REAR VIEW MIRROR-*273(*CR) & WITH(*SITL)
74232PANEL, FRONT ARMREST BASE, UPPER LH
OUTSIDE REAR VIEW MIRROR-*273(*CR) & WITH(*SITL)&DOOR TRIM-FABRIC & PAINT(SILVER)
main74232-0K600iGUN135..L..(ARL,GEN);GUN126..RHD..6FC..S..GEN;GUN125..TD..6F..(ARL,IDN);GUN126,136..(L,S)..(ARL,TH);GUN125..RHD..(TD,TS)..6FC..L;GUN112,120,122,123,TGN121..L..(ARL,202006-202110
DOOR TRIM-FABRIC & PAINT(SILVER)
main74232-0K651iGUN126..LHD..S..GEN;GUN135..LHD..(GEN,PH);GUN125,126,136,TGN126..LHD..(MMD,TD)..H..(GEN,LA,MMR,PH,TWN,VN)202006-202301
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
DOOR TRIM-FABRIC & PAINT(SILVER)
OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*SITL) & W(*FLA)
main74232-0K740supersedes 74232-0K730iGUN126..AD..S..LA;GUN126..6F..S..BZAG;GUN125,13#,TGN126,13#..AD..S202011-202110
DOOR TRIM-FABRIC & PAINT(SILVER)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&DOOR TRIM-FABRIC & PAINT(BLACK
main74232-0K790iGUN135..S..SA;GUN125..RHD..SS..S;GUN125..(KD,SX)..L;GUN125..RHD..SD..6FC;GUN122,126,136,TGN120,136..RHD..(L,S)..SA202009-202111
OUTSIDE REAR VIEW MIRROR-*273(*CR) & WITH(*SITL)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&DOOR TRIM-LEATHER & PAINT(SILV
OUTSIDE REAR VIEW MIRROR-*273(*CR) & WITH(*SITL)
DOOR TRIM-FABRIC & PAINT(SILVER)
74250ARMREST ASSY, REAR RH
main74250-0K010-C0iGUN135..TD..L..LA;GUN125,TGN126,136..TD..(5F,6FC)..L..(GCC,LA);GUN122,125,126,TGN120,121..(PD,TD)..MTM..L..(GCC,GEN,LA,PH,PKN)202006-202201
BLACK,TRIM2#
main74250-0K020-C3iGUN126..S..PKN;GUN126..6FC..GEN;GUN126..6F..S..GEN;GUN126..TD..6FC..L;GUN126..LHD..6F..H..GEN;GUN125,135..H..(GCC,PH);GUN125..RHD..TD..(H,S)..GEN;GUN135..TD..(H,S).202006-202201
BLACK,TRIM2#
MAROON,TRIM3#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
main74250-0K180-C3supersedes 74250-0K170-C0iGUN125..GD,KD;GUN126..(KD,SD)..6F;GUN125,126..(GD,SD)..6FC;GUN125..LHD..SD..6F..(H,S);GGN125,GUN13#,LAN125,TGN126,136..SD..(H,S)202009-202111
BLACK,TRIM2#
BLACK,TRIM2#
74260ARMREST ASSY, REAR LH
main74260-0K010-C0iGUN135..TD..L..LA;GUN125,TGN126,136..TD..(5F,6FC)..L..(GCC,LA);GUN122,125,126,TGN120,121..(PD,TD)..MTM..L..(GCC,GEN,LA,PH,PKN)202006-202201
BLACK,TRIM2#
main74260-0K020-C3iGUN126..S..PKN;GUN126..6FC..GEN;GUN126..6F..S..GEN;GUN126..TD..6FC..L;GUN126..LHD..6F..H..GEN;GUN125,135..H..(GCC,PH);GUN125..RHD..TD..(H,S)..GEN;GUN135..TD..(H,S).202006-202201
BLACK,TRIM2#
MAROON,TRIM3#
main74260-0K040-C2iGUN125..LHD..TD..H..GEN;GUN126..RHD..6F..H..GEN;GUN125,126,135..(MD,MMD,TD)..H..(IDN,MA,MMR,TH,TWN,VN)202006-202301
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
main74260-0K180-C3supersedes 74260-0K170-C0iGUN125..GD,KD;GUN126..(KD,SD)..6F;GUN125,126..(GD,SD)..6FC;GUN125..LHD..SD..6F..(H,S);GGN125,GUN13#,LAN125,TGN126,136..SD..(H,S)202009-202111
BLACK,TRIM2#
BLACK,TRIM2#
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
main74271-0K310iGUN126..TD..6FC..L;TGN126..TD..S..GCC;GUN126..RHD..6FC..S..GEN;GUN122,TGN121..TD..L..(ARL,TH);GUN125,TGN136..TD..(5F,6FC)..L..GEN;GUN135,TGN126..(L,S)..(ARL,GEN,VN)202006-202110
main74271-0K321iGUN135..TD..(PH,TH);GUN126..LHD..TD..6FC..S;GUN126,136..(MMD,TD)..H;GUN125..TD..6FC..(IDN,LA);GUN126..TD..6F..S..(GEN,LA);GUN135..TD..(H,S)..(GEN,LA);GUN125,TGN126.202006-202301
main74271-0K370supersedes 74271-0K360iGUN126..H..BZAG;GUN126..6F..S..BZAG;GUN126..AD..(H,S)..LA;GGN125,GUN125,13#,TGN126,128,13#..AD..(H,S)202011-202110
DOOR TRIM-FABRIC & PAINT(SILVER)
main74271-0K390iGUN125..GD,KD;GUN126,13#..SD..S;GUN125..LHD..SD..6F..S;GUN125,LAN125,TGN126,136..SD..(5F,6FC)..S202009-202111
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
main74272-0K310iGUN126..TD..6FC..L;TGN126..TD..S..GCC;GUN126..RHD..6FC..S..GEN;GUN122,TGN121..TD..L..(ARL,TH);GUN125,TGN136..TD..(5F,6FC)..L..GEN;GUN135,TGN126..(L,S)..(ARL,GEN,VN)202006-202110
main74272-0K321iGUN135..TD..(PH,TH);GUN126..LHD..TD..6FC..S;GUN126,136..(MMD,TD)..H;GUN125..TD..6FC..(IDN,LA);GUN126..TD..6F..S..(GEN,LA);GUN135..TD..(H,S)..(GEN,LA);GUN125,TGN126.202006-202301
main74272-0K370supersedes 74272-0K360iGUN126..H..BZAG;GUN126..6F..S..BZAG;GUN126..AD..(H,S)..LA;GGN125,GUN125,13#,TGN126,128,13#..AD..(H,S)202011-202110
DOOR TRIM-FABRIC & PAINT(SILVER)
main74272-0K390iGUN125..GD,KD;GUN126,13#..SD..S;GUN125..LHD..SD..6F..S;GUN125,LAN125,TGN126,136..SD..(5F,6FC)..S202009-202111
90467T0034
main90467-T0034
9 parts on this diagram · 2 diagrams in section
