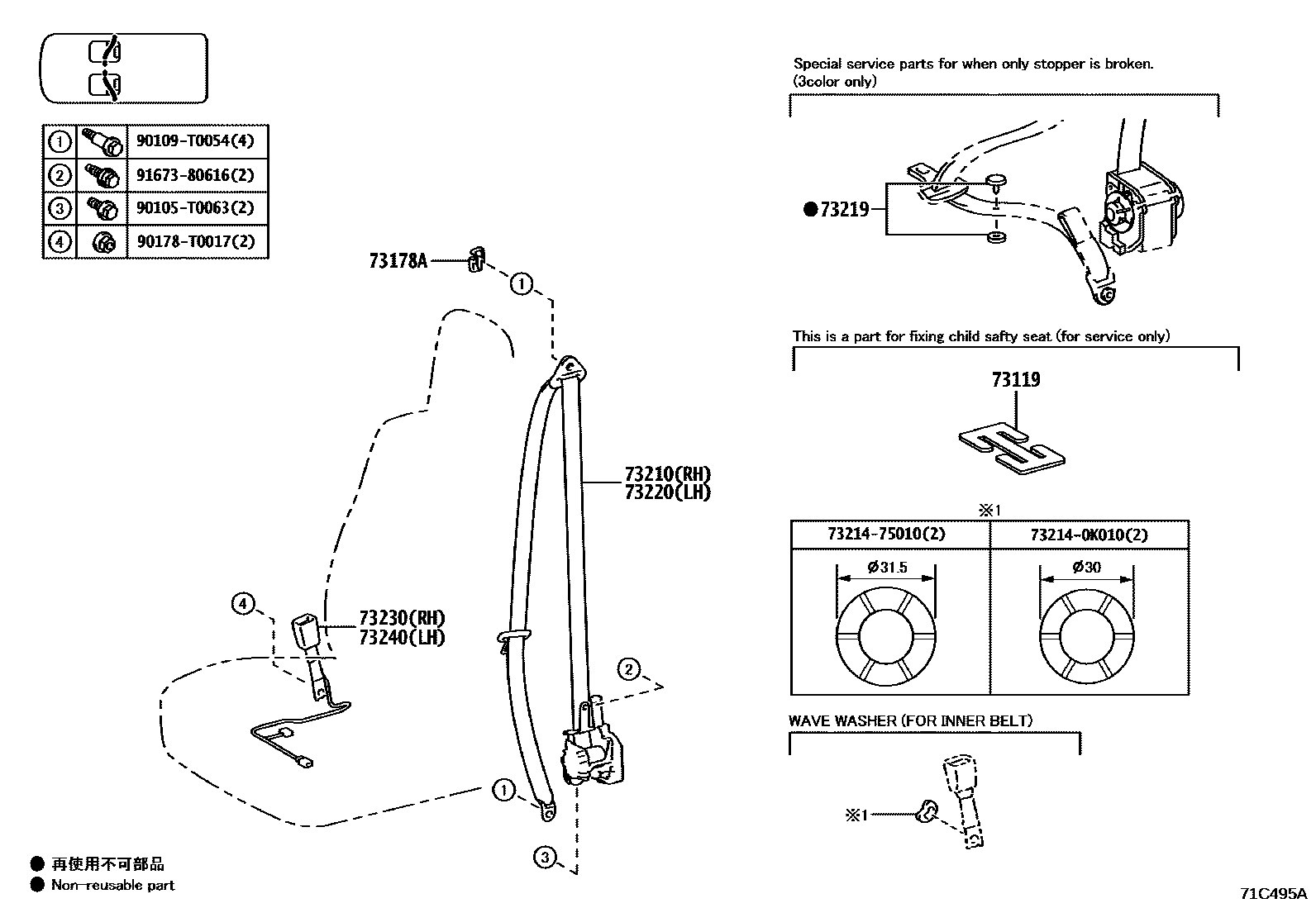

SEAT BELT
73119PLATE, SEAT BELT WEBBING CLIP
73178ACAP, SEAT BELT ANCHOR COVER
LT.GRAY,TRIM2#
LT.GRAY,TRIM20,3#
LT.GRAY,TRIM2#,3#
LT.GRAY,TRIM20
main73178-KK010-C0iGUN136..SD..H;GUN13#..TD..6FC..H;GUN126..TD..6FC..TH;GUN125,135..TD..6F..H..(GCC,GEN,PH);GGN125,GUN126..(MD,MMD,SD,TD)..H..(ARL,GCC,GEN,MA,MMR,PH,SA,TWN,VN)..CBU202006-202110
BLACK,TRIM21
main73178-KK020-B0iGUN135..TX..6F..H;GUN126..(TS,TX)..6F..CBU;GUN135..(KS,SS,SX,TS,TX)..(L,S);GUN126..(PS,SS,TS,TX)..(ARL,PKN,SA);GUN125..(KS,MS,SS,SX,TS,TX)..(ARL,GEN,IDN,KEN,LA,MA,S202006-202201
LT.GRAY,TRIM2#
LT.GRAY,TRIM20
LT.GRAY,TRIM2#,3#
BLACK,TRIM21
73210BELT ASSY, FRONT SEAT OUTER, RH
BLACK,TRIM2#
BLACK,TRIM20
BLACK,TRIM21
main73210-0K840-C0iGUN125..(L,S)..GCC;GUN125..6FC..H..GCC;GUN112,122,TGN11#,120,121,126..GCC202006-202108
BLACK/GRAY,TRIM2#,3#
main73210-0K840-C0iGUN125..(L,S)..GCC;GUN125..6FC..H..GCC;GUN112,122,TGN11#,120,121,126..GCC202006-202108
BLACK/GRAY,TRIM20,3#
main73210-0K840-C0iGUN125,126,135..TD..6F..H..(ARL,GEN,PH);GUN126,13#..(MD,MMD,TD)..6FC..H..(ARL,GEN,MA,MMR,PH,TH,VN)..CBU202006-202301
BLACK/GRAY,TRIM20
main73210-0K840-C0iGUN126..H..IV3;GUN136..TD..6F..H;TGN126..(TD,TS)..(GEN,LA);GUN126,135..TD..6F..H..(LA,TH);GUN125,126..TD..6FC..H..(IDN,LA);GUN125..(MD,MS,TS)..(ARL,GEN,IDN,LA,MA);G202006-202110
BLACK/GRAY,TRIM2#
main73210-0K840-C1iGUN125,126,135..TD..6F..H..(ARL,GCC,GEN,PH);GGN125,GUN126,13#..(MD,MMD,TD)..6FC..H..(ARL,GCC,GEN,MA,MMR,PH,TH,VN)..CBU202006-202301
BLACK/BLACK,TRIM21
main73210-0K860-C0iGUN126,136..KD,SS;GUN126,136..SD..S;GUN122,125,135,LAN125,TGN120,121,126,136..KD,KS,SD,SS202009-202111
BLACK/GRAY,TRIM2#
sub73210-0K861
BLACK/GRAY,TRIM2#
BLACK,TRIM2#
BLACK/LT.GRAY,TRIM20
BLACK/BLACK,TRIM21
BLACK,TRIM2#
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-0K520-C0iGUN126..TX..ARL;GUN135..TX..(L,S);GUN126,135..TX..6F..H;GUN120,122,125,136..TX202006-202108
BLACK,TRIM2#
BLACK,TRIM20
BLACK,TRIM21
main73220-0K550-C0iGUN126..H..IV3;GUN136..TD..6F..H;TGN126..(TD,TS)..(GEN,LA);GUN126,135..TD..6F..H..(LA,TH);GUN125,126..TD..6FC..H..(IDN,LA);GUN125..(MD,MS,TS)..(ARL,GEN,IDN,LA,MA);G202006-202110
BLACK/GRAY,TRIM2#
main73220-0K550-C0iGUN125..(L,S)..GCC;GUN125..6FC..H..GCC;GUN112,122,TGN11#,120,121,126..GCC202006-202108
BLACK/GRAY,TRIM2#,3#
BLACK/GRAY,TRIM20,3#
main73220-0K550-C0iGUN125,126,135..TD..6F..H..(ARL,GEN,PH);GUN126,13#..(MD,MMD,TD)..6FC..H..(ARL,GEN,MA,MMR,PH,TH,VN)..CBU202006-202301
BLACK/GRAY,TRIM20
main73220-0K550-C1iGUN125,126,135..TD..6F..H..(ARL,GCC,GEN,PH);GGN125,GUN126,13#..(MD,MMD,TD)..6FC..H..(ARL,GCC,GEN,MA,MMR,PH,TH,VN)..CBU202006-202301
BLACK/BLACK,TRIM21
main73220-0K570-C0iGUN126,136..KD,SS;GUN126,136..SD..S;GUN122,125,135,LAN125,TGN120,121,126,136..KD,KS,SD,SS202009-202111
BLACK/GRAY,TRIM2#
sub73220-0K571
BLACK/GRAY,TRIM2#
BLACK,TRIM2#
BLACK/LT.GRAY,TRIM20
BLACK/BLACK,TRIM21
BLACK,TRIM2#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-0K860-C0iGUN122..RHD..TS;GUN125..6FC..S..MA;GUN135..L..(ARL,GEN);GUN122,126..RHD..TD..(5F,6FC)..(L,S)..GEN;GUN112,123,125,126,TGN110,121..RHD..L..(ARL,GEN,IDN,MA,TH)202006-202110
BLACK,TRIM2#
BLACK,TRIM2#
main73230-0KA50-C0iGUN122..S..GEN;GUN122,136,TGN121,136..LHD..TD..(H,L)..(GEN,LA,PH);GUN125,126,135,TGN126..LHD..(MMD,TD,TS,TX)..(GEN,LA,MMR,PH,VN)202006-202301
BLACK,TRIM2#
main73230-0KA50-C0iTGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC202006-202108
BLACK,TRIM2#,3#
main73230-0KA50-C0iTGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC202006-202108
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#,3#
main73230-0KA50-C0iTGN121..5F..H;TGN126..6FC..L;TGN126..TD..(H,S)..GCC;GUN125..6F..(H,S)..GCC;GUN125,TGN121..6FC..GCC;GGN125,GUN122,126..H..GCC202006-202108
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#
BLACK,TRIM2#
main73230-0KA70-C0iGUN125..LHD..(GD,SX);GUN122,126,TGN136..LHD..(GD,SD);GUN125,LAN125,TGN126..LHD..(SD,SS)..(H,S)202009-202111
BLACK,TRIM2#
BLACK,TRIM2#
FRONT SEAT-BENCH TYPE(FOR TWO PERSONS),BLACK,TRIM2#
FRONT SEAT-BENCH TYPE(FOR TWO PERSONS)&SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#
BLACK,TRIM2#,3#
FRONT SEAT-BENCH TYPE(FOR THREE PERSONS)&SRS AIR BAG-WITH(*DRP),BLACK,TRIM2#
BLACK,TRIM2#
FRONT SEAT-BENCH TYPE(FOR THREE PERSONS),BLACK,TRIM2#,3#
FRONT SEAT-BENCH TYPE(FOR THREE PERSONS),BLACK,TRIM2#
BLACK,TRIM2#
main73230-0KC10-C0iGUN126..ARL;GUN135..(L,S)..TH;GUN120,136..ARL,TH;GUN125..6FC..S..GEN;GUN126..RHD..6FC..H..GEN;GUN125..RHD..6F..(H,S)..(GEN,IDN,MA,TH);GUN122,126..RHD..(TD,TX)..6F..202006-202110
BLACK,TRIM2#
BLACK,TRIM2#
main73230-0KC30-C0iGUN136..H..SA;GUN126..6F..H..(KEN,SA);GGN125,GUN126..RHD..6FC..H..SA202009-202111
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-0K860-C0iGUN125..LHD..L..GEN;GUN135..(TD,TS)..6F..LA;GUN125,126..TD..(L,S)..(LA,PH);GUN125..LHD..(TS,TX)..(L,S)..(GEN,LA);GUN122,TGN121,126,136..LHD..(TD,TS)..(L,S)..(GEN,LA202006-202108
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#
main73230-0K870-C0iGUN135..6FC..BZAG;GUN135..(AD,AS)..6F;GUN125,126,136,TGN126,136..(AD,AS)..(L,S)202011-202110
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
SEAT COVER MATERIAL-FABRIC(HI),BLACK,TRIM2#
FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABRIC(HI),BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#
SEAT COVER MATERIAL-FABRIC(HI),BLACK,TRIM2#
FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-FABRIC(HI),BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
FRONT SEAT-SEPARATE TYPE(SEAT COVER=HIGH)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
BLACK,TRIM2#
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
main73230-0KA50-C0iGUN112,TGN110..IDN;GUN122..RHD..TD..GEN;GUN125..(MS,TS)..6F..L..(GEN,MA)202006-202110
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#
main73230-0KA50-C0iGUN112,TGN110..IDN;GUN122..RHD..TD..GEN;GUN125..(MS,TS)..6F..L..(GEN,MA)202006-202110
BLACK,TRIM2#
BLACK,TRIM2#
FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#
main73230-0KA80-C0iGUN112,TGN110..IDN;GUN122..RHD..TD..GEN;GUN125..(MS,TS)..6F..L..(GEN,MA)202006-202110
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
FRONT SEAT-BENCH TYPE(FOR THREE PERSONS),BLACK,TRIM2#
BLACK,TRIM2#
732140K010PLATE, FRONT SEAT BELT ANCHOR
main73214-0K010
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
90105T0063
main90105-T0063
90109T0054
main90109-T0054
90178T0017
main90178-T0017
9167380616
main91673-80616
13 parts on this diagram · 10 diagrams in section
