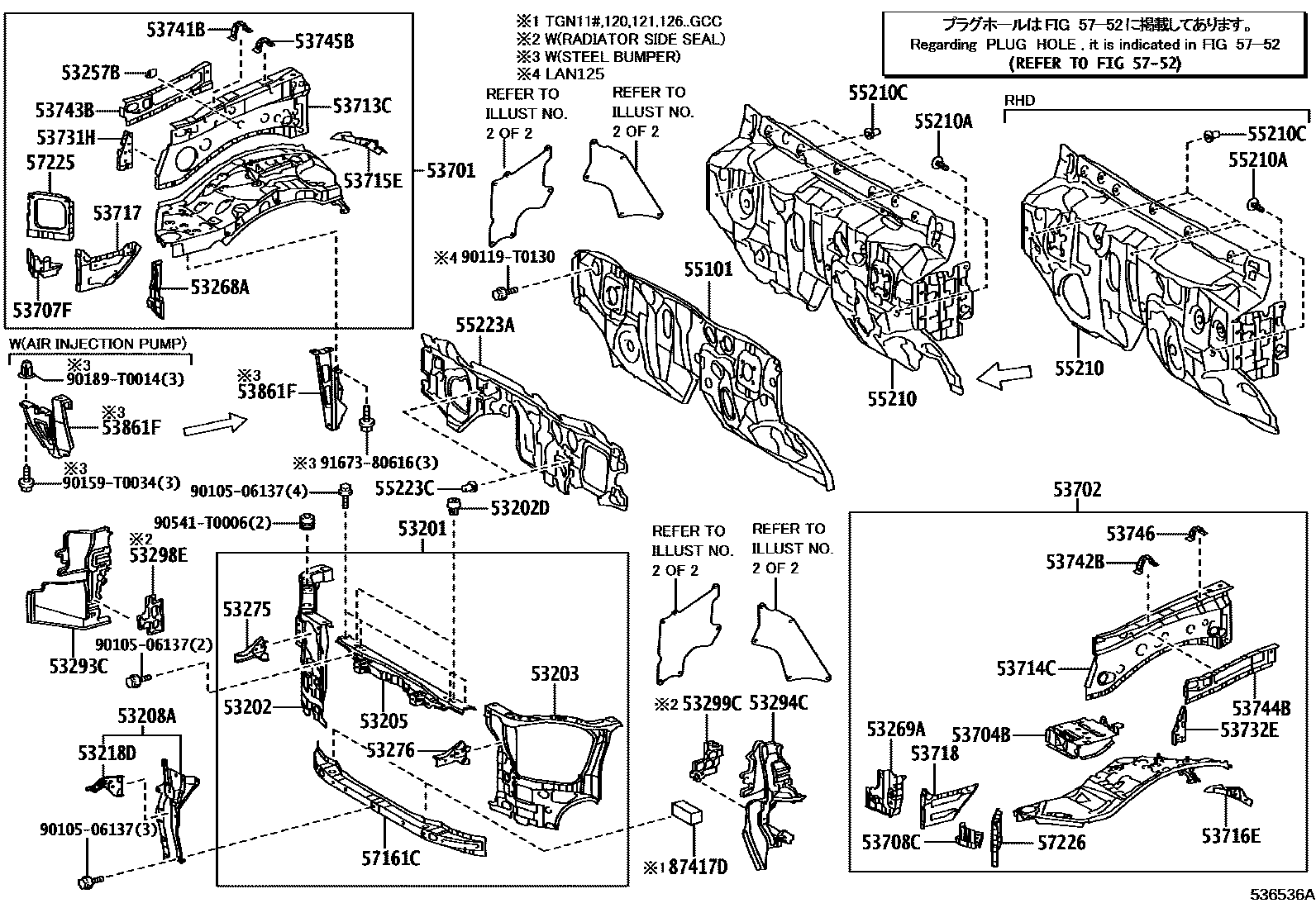

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

53201SUPPORT SUB-ASSY, RADIATOR

main53201-KK040iGUN125,126..MA202009-202110

main53201-KK050iGGN125,GUN122,125,126,13#,LAN125,TGN120,121,126,136..KEN,PKN,SA202009-202201

main53201-KK060iGGN125,GUN112,12#,13#,TGN11#,120,121,126,136..MMD,TD,TS,TX202006-202301

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-KK020iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202006-202110

53202DCUSHION, RADIATOR SUPPORT

main53384-0K040×2iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202006-202110

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-KK020iGUN122,126,TGN121..PKN202006-202201

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-KK020iGUN125,126..MA202009-202110

main53205-KK040iGGN125,GUN112,12#,13#,TGN11#,120,121,126,136..MMD,TD,TS,TX202006-202301

main53205-KK050iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202009-202110

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-KK020iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202006-202110

53218DEXTENSION, HOOD LOCK BRACE

main53218-KK010×2iGGN125,GUN112,12#,13#,TGN11#,120,121,126,136..MMD,TD,TS,TX202102-202301

53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER

main53257-35030iGUN125,126..GHA202006-202111

53268AREINFORCEMENT, RADIATOR MOUNTING, RH

main53268-KK010iGUN125,126..GHA202006-202111

53269AREINFORCEMENT, RADIATOR MOUNTING, LH

main53269-KK010iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202006-202110

53275BRACKET, HEADLAMP DOOR MOUNTING, NO.1 RH

main53275-KK010iGUN122,126,TGN121..PKN202006-202201

53276BRACKET, HEADLAMP DOOR MOUNTING, NO.1 LH

main53276-KK010iGUN122,126,TGN121..PKN202006-202201

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-KK030iTGN121..ARL;GUN125,126,13#..TS..IV3202006-202108

main53293-KK040supersedes 53293-KK120iGUN125..L..GHA202006-202111

main53293-KK100iTGN126..(H,S)..GEN;GUN125,126,13#..(TD,TX)..ARL202006-202108

main53293-KK110supersedes 53293-KK110iTGN126..S..SA;TGN136..AD..L..LA;TGN136..LHD..(SD,TD);GUN125..RHD..TD..6F..L..GEN;GUN125,LAN125..LHD..(SD,SS)..MTM..S;GUN125,126,135,TGN126..(AD,TD)..L..LA202006-202110

TIRE & DISC WHEEL-265/65R17, STEEL

main53293-KK291iGGN125,GUN125,126,TGN126..TD..(H,S)..GCC202006-202108

FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)

main53293-YP080iGUN136..6FC..H..ARL;GUN126..TD..H..ARL..CBU202006-202108

MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM

main53293-YP090iGGN125,GUN126..GCC;GUN125..6F..H..GCC202006-202103

MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM

main53293-YP091iGGN125,GUN126..GCC;GUN125..6F..H..GCC202104-202108

MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18(WHITE LETTER), ALUMINUM

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-KK030iTGN121..ARL;GUN125,126,13#..TS..IV3202006-202108

main53294-KK040supersedes 53294-KK120iGUN125..L..GHA202006-202111

main53294-KK100iTGN126..(H,S)..GEN;GUN125,126,13#..(TD,TX)..ARL202006-202108

main53294-KK110supersedes 53294-KK110iTGN126..S..SA;TGN136..AD..L..LA;TGN136..LHD..(SD,TD);GUN125..RHD..TD..6F..L..GEN;GUN125,LAN125..LHD..(SD,SS)..MTM..S;GUN125,126,135,TGN126..(AD,TD)..L..LA202006-202110

TIRE & DISC WHEEL-265/65R17, STEEL

main53294-KK291iGGN125,GUN125,126,TGN126..TD..(H,S)..GCC202006-202108

FRONT BUMPER-W(STEEL LOWER COVER) & W(WIDE FENDER)

main53294-YP080iGUN136..6FC..H..ARL;GUN126..TD..H..ARL..CBU202006-202108

MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM

main53294-YP090iGUN136..(SD,SX)..H;GUN125,135..TD..6F..H..(GEN,PH);GUN126..(SD,SX,TD)..6F..H..(GEN,PH,SA);GGN125,GUN126,135..(MD,MMD,SD,SX,TD,TX)..6FC..H..(GEN,MA,MMR,PH,SA,TH,TWN,202006-202103

MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM

main53294-YP091iGGN125,GUN126..GCC;GUN125..6F..H..GCC202104-202108

MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18(WHITE LETTER), ALUMINUM

53298ESEAL, RADIATOR SIDE, RH

main53298-KK010iGGN125,TGN126,128,13#..AD,AS202006-202110

main53298-KK030iGUN126..TWN;GUN125..AS..LA;GUN135..L..GEN202006-202110

COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

53299CSEAL, RADIATOR SIDE, LH

main53299-KK010iGGN125,TGN126,128,13#..AD,AS202006-202110

main53299-KK030iGUN126..TWN;GUN125..AS..LA;GUN135..L..GEN202006-202110

COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-KK040iTGN121,126,136..LHD..SA202009-202109

main53701-KK050iTGN120,136..RHD202009-202109

main53701-KK070iGUN122,125,126,135..LHD..(GHA,SA)202009-202111

main53701-KK080iGGN125,GUN122,125,126,13#..RHD..(KEN,SA)202009-202111

main53701-KK150iLAN125202009-202109

main53701-KK350iTGN121,126,136..BZAG,GCC,GEN,LA;GUN112,122,TGN11#,120,128,138..BZAG,GCC202006-202110

main53701-KK360iTGN110,121..RHD202006-202201

sub53701-KK780

main53701-KK370iGUN122..LHD..(GEN,PH);GGN125,GUN125,126,13#..LHD..(MMD,TD,TS,TX)202006-202301

main53701-KK380iGUN112,12#,13#..RHD..(ARL,GEN,IDN,MA,PKN,TH)202006-202201

sub53701-KK760

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-KK030iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202006-202106

sub53702-KK310

main53702-KK040iGGN125,GUN112,12#,13#,TGN110,120,121,136..RHD202006-202201

sub53702-KK290

main53702-KK140iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202106-202110

sub53702-KK330

53704BSUPPORT SUB-ASSY, BATTERY, LH

main53704-KK010iGUN125,126..GHA202006-202111

sub53704-KK020

53707FGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER RH

main53707-KK010iGUN125,126..GHA202006-202111

53708CGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER LH

main53708-KK010iGUN125,126..GHA202006-202111

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-KK020iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202006-202110

main53713-KK040iGUN122,125,126,135..LHD..SA202009-202111

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-KK020iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202106-202110

main53714-KK030iGUN125,126..GHA202006-202111

53715EEXTENSION, FRONT FENDER APRON, REAR RH

main53715-0K030iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202006-202110

53716EEXTENSION, FRONT FENDER APRON, REAR LH

main53716-0K030iGUN125,126..GHA202006-202111

53717PLATE, FENDER APRON, RH

main53717-KK010iGGN125,GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX202006-202301

53718PLATE, FENDER APRON, LH

main53718-KK010iGUN122,126,TGN121..PKN202006-202201

53731HPATCH, FRONT FENDER APRON, RH

main53731-KK010iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202006-202110

53732EREINFORCEMENT, FRONT FENDER APRON, LH

main53732-KK010iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202006-202110

53741BPLATE, FENDER APRON REINFORCE, RH

main53741-KK020iGUN125,126..GHA202006-202111

53742BPLATE, FENDER APRON REINFORCE, LH

main53742-KK020iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202006-202110

53743BREINFORCEMENT, FRONT FENDER APRON, FRONT RH

main53743-KK010iGGN125,GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX202006-202301

53744BREINFORCEMENT, FRONT FENDER APRON, FRONT LH

main53744-KK010iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202006-202110

53745BREINFORCEMENT, FRONT FENDER APRON, REAR RH

main53745-KK020iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202006-202110

53746REINFORCEMENT, FRONT FENDER APRON, REAR LH

main53746-KK020iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202006-202110

53861FBRACKET, FRONT WHEEL OPENING, NO.1

55101PANEL SUB-ASSY, DASH

main55101-KK050iGUN125,126,13#,TGN126,136..(AD,AS)..MTM202006-202110

sub55101-KK220

main55101-KK080iGUN126..GHA202006-202111

sub55101-KK240

main55101-KK090iGUN112,122,123,125,126,13#,TGN110,120,121,136..RHD..MTM202006-202201

sub55101-KK260

main55101-KK120iGGN125,GUN120,125,126,13#,TGN121..RHD..6FC202006-202201

sub55101-KK280

55210INSULATOR ASSY, DASH PANEL

main55210-0K320iGUN126..TD..(L,S)..LA;GUN125,135,TGN126..LHD..(TD,TS)..(L,S);GUN112,122,TGN11#,120,121,136..LHD..(TD,TS)202012-202108

main55210-0K340iGUN135..TD..S..TH;GUN125..RHD..TD..(L,S);GUN135..L..(ARL,GEN,TH);GUN125..RHD..(TS,TX)..(H,L);GUN126,136..RHD..(TD,TS)..(L,S);GUN112,120,122,123,TGN110,121..RHD..(TD202012-202108

main55210-0K360iGUN126202206-202301

main55210-KK110iGUN126..L..PKN;GUN122,125,TGN121..(L,S)..(MA,PKN)202009-202201

main55210-KK120iGUN126..(L,S)..LA;GUN125,135,TGN126..LHD..(TD,TS)..(L,S);GUN112,122,TGN11#,120,121,136..LHD..(TD,TS)202006-202011

main55210-KK130iGUN125..TX..GEN;GUN126..LHD..S..GEN;GGN125,GUN125,126,13#,TGN126..LHD..TD..H202006-202011

main55210-KK131iGUN125..TX..GEN;GUN126..LHD..S..GEN;GGN125,GUN125,126,13#,TGN126..LHD..(MMD,TD)..H202011-202205

main55210-KK140iGUN135..TD..S..TH;GUN125..RHD..TD..(L,S);GUN135..L..(ARL,GEN,TH);GUN125..RHD..(TS,TX)..(H,L);GUN126,136..RHD..(TD,TS)..(L,S);GUN112,120,122,123,TGN110,121..RHD..(TD202006-202011

main55210-KK150iGUN125,126,13#..RHD..TD..H;GUN125,126,13#..RHD..TX..(H,S)202006-202011

main55210-KK151iGUN125,126,13#..RHD..TD..H;GUN125,126,13#..RHD..TX..(H,S)202011-202108

main55210-KK180iGUN125..H..MA;GUN126..(H,S)..(MA,PKN)202009-202201

main55210-KK190iGGN125,GUN126,136,TGN126,128,138..AD..H202011-202107

main55210-KK191iGGN125,GUN126,136,TGN126,128,138..AD..H202108-202110

main55210-KK200iGUN125,126,13#,TGN126,13#..(AD,AS)..(L,S)202011-202107

main55210-KK201iGUN125,126,13#,TGN126,13#..(L,S)..(BZAG,LA)202108-202110

main55210-KK210iGUN125..SX..S;GUN125,126..LHD..H..SA202009-202011

main55210-KK211iGUN125..SX..S;GUN125,126..LHD..H..(GHA,SA)202012-202111

main55210-KK220iGUN135..SX;GGN125,GUN126,136..RHD..(SD,SX)..H202009-202011

main55210-KK221iGUN135..SX;GGN125,GUN126,136..RHD..(KD,SD,SX)..H202012-202111

main55210-KK230iGUN122,125,135,LAN125,TGN121,126,136..LHD..(SD,SS)..(L,S)202009-202011

main55210-KK231iGUN122,125,135,LAN125,TGN121,126,136..LHD..(GD,SD,SS)..(L,S)202012-202111

main55210-KK240iGUN126,136..SS..H;GUN135..RHD..(SD,SS);GUN122,125,126,136,TGN120,136..RHD..(L,S)..SA202009-202011

main55210-KK241iGUN126,136..SS..H;GUN135..RHD..(KS,SD,SS);GUN122,125,126,136,TGN120,136..RHD..(L,S)..(KEN,SA)202012-202111

55210ACLIP

main90467-T0004-A0×2iGUN122,126,TGN121..PKN202006-202201

IVORY

55210CCLIP

main90467-T0032×6iGGN125,GUN112,12#,13#,TGN110,120,121,136..RHD202006-202201

55223AINSULATOR, DASH PANEL, OUTER

main55223-KK030iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202009-202110

main55223-KK040iGGN125,GUN122,125,126,13#,TGN120,136..RHD..(KEN,SA)202009-202111

main55223-KK051iTGN121,126..H..GCC;TGN126,136..(TD,TS)..L..LA;TGN126..TD..(H,S)..(GEN,LA);GGN125,GUN112,122,125,126,13#..LHD..(MMD,TD,TS,TX)202006-202301

main55223-KK061iGUN112,12#,13#,TGN121..RHD..(ARL,GEN,IDN,MA,PKN,TH)202006-202201

55223CCLIP

main90467-T0032×2iTGN121..5F..H;TGN126..H..GCC;TGN136..RHD..SD;TGN121..6FC..(H,L);TGN126..(TD,TS)..L..LA;TGN136..(SS,TD)..(LA,SA);TGN120,121..5F..(ARL,SA,TH);TGN126..TD..(H,S)..(GEN,202006-202301

57161CMEMBER, FRONT CROSS

main57161-KK010iGGN125,GUN112,12#,13#,TGN11#,120,121,126,136..MD,MMD,MS,TD,TS,TX202006-202301

main57161-KK020iGGN125,GUN122,125,126,13#,LAN125,TGN120,121,126,136..GHA,KEN,SA202009-202111

57225BRACE, FRONT MOUNTING BRACKET, RH

main57225-KK010iGUN122,126,TGN121..PKN202006-202201

57226BRACE, FRONT MOUNTING BRACKET, LH

main57226-KK010iGUN122,126,TGN121..PKN202006-202201

5752

87417DPACKING, AIR DUCT

main87417-0K020×2iTGN11#,120,121,126..GCC202006-202108

9010506137

main90105-06137

90119T0130

main90119-T0130

90159T0034

main90159-T0034

90189T0014

main90189-T0014

90541T0006

main90541-T0006

9167380616

main91673-80616

53 parts on this diagram · 2 diagrams in section
