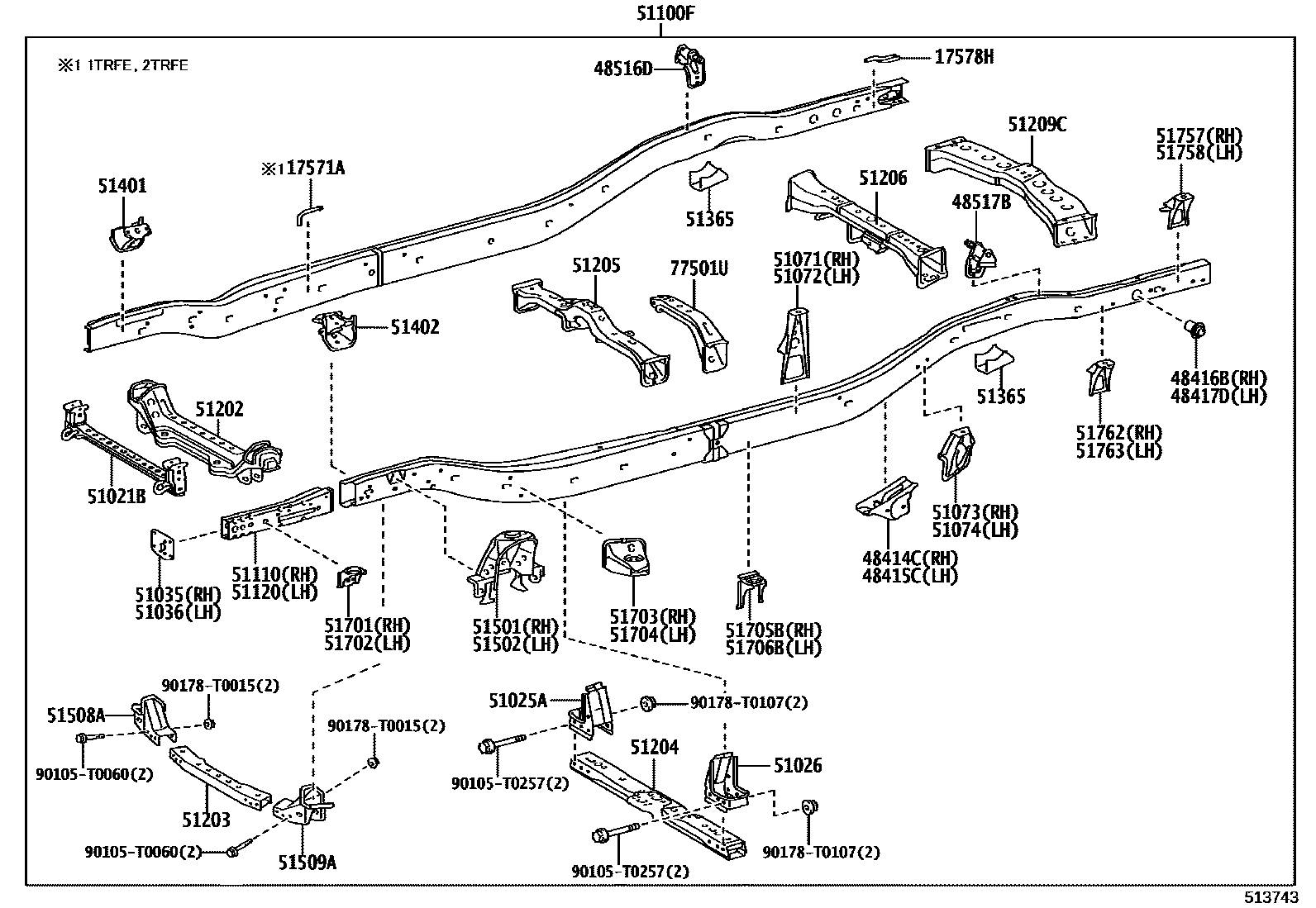

FRAME
17571ABRACKET, EXHAUST PIPE SUPPORT, NO.9
17578HBRACKET, EXHAUST PIPE SUPPORT, NO.10
main17505-0L020i1G#,2GDFTV,5LE,1TRFE,2TRFE..GGN125,GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX202006-202301
48414CBRACKET, SPRING, NO.3 RH
48415CBRACKET, SPRING, NO.3 LH
48416BBRACKET, SPRING, NO.4 RH
48417DBRACKET, SPRING, NO.4 LH
48516DBRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH
48517BBRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH
51021BCROSSMEMBER SUB-ASSY, FRAME AUXILIARY
51025ABRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, RH
main51025-KK010iGGN125,GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX202006-202301
51026BRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, LH
51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH
51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH
main51036-KK010iGGN125,GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX202006-202301
51071BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 RH
51072BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 LH
main51072-KK010iGGN125,GUN120,122,125,126,13#,LAN125,TGN120,121,126,136..KD,MD,MMD,SD,TD202006-202301
51073BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH
51074BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH
51100FFRAME SUB-ASSY
sub51001-KK152
sub51001-KK162
sub51001-KK163
sub51001-KK182
sub51001-KK183
sub51001-KK232
sub51001-KK242
sub51001-KK252
sub51001-KK282
sub51001-KK311
sub51001-KK322
sub51001-KK331
sub51001-KK341
sub51001-KK351
sub51001-KK361
ASIA COLD COUNTRY SPEC&EXHAUST EMISSION CONTROL-WITHOUT
sub51001-KK371
sub51001-KK371
sub51001-KK372
sub51001-KK381
sub51001-KK402
sub51001-KK422
sub51001-KK431
sub51001-KK452
sub51001-KK471
sub51001-KK482
sub51001-KK671
sub51001-KK672
sub51001-KK681
sub51001-KK691
sub51001-KK701
sub51001-KK702
sub51001-KK703
sub51001-KKL00
sub51001-KK711
sub51001-KK721
sub51001-KK731
sub51001-KK741
sub51001-KK751
sub51001-KK761
sub51001-KK771
sub51001-KK781
sub51001-KK791
sub51001-KK801
sub51001-KK811
sub51001-KK821
sub51001-KKC11
sub51001-KKC21
sub51001-KKC31
51110EXTENSION ASSY, SIDE RAIL, RH
ASIA COLD COUNTRY SPEC&EXHAUST EMISSION CONTROL-WITHOUT
ASIA COLD COUNTRY SPEC
main51110-KK907iTGN126..6FC..(H,L)..GCC;TGN126..(TD,TS)..5F..(H,L);TGN126..(TD,TS)..S..(GCC,LA);GGN125,GUN125,126,13#,TGN136..MD,MMD,MS,PD,PS,TD,TS,TX202006-202110
51120EXTENSION ASSY, SIDE RAIL, LH
ASIA COLD COUNTRY SPEC&EXHAUST EMISSION CONTROL-WITHOUT
ASIA COLD COUNTRY SPEC
main51122-KK907iTGN126..6FC..(H,L)..GCC;TGN126..(TD,TS)..5F..(H,L);TGN126..(TD,TS)..S..(GCC,LA);GGN125,GUN125,126,13#,TGN136..MD,MMD,MS,PD,PS,TD,TS,TX202006-202110
51203CROSSMEMBER SUB-ASSY, FRAME, NO.2
51204CROSSMEMBER SUB-ASSY, FRAME, NO.3
sub51203-KK100
sub51203-KK250
sub51203-KK260
sub51203-KK230
sub51203-KK210
51205CROSSMEMBER SUB-ASSY, FRAME, NO.4
51206CROSSMEMBER SUB-ASSY, FRAME, NO.5
main51205-KK040iGGN125,GUN12#,13#,LAN125,TGN120,121,126,136..KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX202006-202301
51209CCROSSMEMBER SUB-ASSY, FRAME, REAR
51365STOPPER, REAR BUMPER
51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51501SUPPORT SUB-ASSY, SUSPENSION ARM, RH
51502SUPPORT SUB-ASSY, SUSPENSION ARM, LH
51508ABRACKET SUB-ASSY, LOWER ARM, RH
51509ABRACKET SUB-ASSY, LOWER ARM, LH
51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
main51704-KK010iGGN125,GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX202006-202301
51705BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH
51706BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH
51757BRACKET, BODY SUPPORT, NO.4 RH
main51077-KK010iGGN125,GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX202006-202301
51758BRACKET, BODY SUPPORT, NO.4 LH
51762BRACKET, BODY SUPPORT, NO.5 RH
51763BRACKET, BODY SUPPORT, NO.5 LH
77501UBRACKET SUB-ASSY, FUEL TANK
90105T0060
main90105-T0060
90105T0257
main90105-T0257
90178T0015
main90178-T0015
90178T0107
main90178-T0107
48 parts on this diagram · 8 diagrams in section
