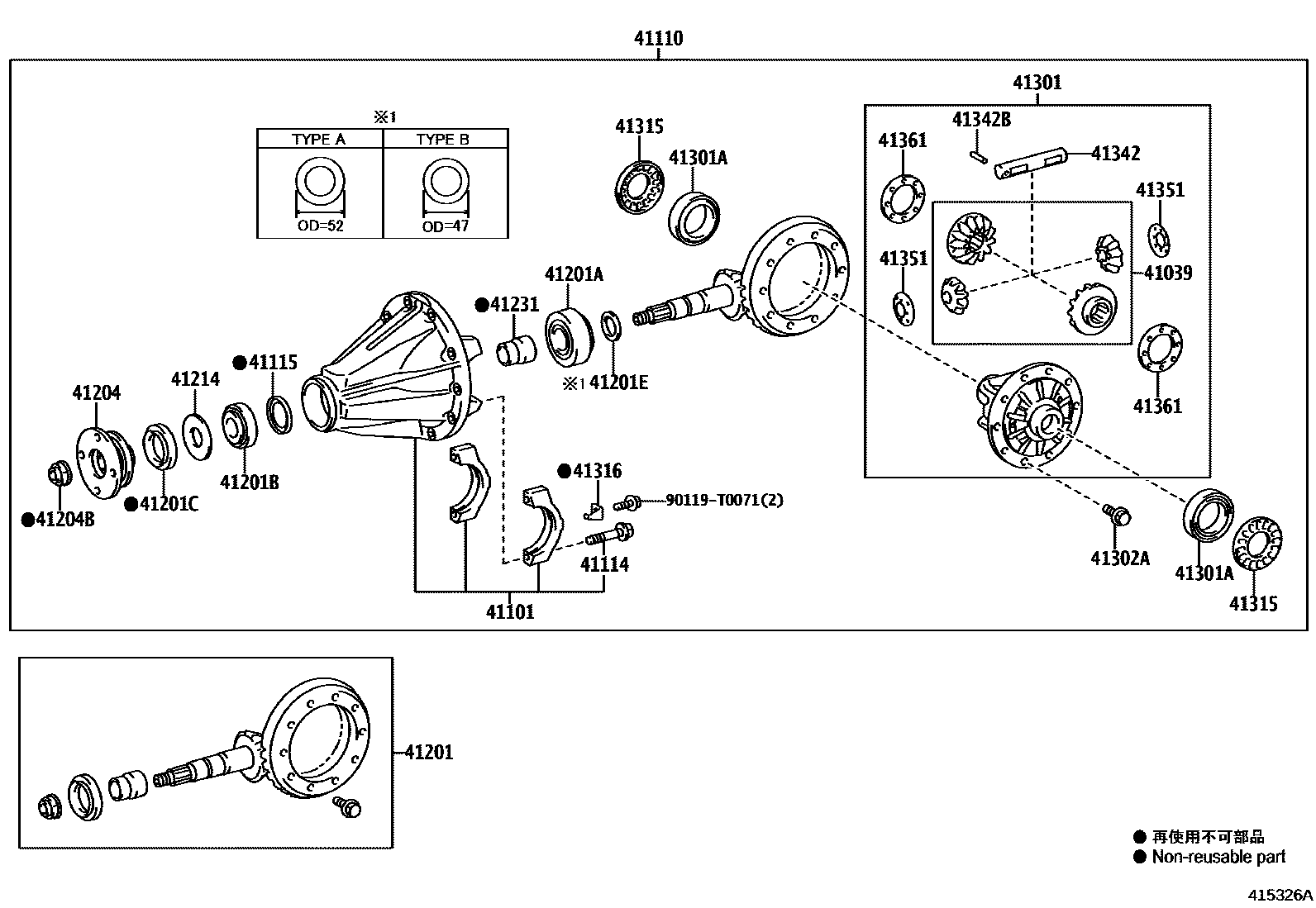

REAR AXLE HOUSING & DIFFERENTIAL

0001 1W/O(DIFFERENTIAL LOCK) 0002 1W/O(DIFFERENTIAL LOCK) 0006 1W/O(DIFFERENTIAL LOCK) 0009 1W(DIFFERENTIAL LOCK) 0012 1W(DIFFERENTIAL LOCK) 0013 1SAUDI ARABIA SPEC 0014 1W(DIFFERENTIAL LOCK) 0015 1 0016 1 0017 1W/O(DIFFERENTIAL LOCK) 0018 1W(DIFFERENTIAL LOCK)

41039GEAR KIT, DIFFERENTIAL, REAR

main41039-0K010iTGN126,128,13#..AD..(H,S);GUN125,126,13#..AD..(H,S)..LA202006-202110

DIFFERENTIAL LOCK-WITH

main41039-71011iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

main41039-71070iGUN125..TD..IV3;GUN135..S..(PH,VN);GUN135..RHD..(GEN,TH);GUN120,122..GCC,GEN,PKN,TH;GUN135..(TD,TS)..(H,L)..(LA,PH,VN);GUN125,126,TGN126..(TD,TS)..L..(GCC,GEN,LA);G202006-202201

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-0K011iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

main41101-0K070iGUN125..TD..IV3;GUN135..S..(PH,VN);GUN135..RHD..(GEN,TH);GUN120,122..GCC,GEN,PKN,TH;GUN135..(TD,TS)..(H,L)..(LA,PH,VN);GUN125,126,TGN126..(TD,TS)..L..(GCC,GEN,LA);G202006-202201

main41101-0K080iGUN135..ARL;GUN125..TX..GEN;GUN126..TD..(H,S)..LA;GUN125..(TD,TS)..(H,S);GUN125..TD..L..(ARL,IDN,PH)..CBU;GUN125..(MD,MS,TS,TX)..(ARL,IDN,MA,TH);GUN126..ARL,GCC,GEN202006-202301

main41101-0K110iGUN125,135..RHD..SS..6F..S..CBU;TGN128,13#..(AD,SS)..(H,S)..(BZAG,SA)202009-202110

DIFFERENTIAL LOCK-WITHOUT

main41101-0K120iGUN135..SX..6FC;GUN125,135..GHA,KEN;GGN125,GUN125,126,136..H..(GHA,KEN,SA);GUN125,126,135,TGN136..RHD..SS..S..CBU202009-202111

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-0K570iGUN135..RHD..6F..(GEN,TH);GUN120,122..GCC,GEN,PKN,TH;GUN112,135..MTM..(L,S)..(GCC,PH);GUN135..(TD,TS)..6F..(H,L)..(LA,PH,VN);GUN125,126..(TD,TS)..6F..L..(GCC,GEN,LA202006-202201

*FGR=43:12=3.583

main41110-0K590iGUN125..TD..IV3;GUN135..6FC..(PH,TH,VN);GUN125..6FC..L..(GCC,GEN);TGN111,121..ARL,GCC,GEN,PKN202006-202201

*FGR=41:10=4.100

main41110-0K610iTGN126..(H,S)..GCC202006-202108

*FGR=41:9=4.555,DIFFERENTIAL LOCK-WITHOUT

main41110-0K620iGUN135..6F..ARL;GUN126..TD..6F..(H,S)..LA;GUN125..6F..(ARL,IDN,MA,PH,TH,VN);GUN126..6F..(ARL,GCC,GEN,PH,PKN,TH);GUN125,13#..(TD,TS,TX)..6F..(H,S)..(ARL,GCC,GEN,LA)202006-202201

*FGR=43:12=3.583

main41110-0K630supersedes 41110-0K580iGGN125,GUN126,136..(MD,MMD,TD,TS,TX)..6FC..(H,S)202006-202301

*FGR=43:11=3.909

main41110-0K640iGUN125..(MD,TX)..6FC;GUN125..6FC..ARL..CBU;GUN125..TD..6FC..(H,S);GUN135..TD..6FC..(ARL,GEN,LA)202006-202110

*FGR=41:10=4.100

main41110-0K660iTGN126..(TD,TS)..(H,S)202006-202108

*FGR=41:9=4.555,DIFFERENTIAL LOCK-WITH

main41110-0K710iTGN126,136..(AD,AS)..L202011-202110

*FGR=41:9=4.555,DIFFERENTIAL LOCK-WITHOUT

sub41110-0K711

main41110-0K720supersedes 41110-0K670iGUN125,126,13#..AD..6F..(H,S)..LA202011-202110

*FGR=43:12=3.583,DIFFERENTIAL LOCK-WITH

sub41110-0K721

main41110-0K730supersedes 41110-0K680iGUN126..6FC..BZAG;GUN126..AD..6FC..L;GGN125,GUN136..AD..6FC202011-202110

*FGR=43:11=3.909

sub41110-0K731

main41110-0K760iTGN126..AD..L;TGN136..(AD,AS)..L202011-202110

*FGR=41:9=4.555,DIFFERENTIAL LOCK-WITH

sub41110-0K761

main41110-0K770iGUN135..SS..L;GUN125..S..IV3;GUN122,125..L..SA;GUN125..LHD..SS..S;GUN135..(SD,SX)..6F;GUN125,126,136..(SD,SX)..6F..S202009-202109

*FGR=43:12=3.583

sub41110-0K771

main41110-0K790iTGN121..SA;GUN125,135..SD..6FC202009-202109

*FGR=41:10=4.100

sub41110-0K791

main41110-0K820iGUN125,135..GHA,KEN;GUN125,126,136..6F..H..(KEN,SA);GUN125,126,135..RHD..SS..6F..S..CBU202009-202111

*FGR=43:12=3.583

sub41110-0K821

main41110-0K830supersedes 41110-0K780iGGN125,GUN126,136..6FC..H..(GHA,KEN,SA)202009-202111

*FGR=43:11=3.909

sub41110-0K831

main41110-0K840iGUN125,135..SD..6FC202009-202109

*FGR=41:10=4.100

sub41110-0K841

main41110-0K890supersedes 41110-0K880iGUN125,135..AD..6FC..LA202011-202110

*FGR=41:10=4.100

sub41110-0K891

main41110-0KB30iGUN112,122,123..5F..(IDN,PH,TH)202006-202108

*FGR=43:12=3.583

main41110-0KB50iTGN121..TD..5F..GCC202006-202108

*FGR=41:10=4.100

main41110-0KB70iTGN110,120202006-202109

*FGR=41:9=4.555

main41110-0K850iLAN125,TGN126..SA202009-202109

*FGR=43:10=4.300,DIFFERENTIAL LOCK-WITH

sub41110-0K851

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90105-F0001×2iGGN125,GUN122,125,126,13#,TGN121,126,136..GHA,KEN,SA202009-202111

TYPE A:REFER ILLUST.

main90105-T0081×4iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

main90109-F0001×2iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202009-202110

TYPE B:REFER ILLUST.

main90109-T0030×4iGUN120,122..GCC,GEN,TH;GUN125,126,135..MD,MMD,MS,TD,TS,TX;GGN125,GUN112,136,TGN111,121,126,136..(TD,TS,TX)..(ARL,GCC,GEN,LA)202006-202301

41115RING, DIFFERENTIAL OIL STORAGE

main41115-0K010iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

main41115-0K020iGUN120,122..GCC,GEN,TH;GUN125,126,135..MD,MMD,MS,TD,TS,TX;GGN125,GUN112,136,TGN111,121,126,136..(TD,TS,TX)..(ARL,GCC,GEN,LA)202006-202105

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-09B60iGUN120,122..GCC,GEN,PKN,TH;GUN112,136..(TD,TS)..MTM..(ARL,GCC,LA);GUN125,126,135..(MD,MS,PD,PS,TD,TS,TX)..6F202006-202201

*FGR=43:12=3.583

main41201-09B70iGUN126..6FC..PKN202006-202201

*FGR=43:11=3.909

main41201-09B80iGUN135..(TD,TX)..6FC;GUN125,TGN111,121..(MD,PS,TD,TS,TX)..(5F,6FC)..(ARL,GCC,GEN,IDN,LA,MA,PKN)202006-202201

*FGR=41:10=4.100

main41201-09C00iTGN121..TD..5F..GCC202006-202108

*FGR=41:10=4.100

main41201-09C10iTGN126,136..TD,TS202006-202108

*FGR=41:9=4.555

main41201-09C40iTGN110,120202006-202109

*FGR=41:9=4.555

main41201-09C50iGUN112,122,123..5F..(IDN,PH,TH)202006-202108

*FGR=43:12=3.583

main41201-09E41iGUN122,125,126,13#..MTM..(GHA,KEN,SA)202009-202111

*FGR=43:12=3.583

sub41201-09E42

main41201-09E81supersedes 41201-09F90iTGN136..AD,AS,SD,SS;TGN126,128,138..AD,AS202009-202110

*FGR=41:9=4.555

sub41201-09E82

main41201-09F50iGGN125,GUN126,136..AD..6FC202011-202110

*FGR=43:11=3.909

sub41201-09F51

main41201-09F70iGGN125,GUN126,136..6FC..(GHA,KEN,SA)202009-202111

*FGR=43:11=3.909

sub41201-09F71

main41201-09F80iGUN125,135,TGN121..(5F,6FC)..SA202009-202109

*FGR=41:10=4.100

sub41201-09F81

main41201-09G00iGUN125,135..AD..6FC202011-202110

sub41201-09G01

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-S0016iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202009-202110

main90366-T0065iGUN120,122..GCC,GEN,TH;GUN125,126,135..MD,MMD,MS,TD,TS,TX;GGN125,GUN112,136,TGN111,121,126,136..(TD,TS,TX)..(ARL,GCC,GEN,LA)202006-202301

main90366-T0080iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-S0013iGGN125,GUN122,125,126,13#,TGN121,126,136..GHA,KEN,SA202009-202111

main90366-T0062iGUN122,126,TGN121..PKN202006-202201

main90366-T0083iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-S0001iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202009-202110

sub90311-53001

main90311-T0065iGUN122,126,TGN121..PKN202006-202201

main90311-T0068iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

41201ESHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)

main90201-35497iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

OD=47,T=1.70,TYPE B:REFER ILLUST.

main90201-35498iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

OD=47,T=1.73,TYPE B:REFER ILLUST.

main90201-35499iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

OD=47,T=1.76,TYPE B:REFER ILLUST.

main90201-35500iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

OD=47,T=1.79,TYPE B:REFER ILLUST.

main90201-35501iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

OD=47,T=1.82,TYPE B:REFER ILLUST.

main90201-35502iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

OD=47,T=1.85,TYPE B:REFER ILLUST.

main90201-35503iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

OD=47,T=1.88,TYPE B:REFER ILLUST.

main90201-35504iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

OD=47,T=1.91,TYPE B:REFER ILLUST.

main90201-35505iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

OD=47,T=1.94,TYPE B:REFER ILLUST.

main90201-35506iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

OD=47,T=1.97,TYPE B:REFER ILLUST.

main90201-35507iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

OD=47,T=2.00,TYPE B:REFER ILLUST.

main90201-35508iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

OD=47,T=2.03,TYPE B:REFER ILLUST.

main90201-35509iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

OD=47,T=2.06,TYPE B:REFER ILLUST.

main90201-35510iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

OD=47,T=2.09,TYPE B:REFER ILLUST.

main90201-35511iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

OD=47,T=2.12,TYPE B:REFER ILLUST.

main90201-35512iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

OD=47,T=2.15,TYPE B:REFER ILLUST.

main90201-35513iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

OD=47,T=2.18,TYPE B:REFER ILLUST.

main90201-35514iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

OD=47,T=2.21,TYPE B:REFER ILLUST.

main90201-35515iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

OD=47,T=2.24,MARK 01,TYPE B:REFER ILLUST.

main90201-35516iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

OD=47,T=2.27,MARK 02,TYPE B:REFER ILLUST.

main90201-35517iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

OD=47,T=2.30,MARK 03,TYPE B:REFER ILLUST.

main90201-35518iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

OD=47,T=2.33,MARK 04,TYPE B:REFER ILLUST.

main90564-35109iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

OD=52,T=1.70,TYPE A:REFER ILLUST.

main90564-35110iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

OD=52,T=1.73,TYPE A:REFER ILLUST.

main90564-35111iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

OD=52,T=1.76,TYPE A:REFER ILLUST.

main90564-35112iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

OD=52,T=1.79,TYPE A:REFER ILLUST.

main90564-35113iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

OD=52,T=1.82,TYPE A:REFER ILLUST.

main90564-35114iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

OD=52,T=1.85,TYPE A:REFER ILLUST.

main90564-35115iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

OD=52,T=1.88,TYPE A:REFER ILLUST.

main90564-35116iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

OD=52,T=1.91,TYPE A:REFER ILLUST.

main90564-35117iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

OD=52,T=1.94,TYPE A:REFER ILLUST.

main90564-35118iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

OD=52,T=1.97,TYPE A:REFER ILLUST.

main90564-35119iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

OD=52,T=2.00,TYPE A:REFER ILLUST.

main90564-35120iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

OD=52,T=2.03,TYPE A:REFER ILLUST.

main90564-35121iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

OD=52,T=2.06,TYPE A:REFER ILLUST.

main90564-35123iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

OD=52,T=2.09,TYPE A:REFER ILLUST.

main90564-35124iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

OD=52,T=2.12,TYPE A:REFER ILLUST.

main90564-35125iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

OD=52,T=2.15,TYPE A:REFER ILLUST.

main90564-35126iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

OD=52,T=2.18,TYPE A:REFER ILLUST.

main90564-35127iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

OD=52,T=2.21,TYPE A:REFER ILLUST.

main90564-35128iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

OD=52,T=2.24,TYPE A:REFER ILLUST.

main90564-35129iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

OD=52,T=2.27,TYPE A:REFER ILLUST.

main90564-35130iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

OD=52,T=2.30,TYPE A:REFER ILLUST.

main90564-35131iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

OD=52,T=2.33,TYPE A:REFER ILLUST.

main90564-78001iGUN120,122..GCC,GEN,TH;GUN125,126,135..MD,MMD,MS,TD,TS,TX;GGN125,GUN112,136,TGN111,121,126,136..(TD,TS,TX)..(ARL,GCC,GEN,LA)202006-202301

T=1.72

main90564-78002iGUN122,126,TGN121..PKN202006-202201

T=1.74

main90564-78003iGUN120,122..GCC,GEN,TH;GUN125,126,135..MD,MMD,MS,TD,TS,TX;GGN125,GUN112,136,TGN111,121,126,136..(TD,TS,TX)..(ARL,GCC,GEN,LA)202006-202301

T=1.76

main90564-78004iGUN122,126,TGN121..PKN202006-202201

T=1.78

main90564-78005iGUN120,122..GCC,GEN,TH;GUN125,126,135..MD,MMD,MS,TD,TS,TX;GGN125,GUN112,136,TGN111,121,126,136..(TD,TS,TX)..(ARL,GCC,GEN,LA)202006-202301

T=1.80

main90564-78006iGUN120,122..GCC,GEN,TH;GUN125,126,135..MD,MMD,MS,TD,TS,TX;GGN125,GUN112,136,TGN111,121,126,136..(TD,TS,TX)..(ARL,GCC,GEN,LA)202006-202301

T=1.82

main90564-78007iGUN122,126,TGN121..PKN202006-202201

T=1.84

main90564-78008iGUN120,122..GCC,GEN,TH;GUN125,126,135..MD,MMD,MS,TD,TS,TX;GGN125,GUN112,136,TGN111,121,126,136..(TD,TS,TX)..(ARL,GCC,GEN,LA)202006-202301

T=1.86

main90564-78009iGUN122,126,TGN121..PKN202006-202201

T=1.88

main90564-78010iGUN122,126,TGN121..PKN202006-202201

T=1.90

main90564-78011iGUN120,122..GCC,GEN,TH;GUN125,126,135..MD,MMD,MS,TD,TS,TX;GGN125,GUN112,136,TGN111,121,126,136..(TD,TS,TX)..(ARL,GCC,GEN,LA)202006-202301

T=1.92

main90564-78012iGUN122,126,TGN121..PKN202006-202201

T=1.94

main90564-78013iGUN120,122..GCC,GEN,TH;GUN125,126,135..MD,MMD,MS,TD,TS,TX;GGN125,GUN112,136,TGN111,121,126,136..(TD,TS,TX)..(ARL,GCC,GEN,LA)202006-202301

T=1.96

main90564-78014iGUN120,122..GCC,GEN,TH;GUN125,126,135..MD,MMD,MS,TD,TS,TX;GGN125,GUN112,136,TGN111,121,126,136..(TD,TS,TX)..(ARL,GCC,GEN,LA)202006-202301

T=1.98

main90564-78015iGUN122,126,TGN121..PKN202006-202201

T=2.00

main90564-78016iGUN120,122..GCC,GEN,TH;GUN125,126,135..MD,MMD,MS,TD,TS,TX;GGN125,GUN112,136,TGN111,121,126,136..(TD,TS,TX)..(ARL,GCC,GEN,LA)202006-202301

T=2.02

main90564-78017iGUN122,126,TGN121..PKN202006-202201

T=2.04

main90564-78018iGUN122,126,TGN121..PKN202006-202201

T=2.06

main90564-78019iGUN120,122..GCC,GEN,TH;GUN125,126,135..MD,MMD,MS,TD,TS,TX;GGN125,GUN112,136,TGN111,121,126,136..(TD,TS,TX)..(ARL,GCC,GEN,LA)202006-202301

T=2.08

main90564-78020iGUN122,126,TGN121..PKN202006-202201

T=2.10

main90564-78021iGUN120,122..GCC,GEN,TH;GUN125,126,135..MD,MMD,MS,TD,TS,TX;GGN125,GUN112,136,TGN111,121,126,136..(TD,TS,TX)..(ARL,GCC,GEN,LA)202006-202301

T=2.12

main90564-78022iGUN120,122..GCC,GEN,TH;GUN125,126,135..MD,MMD,MS,TD,TS,TX;GGN125,GUN112,136,TGN111,121,126,136..(TD,TS,TX)..(ARL,GCC,GEN,LA)202006-202301

T=2.14

main90564-78023iGUN122,126,TGN121..PKN202006-202201

T=2.16

main90564-78024iGUN122,126,TGN121..PKN202006-202201

T=2.18

main90564-S0001iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202009-202110

T=1.025

main90564-S0002iGGN125,GUN122,125,126,13#,TGN121,126,136..GHA,KEN,SA202009-202111

T=1.050

main90564-S0003iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202009-202110

T=1.075

main90564-S0004iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202009-202110

T=1.100

main90564-S0005iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202009-202110

T=1.125

main90564-S0006iGGN125,GUN122,125,126,13#,TGN121,126,136..GHA,KEN,SA202009-202111

T=1.150

main90564-S0007iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202009-202110

T=1.175

main90564-S0008iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202009-202110

T=1.200

main90564-S0009iGGN125,GUN122,125,126,13#,TGN121,126,136..GHA,KEN,SA202009-202111

T=1.225

main90564-S0010iGGN125,GUN122,125,126,13#,TGN121,126,136..GHA,KEN,SA202009-202111

T=1.250

main90564-S0011iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202009-202110

T=1.275

main90564-S0012iGGN125,GUN122,125,126,13#,TGN121,126,136..GHA,KEN,SA202009-202111

T=1.300

main90564-S0013iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202009-202110

T=1.325

main90564-S0014iGGN125,GUN122,125,126,13#,TGN121,126,136..GHA,KEN,SA202009-202111

T=1.350

main90564-S0015iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202009-202110

T=1.375

main90564-S0016iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202009-202110

T=1.400

main90564-S0017iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202009-202110

T=1.425

main90564-S0018iGGN125,GUN122,125,126,13#,TGN121,126,136..GHA,KEN,SA202009-202111

T=1.450

main90564-S0019iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202009-202110

T=1.475

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-0K100iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

main41204-0K110iGUN122,126,TGN121..PKN202006-202201

main41204-0K130iGGN125,GUN122,125,126,13#,TGN121,126,128,13#..AD,AS,SD,SS,SX202009-202101

DIFFERENTIAL LOCK-WITH&TIRE & DISC WHEEL-265/65R17, ALUMINUM

main41204-0K131iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202101-202110

41204BNUT (FOR REAR DRIVE PINION)

main90177-22003iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

OD=39.5

main90178-F0001iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202009-202110

OD=43.5

main90179-22029iGUN122,126,TGN121..PKN202006-202201

OD=43

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-0K040iGUN122,126,TGN121..PKN202006-202201

main41214-0K050iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202009-202110

main41214-26011iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-0K030iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202009-202110

main41231-24010iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

main41231-71010iGUN120,122..GCC,GEN,TH;GUN125,126,135..MD,MMD,MS,TD,TS,TX;GGN125,GUN112,136,TGN111,121,126,136..(TD,TS,TX)..(ARL,GCC,GEN,LA)202006-202301

41301CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-0K100iGUN125,135..RHD..SS..6F..S..CBU;TGN128,13#..(AD,SS)..(H,S)..(BZAG,SA)202009-202110

DIFFERENTIAL LOCK-WITHOUT

main41301-0K110iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

main41301-0K120iGUN125..TD..IV3;GUN135..S..(PH,VN);GUN135..RHD..(GEN,TH);GUN120,122..GCC,GEN,PKN,TH;GUN135..(TD,TS)..(H,L)..(LA,PH,VN);GUN125,126,TGN126..(TD,TS)..L..(GCC,GEN,LA);G202006-202201

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-S0019iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202009-202110

LH

main90366-S0022iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202009-202110

RH

main90366-T0010×2iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

main90366-T0068iGUN122,126,TGN121..PKN202006-202201

LH

main90366-T0071iGUN122,126,TGN121..PKN202006-202201

RH

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41302-0K020iGUN126..PKN202006-202201

main41302-0K030iTGN126,128,13#..AD..(H,S);GUN125,126,13#..AD..(H,S)..LA202009-202110

DIFFERENTIAL LOCK-WITH

41302ABOLT(FOR REAR DIFFERENTIAL CASE)

main90105-F0003×12iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202009-202110

main90105-T0268×12iGUN122,126,TGN121..PKN202006-202201

main90105-T0417×10iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-0K010×2iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

(L)

main41315-35020×2iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

(J)

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-0K010×2iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

(L)

main41316-35010×2iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

(J)

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-0K060iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

main41342-0K070iGUN125..TD..IV3;GUN135..S..(PH,VN);GUN135..RHD..(GEN,TH);GUN120,122..GCC,GEN,PKN,TH;GUN135..(TD,TS)..(H,L)..(LA,PH,VN);GUN125,126,TGN126..(TD,TS)..L..(GCC,GEN,LA);G202006-202201

main41342-0K080iTGN126,128,13#..AD..(H,S);GUN125,126,13#..AD..(H,S)..LA202006-202110

DIFFERENTIAL LOCK-WITH

41342BPIN, STRAIGHT (FOR REAR DIFFERENTIAL PINION SHAFT)

main90250-T0006iLAN125,TGN120;GUN125..TD..IV3;GUN135..S..(PH,VN);GUN135..RHD..(GEN,TH);GUN135..(TD,TS)..(H,L)..(LA,PH,VN);GUN125,126,TGN126..(TD,TS)..L..(GCC,GEN,LA);GUN112,120,122202006-202201

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-0K010×2iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

(L)

main41351-0K040×2iGUN125..TD..IV3;GUN135..S..(PH,VN);GUN135..RHD..(GEN,TH);GUN120,122..GCC,GEN,PKN,TH;GUN135..(TD,TS)..(H,L)..(LA,PH,VN);GUN125,126,TGN126..(TD,TS)..L..(GCC,GEN,LA);G202006-202201

main41351-0K050×4iGUN126..PKN202006-202201

main41351-0K060×4iGUN126..AD..(H,S)..LA;TGN126,128,13#..AD..(H,S);GUN125,13#..AD..6F..(H,S)..LA202009-202110

DIFFERENTIAL LOCK-WITH

main41351-35030×2iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

(J)

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-0K020×2iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

T=1.55

main41361-0K030×2iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

T=1.60

main41361-0K040×2iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

T=1.65

main41361-0K050×2iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

T=1.70

main41361-0K060×2iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

T=1.75

main41361-0K070×2iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

T=1.80

main41361-0K080×2iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

T=1.85

main41361-0K090×2iLAN125,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)202006-202109

T=1.90

main41361-0K110×2iGUN125..TD..IV3;GUN135..S..(PH,VN);GUN135..RHD..(GEN,TH);GUN120,122..GCC,GEN,PKN,TH;GUN135..(TD,TS)..(H,L)..(LA,PH,VN);GUN125,126,TGN126..(TD,TS)..L..(GCC,GEN,LA);G202006-202201

T=1.45

main41361-0K300×2iGUN125..TD..IV3;GUN135..S..(PH,VN);GUN135..RHD..(GEN,TH);GUN120,122..GCC,GEN,PKN,TH;GUN135..(TD,TS)..(H,L)..(LA,PH,VN);GUN125,126,TGN126..(TD,TS)..L..(GCC,GEN,LA);G202006-202201

T=1.50

main41361-0K310×2iGUN125..TD..IV3;GUN135..S..(PH,VN);GUN135..RHD..(GEN,TH);GUN120,122..GCC,GEN,PKN,TH;GUN135..(TD,TS)..(H,L)..(LA,PH,VN);GUN125,126,TGN126..(TD,TS)..L..(GCC,GEN,LA);G202006-202201

T=1.55

main41361-0K320×2iGUN125..TD..IV3;GUN135..S..(PH,VN);GUN135..RHD..(GEN,TH);GUN120,122..GCC,GEN,PKN,TH;GUN135..(TD,TS)..(H,L)..(LA,PH,VN);GUN125,126,TGN126..(TD,TS)..L..(GCC,GEN,LA);G202006-202201

T=1.60

main41361-0K330×2iGUN125..TD..IV3;GUN135..S..(PH,VN);GUN135..RHD..(GEN,TH);GUN120,122..GCC,GEN,PKN,TH;GUN135..(TD,TS)..(H,L)..(LA,PH,VN);GUN125,126,TGN126..(TD,TS)..L..(GCC,GEN,LA);G202006-202201

T=1.65

main41361-0K340×2iGUN125..TD..IV3;GUN135..S..(PH,VN);GUN135..RHD..(GEN,TH);GUN120,122..GCC,GEN,PKN,TH;GUN135..(TD,TS)..(H,L)..(LA,PH,VN);GUN125,126,TGN126..(TD,TS)..L..(GCC,GEN,LA);G202006-202201

T=1.70

main41361-0K350×2iGUN125..TD..IV3;GUN135..S..(PH,VN);GUN135..RHD..(GEN,TH);GUN120,122..GCC,GEN,PKN,TH;GUN135..(TD,TS)..(H,L)..(LA,PH,VN);GUN125,126,TGN126..(TD,TS)..L..(GCC,GEN,LA);G202006-202201

T=1.75

main41361-0K360×2iGUN125..TD..IV3;GUN135..S..(PH,VN);GUN135..RHD..(GEN,TH);GUN120,122..GCC,GEN,PKN,TH;GUN135..(TD,TS)..(H,L)..(LA,PH,VN);GUN125,126,TGN126..(TD,TS)..L..(GCC,GEN,LA);G202006-202201

T=1.80

main41361-0K370×2iGUN125..TD..IV3;GUN135..S..(PH,VN);GUN135..RHD..(GEN,TH);GUN120,122..GCC,GEN,PKN,TH;GUN135..(TD,TS)..(H,L)..(LA,PH,VN);GUN125,126,TGN126..(TD,TS)..L..(GCC,GEN,LA);G202006-202201

T=1.85

main41361-0K380iGUN135..ARL;GUN125..TX..GEN;GUN126..TD..(H,S)..LA;GUN125..(TD,TS)..(H,S);GUN125..TD..L..(ARL,IDN,PH)..CBU;GUN125..(MD,MS,TS,TX)..(ARL,IDN,MA,TH);GUN126..ARL,GCC,GEN202006-202301

T=1.1

main41361-0K390iGUN126..PKN202006-202201

T=1.2

main41361-0K400iGUN135..ARL;GUN125..TX..GEN;GUN126..TD..(H,S)..LA;GUN125..(TD,TS)..(H,S);GUN125..TD..L..(ARL,IDN,PH)..CBU;GUN125..(MD,MS,TS,TX)..(ARL,IDN,MA,TH);GUN126..ARL,GCC,GEN202006-202301

T=1.3

main41361-0K410iGUN126..PKN202006-202201

T=1.4

main41361-0K460iTGN126,128,13#..AD..(H,S);GUN125,126,13#..AD..(H,S)..LA202009-202110

T=1.1

main41361-0K470iGUN135..SX..6FC;GUN125,135..GHA,KEN;GGN125,GUN125,126,136..H..(GHA,KEN,SA);GUN125,126,135,TGN136..RHD..SS..S..CBU202009-202111

T=1.2

main41361-0K480iTGN126,128,13#..AD..(H,S);GUN125,126,13#..AD..(H,S)..LA202009-202110

T=1.3

main41361-0K490iTGN126,128,13#..AD..(H,S);GUN125,126,13#..AD..(H,S)..LA202009-202110

T=1.4,DIFFERENTIAL LOCK-WITH

90119T0071

main90119-T0071

25 parts on this diagram · 11 diagrams in section
