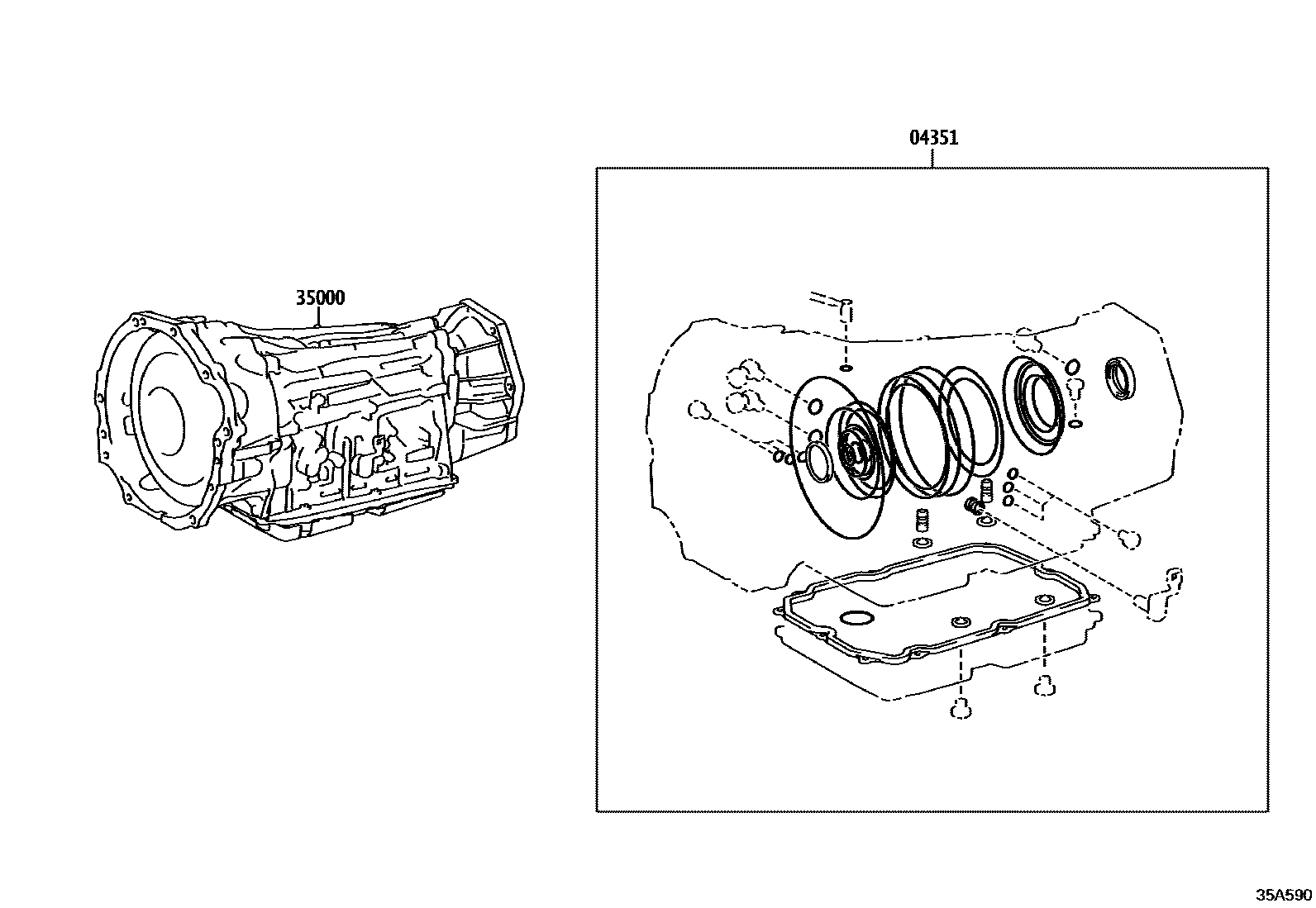

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1AC60F 0002 1AC60E

04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-71220iGUN120,135,TGN121,138..6FC202006-202110

main04351-71230iGGN125,GUN125,126,TGN128..AD..6FC202006-202110

main04351-71241iGUN136..6FC202006-202110

35000TRANSMISSION ASSY, AUTOMATIC

main35000-0K030iGUN125..(MD,TD,TS,TX)..6FC202006-202110

AC60F

main35000-0K050iGUN120,135..(TD,TS,TX)..6FC202006-202108

AC60E,(L)

main35000-0K070iGGN125..GCC202006-202108

AC60F

main35000-0K080iTGN121..6FC202006-202108

AC60E

main35000-0K090iTGN126..TD..6FC202006-202108

AC60F

main35000-0K110iGUN136..6FC..ARL202006-202108

AC60E

main35000-0K130iGUN126..(TS,TX)..6FC;GUN126..TD..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202006-202108

AC60F,(L)

main35000-71340supersedes 35000-0K140iGUN126..(TS,TX)..6FC;GUN126..TD..6FC..(ARL,GCC,GEN,LA,PH,TWN,VN)202006-202108

AC60F,(J)

main35000-71380iTGN138202011-202110

AC60E

main35000-71390iGUN120,135..(TD,TS,TX)..6FC202006-202108

AC60E,(J)

main35000-71410iTGN126,128..6FC..(BZAG,SA)202009-202110

AC60F

main35000-71420iGUN125..(AD,SD,SS)..6FC202009-202110

AC60F

main35000-71440iGGN125..AD,SD202009-202110

AC60F

main35000-71520iGUN136..6FC..(BZAG,SA)202009-202110

AC60E

main35000-0K040iGUN125..6FC..H..GCC202006-202108

AC60F,TOYOTA STOP & START SYSTEM-WITH

main35000-0K060iGUN135..6FC..(L,S)..TH;GUN135..TD..6FC..H..TH202006-202108

AC60E,TOYOTA STOP & START SYSTEM-WITH

2 parts on this diagram · 2 diagrams in section
