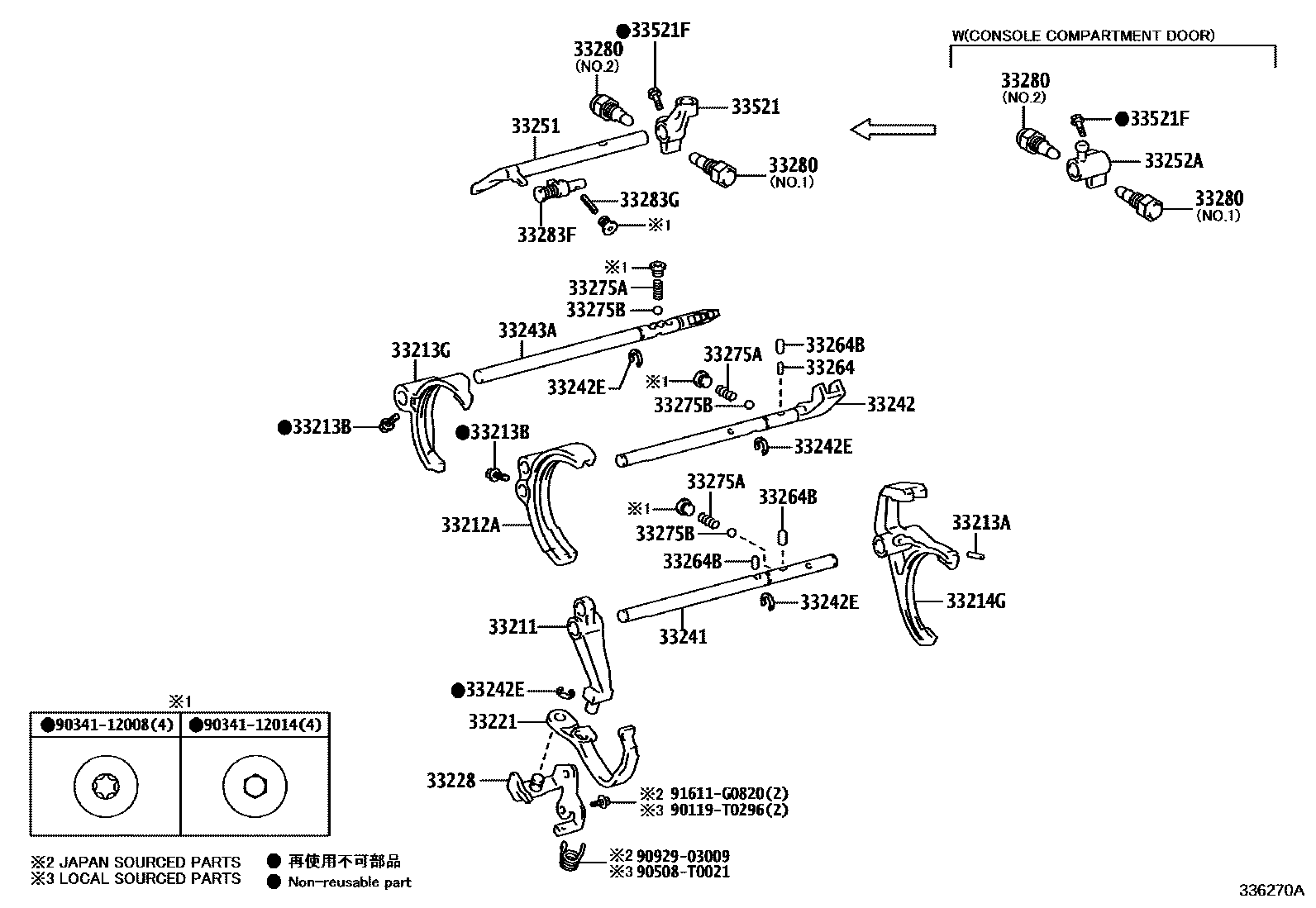

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1R151 0002 1R151F 0003 1RC6# 0004 1RC6#F

33211FORK, REVERSE SHIFT

main33211-0K050iTGN126..5F202006-202009

TYPE B:REFER 33-01

main33211-0K061iGUN112,122,123,TGN11#,120,121,126,136..(PS,SD,SS,TD,TS)..5F202006-202201

TYPE A:REFER 33-01

main33211-0K070iGUN112,122,123,LAN125,TGN11#,120,121,126,136..(AD,AS,SD,SS,TD,TS)..5F202006-202012

TYPE C:REFER 33-01

main33211-0K071iTGN126,136..AD,AS202012-202110

TYPE C:REFER 33-01

33212AFORK, GEAR SHIFT, NO.1

main33212-0K020iTGN126..5F202006-202009

TYPE B:REFER 33-01

main33212-0K030iTGN126,136..AD,AS202006-202110

TYPE C:REFER 33-01

sub33212-0K060

main33212-0K040iGUN125,126,13#..(AD,AS)..6F202006-202110

ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01

main33212-0K050iGUN112,122,123,TGN11#,120,121,126,136..(PS,SD,SS,TD,TS)..5F202006-202201

TYPE A:REFER 33-01

33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)

main90254-05016iGUN112,122,123,LAN125,TGN11#,120,121,126,136..(PS,SD,SS,TD,TS)..5F202006-202201

TYPE A:REFER 33-01

main90254-T0004iTGN126..5F202006-202009

TYPE B:SEE 33-01,(L)

33213BBOLT(FOR SHIFT FORK SET)

main90105-06077×2iGUN112,122,123,TGN11#,120,121,126,136..(PS,SD,SS,TD,TS)..5F202006-202201

TYPE A:REFER 33-01

main90105-T0157×2iTGN126,136..AD,AS202105-202110

TYPE C:REFER 33-01

33213GFORK, GEAR SHIFT, NO.2

main33213-0K030iTGN126..5F202006-202009

TYPE B:REFER 33-01

main33213-0K040iGUN112,122,123,LAN125,TGN11#,120,121,126,136..(PS,SD,SS,TD,TS)..5F202006-202201

TYPE A:REFER 33-01

33214GFORK, GEAR SHIFT, NO.3

main33230-35012iGUN112,122,123,LAN125,TGN11#,120,121,126,136..(PS,SD,SS,TD,TS)..5F202006-202201

TYPE A:REFER 33-01

33221ARM, REVERSE SHIFT

main33221-0K050iTGN126..5F202006-202009

TYPE B:REFER 33-01

main33221-0K070iGUN112,122,123,LAN125,TGN11#,120,121,126,136..(PS,SD,SS,TD,TS)..5F202006-202201

TYPE C:REFER 33-01

main33221-0K080iGUN112,122,123,TGN11#,120,121,126,136..(PS,SD,SS,TD,TS)..5F202006-202201

TYPE A:REFER 33-01

33228BRACKET, REVERSE SHIFT ARM

main33228-0K050iGUN112,122,123,TGN11#,120,121,126,136..(PS,SD,SS,TD,TS)..5F202006-202201

TYPE A:REFER 33-01

main33228-0K060iGUN122..H;GUN122..S..GEN;TGN11#,120,121,136..5F202006-202107

TYPE B:REFER 33-01

33241SHAFT, REVERSE SHIFT FORK

main33244-0K050iGUN122..L..GEN;GUN112,122,123..5F..(L,S)..(GCC,IDN,PH,SA,TH)202006-202101

TYPE B:SEE 33-01,(L)

main33244-0K061iGUN112,122,123,TGN11#,120,121,126,136..(AD,AS,PS,SD,SS,TD,TS)..5F202006-202109

TYPE A:REFER 33-01

main33244-0K062iTGN126,136202109-202110

TYPE A:REFER 33-01

main33244-0K070iGUN112,122,123,LAN125,TGN11#,120,121,126,136..(AD,AS,SD,SS,TD,TS)..5F202006-202012

TYPE C:REFER 33-01

main33244-0K071iGUN112,122,123,LAN125,TGN11#,120,121,126,136..(PS,SD,SS,TD,TS)..5F202012-202201

TYPE C:REFER 33-01

sub33244-0K072

main33244-35110iGUN122..L..GEN;GUN112,122,123..5F..(L,S)..(GCC,IDN,PH,SA,TH)202006-202101

TYPE B:SEE 33-01,(J)

33242SHAFT, GEAR SHIFT FORK, NO.1

main33242-0K050iGUN122..H;GUN122..S..GEN;TGN11#,120,121,136..5F202006-202107

TYPE B:SEE 33-01,(L)

main33242-0K070iGUN112,122,123,LAN125,TGN11#,120,121,126,136..(AD,AS,SD,SS,TD,TS)..5F202006-202012

TYPE C:REFER 33-01

main33242-0K071iGUN112,122,123,LAN125,TGN11#,120,121,126,136..(PS,SD,SS,TD,TS)..5F202012-202201

TYPE C:REFER 33-01

main33242-0K082iGUN122,125,126,13#..(KD,KS,MD,MS,PD,PS,SD,SS,SX,TD,TS,TX)..6F202006-202201

TYPE A:REFER 33-01

main33242-0K092iGUN136..S..BZAG;GUN125,126,135..(AD,AS)..6F202006-202110

ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01

sub33242-0K083

main33242-0K111iTGN126,136..AD,AS202006-202110

TYPE A:REFER 33-01

main33242-35090iGUN122..H;GUN122..S..GEN;TGN11#,120,121,136..5F202006-202107

TYPE B:SEE 33-01,(J)

33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)

main90520-12003×4iTGN126,136..AD,AS202006-202110

TYPE A:REFER 33-01,TYPE C:REFER 33-01

main90520-T0135×4iTGN126..5F202006-202009

TYPE B:REFER 33-01

33243ASHAFT, GEAR SHIFT FORK, NO.2

main33243-0K030iTGN126..5F202006-202009

TYPE B:SEE 33-01,(L)

main33243-0K040iTGN126,136..AD,AS202006-202110

TYPE C:REFER 33-01

main33243-0K051iGUN122,125,126,13#..(KD,KS,MD,MS,PD,PS,SD,SS,SX,TD,TS,TX)..6F202006-202201

TYPE A:REFER 33-01

main33243-0K061iGUN136..S..BZAG;GUN125,126,135..(AD,AS)..6F202006-202110

ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01

main33243-0K070iTGN126,136..AD,AS202006-202110

TYPE A:REFER 33-01

main33243-35100iGUN122..H;GUN122..S..GEN;TGN11#,120,121,136..5F202006-202107

TYPE B:SEE 33-01,(J)

33251LEVER, SHIFT & SELECT

main33251-0K070iGUN112,122,123,TGN11#,120,121,136..(PS,SD,SS,TD,TS)..5F202006-202201

TYPE C:REFER 33-01

main33251-0K080iLAN125,TGN126..5F202006-202110

TYPE C:REFER 33-01

main33251-0K090iGUN122..H;GUN122..S..GEN;TGN11#,120,121,136..5F202006-202107

TYPE B:REFER 33-01

main33251-0K100iTGN126..5F202006-202009

TYPE B:REFER 33-01

main33251-0K130iGUN112,122,123,TGN11#,120,121,136..(PS,SD,SS,TD,TS)..5F202006-202201

TYPE A:REFER 33-01

main33251-0K140iTGN126..5F202006-202110

TYPE A:REFER 33-01

33252ALEVER, SHIFT, INNER NO.2

main33252-0K010iGUN122,TGN121..5F..H;TGN121..5F..ARL..CBU;GUN122,TGN136..S..(GEN,LA,SA)202006-202110

TYPE A:REFER 33-01

main33252-0K020iGUN122,TGN121..5F..H;TGN121..5F..ARL..CBU;GUN122,TGN136..S..(GEN,LA,SA)202006-202107

TYPE B:REFER 33-01

main33252-0K030iGUN122,TGN121..5F..H;TGN121..5F..ARL..CBU;GUN122,TGN136..S..(GEN,LA,SA)202006-202110

TYPE C:REFER 33-01

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main90250-05029iGUN112,122,123,LAN125,TGN11#,120,121,126,136..(PS,SD,SS,TD,TS)..5F202006-202201

L=11.5,OD=4.8,TYPE A:REFER 33-01

main90250-T0022iGUN122..L..GEN;GUN112,122,123..5F..(L,S)..(GCC,IDN,PH,SA,TH)202006-202101

L=11.5,OD=4.8,TYPE B:REFER 33-01

33264BROLLER, NO.1 (FOR SHIFT INTERLOCK )

main90250-06032iGUN112,122,123,TGN11#,120,121,126,136..(PS,SD,SS,TD,TS)..5F202006-202201

L=13.7,OD=6,TYPE A:REFER 33-01

main90361-10003×2iTGN126,136..AD,AS202012-202110

L=13.6,OD=9.5,TYPE C:REFER 33-01

main90361-T0003×3iTGN126..5F202006-202009

L=13.6,PIN,TYPE B:REFER 33-01

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-16199×3iGUN112,122,123,LAN125,TGN11#,120,121,126,136..(PS,SD,SS,TD,TS)..5F202006-202201

L=35.09,TYPE C:SEE 33-01,(J)

main90501-T0029×3iTGN126..5F202006-202009

L=35.09,TYPE B:REFER 33-01

main90501-T0039×4iGUN125,126,13#..(AD,AS)..6F202006-202110

L=15.35,ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01

main90501-T0052×3iGUN112,122,123,TGN11#,120,121,126,136..(PS,SD,SS,TD,TS)..5F202006-202201

L=35.09,TYPE A:REFER 33-01

main90501-T0062×3iGUN112,122,123,LAN125,TGN11#,120,121,126,136..(PS,SD,SS,TD,TS)..5F202006-202201

L=35.09,TYPE C:SEE 33-01,(L)

33275BBALL, SHAFT DETENT

main90360-10003×3iGUN122..L..GEN;GUN112,122,123..5F..(L,S)..(GCC,IDN,PH,SA,TH)202006-202101

TYPE B:SEE 33-01,(J)

main90360-T0008×4iGUN136..S..BZAG;GUN125,126,135..(AD,AS)..6F202006-202110

ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01

main90360-T0013×3iGUN125,126,13#..(AD,AS)..6F202006-202110

TYPE C:SEE 33-01,(L)

33280PIN ASSY, REVERSE RESTRICT

main33280-0K050iGUN122..L..GEN;GUN112,122,123..5F..(L,S)..(GCC,IDN,PH,SA,TH)202006-202101

T/P B:SEE 33-01,NO.1

main33280-0K060iGUN122..L..GEN;GUN112,122,123..5F..(L,S)..(GCC,IDN,PH,SA,TH)202006-202101

T/P B:SEE 33-01,NO.2

main33280-0K070iTGN126..5F..L;TGN126..TS..S202006-202009

T/P B:SEE 33-01,NO.1

main33280-0K080iTGN126..5F..L;TGN126..TS..S202006-202009

T/P B:SEE 33-01,NO.2

main33280-0K110iTGN126..TD..5F..(H,S)202006-202009

ASIA COLD COUNTRY SPEC,T/P B:SEE 33-01,NO.1

main33280-0K120iTGN126..TD..5F..(H,S)202006-202009

T/P B:SEE 33-01,NO.2

main33280-35110iTGN136..AD,AS202006-202110

T/P A:SEE 33-01,NO.1,T/P C:SEE 33-01,NO.1

main33280-35120iTGN126..TS..S;LAN125,TGN126..5F..L202006-202110

T/P A:SEE 33-01,NO.1

main33280-35130iTGN136..AD,AS202006-202110

T/P C:SEE 33-01,NO.2,T/P A:SEE 33-01,NO.2

main33280-35140iTGN126..TS..S;LAN125,TGN126..5F..L202006-202110

T/P A:SEE 33-01,NO.2

main33280-71050iLAN125,TGN126..(AD,SD,TD)..5F..(H,S)202006-202110

T/P A:SEE 33-01,NO.1

main33280-71060iLAN125,TGN126..(AD,SD,TD)..5F..(H,S)202006-202110

T/P A:SEE 33-01,NO.2

33283FPIN, REVERSE RESTRICT

main33280-0K090iTGN126..5F202006-202009

main33280-35100iGUN112,122,123,LAN125,TGN11#,120,121,126,136..(PS,SD,SS,TD,TS)..5F202006-202201

TYPE A:REFER 33-01

33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)

main90254-05001iGUN112,122,123,LAN125,TGN11#,120,121,126,136..(PS,SD,SS,TD,TS)..5F202006-202201

TYPE A:REFER 33-01

main90254-T0003iTGN126..5F202006-202009

TYPE B:SEE 33-01,(L)

33521HOUSING, SHIFT LEVER

main33521-0K080iTGN136..L;TGN121..5F..ARL..IV3;TGN11#,120,121..5F..(L,S)..(GCC,GEN,IDN,PKN,SA,TH)202006-202107

TYPE B:REFER 33-01

main33521-0K100iTGN126..5F..L;TGN126..TS..S202006-202009

TYPE B:REFER 33-01

main33521-0K110iTGN121..5F..ARL..IV3;GUN122,TGN136..(TD,TS)..L..(GEN,LA);TGN121..5F..(L,S)..(GCC,GEN,PKN,SA,TH);GUN112,122,123,TGN11#,120..5F..(L,S)..(GCC,IDN,PH,PKN,SA,TH)202006-202201

TYPE C:REFER 33-01

main33521-0K120iTGN126..TS..S;LAN125,TGN126..5F..L202006-202110

TYPE C:REFER 33-01

main33521-0K160iGUN125..GHA202006-202111

TYPE A:REFER 33-01

main33521-0K170iGUN122,13#..(KS,SD,SS,SX,TD,TS,TX)..6F202006-202111

TYPE A:REFER 33-01

main33521-0K180iGUN125,126..(KD,KS,MD,MS,PD,PS,SD,SS,SX,TD,TS,TX)..6F202006-202201

TYPE B:REFER 33-01

main33521-0K190iGUN13#..(AD,AS)..6F..(L,S)202006-202110

ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01

main33521-0K200iTGN126..(AD,SD,TD)..5F..(H,S)202006-202110

TYPE A:REFER 33-01

main33521-0K210iTGN126..TD..5F..(H,S)202006-202009

ASIA COLD COUNTRY SPEC,TYPE B:REFER 33-01

main33521-0K220iLAN125,TGN126..(AD,SD,TD)..5F..(H,S)202006-202110

TYPE C:REFER 33-01

main33521-0K260iTGN121..5F..ARL..IV3;GUN122,TGN136..(TD,TS)..L..(GEN,LA);TGN121..5F..(L,S)..(GCC,GEN,PKN,SA,TH);GUN112,122,123,TGN11#,120..5F..(L,S)..(GCC,IDN,PH,PKN,SA,TH)202006-202201

TYPE A:REFER 33-01

main33521-0K280iTGN126..5F..L;TGN126..TS..S202006-202110

TYPE A:REFER 33-01

33521FPIN OR BOLT (FOR SHIFT LEVER HOUSING)

main90109-08305iGUN122..H;GUN122..S..GEN;TGN11#,120,121,136..5F202006-202107

TYPE B:REFER 33-01

main90109-T0039iGUN112,122,123,LAN125,TGN11#,120,121,126,136..(PS,SD,SS,TD,TS)..5F202006-202201

TYPE C:SEE 33-01,(L)

90119T0296

main90119-T0296

9034112008

main90341-12008

9034112014

main90341-12014

90508T0021

main90508-T0021

9092903009

main90929-03009

91611G0820

main91611-G0820

29 parts on this diagram · 4 diagrams in section
