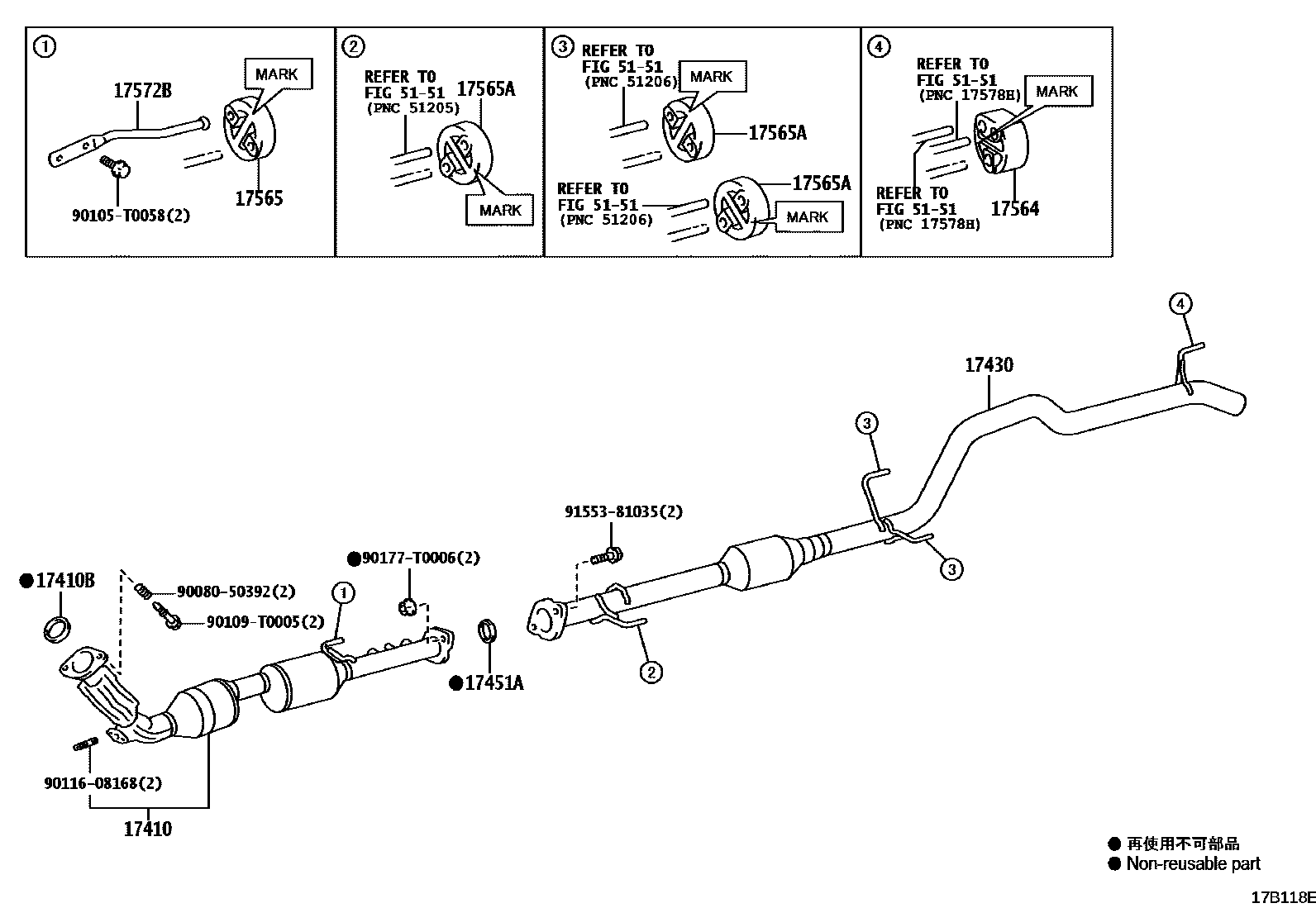

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
sub17401-05111
main17401-0C660i2TRFE..TGN121..GEN;2TRFE..TGN126..S..SA;2TRFE..TGN136..AD..L..LA;2TRFE..TGN126..L..(GEN,SA);2TRFE..TGN136..(SD,SS,TD)..(LA,SA)202006-202110
CENTRAL AND SOUTH AMERICA SPEC
main17401-0L180i2GDFTV..GUN125..TD..L..IDN;2GDFTV..GUN125..LHD..L..GEN;1GDFTV..GUN126..RHD..6FC..GEN;2GDFTV..GUN125..RHD..TD..(H,S)..(GEN,IDN);2GDFTV..GUN112,125..(TS,TX)..MTM..(L,202006-202108
NEPAL, SRI LANKA SPEC(EURO 4 REGULATION)&EXHAUST EMISSION CONTROL-EURO 4, WITH(ONBOARD DIAGNOSIS),TYPE A:REFER ILLUST.
MEXICO SPEC&EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS),TYPE A:REFERILLUST.
main17401-0L190i1GDFTV..GUN126..H..BZAG;2GDFTV..GUN125..6FC..L..GEN;1GDFTV..GUN126..6F..S..BZAG;1GDFTV,2GDFTV..GUN125,13#..BZAG202006-202110
TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
main17401-0L260i2GDFTV..GUN125..LA;1GDFTV..GUN126..H..LA;1GDFTV..GUN126..6F..S..LA;2GDFTV..GUN135..(AD,TD)..6F..LA;1GDFTV,2GDFTV..GUN122,126..LHD..(TD,TS)..MTM..L..(GEN,LA)202006-202110
TYPE B:REFER ILLUST.
main17410-0E040i1GDFTV..GUN126,136..LA;2GDFTV..GUN125..TD..LA;2GDFTV..GUN135..(AD,AS,TD)..6F..LA;2GDFTV..GUN125..(AD,TX)..(L,S)..(GEN,LA)202006-202110
*114=*102,COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP
sub17410-0E041
17410BGASKET, EXHAUST PIPE
main17451-0L050i1GDFTV,2GDFTV,1TRFE,2TRFE..GUN112,12#,13#,TGN11#,120,121,126,136..KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX202006-202301
17430PIPE ASSY, EXHAUST, TAIL
main17430-0C130i2TRFE..TGN126..6FC..(H,L)..GCC;2TRFE..TGN126..(SD,TD,TS)..5F..(H,L);2TRFE..TGN126..(SD,TD,TS)..S..(GCC,LA,SA);1TRFE,2TRFE..TGN120,121,136..PS,SD,SS,TD,TS202006-202201
main17430-0E040i2GDFTV..GUN125..TX..S..GEN;2GDFTV..GUN135..TD..6F..LA;1GDFTV,2GDFTV..GUN125,126,136..TD..LA202006-202108
COSTA RICA SPEC&EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP,TYPE A:REFER ILLUST.
main17430-0L060i1GDFTV..GUN126..H..BZAG;2GDFTV..GUN125..6FC..L..GEN;1GDFTV..GUN126..6F..S..BZAG;1GDFTV,2GDFTV..GUN125,13#..BZAG202006-202110
main17430-0L070supersedes 17430-0E050i1GDFTV..GUN126..L..BZAG;2GDFTV..GUN135..(AD,AS)..LA;1GDFTV..GUN126..6FC..S..BZAG;1GDFTV,2GDFTV..GUN125,126,136..AD..LA202006-202110
17451GASKET, EXHAUST PIPE
17451AGASKET, EXHAUST PIPE, NO.2
main90917-06076i1GDFTV..GUN126,136..LA;2GDFTV..GUN125..TD..LA;2GDFTV..GUN135..(AD,AS,TD)..6F..LA;2GDFTV..GUN125..(AD,TX)..(L,S)..(GEN,LA)202006-202110
EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP
17564SUPPORT,EXHAUST PIPE, NO.4
MARK:17565-0L100
main17565-0L110i2GDFTV..GUN135..H..GEN;2GDFTV..GUN125..AS..BZAG;2GDFTV..GUN135..ARL,BZAG,KEN,LA,PH,SA,TH,VN;1GRFE,2GDFTV..GGN125,GUN112,120,122,125..AD,KD,KS,MD,MS,PS,SD,SS,SX,TD,T202006-202108
MARK:17565-0L110
main17565-0L120i1GDFTV,2GDFTV,5LE,1TRFE,2TRFE..GUN126,13#,LAN125,TGN11#,12#,13#;1G#,2GDFTV..GGN125,GUN112,120,122,123,125..ARL,BZAG,GCC,GEN,GHA,IDN,KEN,LA,MA,PH,PKN,SA,TH,VN202006-202110
MARK:17565-0L120
MARK:17565-0L130
17565SUPPORT, EXHAUST PIPE, NO.5
main17565-0L070i2GDFTV..GUN135..H..GEN;2GDFTV..GUN122..RHD..5F;1GDFTV..GUN126..6FC..GEN;1GDFTV..GUN126..6F..S..GEN;2GDFTV..GUN125..TD..L..IDN;2GDFTV..GUN125..LHD..L..GEN;1TRFE,2TRF202006-202108
MARK:17565-0L070
MARK:17565-0L080
main17565-0L090i1GDFTV..GUN136..AD..LA;2GDFTV..GUN125,135..AS..LA;1GDFTV..GUN126..AD..6F..L..LA;1GDFTV..GUN126..AD..6FC..(L,S)..LA;2TRFE..TGN121,126,128,13#..AD,AS,PS202006-202110
EXHAUST EMISSION CONTROL-WITHOUT,MARK:17565-0L090
17565ASUPPORT, EXHAUST PIPE, NO.4
main17565-0L070×3i2GDFTV..GUN135..H..GEN;2GDFTV..GUN125..AS..BZAG;2GDFTV..GUN135..ARL,BZAG,KEN,LA,PH,SA,TH,VN;1GRFE,2GDFTV..GGN125,GUN112,120,122,125..AD,KD,KS,MD,MS,PS,SD,SS,SX,TD,T202006-202108
MARK:17565-0L070
main17565-0L080×3i1GDFTV,2GDFTV,5LE,1TRFE,2TRFE..GUN126,13#,LAN125,TGN11#,12#,13#;1G#,2GDFTV..GGN125,GUN112,120,122,123,125..ARL,BZAG,GCC,GEN,GHA,IDN,KEN,LA,MA,PH,PKN,SA,TH,VN202006-202110
MARK:17565-0L080
MARK:17565-0L090
main17565-0P240×3i1G#,2GDFTV,5LE,1TRFE,2TRFE..GGN125,GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX202006-202301
NO MARK
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
main17572-0L040i2GDFTV..GUN125..TX..S..GEN;2GDFTV..GUN135..TD..6F..LA;1GDFTV,2GDFTV..GUN125,126,136..TD..LA202006-202108
EXHAUST EMISSION CONTROL-EURO 6C OR EURO 6D-TEMP
5151
9008050392
main90080-50392
90105T0058
main90105-T0058
90109T0005
main90109-T0005
9011608168
main90116-08168
90177T0006
main90177-T0006
9155381035
main91553-81035
17 parts on this diagram · 6 diagrams in section
