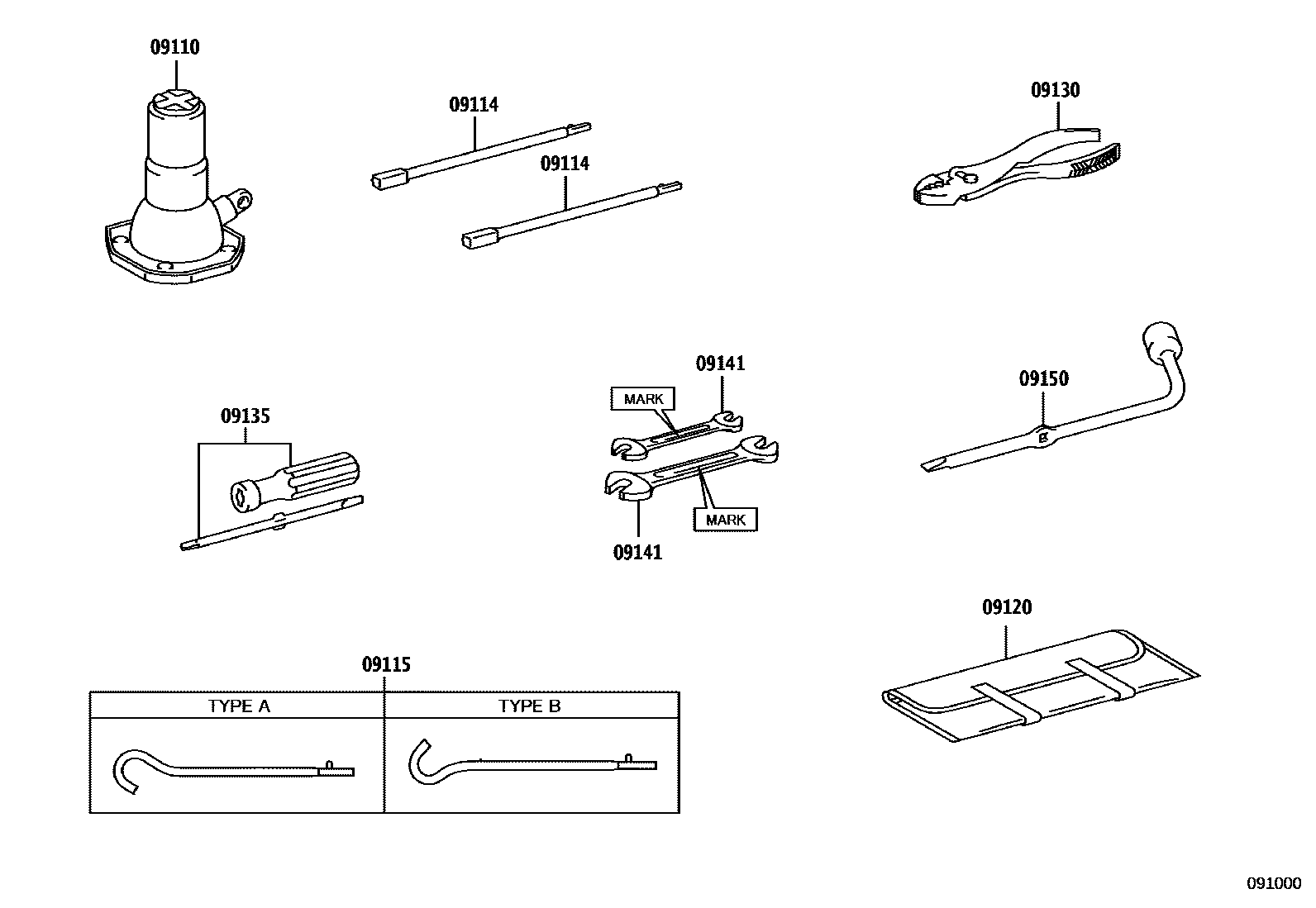

STANDARD TOOL

09110JACK ASSY

main09111-0K131iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202011-202110

main09111-0K151iGUN112,120,122,123,TGN11#,120,121..PS,SD,SS,TD,TS,TX202006-202201

main09111-0K161iGUN125,126..GHA202006-202205

sub09111-0K162

main09111-0K162iGUN126202206-202301

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-0K150iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202011-202110

PNC 09115=TYPE B

main09114-0K150iGGN125,GUN112,12#,13#,TGN11#,120,121,126,136..MD,MMD,MS,TD,TS,TX202006-202301

main09114-0K170iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202011-202110

PNC 09115=TYPE A

main09114-0K190iGGN125,GUN122,125,126,13#,LAN125,TGN120,121,126,136..GHA,KEN,SA202009-202111

main09114-0K330iGUN122,126,TGN121..PKN202106-202201

09115ROD SUB-ASSY, JACK HANDLE

main09115-0K170iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202006-202301

TYPE B:REFER ILLUST.

main09115-0K180iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202011-202110

TYPE A:REFER ILLUST.

main09115-0K190iGGN125,GUN122,125,126,13#,LAN125,TGN120,121,126,136..GHA,KEN,SA202009-202111

main09115-0K300iGUN122,126,TGN121..PKN202106-202201

09120BAG, TOOL

main09120-0K120iGUN122,126,TGN121..PKN202106-202201

main09120-0K200iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202011-202110

PNC 09115=TYPE A

main09120-0K240iGGN125,GUN112,12#,13#,TGN11#,120,121,126,136..MD,MMD,MS,TD,TS,TX202006-202301

main09120-0K240iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202011-202110

PNC 09115=TYPE B

main09120-0K320iGGN125,GUN122,125,126,13#,LAN125,TGN120,121,126,136..GHA,KEN,SA202009-202111

09130PLIERS

main90080-99020iGUN125,126,13#,TGN126,136..(AD,AS)..LA202011-202110

PNC 09115=TYPE A

main90089-99010iGUN125,126,13#,TGN126,136..(AD,AS)..LA202011-202110

PNC 09115=TYPE B

main90089-99010iGUN122,126,TGN121..PKN202006-202301

09135DRIVER, SCREW

main09135-0K070iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202011-202110

PNC 09115=TYPE A

main90089-99009iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202011-202110

PNC 09115=TYPE B

main90089-99009iGUN125,126..GHA202006-202301

09141SPANNER

main09141-0K030iGUN125,126..GHA202006-202301

8 X 10

main09141-0K030iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202011-202110

8 X 10,MARK = ATC

main09141-0K040iGGN125,GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX202006-202301

12 X 14

main09141-0K040iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202011-202110

12 X 14,MARK = ATC

main09141-0K110iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202011-202110

12 X 14,MARK = TOYOTA

main09141-0K120iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202011-202110

8 X 10,MARK = TOYOTA

main90089-99006iGUN122,126,TGN121..PKN202106-202201

8 X 10

main90089-99007iGUN122,126,TGN121..PKN202106-202201

12 X 14

09150WRENCH, HUB NUT BOX

main09150-0B050iGGN125,GUN122,125,126,13#,LAN125,TGN120,121,126,136..GHA,KEN,SA202009-202111

main09150-0K010iGGN125,GUN112,12#,13#,TGN11#,120,121,126,136..MD,MMD,MS,TD,TS,TX202006-202301

main09150-0K030iGGN125,GUN125,126,13#,TGN126,128,13#..AD,AS202011-202110

main09150-0K070iGUN122,126,TGN121..PKN202106-202201

8 parts on this diagram · 1 diagram in section
