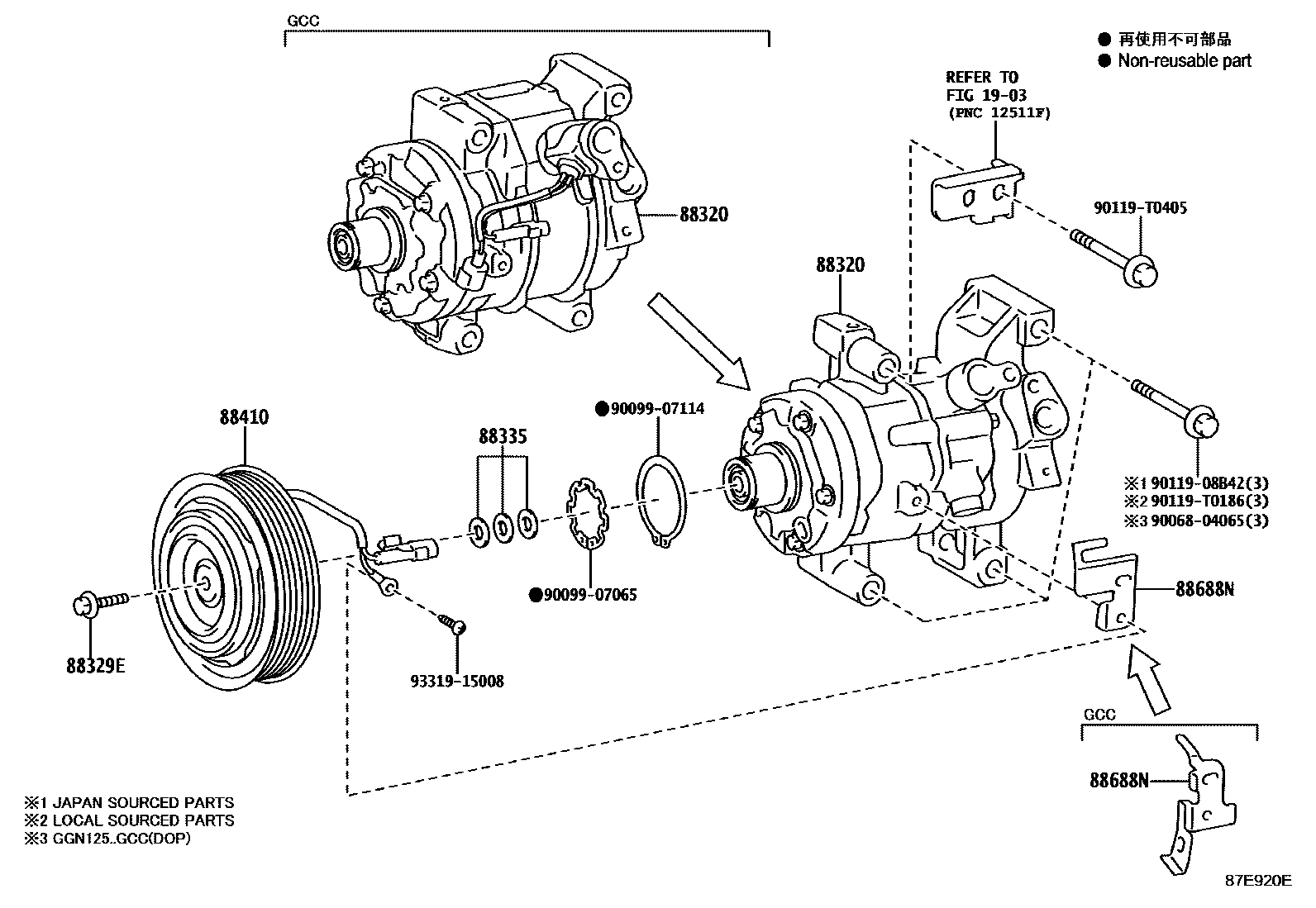

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

1903

88320COMPRESSOR ASSY, COOLER

main88320-0K520iGUN122..PH;GUN122..LHD..TDC..X;GUN122..(M,S)..DCR..GEN;GUN125..TDC..(LA,PH,VN);GUN125..LHD..TDC..(L,M,S)..GEN;GUN125..LHD..(TSC,TXT)..(GEN,LA);GUN122,125..RHD..(ARL¥52,900201505-202012

main88320-0K530iGUN125..TSC..GCC;GUN125..TDC..6F..(L,M)..GCC;GUN112,122,125..(5F,6FC)..GCC201505-202005

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main88320-0K550iTGN11#,120,121,126..GCC201505-202005

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main88320-0K580iKUN125..X..GEN;KUN126..TDC..6F..(S,X);KUN126..TDC..5FC..(L,X);KUN126..TDC..5FC..S..LA;KUN122,136..RHD..TDC..(S,X);KUN125..RHD..TDC..(L,S)..GEN201505-201904

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main88320-0K580iKUN122..LHD..X..GEN;KUN122,125..TXT..L..GEN201505-201904

FRONT AIR CONDITIONER-AUTO(DOP - DEALERSHIP INSTALL)

main88320-0K580iKUN122..LHD..X..GEN;KUN122,125..TXT..L..GEN201505-201904

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88320-0K580iKUN122..LHD..X..GEN;KUN122,125..TXT..L..GEN201505-201904

FRONT AIR CONDITIONER-COOLER LESS

main88320-0K590iTGN136..ADC..S;TGN136..ASC..LA201511-202010

PERU SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88320-0K590iTGN136..ADC..S;TGN136..ASC..LA201511-202010

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main88320-0K590iTGN136..ADC..S;TGN136..ASC..LA201511-202010

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88320-0K590iTGN136..ADC..S;TGN136..ASC..LA201511-202010

CS AMERICA SPEC&FRONT AIR CONDITIONER-COOLER LESS

main88320-0K590iTGN136..ADC..S;TGN136..ASC..LA201511-202010

BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-COOLER LESS

main88320-0K590iTGN136..ADC..S;TGN136..ASC..LA201511-202010

PERU SPEC&FRONT AIR CONDITIONER-COOLER LESS

main88320-0K590iTGN136..ADC..S;TGN136..ASC..LA201511-202010

BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88320-0K590iGUN125..ASC..LA201511-202010

CS AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88320-0K590iGUN125..ASC..LA201511-202010

ECUADOR SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88320-0K660iKUN122..S..GCC;KUN122..L..GCC..CBU;KUN112,125..(L,S)..GCC201505-201904

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88320-0K660iKUN112,122,125..GCC201505-201904

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main88320-0K670iKUN125,126,13#..ADC,ASC201511-201709

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88320-0K670iKUN135..ADC..X;KUN125..(ADC,ASC)..X201511-201709

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main88320-0K670iKUN125,126,135..(ADC,ASC)..(S,X)201511-201709

FRONT AIR CONDITIONER-COOLER LESS

main88320-0K760iGGN125..GCC201708-202005

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

88329EBOLT, COMPRESSOR, NO.1

main90099-04349iGUN122..LHD..TDC..X;GUN122..(M,S)..DCR..GEN;KUN125,126,13#..ADC,ASC;GUN122,KUN122,125..GCC,PH;GUN125..TDC..(GCC,LA,PH,VN);GUN125..LHD..(ADC,ASC,TSC,TXT);GUN125..LHD201505-202012

main90099-04598iKUN122..LHD..X..GEN;KUN122,125..TXT..L..GEN¥90201505-201904

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main90099-04598iKUN12#,13#..(TDC,TSC,TXT)..(GEN,IDN,LA,VN)¥90201505-201904

FRONT AIR CONDITIONER-AUTO(DOP - DEALERSHIP INSTALL)

main90099-04598iKUN125..TDC..S..LA;KUN126..TDC..5FC..(L,X);KUN126..TDC..5FC..S..LA;KUN122,125..(TDC,TSC)..X;KUN122,125..TXT..(L,S)..GEN;KUN125,136..RHD..TDC..(L,S)..GEN;KUN126,135.¥90201505-201904

FRONT AIR CONDITIONER-COOLER LESS

main90099-04598iKUN125..TDC..S..LA;KUN126..TDC..5FC..(L,X);KUN126..TDC..5FC..S..LA;KUN122,125..(TDC,TSC)..X;KUN122,125..TXT..(L,S)..GEN;KUN125,136..RHD..TDC..(L,S)..GEN;KUN126,135.¥90201505-201904

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

88335GASKET KIT, OVERHAUL

main88335-14020iGUN122..GCC,PH;GUN122..LHD..TDC..X;KUN125..GCC,GEN,IDN,LA;GUN122..(M,S)..DCR..GEN;GUN125..TDC..(GCC,LA,PH,VN);GUN125..LHD..(ADC,ASC,TSC,TXT);GUN125..LHD..TDC..(L,M,201505-202012

88410CLUTCH ASSY, MAGNET

main88410-0K580iTGN121,136..GEN201505-202005

FRONT AIR CONDITIONER-COOLER LESS

main88410-0K580iTGN121,126,136..(TDC,TSC,TXT)..(ARL,GEN,LA,TH)201505-202005

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main88410-0K580iTGN121,126,136..(TDC,TSC,TXT)..(ARL,GEN,LA,TH)201505-202005

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88410-0K580iTGN121,126,136..(TDC,TSC,TXT)..(ARL,GEN,LA,TH)201505-202005

FRONT AIR CONDITIONER-AUTO(DOP - DEALERSHIP INSTALL)

main88410-0K580iTGN121,126,136..(TDC,TSC,TXT)..(ARL,GEN,LA,TH)201505-202005

BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88410-0K600iGUN122..GCC,PH;GUN122..LHD..TDC..X;GUN125..LHD..(TSC,TXT);GUN122..(M,S)..DCR..GEN;GUN125..TDC..(GCC,LA,PH,VN);GUN125..LHD..TDC..(L,M,S)..GEN;GUN122,125..RHD..(ARL,G¥23,800201505-202012

main88410-0K620iGGN12#..ARL,BZAGT,LA¥31,500201505-202010

main88410-0K630iGGN125..GCC201708-202005

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

sub88410-0K631

main88410-0K690iTGN126..TSC..S;TGN126..(L,M)..GCC..CBU;TGN11#,120,121..GCC..CBU201505-202005

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main88410-0K710iKUN122..S..GCC;KUN122..L..GCC..CBU;KUN112,125..(L,S)..GCC201505-201904

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88410-0K710iKUN122..S..GCC;KUN122..L..GCC..CBU;KUN112,125..(L,S)..GCC201505-201904

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main88410-0K720iKUN125..TDC..S..LA;KUN126..TDC..5FC..(L,X);KUN126..TDC..5FC..S..LA;KUN122,125..(TDC,TSC)..X;KUN122,125..TXT..(L,S)..GEN;KUN125,136..RHD..TDC..(L,S)..GEN;KUN126,135.201505-201904

FRONT AIR CONDITIONER-AUTO(DOP - DEALERSHIP INSTALL)

main88410-0K720iKUN125..TDC..S..LA;KUN126..TDC..5FC..(L,X);KUN126..TDC..5FC..S..LA;KUN122,125..(TDC,TSC)..X;KUN122,125..TXT..(L,S)..GEN;KUN125,136..RHD..TDC..(L,S)..GEN;KUN126,135.201505-201904

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88410-0K720iKUN125..TDC..S..LA;KUN126..TDC..5FC..(L,X);KUN126..TDC..5FC..S..LA;KUN122,125..(TDC,TSC)..X;KUN122,125..TXT..(L,S)..GEN;KUN125,136..RHD..TDC..(L,S)..GEN;KUN126,135.201505-201904

FRONT AIR CONDITIONER-COOLER LESS

main88410-0K720iKUN125..TDC..S..LA;KUN126..TDC..5FC..(L,X);KUN126..TDC..5FC..S..LA;KUN122,125..(TDC,TSC)..X;KUN122,125..TXT..(L,S)..GEN;KUN125,136..RHD..TDC..(L,S)..GEN;KUN126,135.201505-201904

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main88410-0K750iKUN135..ADC..X;KUN125..(ADC,ASC)..X201511-201709

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88410-0K750iKUN125,126,13#..ADC,ASC201511-201709

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main88410-0K750iKUN125,126,13#..ADC,ASC201511-201709

FRONT AIR CONDITIONER-COOLER LESS

main88410-0K760iGUN125,126,13#..ADC,ASC201511-202010

CS AMERICA SPEC&FRONT AIR CONDITIONER-COOLER LESS

main88410-0K760iGUN125,126,13#..ADC,ASC201511-202010

BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-COOLER LESS

main88410-0K760iGUN125,126,13#..ADC,ASC201511-202010

PERU SPEC&FRONT AIR CONDITIONER-COOLER LESS

main88410-0K760iGUN125,126,13#..ADC,ASC201511-202010

BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88410-0K760iGUN125..ASC..LA201511-202010

CS AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88410-0K760iGUN125..ASC..LA201511-202010

PERU SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88410-0K760iGUN125..ASC..LA201511-202010

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main88410-0K770iTGN136..ADC..S;TGN136..ASC..LA201511-202010

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88410-0K770iTGN126,128,13#..ADC,ASC201511-202010

CS AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88410-0K770iTGN126,128,13#..ADC,ASC201511-202010

ECUADOR SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88410-0K770iTGN126,128,13#..ADC,ASC201511-202010

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main88410-0K770iTGN126,128,13#..ADC,ASC201511-202010

BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

88688NBRACKET, COOLER

main88688-0K280iTGN121..ARL;TGN136..S..LA;TGN126..S..GEN;TGN136..ASC..LA¥0201505-202010

BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88688-0K280iTGN126..TSC..S;TGN121..LHD..L..CBU;TGN126..(L,M)..GCC..CBU;TGN126..(S,X)..(GEN,LA);TGN121..(M,S,X)..(ARL,GCC,GEN);TGN11#,120,136..(L,S,X)..(GCC,GEN,LA)¥0201505-202010

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main88688-0K280iTGN126..TSC..S;TGN121..LHD..L..CBU;TGN126..(L,M)..GCC..CBU;TGN126..(S,X)..(GEN,LA);TGN121..(M,S,X)..(ARL,GCC,GEN);TGN11#,120,136..(L,S,X)..(GCC,GEN,LA)¥0201505-202010

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88688-37800iKUN112,122,125..GCC201505-201904

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88688-37800iKUN122..S..GCC;KUN122..L..GCC..CBU;KUN112,125..(L,S)..GCC201505-201904

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL)

main88849-0K010iGUN122..PH;GUN122..LHD..TDC..X;GUN122..(M,S)..DCR..GEN;GUN125..TDC..(LA,PH,VN);GUN125..LHD..TDC..(L,M,S)..GEN;GUN122,125..RHD..(ARL,GEN,IDN,MA,TH);GUN125..LHD..(ADC¥250201505-202012

NO.1

main88849-0K010iGUN125..(ASC,TSC)..LA¥250201505-202010

CS AMERICA SPEC&FRONT AIR CONDITIONER-COOLER LESS,NO.1

main88849-0K010iGUN125..(ASC,TSC)..LA¥250201505-202010

BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-COOLER LESS,NO.1

main88849-0K010iGUN125..(ASC,TSC)..LA¥250201505-202010

PERU SPEC&FRONT AIR CONDITIONER-COOLER LESS,NO.1

main88849-0K010iGUN125..(ASC,TSC)..LA¥250201505-202010

BOLIVIA URUGUAY SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL),NO.1

main88849-0K010iGGN12#..ARL,BZAGT,LA¥250201505-202010

CS AMERICA SPEC&FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL),NO.1

main88849-0K010iGGN12#..ARL,BZAGT,LA¥250201505-202010

FRONT AIR CONDITIONER-MANUAL(DOP - PLANT INSTALL),NO.1

main88849-0K020iGUN122..GCC,PH;GUN122..LHD..TDC..X;GUN122..(M,S)..DCR..GEN;GUN125..TDC..(GCC,LA,PH,VN);GUN125..LHD..(ADC,ASC,TSC,TXT);GUN125..LHD..TDC..(L,M,S)..GEN;GUN122,125..RHD¥200201505-202012

NO.2

main88849-0K030iGGN125..GCC201708-202005

FRONT AIR CONDITIONER-MANUAL(DOP - DEALERSHIP INSTALL)

main88849-0K030iGUN112,122,125,126..GCC201505-202005

NO.1

9006804065

main90068-04065

9009907065

main90099-07065¥90

9009907114

main90099-07114

9011908B42

main90119-08B42¥0

90119T0186

main90119-T0186

90119T0405

main90119-T0405

9331915008

main93319-15008¥170

13 parts on this diagram · 9 diagrams in section
