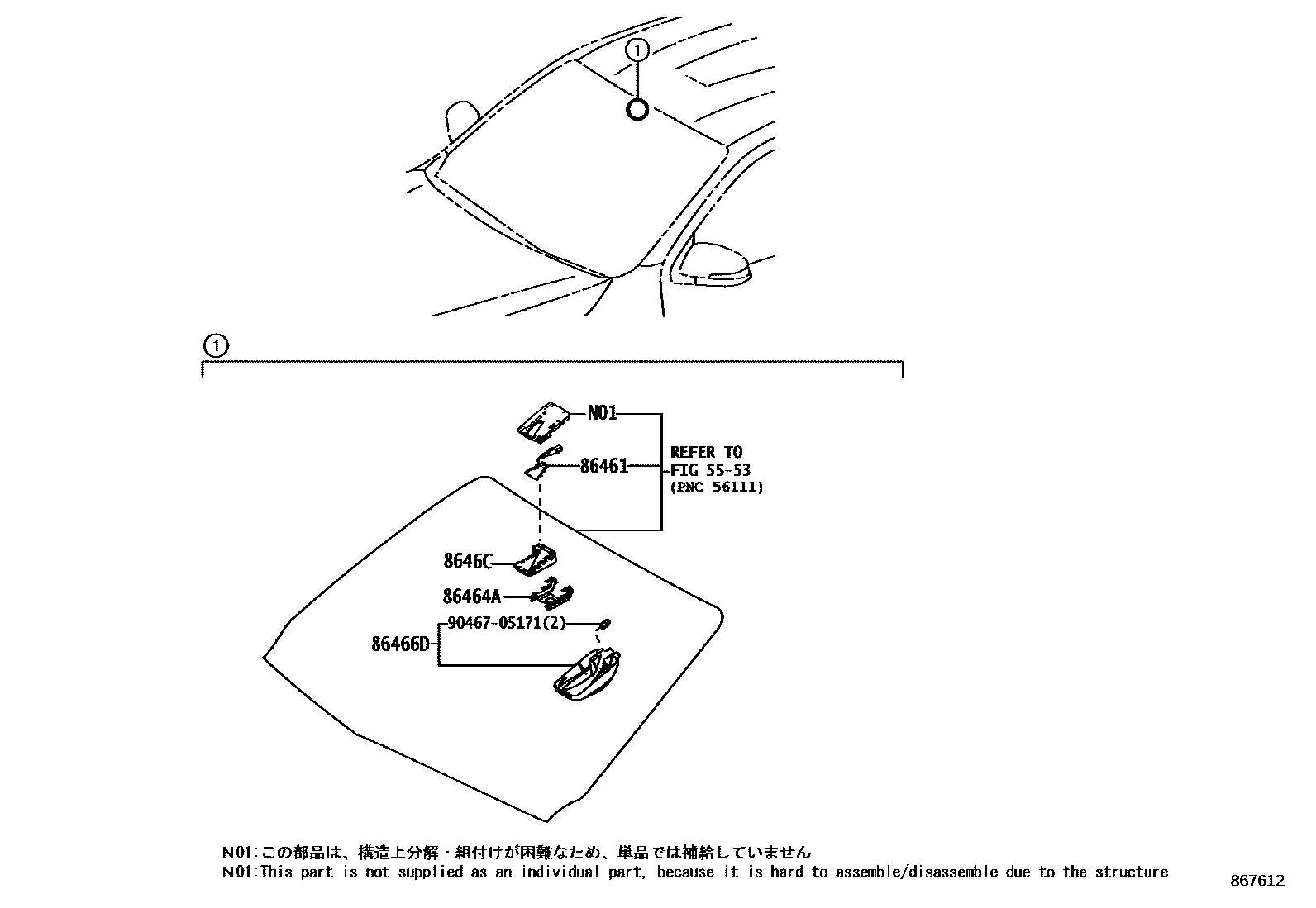

PRE-COLLISION SYSTEM

5553

86461HOOD, FORWARD RECOGNITION

main86401-71010iGUN125,126,13#,TGN121..(TDC,TSC)..(ARL,TAIW)201905-202005

86464ALATCH, FORWARD RECOGNITION

main86464-26010iGUN125,126,13#,TGN121..(TDC,TSC)..(ARL,TAIW)201905-202005

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-71030iGUN125,126,13#,TGN121..(TDC,TSC)..(ARL,TAIW)201905-202005

P/N LABEL=8646671030

8646CCAMERA, FORWARD RECOGNITION

main8646C-71010iGUN125,126,13#,TGN121..(TDC,TSC)..(ARL,TAIW)201905-202005

P/N LABEL=8646C71010

9046705171

main90467-05171

6 parts on this diagram · 1 diagram in section
