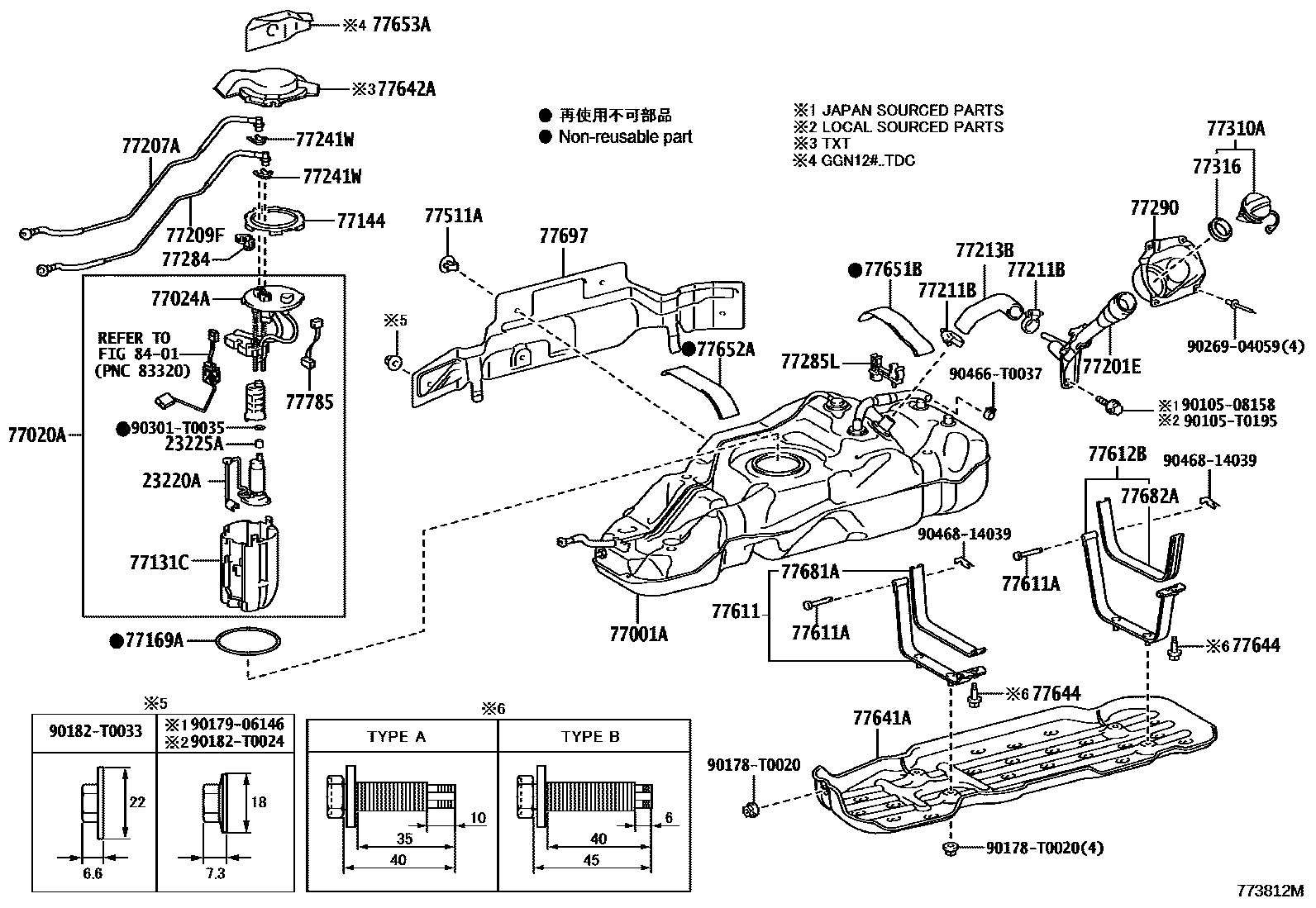

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TANK 0005 1FUEL TANK 0006 1FUEL TANK 0007 1FUEL TANK 0008 1FUEL TANK 0009 1FUEL TANK 0010 1FUEL TUBE 0011 1FUEL TUBE 0012 1FUEL TUBE 0013 1FUEL TUBE 0014 1FUEL TUBE 0015 1FUEL TUBE,W/O(FUEL COOLER) 0016 1FUEL TUBE, W(FUEL COOLER) 0017 1FUEL TUBE 0018 1FUEL LID OPENER 0019 1FUEL LID OPENER

23220APUMP ASSY, FUEL W/FILTER

main23220-0C170i1TRFE,2TRFE..TGN11#201505-201611

main23220-0C171i1TRFE,2TRFE..TGN11#201612-202005

main23220-0C200i1TRFE,2TRFE..TGN120,121,126,136201505-201611

main23220-0C201i1TRFE,2TRFE..TGN120,121,126;2TRFE..TGN136..ADC,ASC,SDC,TDC,TSC,TXT201612-202010

main23220-0P200i1GRFE..GGN125..BZAGT201810-202010

23225ASPACER, FUEL PUMP

main23225-0V030i2TRFE..TGN136..SSC201906-202010

77001ATANK SUB-ASSY, FUEL

main77001-0K400iGGN12#,TGN120,121,126,136..TDC,TSC,TXT201505-202005

main77001-0K420iTGN136..SDC;GGN125,135,TGN120,121,126..SA201601-202009

main77001-0K440iGGN125..BZAGT201810-202010

main77001-0K470iGUN12#,13#,KUN12#,13#..(MDC,MSC,PDC,PSC,TDC,TSC,TXT)..CBU201505-202105

main77001-0K490iGUN125,126,13#,KUN125,126,13#..(ADC,ASC)..CBU201511-202010

main77001-0K610iTGN11#201505-202005

main77001-0K630iGUN112,KUN112201505-202005

main77001-0K660iGUN122,125,126,13#,KUN12#,135,LAN125..(KEN,SA)..CBU201601-202102

main77001-0K670iGUN122,125,LAN125..SA..IV3201808-202009

main77001-0K680iGUN12#,13#,KUN122..(PSC,TDC,TSC,TXT)..IV3201505-202105

main77001-0K690iGUN125,126,135..BZAGT..IV3201511-202010

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-0K380iGGN12#,135201505-201808

main77020-0K381iGGN125..GCC,LA,SA201809-202010

main77020-0K390iTGN120..IV3;TGN126..BZAGT;TGN136..ADC..M;TGN136..(ASC,TSC)..LA;TGN136..(TDC,TXT)..(M,S);TGN121,126..RHD..TDC..(GEN,TH)201505-201809

main77020-0K391iTGN120,121,126;TGN136..ADC,ASC,SDC,TDC201809-202010

main77020-0K400iTGN128,138201607-202010

main77020-0K460iTGN11#201505-202005

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-0K150iTGN11#201505-202005

main77024-0K170iGGN125..BZAGT201810-202010

main77024-0K190iGUN12#,13#,KUN12#,13#,LAN125201505-202105

main77024-0K300iGUN112,KUN112201505-202005

77131CSUB-TANK, FUEL, NO.1

main77131-0K070iTGN11#201505-202005

main77131-0K080iGUN112,KUN112201505-202005

main77131-0K100iTGN136..SSC201505-201807

main77131-0K110iGUN125..TXT..CBU;GUN135..6FC..S..VN;KUN122..TSC..L..GCC;GUN126..6F..ARL..IV3;GUN126..TDC..6F..ARL..CBU;GUN125..(TDC,TXT)..6FC..IV3;KUN122..RHD..(L,X)..(GEN,PKN);GUN201505-201808

main77131-0K190iTGN136..ADC,ASC,SDC,TDC;GGN125,TGN120,121,126..ARL,GCC,GEN,LA,SA,TH201809-202010

main77131-0K200iGUN12#,13#,KUN122,LAN125201809-202105

77144RETAINER, FUEL PUMP GAUGE

main77144-0K040iTGN136..SSC201505-201807

77169AGASKET, FUEL SUCTION TUBE SET

main77169-0K030iTGN126,128,13#..ADC,ASC,SDC,TDC,TSC,TXT;GGN12#,135,TGN11#,120,121..ARL,GCC,GEN,IDN,LA,SA,TH201505-202010

main77169-0K040iGUN112,12#,13#,KUN112,12#,13#,LAN125201505-202105

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-KK060supersedes 77201-KK060iTGN136..(ADC,ASC)..LA;TGN126..ADC..(M,X)..LA201505-201710

CS AMERICA SPEC

main77201-KK070iGUN125,126,13#..(ADC,ASC)..CBU201505-201710

main77201-KK080iTGN121,136..TH201505-202005

main77201-KK090iGUN12#,13#,KUN125,126,135..(IDN,MA,PH,TAIW,TH,VN)..CBU201505-202012

main77201-KK110iTGN120,121,126..IV3201505-202009

main77201-KK120iGUN122,123,125,126,13#,KUN122,LAN125..(ARL,BZAGT,GCC,PKN,SA)..IV3201505-202105

main77201-KK140iGUN120,122..(PH,TH)..IV3201505-202005

main77201-KK200iTGN11#..GCC201505-202005

main77201-KK210iGUN112,KUN112..GCC201505-202005

main77201-KK220iTGN110..IDN201505-202005

main77201-KK230iGUN112,KUN112..RHD201505-202005

main77201-KK240iTGN126..ASC201710-202010

CS AMERICA SPEC

main77201-KK250supersedes 77201-KK240iTGN126..ADC..S;TGN136..X..BZAGT201710-201808

main77201-KK260supersedes 77201-KK260iTGN126..ASC;TGN126..ADC..S;TGN126,128,13#..BZAGT201505-201710

main77201-KK270iGUN125,126,13#..(ADC,ASC)..CBU201710-202010

main77201-71020iGUN125..LHD..TDC..(L,M,S)..GEN201708-202005

ASIA COLD COUNTRY SPEC

77207ATUBE SUB-ASSY, FUEL RETURN

main77204-0K090iTGN11#201505-202005

main77204-0K110iGUN112,KUN112201505-202005

main77204-0K130iGGN125..BZAGT201810-202010

main77204-0K140iGUN12#,13#,KUN12#,13#,LAN125201505-202105

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0K150iTGN11#201505-202005

main77209-0K170iGUN112,KUN112201505-202005

main77209-0K190iTGN126,128,13#..ADC,ASC,SDC,TDC,TSC,TXT;GGN12#,135,TGN120,121..ARL,GCC,GEN,LA,SA,TH201505-202010

main77209-0K200iGUN12#,13#,KUN12#,13#,LAN125201505-202105

77211BCLAMP (FOR FUEL FILLER PIPE)

main90460-46005×2iGUN136..H,M;GUN135..SSC..X;GUN125..SXT..S;GUN135..LHD..SA;GUN135..6F..S..SA;GUN126,TGN126,128,138;GUN136..S..(ARL,BZAGT);TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN135..ADC201505-202105

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-KK010iGUN136..S..SA;GUN135..6FC..SA;GUN135..RHD..SDC..X;GGN125,GUN125..(ADC,SXT)..(H,X)..(BZAGT,SA)201810-202105

main77213-KK030iGUN112,KUN112,TGN11#201505-202005

77241WCLIP, TUBE JOINT

main77241-0K010×2iGGN125..BZAGT201810-202010

77284CLAMP, FUEL TUBE

main77289-0K050iTGN136..SSC201505-201807

77285LCLAMP, FUEL TUBE, NO.1

main77285-0K250iTGN136..SSC201505-201807

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-0K040supersedes 77290-0K050iGUN135..TDC..S..LA;GUN125,TGN126..M..GCC;GUN135..(H,M)..(GEN,PH);GUN125,TGN126..(TDC,TXT)..(H,M,S)..(GEN,LA);GUN125,135..(MDC,TDC,TXT)..(ARL,IDN,MA,TH,VN)..CBU;GGN1201505-202105

main77290-0K050iTGN126..TSC..S;KUN125..TDC..(L,X);KUN125..RHD..(TSC,TXT);GUN125,135..TDC..S..(GCC,PH);KUN125..LHD..(TSC,TXT)..(L,X);GUN135..(TDC,TSC)..(L,X)..(GEN,LA);GUN125,126..(201505-202105

main77290-0K070supersedes 77290-0K080iGUN125,135,KUN125..SXT;GGN125,135,GUN125,126,136,KUN125,126..M..(KEN,SA)201601-202102

main77290-0K080iTGN136..SDC;GUN122,125,126,13#,KUN122,125,135,LAN125,TGN120,121,126..(KDC,KSC,SDC,SSC)..(S,X)..CBU201601-202102

main77290-0K090iGUN125,126,135,KUN125,126,135,TGN126,136..ADC..X..LA201511-202010

TIRE & DISC WHEEL-265/65R17 STEEL

main77290-0K100iGUN125,135,TGN136..ADC..(L,X)..BZAGT201511-202010

TIRE & DISC WHEEL-225/70R17C STEEL

77310ACAP ASSY, FUEL TANK

main77300-0K010iTGN136..SSC201505-201807

main77300-0K020iKUN122..RHD..CBU;KUN122..LHD..(SDC,TDC,TSC,TXT)..CBU;GUN112,12#,13#,KUN112,125,126,13#,LAN125..CBU201505-202105

77316GASKET, FUEL TANK CAP

main77316-0K020iGGN125..BZAGT201810-202105

77511ABRACKET, FUEL TANK

main77512-0K010×3iGGN12#,TGN120,121,126,136..TDC,TSC,TXT201505-202005

main77644-0K010×4iTGN136..ADC,ASC,SDC;TGN121,126..ADC,ASC,SDC,SSC;GUN122,123,125,126,13#,KUN122,125,TGN128,138;GGN125,135,GUN120,KUN126,13#,LAN125,TGN120..GEN,LA,PKN,SA,TH,VN201505-202105

77611BAND, FUEL TANK

main77601-71010iTGN126..(M,S)..GEN202001-202005

ASIA COLD COUNTRY SPEC,(J)

main77601-KK020iGUN112,KUN112,TGN110..RHD201505-202005

main77601-KK040iGGN120,GUN120,122,123,KUN122,TGN120,121..ARL,GEN,PH,SA,TH201505-202009

main77601-KK050supersedes 77601-KK050iTGN136..SSC201906-202105

main77601-KK080iGUN112,KUN112,TGN11#..GCC201505-202005

main77601-KK100iTGN126..(M,S)..GEN202001-202005

ASIA COLD COUNTRY SPEC,(L)

77611APIN (FOR FUEL TANK BAND)

main77653-0K041×3iGUN112,KUN112,TGN11#..GCC201505-202005

77612BBAND, FUEL TANK, NO.2

main77602-71010iTGN126..(M,S)..GEN202001-202005

ASIA COLD COUNTRY SPEC,(J)

main77602-KK010iGUN112,KUN112,TGN110..RHD201505-202005

main77602-KK020iGGN120,GUN120,122,123,KUN122,TGN120,121..ARL,GEN,PH,SA,TH201505-202009

main77602-KK030supersedes 77602-KK030iTGN136..SSC201906-202105

main77602-KK060iGUN112,KUN112,TGN11#..GCC201505-202005

main77602-KK080iTGN126..(M,S)..GEN202001-202005

ASIA COLD COUNTRY SPEC,(L)

77641APROTECTOR, FUEL TANK, NO.1

main77641-0K210iGUN112,KUN112,TGN11#..GCC201505-202005

main77641-KK010iGGN125..BZAGT201810-202105

main77641-KK030iTGN136..SSC201906-202102

77642APROTECTOR, FUEL TANK, NO.2

main77641-0K170iGUN12#,13#,KUN12#,TGN121,136..SXT,TXT201506-202009

77644BOLT, FUEL TANK

main77644-35030×3iGUN112,KUN112,TGN11#..GCC201505-202005

TYPE A:REFER ILLUST.

main90119-10983×3iGUN112,KUN112,TGN11#..GCC201505-202005

(J),TYPE B:REF ILL.

main90119-A0249×3iGUN112,KUN112,TGN11#..GCC201505-202005

(L),TYPE B:REF ILL.

77651BCUSHION, FUEL TANK

main77651-0K050iGUN112,KUN112,TGN11#201505-202005

main77651-0K070iGGN12#,TGN120,121,126,136..TDC,TSC,TXT201505-202005

main77651-0K080iGUN12#,13#,KUN12#,13#..MDC,MSC,PDC,PSC,TDC,TSC,TXT201505-202105

main77651-0K110iTGN136..SSC201906-202102

77652ACUSHION, FUEL TANK, NO.2

main77652-0K060iGUN112,KUN112,TGN11#201505-201601

main77652-0K130iGGN12#,TGN120,121,126,136..TDC,TSC,TXT201505-202005

main77652-0K140iGGN125..BZAGT201810-202105

main77654-0K060iGUN112,KUN112,TGN11#201601-202005

77653ACUSHION, FUEL TANK, NO.3

main77653-0K060iGUN112,KUN112,TGN11#201505-202005

main77653-0K130iGGN12#..TDC201505-202005

77681ASEAT, FUEL TANK BAND

main77681-KK010iGUN112,KUN112,TGN11#201505-202005

main77681-KK020supersedes 77681-KK020iTGN136..SSC201505-201807

main77681-KK060iTGN126..(M,S)..GEN202001-202005

ASIA COLD COUNTRY SPEC,(L)

77682ASEAT, FUEL TANK BAND, NO.2

main77682-KK010supersedes 77682-KK010iGUN135..L..MA;TGN126..L..GEN;TGN126..BZAGT,GCC,LA,SA;GUN125,126,136,TGN128,138;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN135..ARL,BZAGT,GEN,KEN,LA,PH,SA,TH,VN;GGN12#,135,G201505-202105

main77682-KK060iTGN126..(M,S)..GEN202001-202005

ASIA COLD COUNTRY SPEC,(L)

77697INSULATOR, FUEL TANK HEAT, NO.1

main77697-0K060iGUN112,KUN112,TGN11#201505-202005

main77697-0K080iGGN12#,TGN120,121,126,136..TDC,TSC,TXT201505-202005

main77697-0K130iGUN12#,13#,KUN12#,13#..MDC,MSC,PDC,PSC,TDC,TSC,TXT201505-202105

main77697-0K250iTGN136..SSC201906-202102

main77697-0K270iGGN125..BZAGT201810-201912

77785HARNESS, FUEL PUMP

main77785-02110iTGN136..SSC201505-201807

8401

9010508158

main90105-08158

90105T0195

main90105-T0195

90178T0020

main90178-T0020

9017906146

main90179-06146

90182T0024

main90182-T0024

90182T0033

main90182-T0033

9026904059

main90269-04059

90301T0035

main90301-T0035

90466T0037

main90466-T0037

9046814039

main90468-14039

44 parts on this diagram · 19 diagrams in section
