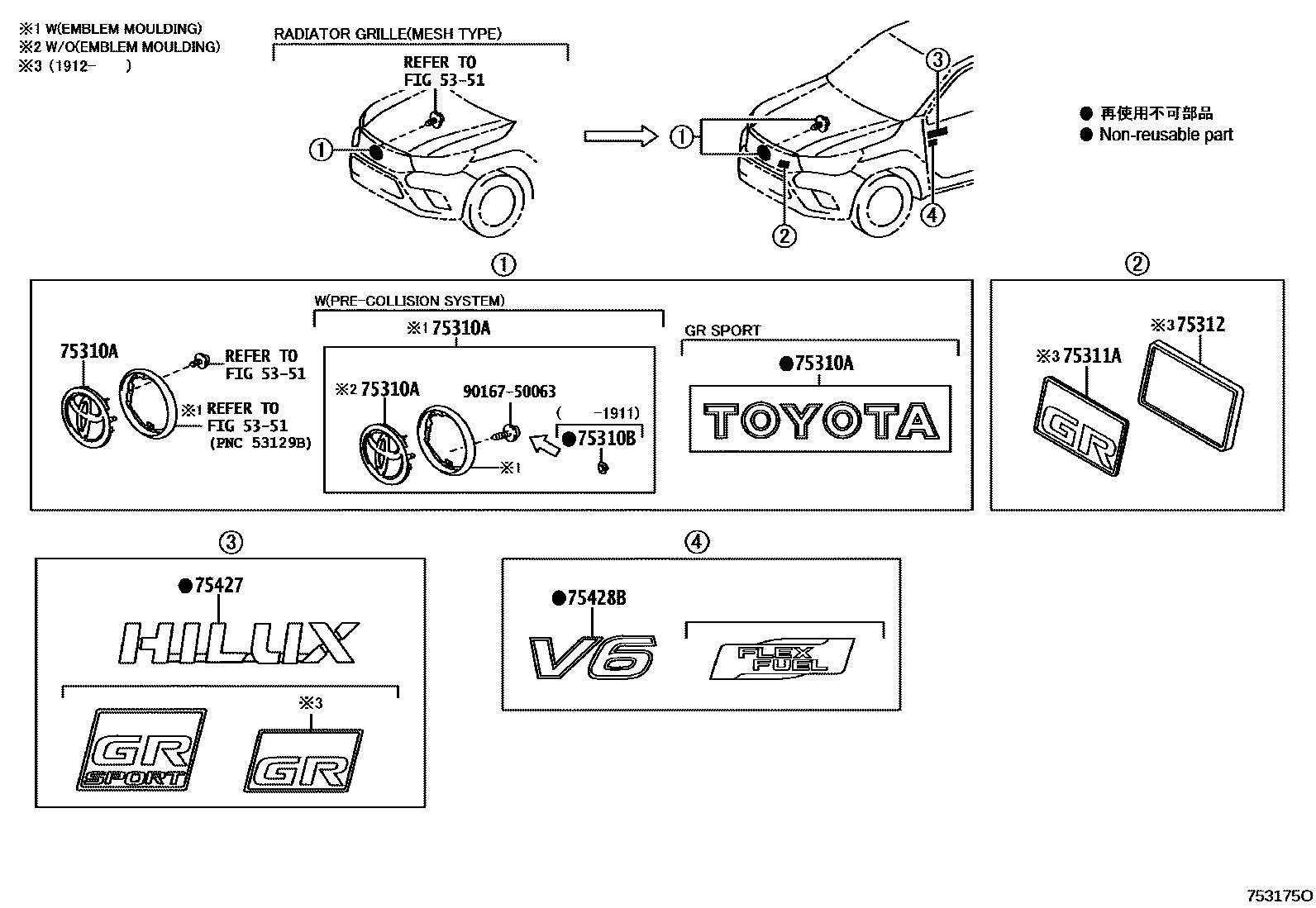

EMBLEM & NAME PLATE
75310AEMBLEM ASSY, RADIATOR GRILLE
main53127-0K290iGUN126,136..TDC..M..(ARL,TAIW)201905-201911 main53127-0K480iGUN126,136..(TDC,TSC)..S..ARL201905-201911 RADIATOR GRILLE(MATERIAL COLOR)
main75310-0K010supersedes 75310-0K040iGUN126..TXT..6F..IV3;GUN125,126,136..TXT..6FC201505-201908 main75310-0K030iGGN125,GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC201511-202010 KAZAKHSTAN SPEC(EURO 4 REGULATION)
main75310-0K130iGUN122,126,KUN122,126..PKN201610-202105 PREMIUM BASIC PACKAGE(HOOD MOLD=BLACK)
75310BNUT, SPRING
main90183-06031×2iGUN125,126,13#,TGN121..(TDC,TSC)..(ARL,TAIW)201905-201911 75311APLATE, FRONT NAME, NO.1
main75361-52070iGUN126..ADC..M..LA;GGN125,GUN126..ADC..H201912-202010 GR,GR SPORT
75312BASE, RADIATOR GRILLE EMBLEM
main75310-YQ020iGUN126..ADC..M..LA;GGN125,GUN126..ADC..H201912-202010 GR SPORT
75427PLATE, FRONT DOOR NAME
main75427-0K030×2supersedes 75427-0K060iGUN125..S..GEN201505-201708 KAZAKHSTAN SPEC(EURO 4 REGULATION)
main75427-0K060×2supersedes 75427-0K030iTGN126..L..GEN;GUN122..PH..CBU;GUN125..M..(GCC,VN);GUN122..ARL,GCC,GEN,TH;GUN125..LHD..(TSC,TXT);GUN125..LHD..TDC..(L,S,X);TGN126..(TDC,TSC)..(GCC,LA);GUN125..RHD..201505-202012 main75427-0K100×2iGUN122,126,KUN122,126..PKN201610-202105 main75427-0K150×2iGGN125,GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC,ASC201511-202010 main75361-52070×2iGUN126..ADC..M..LA;GGN125,GUN126..ADC..H201912-202010 GR SPORT
75428BPLATE, FRONT DOOR NAME, NO.2
8 parts on this diagram · 2 diagrams in section
