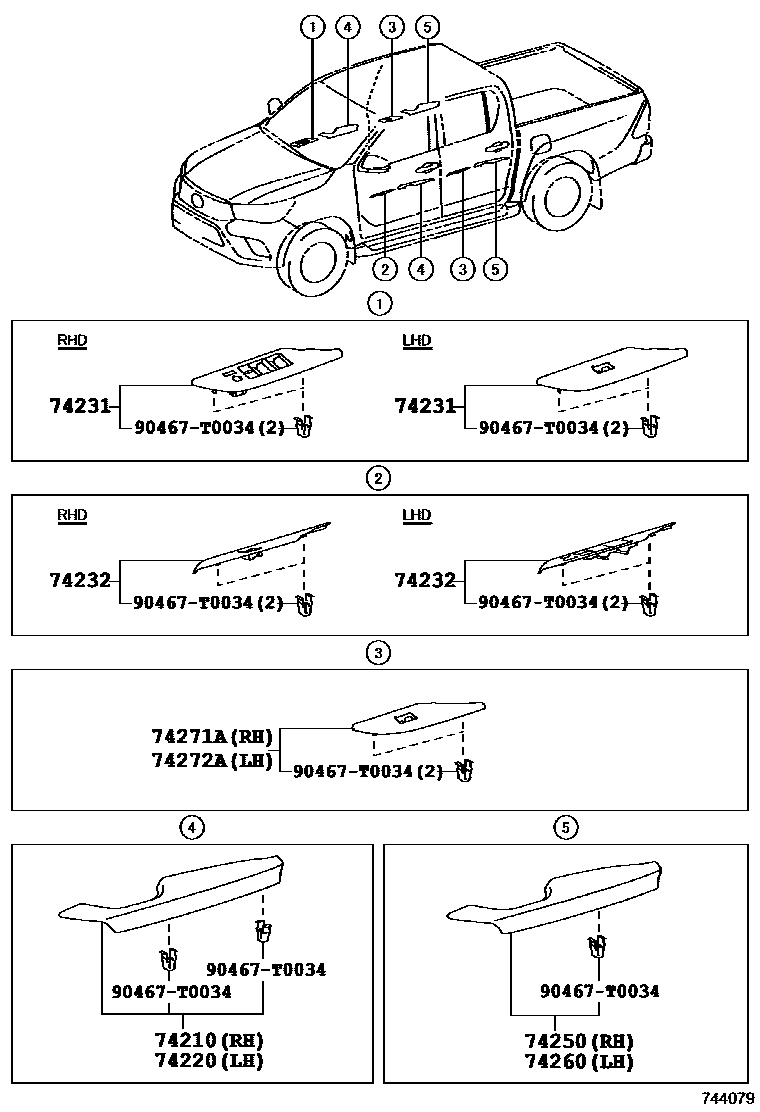

ARMREST & VISOR
74210ARMREST ASSY, FRONT, RH
BLACK,TRIM2#
BLACK,TRIM2#,4#
main74210-0K010-D0iTGN121,126..TSC..L..CBU;GUN112,122,125,126,KUN112,122,126,TGN11#,120..(MSC,PSC,TSC)..(L,X)..(GCC,MA,PKN)201505-202005
RED,TRIM3#
main74210-0K020-C2iGUN125,135..TSC..X..(GEN,LA);GUN122,TGN126..LHD..TSC..X..(DCR,HTWC)..CBU201505-202005
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
BLACK,TRIM2#
main74210-0K020-D1iGUN125,KUN125..LHD..(TSC,TXT)..S;GUN112,122,126,KUN112,122,TGN111,121,126..TSC..S..GCC201505-202005
MAROON,TRIM3#
BRONZE,TRIM4#
main74210-0K050-C0iKUN126..L..GEN;TGN126..TDC..(L,X);GUN126..(PDC,TDC)..L;GUN125,TGN136..TDC..(5F,6FC)..(L,X)..(GCC,LA);GUN135,KUN126..(PDC,TDC)..6F..(L,X)..(LA,PKN);GUN122,125,126,KU201505-202105
BLACK,TRIM2#
RED,TRIM3#
BLACK,TRIM2#
MAROON,TRIM3#
main74210-0K060-E2iKUN122..TDC..M;KUN126..TDC..H;KUN126..TDC..M..LA;GUN126..LHD..6F..H..GEN;GUN126..6F..(M,S)..(GEN,PH);KUN126..(M,S)..(GEN,PKN,VN);GUN122,135..TDC..(L,S)..(TH,VN);GUN201505-202105
BRONZE,TRIM4#
BLACK,TRIM2#
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2#
main74210-0K080-C2iGUN136..TDC..LA;GUN126..LHD..6F..H..GEN;GUN126..TDC..6F..M..(ARL,GEN,LA,PH,VN);GUN126,136..TDC..6FC..(H,M)..(ARL,GEN,LA,PH,VN);GGN125,GUN122,125,135,KUN12#,13#,TGN1201505-202005
DOOR TRIM-LEATHER & PAINT(SILVER),BLACK,TRIM2#
BRONZE,TRIM4#
BLACK,TRIM2#
BLACK,TRIM2#
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH&POWERWINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
BLACK,TRIM2#
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
BLACK,TRIM2#
DOOR TRIM-LEATHER & PAINT(SILVER),BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
main74210-0K270-C3iGUN126..6F..KEN;GGN125,135,GUN125,126,13#,KUN125,126,135,LAN125,TGN126,136..SDC..(M,S)201601-202102
BLACK,TRIM2#
BLACK,TRIM2#
74220ARMREST ASSY, FRONT, LH
main74220-0K010-C0iTGN121..GEN..IV3;TGN121,126..LHD..TSC..(L,X)..CBU;KUN122,125..(PSC,TSC,TXT)..(L,X)..DCR;GUN112,122,125,126,135,KUN112,126,135,TGN11#,120,136..(MSC,PSC,TSC)..MTM..(L201505-202105
BLACK,TRIM2#
BLACK,TRIM2#,4#
RED,TRIM3#
BLACK,TRIM2#
main74220-0K020-C2iGUN125..TSC..6FC..CBU;GUN125..TXT..(GEN,IDN);GUN122,125..TSC..(M,S)..GEN;GUN122,TGN121..TXT..5F..(L,M,S);GUN126,KUN122,125..(TSC,TXT)..(M,S);GUN125..(TSC,TXT)..(S,X201505-202005
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
main74220-0K020-D1iGUN125,KUN125..LHD..(TSC,TXT)..S;GUN112,122,126,KUN112,122,TGN111,121,126..TSC..S..GCC201505-202005
MAROON,TRIM3#
BRONZE,TRIM4#
main74220-0K050-C0iKUN126..L..GEN;TGN126..TDC..(L,X);GUN126..(PDC,TDC)..L;GUN125,TGN136..TDC..(5F,6FC)..(L,X)..(GCC,LA);GUN135,KUN126..(PDC,TDC)..6F..(L,X)..(LA,PKN);GUN122,125,126,KU201505-202105
BLACK,TRIM2#
RED,TRIM3#
BLACK,TRIM2#
MAROON,TRIM3#
main74220-0K060-E2iKUN122..TDC..M;KUN126..TDC..H;KUN126..TDC..M..LA;GUN126..LHD..6F..H..GEN;GUN126..6F..(M,S)..(GEN,PH);KUN126..(M,S)..(GEN,PKN,VN);GUN122,135..TDC..(L,S)..(TH,VN);GUN201505-202105
BRONZE,TRIM4#
main74220-0K080-C2iGUN135..TDC..M..TH;GUN126..RHD..6F..H..GEN;GUN126,135..6FC..(M,S)..(MA,TAIW);GUN126,136,KUN126..H..(MA,PKN,TH)201505-202012
BLACK,TRIM2#
main74220-0K080-C2iGUN135..TDC..M..TH;GUN126..RHD..6F..H..GEN;GUN126,135..6FC..(M,S)..(MA,TAIW);GUN126,136,KUN126..H..(MA,PKN,TH)201505-202005
DOOR TRIM-LEATHER & PAINT(SILVER),BLACK,TRIM2#
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2#
BRONZE,TRIM4#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH&POWERWINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
BLACK,TRIM2#
DOOR TRIM-LEATHER & PAINT(SILVER),BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
main74220-0K270-C3iGUN126..6F..KEN;GGN125,135,GUN125,126,13#,KUN125,126,135,LAN125,TGN126,136..SDC..(M,S)201601-202102
BLACK,TRIM2#
BLACK,TRIM2#
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-0K580iGUN122..TXT..L;GUN122..TXT..5F..S;GUN112,120,123,125,135,TGN121,136..(TSC,TXT)..(L,S)..TH201505-202005
sub74231-0K591
main74231-0K591iGUN122,KUN122..RHD..(TSC,TXT)..5F..M;GUN125,126,135..RHD..(SSC,SXT,TSC,TXT)..M;GUN122,136,KUN126..(SSC,SXT,TXT)..(6F,6FC)..(M,S)..(SA,TH)201707-202009
OUTSIDE REAR VIEW MIRROR-MANUAL(BLACK)&W(SIDE TURN LAMP)&DOOR TRIM-FABRIC & WITHOUT(*PW)
POWER DOOR LOCK-WITHOUT&OUTSIDE REAR VIEW MIRROR-MANUAL(BLACK)&W(SIDE TURN LAMP)&DOOR TRIM-FABRIC & WITHOUT(*PW)
OUTSIDE REAR VIEW MIRROR-MANUAL(BLACK)&DOOR TRIM-FABRIC & WITHOUT(*PW)
DOOR TRIM-FABRIC & WITHOUT(*PW)
DOOR TRIM-FABRIC & PAINT(BLACK)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(*CR)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)&W(SIDE
POWER DOOR LOCK-WITHOUT&OUTSIDE REAR VIEW MIRROR-MANUAL(BLACK)
POWER DOOR LOCK-WITHOUT&OUTSIDE REAR VIEW MIRROR-MANUAL(BLACK)&DOOR TRIM-FABRIC &WITHOUT(*PW)
POWER DOOR LOCK-WITHOUT&OUTSIDE REAR VIEW MIRROR-MANUAL(BLACK)&W(SIDE TURN LAMP)
main74231-0K610iKUN126..LHD..TDC..(H,M,S);KUN125,TGN126..LHD..M..GEN;GUN125,135,KUN135..TDC..(H,S)..(GEN,LA);GUN122,125,135,KUN122,136,TGN121..LHD..(TDC,TXT)..M;GUN126,KUN125,TGN12201505-201706
OUTSIDE REAR VIEW MIRROR-*273(*CR)&W(SIDE TURN LAMP)&DOOR TRIM-FABRIC & PAINT(SILVER)
sub74231-0K611
main74231-0K611iTGN126..M..(GCC,GEN);TGN126..TDC..(M,S)..LA;GUN126,TGN136..LHD..TDC..(H,M,S);GUN125,135..LHD..TDC..S..(GEN,LA);GGN125,GUN122,125,13#,KUN122,TGN121..LHD..(TDC,TXT)..201707-202005
main74231-0K620iGUN125..TSC..6FC..CBU;GUN125,KUN125..TXT..IDN;GUN125,KUN125..TSC..S..GEN;GUN120,122,125,135..(TSC,TXT)..(6F,6FC)..X..(ARL,TH);GUN122,123,126,136,KUN122,TGN121..RHD.201505-202005
sub74231-0K651
main74231-0K651iGUN122..TDC..6F..S;GUN135..6FC..S..MA;GGN125,GUN125,126,13#,KUN122,126..RHD..(MDC,PDC,TDC)..(H,M)201707-202105
POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)
POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)&W(SIDE TURN LAMP)
POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)
POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)&W(SIDE TURN LAMP)
main74231-0K660iGUN125..TDC..6FC..L..GEN;GUN126,KUN126..ATM..S..GEN;GUN135..(L,X)..(ARL,GEN,MA)..CBU;GUN125,KUN125..TDC..(L,X)..(ARL,IDN);GGN12#,GUN122,123,126,136,TGN121..TDC..(S,201505-202005
DOOR TRIM-FABRIC & PAINT(SILVER)
sub74231-0K671
DOOR TRIM-FABRIC & PAINT(SILVER)
main74231-0K720iGGN125,KUN125,126,13#..ADC..(H,M,S)..LA;GUN125,126,13#,TGN126,128,13#..ADC..(H,M,S)201511-202010
main74231-0K770iGUN135..(SSC,SXT)..6F..S;GUN125..RHD..(KSC,SSC)..S;GUN122,126,KUN125,TGN120..RHD..SSC..(S,X)201602-202102
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT&POWER WINDOW-WITHOUT&OUTSIDE REAR VIEW MIRROR-MANUAL(BLACK)
POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT&POWER WINDOW-WITHOUT&OUTSIDE REAR VIEW MIRROR-MANUAL(BLACK)&W(SIDE TURN LAMP)
74232PANEL, FRONT ARMREST BASE, UPPER LH
sub74232-0K591
main74232-0K600iGUN135..L..MA;GUN122..6F..(L,X);GUN135..6F..S..MA;GUN125..6FC..L..GEN;GUN126,KUN126..ATM..S..GEN;GUN125..6F..(L,S)..(IDN,MA);GUN122,TGN121..5F..(L,S)..TH;GUN135..(L201505-202012
main74232-0K611iGUN126..6F..S..GEN;GUN135..6FC..S..MA;GUN125..RHD..TDC..S..GEN;GUN122,KUN126..(5FC,6F)..(H,M,S)..(PKN,TH);GUN125,126,13#..RHD..(MDC,PDC,TDC,TSC,TXT)..(H,M);GGN125,G201707-202105
OUTSIDE REAR VIEW MIRROR-*273(*CR)&W(SIDE TURN LAMP)
OUTSIDE REAR VIEW MIRROR-*273(*CR)&W(SIDE TURN LAMP)&DOOR TRIM-FABRIC & PAINT(SILVER)
sub74232-0K651
main74232-0K651iGUN126..LHD..TDC..(H,M)..(GEN,LA,PH,TAIW,VN);GUN122,125,13#,KUN122,TGN126,136..LHD..TDC..(H,M)..(GEN,LA,PH)201707-202005
POWER DOOR LOCK-WITHOUT&OUTSIDE REAR VIEW MIRROR-MANUAL(BLACK)&W(SIDE TURN LAMP)
main74232-0K660iGUN126,KUN126..TDC..ATM..X;GUN125..TDC..S..(GCC,PH,VN);GUN135,TGN136..LHD..(L,X)..(GEN,VN);GUN135,KUN125..LHD..TDC..S..(GEN,PH);GUN122,135,KUN122,TGN121,126..TDC..(201505-202005
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
main74232-0K660iGUN126,KUN126..TDC..ATM..X;GUN125..TDC..S..(GCC,PH,VN);GUN135,TGN136..LHD..(L,X)..(GEN,VN);GUN135,KUN125..LHD..TDC..S..(GEN,PH);GUN122,135,KUN122,TGN121,126..TDC..(201505-202005
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)
main74232-0K660iGUN126,KUN126..TDC..ATM..X;GUN125..TDC..S..(GCC,PH,VN);GUN135,TGN136..LHD..(L,X)..(GEN,VN);GUN135,KUN125..LHD..TDC..S..(GEN,PH);GUN122,135,KUN122,TGN121,126..TDC..(201505-202005
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)&OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)&W(SIDE
main74232-0K660iGUN126,KUN126..TDC..ATM..X;GUN125..TDC..S..(GCC,PH,VN);GUN135,TGN136..LHD..(L,X)..(GEN,VN);GUN135,KUN125..LHD..TDC..S..(GEN,PH);GUN122,135,KUN122,TGN121,126..TDC..(201505-202005
POWER DOOR LOCK-WITHOUT&OUTSIDE REAR VIEW MIRROR-MANUAL(BLACK)
main74232-0K660iGUN126,KUN126..TDC..ATM..X;GUN125..TDC..S..(GCC,PH,VN);GUN135,TGN136..LHD..(L,X)..(GEN,VN);GUN135,KUN125..LHD..TDC..S..(GEN,PH);GUN122,135,KUN122,TGN121,126..TDC..(201505-202005
POWER DOOR LOCK-WITHOUT&OUTSIDE REAR VIEW MIRROR-MANUAL(BLACK)&DOOR TRIM-FABRIC &WITHOUT(*PW)
main74232-0K660iGUN126,KUN126..TDC..ATM..X;GUN125..TDC..S..(GCC,PH,VN);GUN135,TGN136..LHD..(L,X)..(GEN,VN);GUN135,KUN125..LHD..TDC..S..(GEN,PH);GUN122,135,KUN122,TGN121,126..TDC..(201505-202005
POWER DOOR LOCK-WITHOUT&OUTSIDE REAR VIEW MIRROR-MANUAL(BLACK)&W(SIDE TURN LAMP)&DOOR TRIM-FABRIC & WITHOUT(*PW)
main74232-0K660iGUN126,KUN126..TDC..ATM..X;GUN125..TDC..S..(GCC,PH,VN);GUN135,TGN136..LHD..(L,X)..(GEN,VN);GUN135,KUN125..LHD..TDC..S..(GEN,PH);GUN122,135,KUN122,TGN121,126..TDC..(201505-202005
OUTSIDE REAR VIEW MIRROR-MANUAL(BLACK)&DOOR TRIM-FABRIC & WITHOUT(*PW)
main74232-0K660iGUN126,KUN126..TDC..ATM..X;GUN125..TDC..S..(GCC,PH,VN);GUN135,TGN136..LHD..(L,X)..(GEN,VN);GUN135,KUN125..LHD..TDC..S..(GEN,PH);GUN122,135,KUN122,TGN121,126..TDC..(201505-202005
OUTSIDE REAR VIEW MIRROR-MANUAL(BLACK)&W(SIDE TURN LAMP)&DOOR TRIM-FABRIC & WITHOUT(*PW)
main74232-0K660iGUN126,KUN126..TDC..ATM..X;GUN125..TDC..S..(GCC,PH,VN);GUN135,TGN136..LHD..(L,X)..(GEN,VN);GUN135,KUN125..LHD..TDC..S..(GEN,PH);GUN122,135,KUN122,TGN121,126..TDC..(201505-202005
DOOR TRIM-FABRIC & WITHOUT(*PW)
main74232-0K660iGUN126,KUN126..TDC..ATM..X;GUN125..TDC..S..(GCC,PH,VN);GUN135,TGN136..LHD..(L,X)..(GEN,VN);GUN135,KUN125..LHD..TDC..S..(GEN,PH);GUN122,135,KUN122,TGN121,126..TDC..(201505-202005
DOOR TRIM-FABRIC & PAINT(BLACK)
main74232-0K670iTGN126..TDC..S..LA;KUN125..TDC..(M,S)..(GCC,LA);GUN122,125,TGN121,126..M..GCC;GUN125,126,135,KUN126,135,TGN136..LHD..TDC..S..(GEN,LA)201505-201706
OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)&W(SIDE TURN LAMP)
sub74232-0K671
OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)&W(SIDE TURN LAMP)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
74250ARMREST ASSY, REAR RH
main74250-0K010-C0iKUN126..L..GEN;TGN126..TDC..(L,X);GUN126..(PDC,TDC)..L;GUN125,TGN136..TDC..(5F,6FC)..(L,X)..(GCC,LA);GUN135,KUN126..(PDC,TDC)..6F..(L,X)..(LA,PKN);GUN122,125,126,KU201505-202105
BLACK,TRIM2#
RED,TRIM3#
BLACK,TRIM2#
MAROON,TRIM3#
main74250-0K020-E2iKUN122..TDC..M;KUN126..TDC..H;KUN126..TDC..M..LA;GUN126..LHD..6F..H..GEN;GUN126..6F..(M,S)..(GEN,PH);KUN126..(M,S)..(GEN,PKN,VN);GUN122,135..TDC..(L,S)..(TH,VN);GUN201505-202105
BRONZE,TRIM4#
main74250-0K040-C2iGUN136..TDC..LA;GUN126..LHD..6F..H..GEN;GUN126..TDC..6F..M..(ARL,GEN,LA,PH,VN);GUN126,136..TDC..6FC..(H,M)..(ARL,GEN,LA,PH,VN);GGN125,GUN122,125,135,KUN12#,13#,TGN1201505-202012
BLACK,TRIM2#
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2#
main74250-0K040-C2iGUN135..TDC..M..TH;GUN126..RHD..6F..H..GEN;GUN126,135..6FC..(M,S)..(MA,TAIW);GUN126,136,KUN126..H..(MA,PKN,TH)201505-202005
DOOR TRIM-LEATHER & PAINT(SILVER),BLACK,TRIM2#
BRONZE,TRIM4#
BLACK,TRIM2#
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH&POWERWINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
main74250-0K110-C2iGUN126,136..ADC..M..LA;GUN126,136,TGN138..ADC..S;TGN126,136..ADC..(M,S)..LA;GUN125,135,KUN125,126,13#..ADC..(5FC,6F)..(M,S)201511-202010
BLACK,TRIM2#
main74250-0K110-C2iGUN126,136..ADC..M..LA;GUN126,136,TGN138..ADC..S;TGN126,136..ADC..(M,S)..LA;GUN125,135,KUN125,126,13#..ADC..(5FC,6F)..(M,S)201511-202010
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
BLACK,TRIM2#
DOOR TRIM-LEATHER & PAINT(SILVER),BLACK,TRIM2#
BLACK,TRIM2#
main74250-0K180-C3iGUN126..6F..KEN;GGN125,135,GUN125,126,13#,KUN125,126,135,LAN125,TGN126,136..SDC..(M,S)201601-202102
BLACK,TRIM2#
BLACK,TRIM2#
74260ARMREST ASSY, REAR LH
main74260-0K010-C0iKUN126..L..GEN;TGN126..TDC..(L,X);GUN126..(PDC,TDC)..L;GUN125,TGN136..TDC..(5F,6FC)..(L,X)..(GCC,LA);GUN135,KUN126..(PDC,TDC)..6F..(L,X)..(LA,PKN);GUN122,125,126,KU201505-202105
BLACK,TRIM2#
RED,TRIM3#
BLACK,TRIM2#
MAROON,TRIM3#
main74260-0K020-E2iKUN122..TDC..M;KUN126..TDC..H;KUN126..TDC..M..LA;GUN126..LHD..6F..H..GEN;GUN126..6F..(M,S)..(GEN,PH);KUN126..(M,S)..(GEN,PKN,VN);GUN122,135..TDC..(L,S)..(TH,VN);GUN201505-202105
BRONZE,TRIM4#
SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2#
BLACK,TRIM2#
main74260-0K040-C2iGUN135..TDC..M..TH;GUN126..RHD..6F..H..GEN;GUN126,135..6FC..(M,S)..(MA,TAIW);GUN126,136,KUN126..H..(MA,PKN,TH)201505-202005
DOOR TRIM-LEATHER & PAINT(SILVER),BLACK,TRIM2#
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#
BRONZE,TRIM4#
BLACK,TRIM2#
BLACK,TRIM2#
main74260-0K110-C2iGUN126,136..ADC..M..LA;GUN126,136,TGN138..ADC..S;TGN126,136..ADC..(M,S)..LA;GUN125,135,KUN125,126,13#..ADC..(5FC,6F)..(M,S)201511-202010
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH&POWERWINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
main74260-0K110-C2iGUN126,136..ADC..M..LA;GUN126,136,TGN138..ADC..S;TGN126,136..ADC..(M,S)..LA;GUN125,135,KUN125,126,13#..ADC..(5FC,6F)..(M,S)201511-202010
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
BLACK,TRIM2#
DOOR TRIM-LEATHER & PAINT(SILVER),BLACK,TRIM2#
BLACK,TRIM2#
main74260-0K180-C3iGUN126..6F..KEN;GGN125,135,GUN125,126,13#,KUN125,126,135,LAN125,TGN126,136..SDC..(M,S)201601-202102
BLACK,TRIM2#
BLACK,TRIM2#
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
main74271-0K310iTGN121..TDC..(S,X);KUN125..LHD..TDC..S..GEN;GUN125..TDC..6FC..L..GEN;GUN122..TDC..5F..(ARL,TH);GUN126,KUN126..TDC..ATM..X;GUN125..TDC..(S,X)..(ARL,GCC);GUN135..(MDC201505-202012
main74271-0K320iKUN126..6F..GEN;KUN126..5FC..(H,M)..GEN;KUN125..LHD..TDC..M..GEN;GUN125,126..LHD..TDC..6F..S;KUN125..RHD..TDC..(H,M,S)..GEN;GUN135,KUN13#,TGN126..TDC..(6F,6FC)..(H,201505-201706
DOOR TRIM-FABRIC & PAINT(SILVER)
sub74271-0K321
main74271-0K320iKUN126..6F..GEN;KUN126..5FC..(H,M)..GEN;KUN125..LHD..TDC..M..GEN;GUN125,126..LHD..TDC..6F..S;KUN125..RHD..TDC..(H,M,S)..GEN;GUN135,KUN13#,TGN126..TDC..(6F,6FC)..(H,201505-201706
OUTSIDE REAR VIEW MIRROR-*273(*CR)&W(SIDE TURN LAMP)&DOOR TRIM-FABRIC & PAINT(SILVER)
sub74271-0K321
main74271-0K321iTGN126..M..(GCC,GEN);GUN135..LHD..6F..(H,M);GUN126..TDC..6FC..S..LA;GUN135,TGN126..TDC..(M,S)..LA;GUN135..6FC..(H,M,S)..(GEN,MA,PH);GUN125,135..TDC..M..(GCC,IDN,TH,201707-202105
POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT&POWER WINDOW-WITHOUT&OUTSIDE REAR VIEW MIRROR-MANUAL(BLACK)
POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT&POWER WINDOW-WITHOUT&OUTSIDE REAR VIEW MIRROR-MANUAL(BLACK)&W(SIDE TURN LAMP)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
main74272-0K310iTGN121..TDC..(S,X);KUN125..LHD..TDC..S..GEN;GUN125..TDC..6FC..L..GEN;GUN122..TDC..5F..(ARL,TH);GUN126,KUN126..TDC..ATM..X;GUN125..TDC..(S,X)..(ARL,GCC);GUN135..(MDC201505-202012
main74272-0K320iKUN126..6F..GEN;KUN126..5FC..(H,M)..GEN;KUN125..LHD..TDC..M..GEN;GUN125,126..LHD..TDC..6F..S;KUN125..RHD..TDC..(H,M,S)..GEN;GUN135,KUN13#,TGN126..TDC..(6F,6FC)..(H,201505-201706
OUTSIDE REAR VIEW MIRROR-*273(*CR)&W(SIDE TURN LAMP)&DOOR TRIM-FABRIC & PAINT(SILVER)
sub74272-0K321
POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT&POWER WINDOW-WITHOUT&OUTSIDE REAR VIEW MIRROR-MANUAL(BLACK)&W(SIDE TURN LAMP)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)&POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT&POWER WINDOW-WITHOUT&OUTSIDE REAR VIEW MIRROR-MANUAL(BLACK)
90467T0034
main90467-T0034
9 parts on this diagram · 2 diagrams in section
