REAR DOOR WINDOW REGULATOR & HINGE

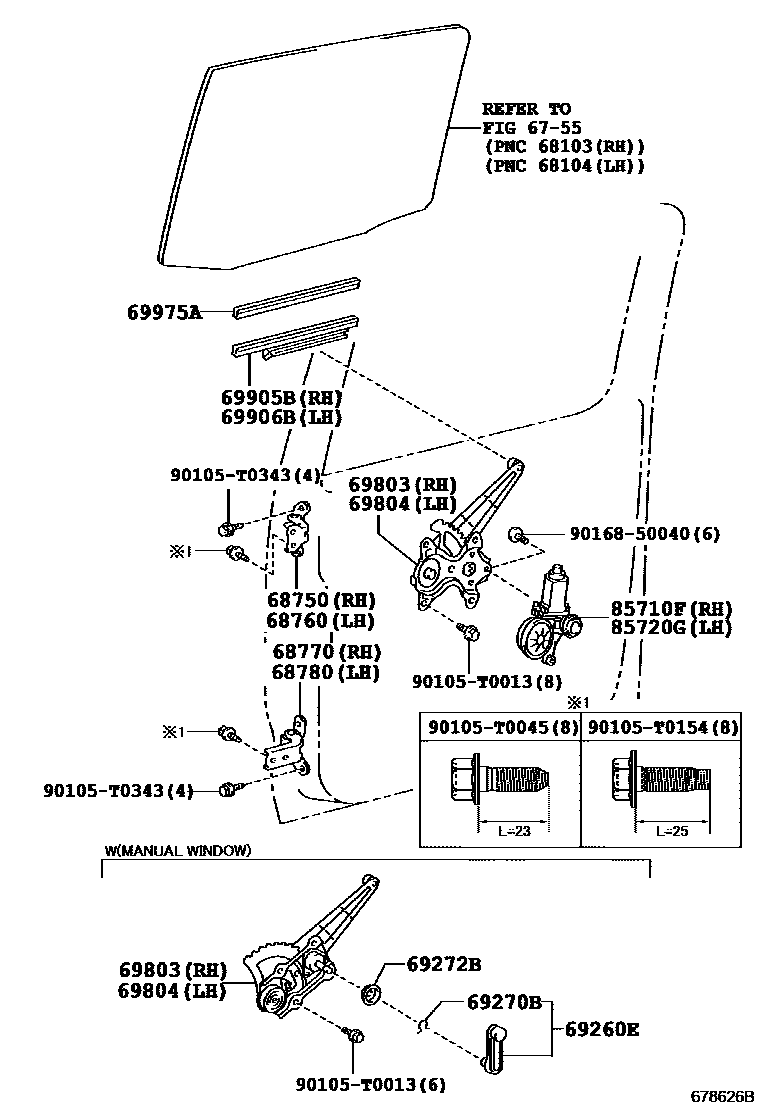

Parts diagram
6755
68750HINGE ASSY, REAR DOOR, UPPER RH
main68750-02020i201601-202102
main68750-0D030i201505-202012
main68750-0K100i201511-202010
main68750-0K110i201610-202105
68760HINGE ASSY, REAR DOOR, UPPER LH
main68760-02020i201601-202102
main68760-0D030i201505-202012
main68760-0K100i201511-202010
main68760-0K110i201610-202105
68770HINGE ASSY, REAR DOOR, LOWER RH
main68770-02020i201601-202102
main68770-0D030i201505-202012
main68770-0K020i201511-202010
main68770-52031i201610-202105
68780HINGE ASSY, REAR DOOR, LOWER LH
main68780-02020i201601-202102
main68780-0D030i201505-202012
main68780-0K020i201511-202010
main68780-52031i201610-202105
69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR
main69260-0K010-C0i201505-201912
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH,BLACK,TRIM2#
main69260-0K010-C0i201505-201912
POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY),BLACK,TRIM2#
main69260-0K010-C0i201505-201912
POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN),BLACK,TRIM2#
main69260-0K010-C0i201505-201912
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH,BLACK,TRIM2#,3#
main69260-0K010-C0i201608-201912
POWER WINDOW-FRONT & REAR(DRIVER:AUTO UP & DOWN),BLACK,TRIM2#
main69260-0K010-C0i201505-202005
BLACK,TRIM2#,3#
main69260-0K010-C0i201505-202005
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED)),BLACK,TRIM2#
main69260-0K010-C0i201505-202005
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON),BLACK,TRIM2#
main69260-0K010-C0i201505-202105
BLACK,TRIM2#
main69260-0K010-C0i201505-201805
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH,BLACK,TRIM2#
main69260-0K010-C0i201505-201904
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB),BLACK,TRIM2#
main69260-0K010-C0i201505-201904
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON),BLACK,TRIM2#
main69260-0K010-C0i201709-201905
POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT,BLACK,TRIM2#
main69260-0K040-C0i201601-201709
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB),BLACK,TRIM2#
main69260-0K040-C0i201601-201709
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB),BLACK,TRIM2#
main69260-0K040-C0i201601-202102
BLACK,TRIM2#
main69260-0K040-C0i201601-202009
POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT,BLACK,TRIM2#
main69260-0K040-C0i201601-202009
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED)),BLACK,TRIM2#
main69260-0K040-C0i201601-202002
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON),BLACK,TRIM2#
main69260-0K040-C0i201601-202002
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON),BLACK,TRIM2#
main69260-0K060-C0i201511-202010
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED)),BLACK,TRIM2#
main69260-0K060-C0i201511-202010
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON),BLACK,TRIM2#
main69260-0K060-C0i201511-202010
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH(PANICBUTTON),BLACK,TRIM2#
main69260-0K060-C0i201511-202010
BLACK,TRIM2#
main69260-0K060-C0i201511-202010
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB),BLACK,TRIM2#
main69260-0K060-C0i201511-202010
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON),BLACK,TRIM2#
main69260-0K060-C0i201511-202010
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH,BLACK,TRIM2#
main69260-0K060-C0i201511-202002
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH,BLACK,TRIM2#
main69260-0K060-C0i201511-202002
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH,BLACK,TRIM2#
69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
main90080-52152i201511-202002
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main90080-52152i201601-201709
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)
main90080-52152i201511-202010
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main90080-52152i201511-202010
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main90080-52152i201511-202002
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH
main90080-52152i201601-202009
POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT
main90080-52152i201511-202010
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)
main90080-52152i201511-202010
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH
main90080-52152i201511-202010
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))
main90080-52152i201511-202010
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH(PANICBUTTON)
main90080-52152i201511-202102
main90520-01274i201505-201912
POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
main90520-01274i201505-201912
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main90520-01274i201505-201912
POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)
main90520-01274i201709-201905
POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT
main90520-01274i201505-201904
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main90520-01274i201505-201904
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)
main90520-01274i201505-202105
main90520-01274i201505-202005
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main90520-01274i201505-202005
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))
main90520-01274i201505-201805
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH
main90520-01274i201608-201912
POWER WINDOW-FRONT & REAR(DRIVER:AUTO UP & DOWN)
69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE
main69268-02022i201511-202010
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main69268-02022i201511-202010
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main69268-02022i201511-202002
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main69268-02022i201511-202002
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH
main69268-02022i201601-202009
POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT
main69268-02022i201511-202010
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)
main69268-02022i201511-202010
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH
main69268-02022i201511-202010
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))
main69268-02022i201511-202010
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH(PANICBUTTON)
main69268-02022i201511-202102
main69268-02022i201601-201709
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)
main69268-04020i201505-201912
POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)
main69268-04020i201505-201805
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH
main69268-04020i201505-201904
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)
main69268-04020i201505-201904
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main69268-04020i201709-201905
POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT
main69268-04020i201505-201912
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main69268-04020i201505-201912
POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
main69268-04020i201608-201912
POWER WINDOW-FRONT & REAR(DRIVER:AUTO UP & DOWN)
main69268-04020i201505-202005
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))
main69268-04020i201505-202005
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main69268-04020i201505-202105
69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
main69803-0K110i201505-202005
POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)
main69803-0K110i201505-202005
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main69803-0K110i201505-202005
POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
main69803-0K110i201505-202105
main69803-0K110i201505-201805
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH
main69803-0K110i201905-202005
POWER WINDOW-FRONT & REAR(DRIVER:AUTO UP & DOWN)
main69803-0K120i201601-202102
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main69803-0K120i201601-202009
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main69803-0K130i201511-202010
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH
main69803-0K130i201511-202010
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main69803-0K130i201810-202010
main69803-0K130i201511-201810
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH(PANICBUTTON)
main69830-0K180i201505-202105
main69830-0K180i201709-201905
POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT
main69830-0K210i201601-202009
POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT
main69830-0K210i201601-202102
main69830-0K240i201511-202010
69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
main69804-0K110i201505-202005
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main69804-0K110i201505-202005
POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
main69804-0K110i201505-202005
POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)
main69804-0K110i201505-201805
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH
main69804-0K110i201905-202005
POWER WINDOW-FRONT & REAR(DRIVER:AUTO UP & DOWN)
main69804-0K110i201505-202105
main69804-0K120i201601-202102
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main69804-0K120i201601-202009
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main69804-0K130i201511-202010
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main69804-0K130i201511-201810
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH(PANICBUTTON)
main69804-0K130i201511-202010
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH
main69804-0K130i201810-202010
main69840-0K180i201709-201905
POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT
main69840-0K180i201505-202105
main69840-0K210i201601-202009
POWER DOOR LOCK-WITHOUT&WIRELESS DOOR LOCK-WITHOUT
main69840-0K210i201601-202102
main69840-0K240i201511-202010
69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH
main69905-0K070i201505-202105
main69905-0K080i201601-202102
main69905-0K090i201511-202010
69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH
main69906-0K070i201505-202105
main69906-0K080i201601-202102
main69906-0K090i201511-202010
69975AFILLER, REAR DOOR GLASS CHANNEL
main69975-0D130i201505-202105
main69975-0K050i201601-202102
main69975-0K060i201511-202010
85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH
main85720-0K180i201505-202005
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main85720-0K180i201601-202009
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main85720-0K180i201505-202105
main85720-0K180i201601-202102
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main85720-0K180i201505-201805
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH
main85720-0K180i201505-202005
POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
main85720-0K180i201505-202005
POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)
main85720-0K270i201708-202005
WIRELESS DOOR LOCK-WITH(*SES)
main85720-0K270i201505-202005
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)
main85720-0K270i201505-202105
main85720-0K270i201505-202009
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
main85720-0K270i201905-202005
POWER WINDOW-FRONT & REAR(DRIVER:AUTO UP & DOWN)
main85720-0K290i201511-202010
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH
main85720-0K290i201511-202010
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main85720-0K290i201511-201810
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH(PANICBUTTON)
main85720-0K300i201511-202010
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
85720GMOTOR ASSY, POWER WINDOW REGULATOR, LH
main85710-0K180i201505-202005
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main85710-0K180i201505-202005
POWER WINDOW-FRONT ONLY(DRIVER:AUTO UP & DOWN)
main85710-0K180i201505-202005
POWER WINDOW-FRONT ONLY(DRIVER:AUTO DOWN ONLY)
main85710-0K180i201601-202102
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main85710-0K180i201505-202105
main85710-0K180i201505-201805
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH
main85710-0K180i201601-202009
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main85710-0K270i201708-202005
WIRELESS DOOR LOCK-WITH(*SES)
main85710-0K270i201505-202009
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
main85710-0K270i201505-202005
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK)
main85710-0K270i201905-202005
POWER WINDOW-FRONT & REAR(DRIVER:AUTO UP & DOWN)
main85710-0K270i201505-202105
main85710-0K290i201511-202010
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH
main85710-0K290i201511-202010
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main85710-0K290i201511-201810
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH(PANICBUTTON)
main85710-0K300i201511-202010
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
90105T0013
main90105-T0013
90105T0045
main90105-T0045
90105T0154
main90105-T0154
90105T0343
main90105-T0343
9016850040
main90168-50040

20 parts on this diagram · 2 diagrams in section

REAR DOOR WINDOW REGULATOR & HINGE — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
