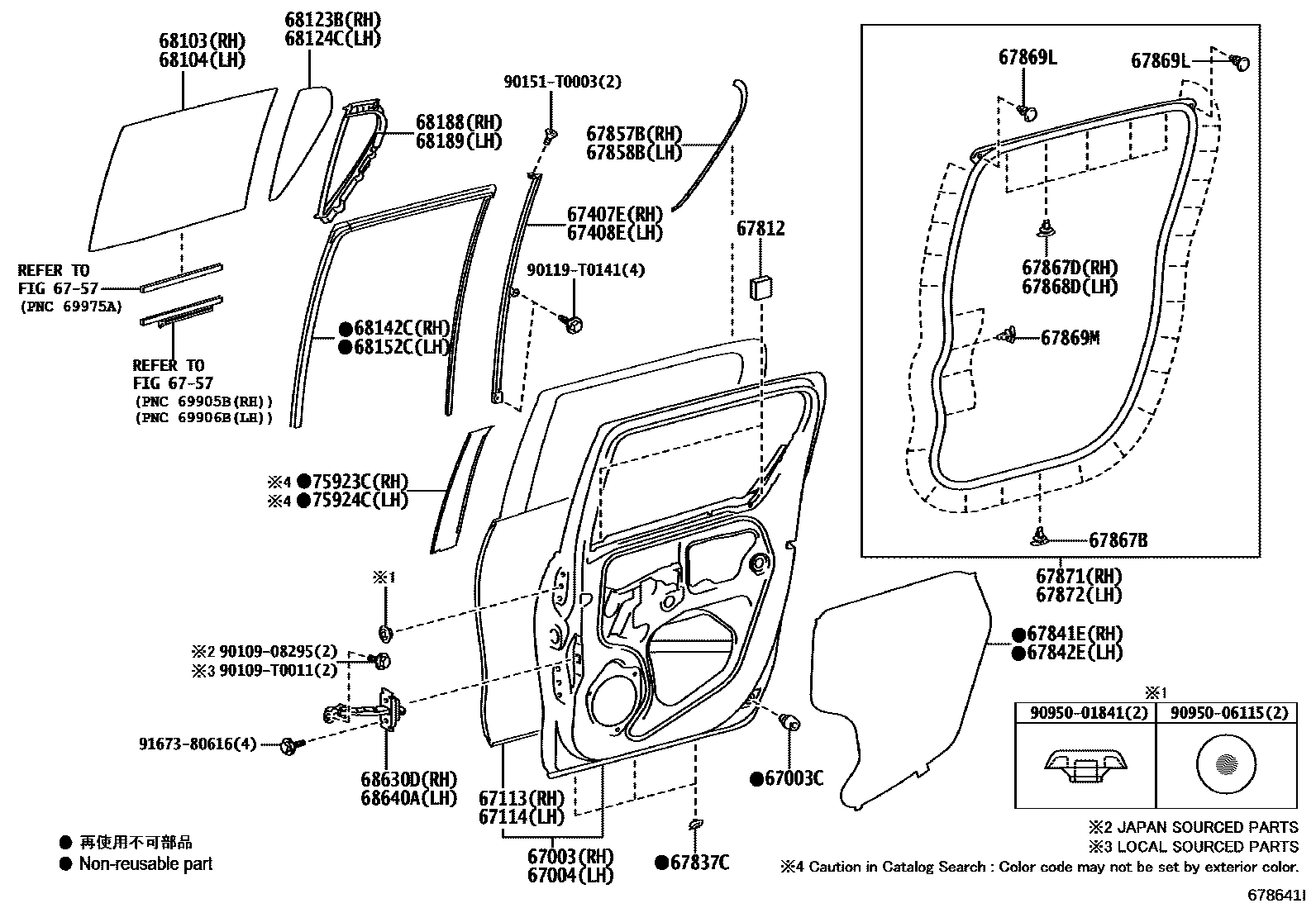

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR PANEL 0003 1DOOR TRIM,W(POWER WINDOW) 0004 1DOOR TRIM,W/O(POWER WINDOW) 0005 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-KK010iGGN12#,135,GUN12#,13#,KUN12#,13#,LAN125,TGN12#,136..ADC,MDC,SDC,TDC201505-201605

main67003-KK011×2iGUN120,122..TDC..(6F,6FC)201809-202005

67003CCUSHION, REAR DOOR PANEL

main90541-09131×2iGGN12#,135,GUN12#,13#,KUN12#,13#,LAN125,TGN12#,13#..ADC,KDC,MDC,PDC,SDC,SXT,TDC,TXT201505-202105

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-KK010iGGN12#,135,GUN12#,13#,KUN12#,13#,LAN125,TGN12#,136..ADC,MDC,SDC,TDC201505-201605

main67004-KK011iGUN122..(SDC,TDC)..5F;GGN12#,135,GUN123,125,126,13#,KUN12#,13#,LAN125,TGN12#,13#..ADC,KDC,MDC,PDC,SDC,TDC201606-202105

67113PANEL, REAR DOOR, OUTER RH

main67113-KK010iGUN122..(SDC,TDC)..5F;GGN12#,135,GUN123,125,126,13#,KUN12#,13#,LAN125,TGN12#,13#..ADC,KDC,MDC,PDC,SDC,TDC201505-202105

67114PANEL, REAR DOOR, OUTER LH

main67114-KK010iGUN122..(SDC,TDC)..5F;GGN12#,135,GUN123,125,126,13#,KUN12#,13#,LAN125,TGN12#,13#..ADC,KDC,MDC,PDC,SDC,TDC201505-202105

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-0K100iGGN12#,135,GUN12#,13#,KUN12#,13#,LAN125,TGN12#,13#..ADC,KDC,MDC,PDC,SDC,TDC201505-202105

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-0K100iGGN12#,135,GUN12#,13#,KUN12#,13#,LAN125,TGN12#,13#..ADC,KDC,MDC,PDC,SDC,TDC201505-202105

6757

67812PAD, REAR DOOR SILENCER

main69759-0K030×4iGGN12#,GUN12#,13#,KUN12#,13#,TGN12#,13#..ADC,MDC,PDC,TDC201505-202105

main69759-0K060×4iGGN125,135,GUN122,125,126,13#,KUN12#,135,LAN125,TGN121,126,136..KDC,SDC201707-202102

67837CSEAL, REAR DOOR DUST PROOF

main67837-0K090×4iGUN12#,13#,KUN122,125,TGN121,136..TXT201506-201608

main67837-0K091×4iGUN12#,13#,KUN122,125,TGN121,136..TXT201609-201703

main67837-0K092×6iKUN122..H;GUN125..PH;GUN126..M..VN;GUN135..6FC..(L,X);KUN125,126,13#,TGN120..TDC;GUN135..6F..(S,X)..(ARL,VN)..CBU;GUN122,125,126,KUN122,126,TGN121,126..(PDC,TDC)..(201704-202105

main67837-0K100×4iGUN126,13#,KUN125,126..SXT201602-201608

main67837-0K101×6iGUN126,13#,KUN125,126..SXT201609-201703

main67837-0K102×4iGUN125,126,13#,KUN125,126..SXT201704-202009

sub67837-0K103

main67837-0K121×6iGGN125,GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC201707-202010

EXCEPT PLANT TMT

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-0K130iTGN126..S..SA;GUN126..(H,M)..PKN;GUN125..LHD..(ADC,TDC)..X;GUN122,125..TDC..(M,S)..GCC;KUN122,126,TGN126..TDC..L..GEN;KUN125..(SDC,TDC)..(M,S)..(GCC,SA);KUN122,TGN1201505-202105

main67841-0K140iGUN125,135..MDC..6F..(L,X)201709-202105

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-0K010iGUN125,135..MDC..(L,X)201505-201709

main67842-0K020iGUN125,135..MDC..6F..(L,X)201709-202105

67857BPROTECTOR, REAR DOOR PANEL, RH

main67857-0K030supersedes 67857-0K030iGUN125,TGN126..S..GEN201505-201708

KAZAKHSTAN SPEC(EURO 4 REGULATION)

main67857-0K080iGGN125,135,GUN122,125,126,13#,KUN12#,135,LAN125,TGN121,126,136..KDC,SDC201601-202102

main67857-0K090iGUN125,126,13#,KUN125,126..SXT201602-202009

67858BPROTECTOR, REAR DOOR PANEL, LH

main67858-0K030supersedes 67858-0K030iGUN125,TGN126..S..GEN201505-201708

KAZAKHSTAN SPEC(EURO 4 REGULATION)

main67858-0K080iGGN125,135,GUN122,125,126,13#,KUN12#,135,LAN125,TGN121,126,136..KDC,SDC201601-202102

main67858-0K090iGUN125,126,13#,KUN125,126..SXT201602-202009

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main67867-12150×24iGUN12#,13#,KUN12#,TGN121,136..SXT,TXT201506-202009

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-52010×4iGUN12#,13#,KUN12#,TGN121,136..SXT,TXT201506-202009

main67867-52020×5iGGN12#,135,GUN12#,13#,KUN12#,13#,LAN125,TGN12#,136..ADC,MDC,SDC,TDC201505-201605

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-52010×4iGUN12#,13#,KUN12#,TGN121,136..SXT,TXT201506-202009

main67867-52030×5iGGN12#,135,GUN12#,13#,KUN12#,13#,LAN125,TGN12#,13#..ADC,KDC,MDC,PDC,SDC,TDC201606-202105

67869LCLIP, REAR DOOR WEATHERSTRIP

main90467-06084×4iGGN12#,135,GUN12#,13#,KUN12#,13#,LAN125,TGN12#,13#..ADC,KDC,MDC,PDC,SDC,TDC201505-202105

67869MCLIP, DOOR WEATHERSTRIP

main67867-0K020×8iGGN12#,GUN12#,13#,KUN12#,13#,TGN120,121,126,136..PDC,TDC201701-202105

main67867-12150×8iGGN12#,135,GUN12#,13#,KUN12#,13#,LAN125,TGN12#,136..ADC,SDC,TDC201505-201604

main67867-50050×8iGGN125,135,GUN122,125,126,13#,KUN12#,13#,LAN125,TGN121,126,128,13#..ADC,KDC,MDC,SDC201604-202102

main67869-20030×2iGUN12#,13#,KUN12#,TGN121,136..SXT,TXT201506-202009

67871WEATHERSTRIP, REAR DOOR, RH

main67871-0K080iGGN12#,GUN12#,13#,KUN12#,13#,TGN120,121,126,136..PDC,TDC201505-202105

sub67871-0K081

main67871-0K110iGGN125,135,GUN122,125,126,13#,KUN12#,135,LAN125,TGN121,126,136..KDC,SDC201601-202102

sub67871-0K111

main67871-0K120iGGN125,GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC201511-202010

sub67871-0K121

main67871-0K200iGUN125,126,135..MDC201604-202012

sub67871-0K201

67872WEATHERSTRIP, REAR DOOR, LH

main67872-0K080iGGN12#,GUN12#,13#,KUN12#,13#,TGN120,121,126,136..PDC,TDC201505-202105

sub67872-0K081

main67872-0K110iGGN125,135,GUN122,125,126,13#,KUN12#,135,LAN125,TGN121,126,136..KDC,SDC201601-202102

sub67872-0K111

main67872-0K120iGGN125,GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC201511-202010

sub67872-0K121

main67872-0K200iGUN125,126,135..MDC201604-202012

sub67872-0K201

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-0K210iGGN125,GUN126,136..(PDC,TDC)..(H,L,S,X);GGN125,GUN126,136..(PDC,TDC)..M..(GCC,GEN,LA,PH,PKN,VN);GGN120,GUN120,122,123,125,135,KUN12#,13#,TGN120,121,126,136..PDC,TDC201505-202105

main68113-0K220iGGN125,135,GUN122,125,126,13#,KUN12#,135,LAN125,TGN121,126,136..KDC,SDC201601-202102

main68113-0K230iGGN125,GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC201511-202010

main68113-0K240iGGN125,GUN126,136..TDC..M..(ARL,TAIW)201505-202005

main68113-0K380iGUN125,126,135..MDC201604-202012

main68113-0K250iGGN125,135,GUN125,126,13#,KUN125,126,135,LAN125,TGN126,136..SDC..(M,S)201601-202009

BACK GLASS-SLIDING TYPE(PRIVACY)

main68113-0K410iGGN125,GUN122,125,126,TGN121,126..M..GCC201806-202005

BACK GLASS-SLIDING TYPE(GREEN,*HSEA)

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-0K210iGGN125,GUN126,136..(PDC,TDC)..(H,L,S,X);GGN125,GUN126,136..(PDC,TDC)..M..(GCC,GEN,LA,PH,PKN,VN);GGN120,GUN120,122,123,125,135,KUN12#,13#,TGN120,121,126,136..PDC,TDC201505-202105

main68114-0K220iGGN125,135,GUN122,125,126,13#,KUN12#,135,LAN125,TGN121,126,136..KDC,SDC201601-202102

main68114-0K230iGGN125,GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC201511-202010

main68114-0K240iGGN125,GUN126,136..TDC..M..(ARL,TAIW)201505-202005

main68114-0K380iGUN125,126,135..MDC201604-202012

main68114-0K250iGGN125,135,GUN125,126,13#,KUN125,126,135,LAN125,TGN126,136..SDC..(M,S)201601-202009

BACK GLASS-SLIDING TYPE(PRIVACY)

main68114-0K410iGGN125,GUN122,125,126,TGN121,126..M..GCC201806-202005

BACK GLASS-SLIDING TYPE(GREEN,*HSEA)

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-0K230iGUN126..LHD..TDC..M;GUN122,125,135,KUN12#,136,TGN121,126,136..PDC,TDC;GGN12#,GUN123,126,136,KUN135,TGN120..TDC..(H,L,S,X)201505-201705

main68123-0K231iGGN125,GUN126,136..(PDC,TDC)..(H,L,S,X);GGN125,GUN126,136..(PDC,TDC)..M..(GCC,GEN,LA,PH,PKN,VN);GGN120,GUN120,122,123,125,135,KUN12#,13#,TGN120,121,126,136..PDC,TDC201706-202105

main68123-0K240iGGN125,GUN126,136..TDC..M..ARL201505-201702

main68123-0K241iGGN125,GUN126,136..TDC..M..(ARL,TAIW)201703-202005

main68123-0K250iGGN125,135,GUN122,125,126,13#,KUN12#,135,LAN125,TGN121,126,136..KDC,SDC201601-202102

main68123-0K270iGGN125,GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC201511-202010

main68123-0K280iGUN125,126,135..MDC201604-202012

main68123-0K260iGGN125,135,GUN125,126,13#,KUN125,126,135,LAN125,TGN126,136..SDC..(M,S)201601-202009

BACK GLASS-SLIDING TYPE(PRIVACY)

main68123-0K330iGGN125,GUN122,125,126,TGN121,126..M..GCC201806-202005

BACK GLASS-SLIDING TYPE(GREEN,*HSEA)

68124CGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-0K230iGUN126..LHD..TDC..M;GUN122,125,135,KUN12#,136,TGN121,126,136..PDC,TDC;GGN12#,GUN123,126,136,KUN135,TGN120..TDC..(H,L,S,X)201505-201705

main68124-0K231iGGN125,GUN126,136..(PDC,TDC)..(H,L,S,X);GGN125,GUN126,136..(PDC,TDC)..M..(GCC,GEN,LA,PH,PKN,VN);GGN120,GUN120,122,123,125,135,KUN12#,13#,TGN120,121,126,136..PDC,TDC201706-202105

main68124-0K240iGGN125,GUN126,136..TDC..M..ARL201505-201702

main68124-0K241iGGN125,GUN126,136..TDC..M..(ARL,TAIW)201703-202005

main68124-0K250iGGN125,135,GUN122,125,126,13#,KUN12#,135,LAN125,TGN121,126,136..KDC,SDC201601-202102

main68124-0K270iGGN125,GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC201511-202010

main68124-0K280iGUN125,126,135..MDC201604-202012

main68124-0K260iGGN125,135,GUN125,126,13#,KUN125,126,135,LAN125,TGN126,136..SDC..(M,S)201601-202009

BACK GLASS-SLIDING TYPE(PRIVACY)

main68124-0K330iGGN125,GUN122,125,126,TGN121,126..M..GCC201806-202005

BACK GLASS-SLIDING TYPE(GREEN,*HSEA)

68142CRUN, REAR DOOR GLASS, RH

main68142-0K080iGGN12#,GUN12#,13#,KUN12#,13#,TGN120,121,126,136..MDC,PDC,TDC201505-202105

main68142-0K100iGGN125,135,GUN122,125,126,13#,KUN12#,135,LAN125,TGN121,126,136..KDC,SDC201601-202102

main68142-0K110iGGN125,GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC201511-202010

68152CRUN, REAR DOOR GLASS, LH

main68152-0K080iGGN12#,GUN12#,13#,KUN12#,13#,TGN120,121,126,136..MDC,PDC,TDC201505-202105

main68152-0K100iGGN125,135,GUN122,125,126,13#,KUN12#,135,LAN125,TGN121,126,136..KDC,SDC201601-202102

main68152-0K110iGGN125,GUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC201511-202010

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-0K110iGGN12#,135,GUN12#,13#,KUN12#,13#,LAN125,TGN12#,136..ADC,SDC,TDC201505-201607

main68188-0K111iGGN12#,135,GUN12#,13#,KUN12#,13#,LAN125,TGN12#,13#..ADC,KDC,PDC,SDC,TDC201607-202105

main68188-0K140iGUN125,126,135..MDC201604-201608

main68188-0K141iGUN125,126,135..MDC201608-202012

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-0K110iGGN12#,135,GUN12#,13#,KUN12#,13#,LAN125,TGN12#,136..ADC,SDC,TDC201505-201607

main68189-0K111iGGN12#,135,GUN12#,13#,KUN12#,13#,LAN125,TGN12#,13#..ADC,KDC,PDC,SDC,TDC201607-202105

main68189-0K140iGUN125,126,135..MDC201604-201608

main68189-0K141iGUN125,126,135..MDC201608-202012

68630DCHECK ASSY, REAR DOOR, RH

main68630-0K080iGGN125,135,GUN122,125,126,13#,KUN12#,135,LAN125,TGN121,126,136..KDC,SDC201601-202102

main68630-0K090iGGN12#,GUN12#,13#,KUN12#,13#,TGN120,121,126,136..MDC,PDC,TDC201505-201801

main68630-0K091iKUN122..TDC..GCC;GUN122..TDC..DCR..(GCC,GEN,PH,TH);GGN125,GUN120,125,126,13#,TGN120,121,126,136..MDC,PDC,TDC201811-202105

main68630-0K100iGGN125,KUN125,126,13#..ADC..LA;GUN125,126,13#,TGN126,128,13#..ADC201511-202010

main68630-0K110iGUN126..PDC..L;TGN136..TDC..X;TGN126..LHD..TDC;GUN125,136..MDC,TDC;KUN122..TDC..S..GCC;GUN135..TDC..6F..(H,M);TGN121..TDC..(ARL,GCC,GEN);GUN126..(MDC,PDC,TDC)..(H,M201802-201810

68640ACHECK ASSY, REAR DOOR, LH

main68630-0K080iGGN125,135,GUN122,125,126,13#,KUN12#,135,LAN125,TGN121,126,136..KDC,SDC201601-202102

main68630-0K090iGGN12#,GUN12#,13#,KUN12#,13#,TGN120,121,126,136..MDC,PDC,TDC201505-201801

main68630-0K091iKUN122..TDC..GCC;GUN122..TDC..DCR..(GCC,GEN,PH,TH);GGN125,GUN120,125,126,13#,TGN120,121,126,136..MDC,PDC,TDC201811-202105

main68630-0K100iGGN125,KUN125,126,13#..ADC..LA;GUN125,126,13#,TGN126,128,13#..ADC201511-202010

main68630-0K110iGUN135..6F..MA;KUN122..TDC..GEN;GUN135..6FC..S..MA;TGN136..TDC..(M,S);KUN122..TDC..L..GCC;GUN122,126..TDC..(L,X)..(ARL,GEN);GGN12#,GUN123,TGN121,126..RHD..TDC..(L,M201802-201904

75923CTAPE, BLACK OUT, NO.2 RH

main75923-0K030iGUN125,126,KUN125,126,136..RHD..TDC..S..GEN201505-201806

BLACK OUT-W(PILLAR) & W/O(REAR WHEEL HOUSE PAINT)

main75923-0K040iGGN125,GUN125,126,13#,TGN126,128,13#..ADC..(H,M,S)201808-202010

main75923-0K090iGGN125,135,GUN125,126,136,KUN125,126..SDC..M201601-201808

75924CTAPE, BLACK OUT, NO.2 LH

main75924-0K030iGUN125,126,KUN125,126,136..RHD..TDC..S..GEN201505-201806

BLACK OUT-W(PILLAR) & W/O(REAR WHEEL HOUSE PAINT)

main75924-0K040iGUN125,126,13#,KUN125,126,13#,TGN126,128,13#..ADC..(H,M,S)201511-201808

main75924-0K090iGGN125,135,GUN125,126,136,KUN125,126..SDC..M201601-201808

9010908295

main90109-08295

90109T0011

main90109-T0011

90119T0141

main90119-T0141

90151T0003

main90151-T0003

9095001841

main90950-01841

9095006115

main90950-06115

9167380616

main91673-80616

40 parts on this diagram · 5 diagrams in section
