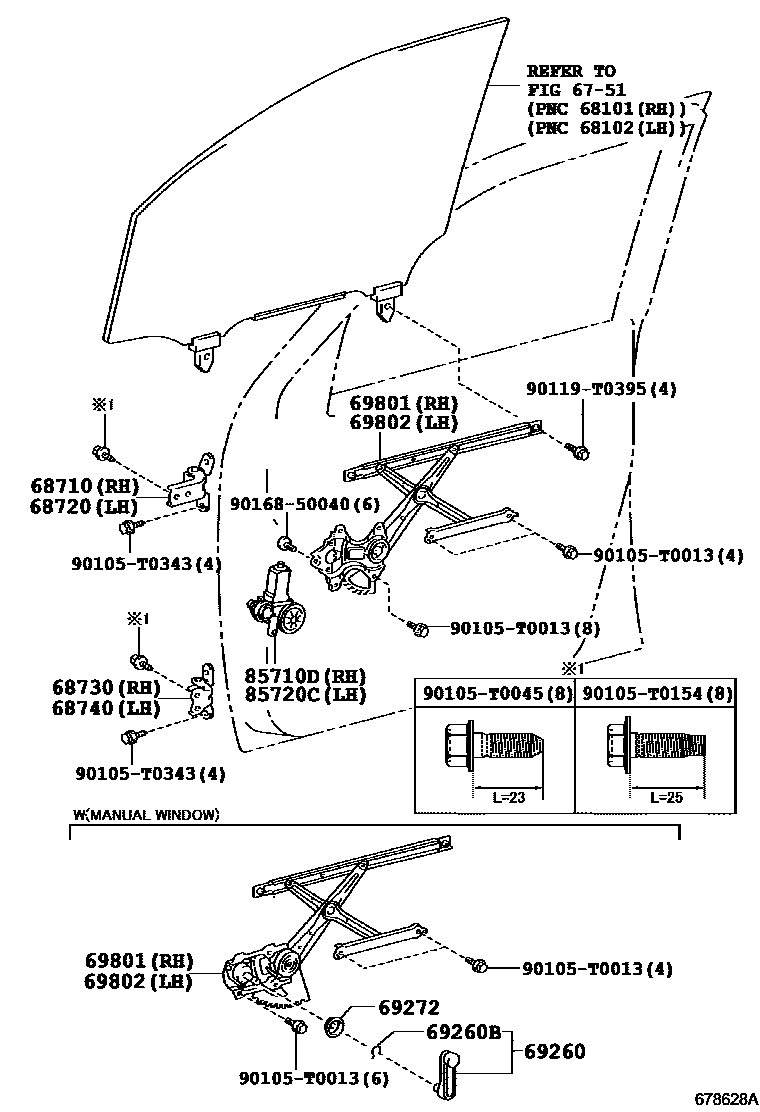

FRONT DOOR WINDOW REGULATOR & HINGE
6751
68710HINGE ASSY, FRONT DOOR, UPPER RH
main68710-02070iGUN135..SSC..6F;GUN135,TGN136..KSC,SDC,SXT;GGN125,135,GUN122,125,126,136,KUN12#,135,LAN125,TGN120,121,126..KEN,SA201601-202102
main68710-0D050iGGN12#,GUN112,12#,13#,KUN112,12#,13#,TGN11#,120,121,126,136..MDC,MSC,TDC,TSC,TXT¥2,030201505-202012
68720HINGE ASSY, FRONT DOOR, UPPER LH
main68720-0D050iGGN12#,GUN112,12#,13#,KUN112,12#,13#,TGN11#,120,121,126,136..MDC,MSC,TDC,TSC,TXT¥2,030201505-202012
main68720-0K010iGGN125,KUN125,126,13#..(ADC,ASC)..LA;GUN125,126,13#,TGN126,128,13#..ADC,ASC201511-202010
68730HINGE ASSY, FRONT DOOR, LOWER RH
main68730-02100iGGN12#,GUN112,12#,13#,KUN112,12#,13#,TGN11#,120,121,126,136..MDC,MSC,PDC,PSC,TDC,TSC,TXT201505-202105
main68730-0K050iGGN125,KUN125,126,13#..(ADC,ASC)..LA;GUN125,126,13#,TGN126,128,13#..ADC,ASC201511-202010
68740HINGE ASSY, FRONT DOOR, LOWER LH
main68740-02100iGGN12#,GUN112,12#,13#,KUN112,12#,13#,TGN11#,120,121,126,136..MDC,MSC,PDC,PSC,TDC,TSC,TXT201505-202105
69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#,4#
main69260-0K040-C0iGUN122..LHD..SA;GUN125,135,KUN122,125,LAN125,TGN121,126..(KDC,KSC,SDC,SSC)..X201601-202102
BLACK,TRIM2#
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB),BLACK,TRIM2#
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON),BLACK,TRIM2#
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH,BLACK,TRIM2#
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED)),BLACK,TRIM2#
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH(PANIC BUTTON),BLACK,TRIM2#
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH(PANICBUTTON),BLACK,TRIM2#
BLACK,TRIM2#
69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
main90080-52152iGUN122..LHD..SSC;GUN125,126,135,KUN122,125,135,LAN125,TGN121,126,136..(ASC,KSC,SSC)..X201511-202102
69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
main69268-02022iGUN122..LHD..SA;GUN125,126,135,KUN12#,135,LAN125,TGN121,126,13#..(ADC,ASC,KDC,KSC,SDC,SSC)..(L,X)¥100201511-202102
69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
main69801-0K150iTGN136..SDC;GUN135..6F..S..SA;GUN122,136,TGN120..RHD..(M,X)..SA;GGN125,135,GUN125,126,KUN125,126,135,LAN125,TGN126..(M,S)..(KEN,SA)201601-202102
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main69801-0K160iGGN125,KUN125,126,13#..ADC..(H,M,S)..LA;GUN125,126,13#,TGN126,128,13#..ADC..(H,M,S)201511-202010
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH
main69810-0K240iKUN126..L..GEN;GUN125..(MDC,MSC,TSC)..6F..(L,X)..CBU;GUN125,126..TDC..6F..(L,X)..(GCC,GEN,LA);KUN125,TGN126..(TDC,TSC,TXT)..(L,X)..(DCR,HTWC);GUN125,TGN136..(TDC,TS201505-202105
main69810-0K270iGUN122,135..LHD..SA;GUN135..(KSC,SSC)..X;GUN125,KUN122,125,LAN125,TGN121,126..(KDC,KSC,SDC,SSC)..X201601-202102
69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITHOUT(*DCB)&WIRELESS DOOR LOCK-WITH(PANIC BUTTON)
main69802-0K160iGUN126,KUN126..ADC..ATM..X;GUN125,135,KUN125,135,TGN126,136..(ADC,ASC)..(L,X)201511-202010
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH
main69802-0K160iGGN125,KUN125,126,13#..ADC..(H,M,S)..LA;GUN125,126,13#,TGN126,128,13#..ADC..(H,M,S)201511-202010
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main69820-0K260iKUN126..L..GEN;GUN125..(MDC,MSC,TSC)..6F..(L,X)..CBU;GUN125,126..TDC..6F..(L,X)..(GCC,GEN,LA);KUN125,TGN126..(TDC,TSC,TXT)..(L,X)..(DCR,HTWC);GUN125,TGN136..(TDC,TS201505-202105
main69820-0K290iGUN122,135..LHD..SA;GUN135..(KSC,SSC)..X;GUN125,KUN122,125,LAN125,TGN121,126..(KDC,KSC,SDC,SSC)..X201601-202102
85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH
main85710-0K180iGUN122..RHD..SA;GUN135..LHD..TDC..S;GUN126,KUN126..TDC..ATM..X;GUN135..(L,M)..(GEN,MA,PH,VN);GUN125,TGN136..(5F,6FC)..(L,X)..GEN;GUN125,KUN125..6F..(L,M)..(IDN,SA,V¥15,900201505-202009
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON)
POWER DOOR LOCK-WITH & WITHOUT(AUTO LOCK(SPEED))&WIRELESS DOOR LOCK-WITH
main85710-0K290iGUN126,KUN126..ADC..ATM..X;GUN125,135,KUN125,135,TGN126,136..(ADC,ASC)..(L,X)201511-202010
POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)) & WITH(*DCB)&WIRELESS DOOR LOCK-WITH
85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH
main85720-0K190iTGN126..M..GCC;GUN136..TDC..(H,M);KUN126..RHD..H..GEN;GUN135..LHD..6FC..(H,S);GUN126..LHD..M..(GEN,SA);GUN125..LHD..(SDC,TDC)..M;GUN135,KUN125..(L,M)..(SA,VN);KUN12¥20,900201505-202105
main85720-0K280iGGN125,KUN125,126,13#..ADC..(H,M,S)..LA;GUN125,126,13#,TGN126,128,13#..ADC..(H,M,S)201511-202010
90105T0013
90105T0045
main90105-T0045
90105T0154
main90105-T0154
90105T0343
main90105-T0343
90119T0395
main90119-T0395
9016850040
18 parts on this diagram · 1 diagram in section
