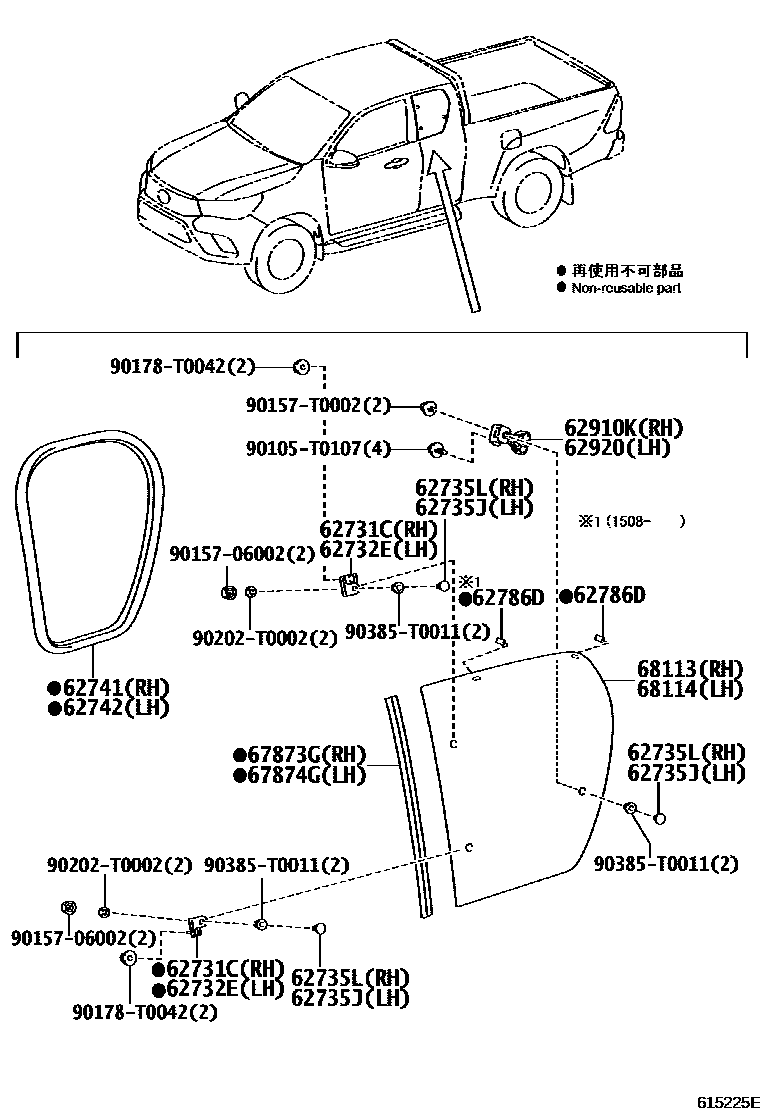

SIDE WINDOW

62731CHINGE, QUARTER WINDOW, RH

main62733-0K010iGUN12#,13#,KUN12#,TGN121,136..SXT,TXT201506-202009

UPPER

main62733-0K020iGUN12#,13#,KUN12#,TGN121,136..SXT,TXT201506-202009

LOWER

62732EHINGE, QUARTER WINDOW, LH

main62734-0K010iGUN12#,13#,KUN12#,TGN121,136..SXT,TXT201506-202009

UPPER

main62734-0K020iGUN12#,13#,KUN12#,TGN121,136..SXT,TXT201506-202009

LOWER

62735JRETAINER, QUARTER WINDOW HINGE, LH

main62735-0K040iGUN12#,13#,KUN122,TGN121,136..SXT,TXT201710-202009

(L)

main62735-35010iGUN12#,13#,KUN12#,TGN121,136..SXT,TXT201506-201710

main62735-35010iGUN12#,13#,KUN122,TGN121,136..SXT,TXT201710-202009

(J)

62735LRETAINER, QUARTER WINDOW HINGE, RH

main62735-0K040iGUN12#,13#,KUN122,TGN121,136..SXT,TXT201710-202009

(L)

main62735-35010iGUN12#,13#,KUN12#,TGN121,136..SXT,TXT201506-201710

main62735-35010iGUN12#,13#,KUN122,TGN121,136..SXT,TXT201710-202009

(J)

62741WEATHERSTRIP, QUARTER WINDOW, RH

main62741-0K030iGUN12#,13#,KUN122,125,TGN121,136..TXT201506-202005

main62741-0K040iGUN125,126,13#,KUN125,126..SXT201602-202009

62742WEATHERSTRIP, QUARTER WINDOW, LH

main62741-0K030iGUN12#,13#,KUN122,125,TGN121,136..TXT201506-202005

main62741-0K040iGUN125,126,13#,KUN125,126..SXT201602-202009

62786DSPACER, QUARTER WINDOW GLASS, NO.2

main62786-0K010iGUN12#,13#,KUN122,125,TGN121,136..TXT201506-202009

62910KLOCK ASSY, QUARTER WINDOW, RH

main62910-0K030-B0iGUN123,125,126,KUN122,125..TXT..(ARL,GEN,IDN)201506-201508

LT.GRAY,TRIM2#

sub62910-0K040

main62910-0K030-B0iGUN123,125,126,KUN122,125..TXT..(ARL,GEN,IDN)201506-201508

LT.GRAY,TRIM2#,4#

sub62910-0K040

main62910-0K040-B0iKUN125..TXT..S201508-201703

LT.GRAY,TRIM2#,3#

main62910-0K040-B0iGUN126,13#..TXT..M..TH201508-202005

LT.GRAY,TRIM2#,4#

main62910-0K040-B0iGUN126,136..SXT201508-202009

LT.GRAY,TRIM2#

main62910-0K040-B0iGUN126,13#..TXT..M..TH201712-202005

LT.GRAY,TRIM20,4#

main62910-0K040-B0iGUN126,136..SXT201805-202009

LT.GRAY,TRIM20

main62910-0K040-C0iGUN126,13#..TXT..M..TH201712-202009

BLACK,TRIM21

62920LOCK ASSY, QUARTER WINDOW, LH

main62920-0K020-B0iGUN123,125,126,KUN122,125..TXT..(ARL,GEN,IDN)201506-201508

LT.GRAY,TRIM2#,4#

sub62920-0K040

main62920-0K020-B0iGUN122,125,126,13#,TGN121,136..TXT..TH201506-201508

LT.GRAY,TRIM2#

sub62920-0K040

main62920-0K040-B0iKUN125..TXT..S201508-202009

LT.GRAY,TRIM2#

main62920-0K040-B0iKUN125..TXT..S201508-201703

LT.GRAY,TRIM2#,3#

main62920-0K040-B0iGUN126,13#..TXT..M..TH201508-202005

LT.GRAY,TRIM2#,4#

main62920-0K040-B0iGUN126,13#..TXT..M..TH201712-202005

LT.GRAY,TRIM20,4#

main62920-0K040-B0iGUN126,136..SXT201805-202009

LT.GRAY,TRIM20

main62920-0K040-C0iGUN126,13#..TXT..M..TH201712-202009

BLACK,TRIM21

67873GWEATHERSTRIP, QUARTER WINDOW, FRONT RH

main67865-0K030iGUN12#,13#,KUN122,125,TGN121,136..TXT201506-202005

main67865-0K040iGUN125,126,13#,KUN125,126..SXT201602-202009

67874GWEATHERSTRIP, QUARTER WINDOW, FRONT LH

main67866-0K030iGUN12#,13#,KUN122,125,TGN121,136..TXT201506-202005

main67866-0K040iGUN125,126,13#,KUN125,126..SXT201602-202009

68113GLASS, QUARTER WINDOW, RH

main68113-0K260iGUN126..M..TH;GUN126..TXT..S;GUN120,122,123,125,13#,KUN122,125,TGN121,136..TXT201506-202005

main68113-0K270iGUN126..TXT..M..ARL201506-202005

main68113-0K280iGUN125,126,13#,KUN125,126..SXT201602-202009

68114GLASS, QUARTER WINDOW, LH

main68114-0K260iGUN126..M..TH;GUN126..TXT..S;GUN120,122,123,125,13#,KUN122,125,TGN121,136..TXT201506-202005

main68114-0K270iGUN126..TXT..M..ARL201506-202005

main68114-0K280iGUN125,126,13#,KUN125,126..SXT201602-202009

90105T0107

main90105-T0107

9015706002

main90157-06002

90157T0002

main90157-T0002

90178T0042

main90178-T0042

90202T0002

main90202-T0002

90385T0011

main90385-T0011

19 parts on this diagram · 1 diagram in section
