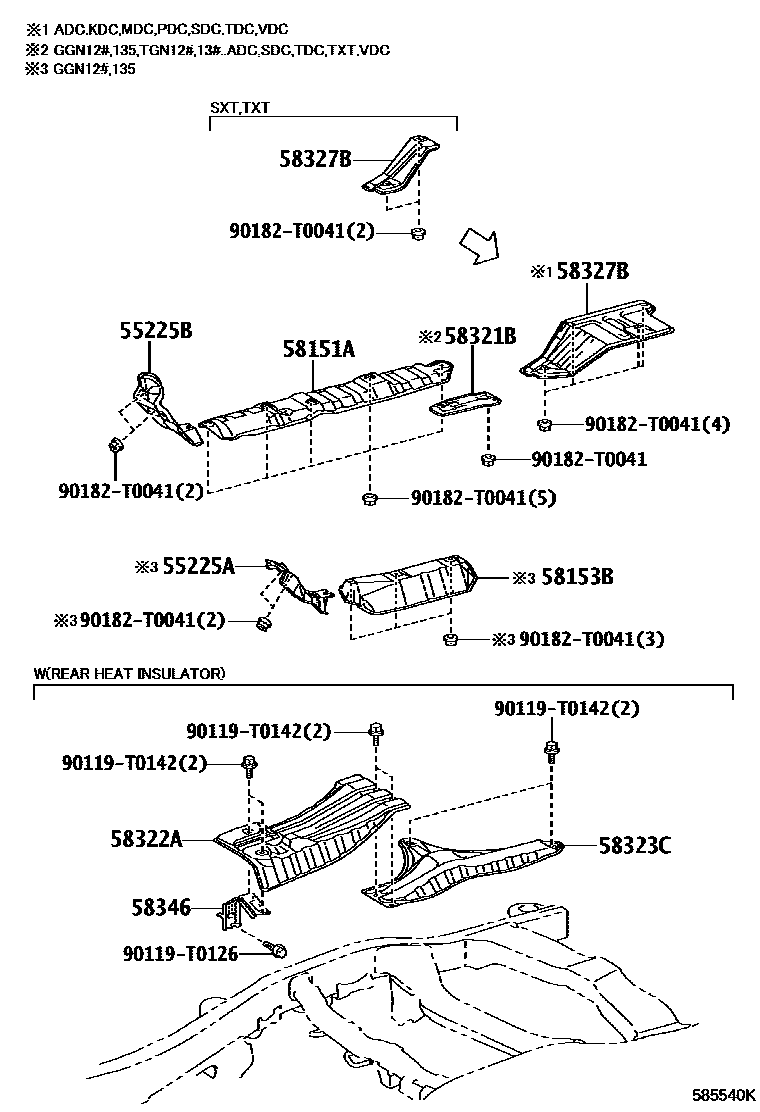

FLOOR INSULATOR

55225AINSULATOR, DASH PANEL HEAT, NO.1

main55225-0K021iGGN12#,135201505-202010

55225BINSULATOR, DASH PANEL HEAT

main55225-KK010iGGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13#201505-201703

sub55225-KK011¥1,070

main55225-KK011iGUN122..LHD..SSC¥1,070201703-202105

58151AINSULATOR, FLOOR HEAT, NO.1

main58151-KK010iGUN125..6FC..GEN201505-201703

sub58151-KK011¥4,640

main58151-KK011iTGN121..S..GCC;GUN125..TDC..IV3;GUN126..(H,M,S)..GEN;GUN125..6F..(L,M)..GCC;GUN125..TDC..6F..S..GCC;TGN126..LHD..(SDC,TDC,TSC);TGN136..(SDC,TDC)..(GEN,SA);GUN122..(¥4,640201703-202010

sub58151-KK020¥2,830

main58151-KK020iGUN122..LHD..SSC¥2,830201905-202105

58153BINSULATOR, FLOOR HEAT, NO.3

main58153-0K011iGGN12#,135201505-202010

58321BINSULATOR, REAR FLOOR HEAT, NO.1

main58321-0K011iGGN12#,135,TGN12#,13#..ADC,SDC,TDC,TXT201505-202010

58322AINSULATOR, REAR FLOOR HEAT, REAR

main58322-KK010iGUN125..TSC..LA201505-201508

CHILE SPEC

sub58322-KK011¥2,830

main58322-KK010iGUN125..TSC..LA201505-201508

BOLIVIA URUGUAY SPEC

sub58322-KK011¥2,830

main58322-KK010iTGN11#,12#,136;GUN125..TSC..LA;GGN12#,GUN12#,13#..RHD..(L,M,S,X)..(ARL,GEN)201505-201508

CS AMERICA SPEC

sub58322-KK011¥2,830

main58322-KK010iTGN11#,12#,136;GUN125..TSC..LA;GGN12#,GUN12#,13#..RHD..(L,M,S,X)..(ARL,GEN)201505-201508

PERU SPEC

sub58322-KK011¥2,830

main58322-KK011iGUN125..TSC..LA¥2,830201509-201806

CS AMERICA SPEC

main58322-KK011iGUN125..TSC..LA¥2,830201509-201806

PERU SPEC

main58322-KK011iGUN125..TSC..LA¥2,830201509-202010

CHILE SPEC

main58322-KK011iGUN125..TSC..LA¥2,830201509-201806

BOLIVIA URUGUAY SPEC

main58322-KK011iTGN136..SSC¥2,830201509-202010

58323CINSULATOR, REAR FLOOR HEAT, NO.3

main58323-KK010iGUN125..TSC..LA201505-201509

PERU SPEC

main58323-KK010iTGN11#,12#,136;GUN125..TSC..LA;GGN12#,GUN12#,13#..RHD..(L,M,S,X)..(ARL,GEN)201505-201509

CS AMERICA SPEC

main58323-KK010iTGN11#,12#,136;GUN125..TSC..LA;GGN12#,GUN12#,13#..RHD..(L,M,S,X)..(ARL,GEN)201505-201509

CHILE SPEC

main58323-KK010iTGN11#,12#,136;GUN125..TSC..LA;GGN12#,GUN12#,13#..RHD..(L,M,S,X)..(ARL,GEN)201505-201509

BOLIVIA URUGUAY SPEC

main58323-KK011iGUN125..TSC..LA¥2,640201509-201806

CS AMERICA SPEC

main58323-KK011iGUN125..TSC..LA¥2,640201509-201806

PERU SPEC

main58323-KK011iGUN125..TSC..LA¥2,640201509-202010

CHILE SPEC

main58323-KK011iGUN125..TSC..LA¥2,640201509-201806

BOLIVIA URUGUAY SPEC

main58323-KK011iTGN136..SSC¥2,640201509-202010

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-0K011iGGN12#,135,GUN12#,13#,KUN12#,13#,LAN125,TGN12#,13#..ADC,KDC,MDC,PDC,SDC,TDC¥2,270201505-202105

main58327-0K021iGUN12#,13#,KUN12#,TGN121,136..SXT,TXT201506-202009

58346BRACKET, REAR FLOOR HEAT INSULATOR

main58332-KK010iGUN125..TSC..LA¥1,560201505-201806

CS AMERICA SPEC

main58332-KK010iGUN125..TSC..LA¥1,560201505-201806

PERU SPEC

main58332-KK010iGUN125..TSC..LA¥1,560201505-202010

CHILE SPEC

main58332-KK010iGUN125..TSC..LA¥1,560201505-201806

BOLIVIA URUGUAY SPEC

main58332-KK010iTGN136..SSC¥1,560201505-202010

90119T0126

main90119-T0126

90119T0142

main90119-T0142

90182T0041

main90182-T0041

12 parts on this diagram · 1 diagram in section
