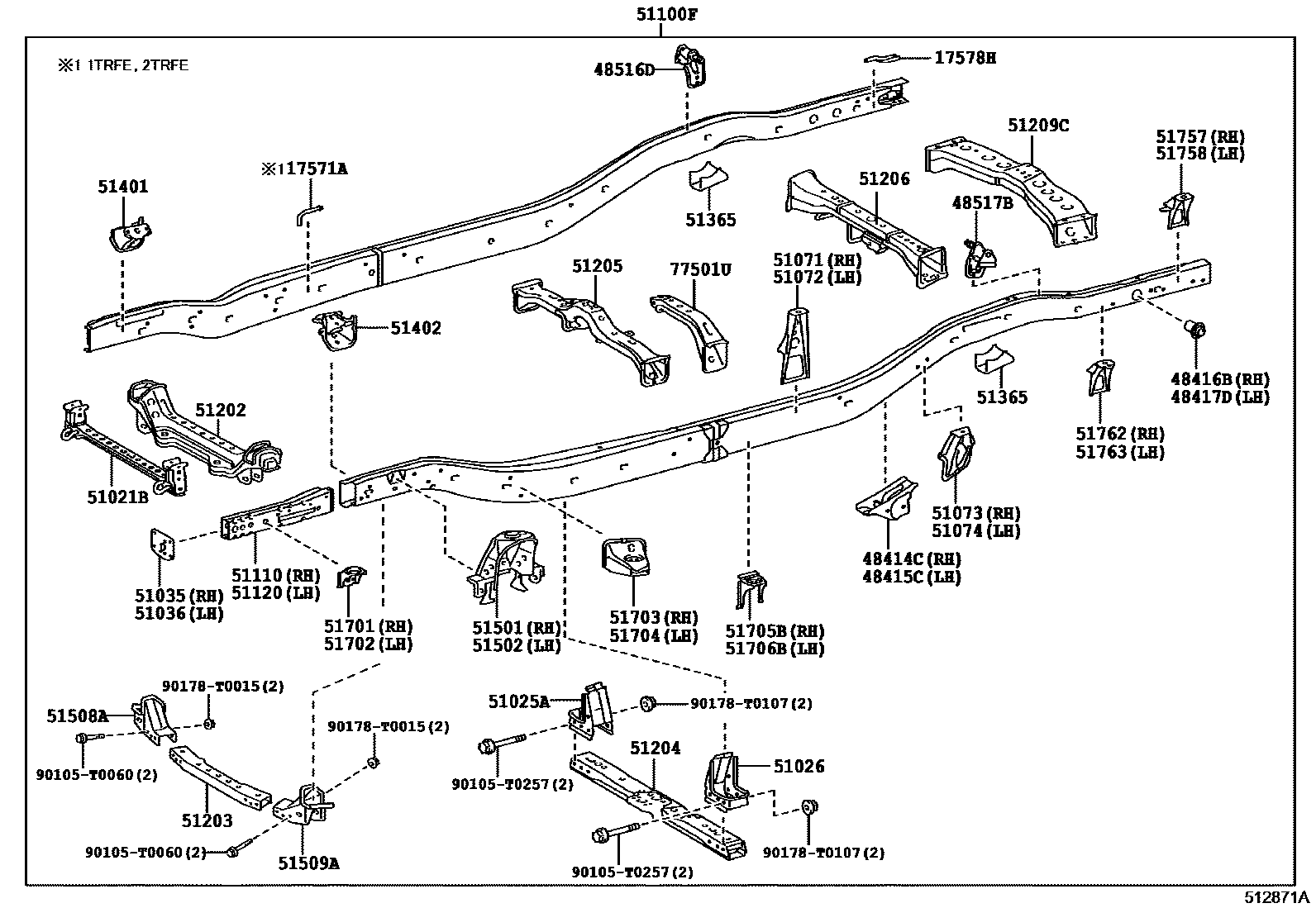

FRAME

0001 1FRAME 0002 1FRAME 0003 1FRAME 0004 1FRAME 0005 1FRAME 0006 1FRAME 0007 1PROPELLER SHAFT GUARD 0008 1PROPELLER SHAFT GUARD

17571ABRACKET, EXHAUST PIPE SUPPORT, NO.9

main17571-0L010i5LE,1TRFE,2TRFE..LAN125,TGN11#,12#,138;2TRFE..TGN136..ADC,ASC,SDC,TDC,TSC,TXT201505-202010

17578HBRACKET, EXHAUST PIPE SUPPORT, NO.10

main17505-0L020i2KDFTV..KUN122..PKN201505-202105

48414CBRACKET, SPRING, NO.3 RH

main48404-KK020iKUN122..SSC,TSC;GUN112,120,122,123,KUN112,TGN11#,120,121..PSC,SSC,TSC201505-202105

main48404-KK030iGGN120,GUN120,122,123,KUN122,TGN120,121..SDC,TDC,TXT201505-202009

main48404-KK040iTGN136..SSC201505-202105

48415CBRACKET, SPRING, NO.3 LH

main48407-KK020iKUN122..PKN201505-202105

main48407-KK030iGGN120,GUN120,122,123,KUN122,TGN120,121..SDC,TDC,TXT201505-202009

main48407-KK040iTGN136..SSC201505-202105

48416BBRACKET, SPRING, NO.4 RH

main48405-KK010iTGN136..SSC201505-202105

48417DBRACKET, SPRING, NO.4 LH

main48405-KK010iTGN136..SSC201505-202105

48516DBRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH

main48505-KK010iGUN136..H,M;GUN135..SSC..X;GUN125..SXT..S;GUN135..LHD..SA;GUN135..6F..S..SA;GUN126,TGN126,128,138;GUN136..S..(ARL,BZAGT);TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN135..ADC201505-202105

48517BBRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH

main48506-KK010iTGN136..SSC201505-202105

51021BCROSSMEMBER SUB-ASSY, FRAME AUXILIARY

main51021-KK010iGUN125,126,13#,TGN126,128,13#..ADC,ASC201505-202105

main51021-KK020iGGN125..LA;GUN125,126,13#,TGN126,128,13#..ADC,ASC201710-202010

51025ABRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, RH

main51025-KK010iKUN122..PKN201505-202105

51026BRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, LH

main51026-KK010iTGN136..SSC201505-202105

51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-KK010iGUN136..H,M;GUN135..SSC..X;GUN125..SXT..S;GUN135..LHD..SA;GUN135..6F..S..SA;GUN126,TGN126,128,138;GUN136..S..(ARL,BZAGT);TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN135..ADC201505-202105

51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-KK010iGUN136..H,M;GUN135..SSC..X;GUN125..SXT..S;GUN135..LHD..SA;GUN135..6F..S..SA;GUN126,TGN126,128,138;GUN136..S..(ARL,BZAGT);TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN135..ADC201505-202105

51071BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 RH

main51071-0K010iGUN112,KUN112,TGN11#201505-202005

main51071-0K020iTGN136..SSC201505-202105

main51071-KK010iGUN136..S..SA;GUN135..RHD..SDC..X;GGN125,GUN135..(ADC,SDC)..6FC..(H,S)..(BZAGT,SA)201505-202105

51072BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 LH

main51071-0K020iGUN135..SSC..6FC201505-202105

main51072-0K010iGUN112,KUN112,TGN11#201505-202005

main51072-KK010iGUN135..LHD..SA;GUN135..SDC..6F..S;GUN135..ADC,MDC,TDC;GUN136..(ADC,TDC)..S;GUN136..(ADC,SDC,TDC)..(H,M);GUN125,126,TGN126,128,13#..ADC,KDC,MDC,PDC,SDC,TDC;GGN12#,1201505-202105

51073BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH

main51073-KK010iTGN136..SSC201505-202105

51074BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH

main51074-KK010iTGN136..SSC201505-202105

51100FFRAME SUB-ASSY

main51001-KK100iTGN11#201505-201902

sub51001-KK101

main51001-KK101iTGN11#201903-202005

sub51001-KK102

sub51001-KK103

main51001-KK120iGUN112,KUN112201505-201902

sub51001-KK121

main51001-KK121iGUN112,KUN112201903-202005

sub51001-KK122

sub51001-KK123

main51001-KK150iTGN121..6FC..IV3201505-201902

sub51001-KK151

main51001-KK151iTGN121..6FC..IV3201903-202005

sub51001-KK152

main51001-KK160iTGN120,121..TSC..5F201505-201902

sub51001-KK161

main51001-KK161iTGN120,121..TSC..5F201903-202005

sub51001-KK162

main51001-KK180iGUN120,122,123,KUN122..(PSC,TSC)..(5F,6FC)201505-201902

sub51001-KK181

main51001-KK181iGUN122..(PSC,TSC)..5F;GUN120,123,KUN122..TSC201903-202105

sub51001-KK182

main51001-KK210iTGN121..L..TH201506-201902

sub51001-KK211

main51001-KK211iTGN121..L..TH201903-201904

sub51001-KK212

main51001-KK230iGUN120,122,123,KUN122..TXT..(5F,6FC)201506-201902

sub51001-KK231

main51001-KK231iGUN120,122,123,KUN122..TXT..(5F,6FC)201903-202005

sub51001-KK232

main51001-KK240iTGN121..6FC..CBU201505-201902

sub51001-KK241

main51001-KK241iTGN121..6FC..CBU201903-202005

sub51001-KK242

main51001-KK250iTGN120,121..TDC..5F201505-201902

sub51001-KK251

main51001-KK251iTGN120,121..TDC..5F201903-202005

sub51001-KK252

main51001-KK260iGGN120201505-201805

sub51001-KK261

main51001-KK280iGUN120,122,123,KUN122..TDC..(5F,6FC)201505-201902

sub51001-KK281

main51001-KK281iGUN120,122,123,KUN122..TDC..(5F,6FC)201903-202005

sub51001-KK282

main51001-KK310iTGN126..ASC201505-202005

sub51001-KK311

main51001-KK320iGUN125,126,KUN125,126..KSC,SSC201602-202102

main51001-KK330iLAN125..SSC201602-202009

sub51001-KK331

main51001-KK340iGUN125,126,KUN125,126..SXT..(M,S)201602-202009

sub51001-KK341

main51001-KK350iTGN126,128..ADC201505-202005

sub51001-KK351

main51001-KK360iGGN125..TDC201505-202005

sub51001-KK361

main51001-KK370iGUN125,126,KUN125,126..KDC,SDC201505-202102

sub51001-KK371

main51001-KK370iGUN125..S..GEN201505-201708

KAZAKHSTAN SPEC(EURO 4 REGULATION)

sub51001-KK371

main51001-KK370iGUN125..S..GEN201505-201708

KAZAKHSTAN SPEC(EURO 2 REGULATION)

sub51001-KK371

main51001-KK380iLAN125..SDC201601-202009

sub51001-KK381

main51001-KK390iTGN136..ASC201505-201805

sub51001-KK391

main51001-KK400iGUN13#..(KSC,SSC)..6F201602-202102

main51001-KK410iTGN136..5F..TH201506-201805

sub51001-KK411

main51001-KK420iGUN13#..TXT..6FC201506-201902

sub51001-KK421

main51001-KK421iGUN13#..TXT..6FC201903-202005

sub51001-KK422

main51001-KK430iGUN13#..SXT..6F201602-202009

sub51001-KK431

main51001-KK440iTGN138201505-201805

sub51001-KK442

main51001-KK450iTGN136..TDC..5F201505-201902

sub51001-KK451

main51001-KK451iTGN136..TDC201903-202005

sub51001-KK452

main51001-KK460iGGN135201601-201807

main51001-KK470iGUN136..6F..S..SA;GUN135..RHD..SDC..X201601-202009

sub51001-KK471

main51001-KK480iGUN13#..(MDC,TDC)..6FC201505-201902

sub51001-KK481

main51001-KK481iGUN13#..(MDC,TDC)..6FC201903-202005

sub51001-KK482

main51001-KK670iKUN125..ASC,TSC;GUN125,126,KUN126..MSC,PSC,TSC201505-202105

sub51001-KK671

main51001-KK680iTGN126..S..GEN201505-202009

sub51001-KK681

main51001-KK690iGGN125..SA201601-202009

sub51001-KK691

main51001-KK700iGUN126..MDC,PDC,TDC;GUN125..M..(GCC,VN);GUN125..RHD..(MDC,TDC);KUN125,126..ADC,PDC,TDC;GUN125..LHD..TDC..(L,S,X)201505-202105

sub51001-KK701

main51001-KK710iTGN136..SSC201602-202009

sub51001-KK711

main51001-KK720iGUN135..X..BZAGT201505-202005

sub51001-KK721

main51001-KK730iTGN136..SDC201601-202009

sub51001-KK731

main51001-KK740iGUN13#..ADC201505-202005

sub51001-KK741

main51001-KK750iGUN13#..SDC..6FC..S201601-202009

sub51001-KK751

main51001-KK760iTGN120,121..SSC201602-202009

sub51001-KK761

main51001-KK770iGUN122,KUN122..SSC201602-202009

sub51001-KK771

main51001-KK780iTGN121..SDC201601-202009

sub51001-KK781

main51001-KK790iGUN122,KUN122..SDC201601-202009

sub51001-KK791

main51001-KK800iGUN125,126,KUN125..TXT201506-202005

sub51001-KK801

main51001-KK810iGUN13#..TXT..6F201506-202005

sub51001-KK811

main51001-KK820iGUN135..SSC..6FC201710-202009

sub51001-KK821

main51001-KK830iGUN135..SXT..6FC201710-202009

main51001-KKA10iTGN126..ASC201710-201902

sub51001-KKA11

main51001-KKA11iTGN126..ASC201903-202010

main51001-KKA20iGUN125,126..ASC201710-201902

sub51001-KKA21

main51001-KKA21iGUN125,126..ASC201903-202010

main51001-KKA30iTGN126,128..ADC201710-201902

sub51001-KKA31

main51001-KKA31iTGN126,128..ADC201903-202010

main51001-KKA40iGUN125,126..ADC201710-201902

sub51001-KKA41

main51001-KKA41iGUN125,126..ADC201903-202010

main51001-KKA50iTGN136..ASC201710-201902

sub51001-KKA51

main51001-KKA51iTGN136..ASC201903-202010

main51001-KKA60iGUN135..ASC201710-201902

sub51001-KKA61

main51001-KKA61iGUN135..ASC201903-202010

main51001-KKA70iTGN138..6FC201710-201902

sub51001-KKA71

main51001-KKA71iTGN138..6FC201903-202010

main51001-KKA80iTGN13#..ADC..5F201710-201902

sub51001-KKA81

main51001-KKA81iTGN13#..ADC..5F201903-202010

main51001-KKA90iGUN13#..ADC..6F201710-201902

sub51001-KKA91

main51001-KKA91iGUN13#..ADC..6F201903-202010

main51001-KKB00iGUN136..6FC..BZAGT201710-201902

sub51001-KKB01

main51001-KKB01iGUN136..6FC..BZAGT201903-202010

main51001-KKC00iGGN125..BZAGT201810-201902

sub51001-KKC01

main51001-KKC01iGGN125..H201903-202010

main51001-KKC10iGUN122..TSC..6F201809-202005

sub51001-KKC11

main51001-KKC20iGUN122..TXT..6F201809-202005

sub51001-KKC21

main51001-KKC30iGUN122..TDC..6F201809-202005

sub51001-KKC31

51110EXTENSION ASSY, SIDE RAIL, RH

main51110-KK901iGUN125..S..GEN201505-201705

KAZAKHSTAN SPEC(EURO 5 REGULATION)

sub51110-KK907

main51110-KK901iGUN125..S..GEN201505-201705

ASIA COLD COUNTRY SPEC

sub51110-KK907

main51110-KK901iGUN125..S..GEN201505-201705

KAZAKHSTAN SPEC(EURO 2 REGULATION)

sub51110-KK907

main51110-KK901iGUN125..S..GEN201505-201705

KAZAKHSTAN SPEC(EURO 4 REGULATION)

sub51110-KK907

main51110-KK901iTGN136..SSC201505-202105

sub51110-KK907

main51110-KK902iGUN122,KUN122,TGN120,121..SA201505-202009

sub51110-KK906

main51110-KK906iKUN122..GCC,GEN;GGN120,GUN112,120,122,123,KUN112,TGN11#,120,121..PSC,TDC,TSC,TXT201704-202105

main51110-KK907iGUN125..M..GEN201705-201708

AZERBAIJAN SPEC(EURO 4 REGULATION)

main51110-KK907iGUN125..M..GEN201705-201708

MEXICO SPEC

main51110-KK907iGUN125..M..GEN201705-201708

KAZAKHSTAN SPEC(EURO 2 REGULATION)

main51110-KK907iGUN125..M..GEN201705-201708

KAZAKHSTAN SPEC(EURO 4 REGULATION)

main51110-KK907iGUN125,126,13#..ADC201703-202105

main51110-KK907iTGN126..S..GEN201705-201905

KAZAKHSTAN SPEC(EURO 5 REGULATION)

51120EXTENSION ASSY, SIDE RAIL, LH

main51122-KK901iKUN125..LHD..TDC..GEN201505-201705

KAZAKHSTAN SPEC(EURO 4 REGULATION)

sub51122-KK907

main51122-KK901iGUN125,126,13#..ADC201505-201705

KAZAKHSTAN SPEC(EURO 2 REGULATION)

sub51122-KK907

main51122-KK901iGUN136..6FC..SA;GUN125,126,13#,KUN125,126..SSC,SXT201505-202105

sub51122-KK907

main51122-KK901iGUN125,126,13#..ADC201505-201705

KAZAKHSTAN SPEC(EURO 5 REGULATION)

sub51122-KK907

main51122-KK901iGUN125,126,13#..ADC201505-201705

ASIA COLD COUNTRY SPEC

sub51122-KK907

main51122-KK902iGUN122,KUN122,TGN120,121..SA201505-202009

sub51122-KK906

main51122-KK906iKUN122..PKN201704-202105

main51122-KK907iTGN126..M..GEN201705-201708

MEXICO SPEC

main51122-KK907iTGN126..M..GEN201705-201708

KAZAKHSTAN SPEC(EURO 2 REGULATION)

main51122-KK907iTGN126..M..GEN201705-201708

KAZAKHSTAN SPEC(EURO 4 REGULATION)

main51122-KK907iTGN126..M..GEN201705-201708

AZERBAIJAN SPEC(EURO 4 REGULATION)

main51122-KK907iGUN125,126,13#..ADC201703-202105

main51122-KK907iTGN126..S..GEN201705-201905

KAZAKHSTAN SPEC(EURO 5 REGULATION)

51202CROSSMEMBER SUB-ASSY, FRAME, NO.1

main51201-KK010iKUN122..GCC,GEN,SA;GGN120,GUN112,120,122,123,KUN112,TGN11#,120,121201505-202105

main51201-KK020iTGN136..SSC201505-202105

sub51201-KK050

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51202-0K010iKUN122..GCC,GEN,SA;GGN120,GUN112,120,122,123,KUN112,TGN11#,120,121201505-202105

main51202-KK010iGUN136..S..SA;GUN135..6FC..SA;GUN135..RHD..SDC..X;GGN125,GUN125..(ADC,SXT)..(H,X)..(BZAGT,SA)201505-202105

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51203-KK010iTGN121,136..6FC;GUN112,122,123,13#,KUN112,122,TGN138..(ADC,PSC,TDC,TSC,TXT)..(5F,6FC)201505-202009

sub51203-KK100

main51203-KK020iTGN136..SSC201505-202009

sub51203-KK110

sub51203-KK230

main51203-KK030iGUN136..IART;GUN135..LHD..SA;GUN122,KUN13#..6F;GUN135..BZAGT..IV3;GUN136..6F..S..ARL;GUN135..SDC..6F..S;GUN136..(SDC,SSC,SXT,TDC,TXT)..6F..M;GUN135..(KSC,MDC,SSC,SX201505-202102

main51203-KK040iKUN125,126;GUN125..SXT..S;GUN125..BZAGT..IV3;GUN126..6F..(M,S)..IART;GUN125..KDC,KSC,MDC,MSC,SDC,SSC,TDC,TSC,TXT;GUN126..KDC,MDC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT201505-202105

sub51203-KK250

main51203-KK050iGGN125..BZAGT201505-202009

sub51203-KK260

main51203-KK100iTGN121,13#..6FC;GUN112,120,122,123,13#,KUN112,122..(ADC,MDC,PSC,TDC,TSC,TXT)..(5F,6FC)201702-201903

sub51203-KK190

main51203-KK110iGGN120,TGN11#,120..TDC,TSC;TGN121,13#..(ADC,ASC,TDC,TSC,TXT)..5F201702-201903

sub51203-KK130

main51203-KK130iTGN11#,120,121,13#..(ADC,ASC,TDC,TSC,TXT)..5F201903-202010

sub51203-KK230

main51203-KK140iGUN13#..(ADC,ASC)..6F201903-202010

main51203-KK150iGUN125,126..ADC,ASC201903-202010

main51203-KK190iKUN122..PKN201903-202105

sub51203-KK210

main51203-KK200iGGN125,TGN126,128..ADC,ASC201903-202010

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51204-KK030iGUN125..SXT..S;GUN126,TGN126,128;GUN125..ADC,ASC,KDC,KSC,MDC,MSC,SDC,SSC,TDC,TSC,TXT;GGN125,KUN125,126,LAN125..ARL,GCC,GEN,IDN,LA,PKN,SA,VN201505-202105

main51204-KK040iKUN122..GCC,GEN,SA;GGN120,GUN120,122,123,TGN120,121201505-202105

main51204-KK050iGUN136..H,M;GUN135..SSC..X;GUN135..LHD..SA;GUN135..6F..S..SA;GUN136..S..(ARL,BZAGT);GUN135..ADC,ASC,KSC,MDC,TDC,TSC,TXT;GGN135,KUN13#,TGN13#..ADC,ASC,SDC,TDC,TSC,TX201505-202102

main51204-KK070iGUN112,KUN112,TGN11#201505-202005

51206CROSSMEMBER SUB-ASSY, FRAME, NO.5

main51205-KK030iGUN112,KUN112,TGN11#201505-202005

main51205-KK040iTGN136..SSC201505-202105

51209CCROSSMEMBER SUB-ASSY, FRAME, REAR

main51209-KK010iGUN136..H,M;GUN135..SSC..X;GUN125..SXT..S;GUN135..LHD..SA;GUN135..6F..S..SA;GUN126,TGN126,128,138;GUN136..S..(ARL,BZAGT);TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN135..ADC201505-202105

51365STOPPER, REAR BUMPER

main57081-KK010iKUN122..GCC,GEN,SA;GGN120,GUN112,120,122,123,KUN112,TGN11#,120,121201505-202105

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-KK010iLAN125201601-202009

main51401-KK020iTGN136..SSC201505-202010

main51401-KK030iGGN12#,135..ARL,GCC,LA,SA201505-202010

main51401-KK040iGUN136..H,M;GUN135..SSC..X;GUN125..SXT..S;GUN135..LHD..SA;GUN135..6F..S..SA;GUN136..S..(ARL,BZAGT);GUN135..ADC,ASC,KSC,MDC,TDC,TSC,TXT;GUN112,120,122,123,126,KUN112201505-202105

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-KK010iLAN125201601-202009

main51402-KK020iTGN136..SSC201505-202010

main51402-KK030iGGN12#,135..ARL,GCC,LA,SA201505-202010

main51402-KK040iGUN136..S..SA;GUN125..SXT..X;GUN135..6FC..SA;GUN135..RHD..SDC..X201505-202105

51501SUPPORT SUB-ASSY, SUSPENSION ARM, RH

main51501-KK010iKUN122..PKN201505-202105

main51501-KK020iTGN136..SSC201505-202105

51502SUPPORT SUB-ASSY, SUSPENSION ARM, LH

main51502-KK010iKUN122..PKN201505-202105

main51502-KK020iGUN136..H,M;GUN135..SSC..X;GUN125..SXT..S;GUN135..LHD..SA;GUN135..6F..S..SA;GUN126,TGN126,128,138;GUN136..S..(ARL,BZAGT);TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN135..ADC201505-202105

51508ABRACKET SUB-ASSY, LOWER ARM, RH

main51508-KK020iKUN122..PKN201505-202105

51509ABRACKET SUB-ASSY, LOWER ARM, LH

main51509-KK020iKUN122..PKN201505-202105

51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH

main51701-KK010iTGN136..SSC201505-202105

51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH

main51701-KK010iTGN136..SSC201505-202105

51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH

main51703-KK010iTGN136..SSC201505-202105

51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH

main51704-KK010iTGN136..SSC201505-202105

51705BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH

main51705-KK010iGUN125..SXT..X;GUN135..SXT..6FC201506-202009

main51705-KK020iGUN135..LHD..SA;GUN135..SDC..6F..S;GUN135..ADC,MDC,TDC;GUN136..(ADC,TDC)..S;GUN136..(ADC,SDC,TDC)..(H,M);GUN125,126,TGN126,128,13#..ADC,KDC,MDC,PDC,SDC,TDC;GGN12#,1201505-202105

main51731-KK030iKUN122..PKN201505-202105

51706BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH

main51706-KK010iGUN125..SXT..X;GUN135..SXT..6FC201506-202009

main51706-KK020iGUN135..LHD..SA;GUN135..SDC..6F..S;GUN135..ADC,MDC,TDC;GUN136..(ADC,TDC)..S;GUN136..(ADC,SDC,TDC)..(H,M);GUN125,126,TGN126,128,13#..ADC,KDC,MDC,PDC,SDC,TDC;GGN12#,1201505-202105

main51731-KK030iTGN136..ASC,TSC;GUN135,KUN122..(ASC,KSC,SSC,TSC)..MTM;GUN112,12#,136,KUN112,125,126,135,LAN125,TGN11#,120,121,126..ASC,KSC,MSC,PSC,SSC,TSC201505-202105

51757BRACKET, BODY SUPPORT, NO.4 RH

main51077-KK010iTGN136..SSC201505-202105

51758BRACKET, BODY SUPPORT, NO.4 LH

main51078-KK010iTGN136..SSC201505-202105

51762BRACKET, BODY SUPPORT, NO.5 RH

main51075-KK010iKUN122..PKN201505-202105

51763BRACKET, BODY SUPPORT, NO.5 LH

main51076-KK010iGUN136..S..SA;GUN135..6FC..SA;GUN135..RHD..SDC..X;GGN125,GUN125..(ADC,SXT)..(H,X)..(BZAGT,SA)201505-202105

77501UBRACKET SUB-ASSY, FUEL TANK

main77501-0K020iTGN136..SSC201505-202105

main77501-KK040iGUN112,KUN112,TGN11#201505-202005

90105T0060

main90105-T0060

90105T0257

main90105-T0257

90178T0015

main90178-T0015

90178T0107

main90178-T0107

48 parts on this diagram · 8 diagrams in section
