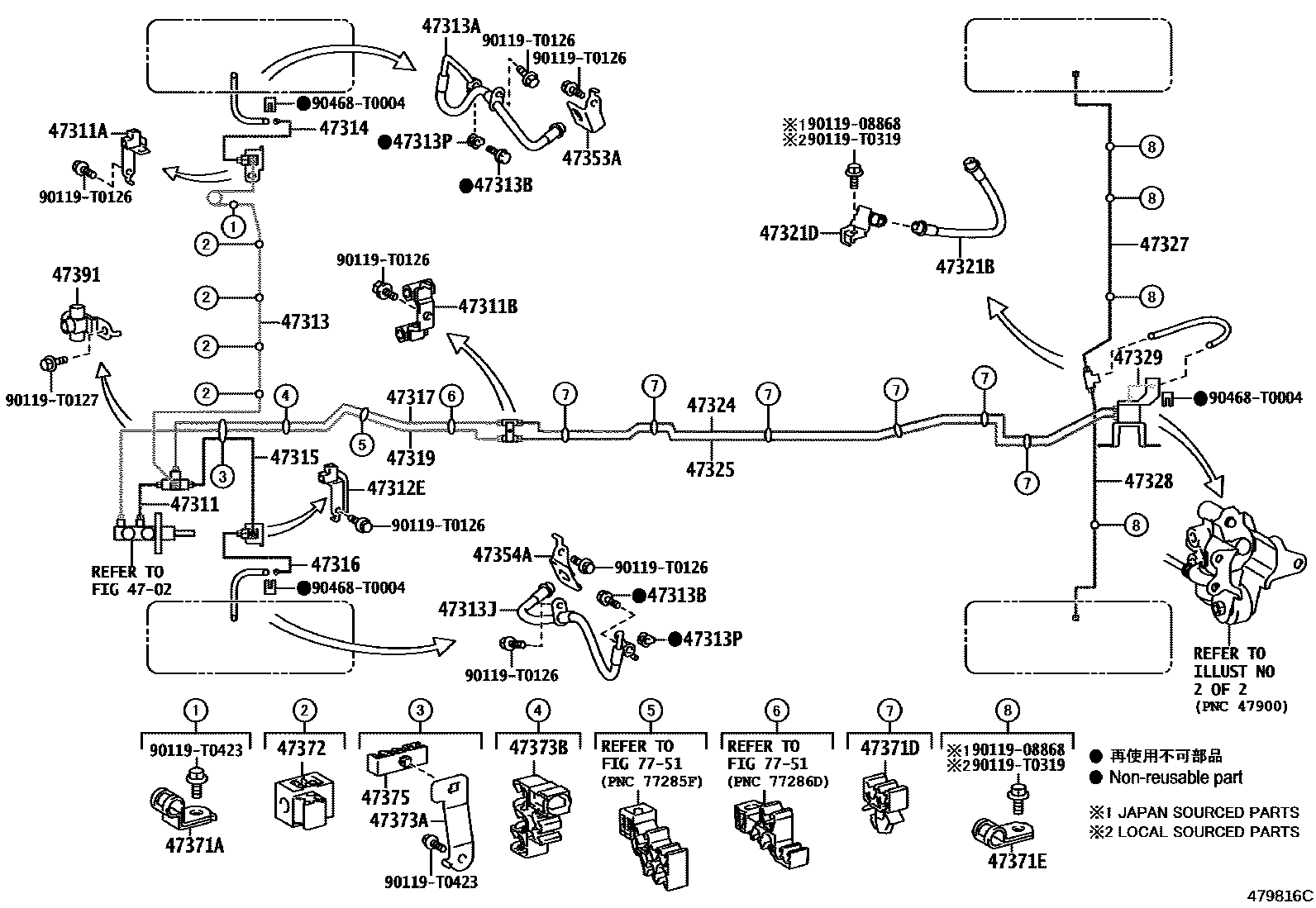

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE, W/O(ABS & VSC) 0002 1BRAKE TUBE, W/O(ABS & VSC) 0003 1BRAKE TUBE, W/O(ABS & VSC) 0004 1LSPV, W/O(ABS & VSC) 0005 1BRAKE TUBE, W(ABS) 0006 1BRAKE TUBE, W(VSC) 0007 1BRAKE TUBE, W(ABS) 0008 1BRAKE TUBE, W(VSC) 0009 1BRAKE TUBE, W(ABS) 0010 1BRAKE TUBE, W(VSC) 0011 1BRAKE TUBE, W(ABS) 0012 1BRAKE TUBE, W(VSC) 0014 1BRAKE TUBE, W(ABS) 0015 1BRAKE TUBE, W(VSC) 0016 1BRAKE TUBE, W(ABS) 0017 1BRAKE TUBE, W(VSC) 0018 1BRAKE ACTUATOR 0019 1BRAKE ACTUATOR

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-KK020supersedes 47311-KK030iGUN126..(H,M)..PKN201902-202105

main47311-KK030iGUN126..(H,M)..PKN201505-201902

main47311-KK050supersedes 47311-KK060iGUN125,126,135..TDC..(S,X)..LA;GUN136,TGN126..TDC..MTM..(M,S,X)..(GEN,LA)201905-202010

main47311-KK060supersedes 47311-KK060iGUN125,126,135..TDC..(S,X)..LA;GUN136,TGN126..TDC..MTM..(M,S,X)..(GEN,LA)201505-201905

main47311-KK010iKUN122..PKN201602-201901

SRS AIR BAG-WITHOUT

main47311-KK040iKUN122..LHD..SSC201505-201808

SRS AIR BAG-WITHOUT

47311AWAY(FOR FRONT BRAKE TUBE)

main90412-10299iGUN122..PKN;KUN122..SDC;GGN120,KUN112..S;KUN122..RHD..(H,M,S);KUN122..LHD..(TDC,TXT)..L;GUN122,TGN121..S..(HDCR,HTWC)..(GEN,TH)201505-202105

main90412-10307iGGN125,GUN125,126,13#,LAN125,TGN126,128,13#202007-202105

main90412-T0005supersedes 90412-T0005iGUN122..LHD..SSC;GUN122,TGN120..SDC,TDC,TSC,TXT;GUN112,120,123,KUN112,122,TGN11#,121201902-202009

(L)

main90412-T0009iTGN136..ADC,ASC,SDC,TDC;GGN125,GUN125,126,13#,LAN125,TGN126,128,138201902-202007

(L)

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10301iTGN121..L,M,X;TGN121..S..GCC;TGN136..ADC..S;GUN126..6F..IV3;GUN125..6FC..CBU;KUN122..RHD..(L,X);TGN136..(ADC,TDC)..X;GUN125..(ASC,TXT)..CBU;GUN135..LHD..TDC..6F..(H201505-201902

main90412-10302iGUN135..L..GEN201708-201902

main90412-T0007iTGN136..SSC201906-202007

(L)

main90412-T0008iGUN135..L..GEN201902-202005

(L)

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10300iGUN122..PKN;KUN122..SDC;GGN120,KUN112..S;KUN122..RHD..(H,M,S);KUN122..LHD..(TDC,TXT)..L;GUN122,TGN121..S..(HDCR,HTWC)..(GEN,TH)201505-202105

main90412-10308iTGN136..SSC201505-201807

main90412-T0006supersedes 90412-T0006iGUN122..LHD..SSC;GUN122,TGN120..SDC,TDC,TSC,TXT;GUN112,120,123,KUN112,122,TGN11#,121201902-202009

(L)

main90412-T0010iTGN136..SSC201906-202007

(L)

47313TUBE, FRONT BRAKE, NO.3

main47313-KK010iGUN135..L..MA;KUN125..RHD..6F;GUN126..6F..H..TH;GUN126..RHD..H..GEN;GUN135..RHD..(KEN,SA,TH);GUN125..RHD..TDC..(H,L,S);GUN126..(L,S,X)..(GEN,PKN,SA,TH);GUN136,TGN13201505-202105

main47313-KK030supersedes 47313-KK030iGUN126..(H,M)..PKN201902-202105

main47313-KK040iTGN138..L;TGN136..ADC..M;KUN125,135..LHD;GUN125,135..LHD..IV3;GUN126..LHD..(GEN,SA);GUN125,126..6F..M..(PH,VN);GUN122,KUN122..LHD..(GEN,PH,SA);GUN135,TGN121..LHD..(201505-202010

main47313-KK060supersedes 47313-KK060iGUN125,126,135..TDC..(S,X)..LA;GUN136,TGN126..TDC..MTM..(M,S,X)..(GEN,LA)201905-202010

main47313-KK020iTGN120..SA..CBU201602-201810

SRS AIR BAG-WITHOUT

main47313-KK050iKUN122..LHD..SSC201505-201808

SRS AIR BAG-WITHOUT

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-T2094iGGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121201505-202105

main90947-T2098iTGN136..SSC201906-202105

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iGGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121201505-202105

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-T2095iGGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121201505-202105

main90947-T2098iGUN135..L..MA;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN135..ARL,BZAGT,GEN,KEN,LA,PH,SA,TH,VN;GGN125,135,GUN125,126,136,KUN125,126,13#,LAN125,TGN126,128,138201505-202105

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021×2iGGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121201505-202105

47314TUBE, FRONT BRAKE, NO.4

main47314-KK010iGGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121201505-202105

main47314-KK020iTGN136..SSC201906-202105

47315TUBE, FRONT BRAKE, NO.5

main47315-KK010iGUN135..L..MA;KUN125..RHD..6F;GUN126..6F..H..TH;GUN126..RHD..H..GEN;GUN135..RHD..(KEN,SA,TH);GUN125..RHD..TDC..(H,L,S);GUN126..(L,S,X)..(GEN,PKN,SA,TH);GUN136,TGN13201505-202105

main47315-KK030supersedes 47315-KK010iGUN126..(H,M)..PKN201902-202105

main47315-KK040iTGN138..L;TGN136..ADC..M;KUN125,135..LHD;GUN125,135..LHD..IV3;GUN126..LHD..(GEN,SA);GUN125,126..6F..M..(PH,VN);GUN122,KUN122..LHD..(GEN,PH,SA);GUN135,TGN121..LHD..(201505-202010

main47315-KK060supersedes 47315-KK060iGGN125..LHD;TGN136..S..LA;GUN126..S..GCC;GUN126..6FC..PH;TGN126..TDC..S..GCC;TGN121,126..GCC..IV3;GUN126..M..(GCC,LA,TAIW);GUN125,135..LHD..SDC..(M,X);GUN136,TGN126201505-202010

main47315-KK020iTGN120..SA..CBU201602-201810

SRS AIR BAG-WITHOUT

main47315-KK050iTGN11#,120,121..L..GCC201505-201708

SRS AIR BAG-WITHOUT

47316TUBE, FRONT BRAKE, NO.6

main47316-KK010iGGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121201505-202105

main47316-KK020iTGN136..SSC201906-202105

47317TUBE, FRONT BRAKE, NO.7

main47321-KK010iGUN135..L..MA;KUN125..RHD..6F;GUN126..6F..H..TH;GUN126..RHD..H..GEN;GUN135..RHD..(KEN,SA,TH);GUN125..RHD..TDC..(H,L,S);GUN126..(L,S,X)..(GEN,PKN,SA,TH);GUN136,TGN13201505-202105

main47321-KK020supersedes 47321-KK010iGUN126..(H,M)..PKN201902-202105

main47321-KK030iGUN125,126,135..TDC..(S,X)..LA;GUN136,TGN126..TDC..MTM..(M,S,X)..(GEN,LA)201505-201905

main47321-KK040supersedes 47321-KK040iGUN125,126,135..TDC..(S,X)..LA;GUN136,TGN126..TDC..MTM..(M,S,X)..(GEN,LA)201905-202010

main47317-KK010iTGN120..SA..CBU201602-201810

SRS AIR BAG-WITHOUT

main47317-KK020iTGN11#,120,121..L..GCC201505-201708

SRS AIR BAG-WITHOUT

47319TUBE, FRONT BRAKE, NO.9

main47323-KK030supersedes 47323-KK040iGUN126..6FC..TH;GUN125,13#..(S,X)..ARL;GUN136..RHD..(SDC,SXT,TDC)..M;GUN125,126..RHD..(SDC,TDC)..M..(IDN,SA);GUN126..(KDC,MDC,SXT,TDC,TSC,TXT)..(ARL,KEN,MA,SA);GGN1201505-202105

sub47323-KK180

main47323-KK040iGUN135..L..MA;KUN125..RHD..6F;GUN126..6F..H..TH;GUN126..RHD..H..GEN;GUN135..RHD..(KEN,SA,TH);GUN125..RHD..TDC..(H,L,S);GUN126..(L,S,X)..(GEN,PKN,SA,TH);GUN136,TGN13201505-202105

sub47323-KK190

main47323-KK080supersedes 47323-KK090iGGN125..LHD;TGN136..S..LA;GUN126..S..GCC;GUN126..6FC..PH;TGN126..TDC..S..GCC;TGN121,126..GCC..IV3;GUN126..M..(GCC,LA,TAIW);GUN125,135..LHD..SDC..(M,X);GUN136,TGN126201505-202010

main47323-KK090supersedes 47323-KK090iTGN138..L;TGN136..ADC..M;KUN125,135..LHD;GUN125,135..LHD..IV3;GUN126..LHD..(GEN,SA);GUN125,126..6F..M..(PH,VN);GUN122,KUN122..LHD..(GEN,PH,SA);GUN135,TGN121..LHD..(201505-202010

main47323-KK020iKUN122..PKN201602-201901

SRS AIR BAG-WITHOUT

main47323-KK070iKUN122..LHD..SSC201505-201808

SRS AIR BAG-WITHOUT

47321BHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-T2107iGUN135..L..MA;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN135..ARL,BZAGT,GEN,KEN,LA,PH,SA,TH,VN;GGN125,135,GUN125,126,136,KUN125,126,13#,LAN125,TGN126,128,138201505-202105

NO.1:REFER ILLUST.

main90947-T2108iGGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121201505-202105

NO.1:REFER ILLUST.

main90947-T2109iGGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121201505-202105

NO.2:REFER ILLUST.

main90947-T2111iTGN136..SSC201906-202105

NO.2:REFER ILLUST.

main90947-T2112iTGN120..SA..CBU201505-201810

SRS AIR BAG-WITHOUT

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90413-10332iKUN122..PKN201505-201901

SRS AIR BAG-WITHOUT

47324TUBE, REAR BRAKE, NO.4

main47324-KK010iGGN120,GUN120,122,123,KUN122,TGN120,121201505-202105

main47324-KK020iGUN135..L..GEN201708-202005

main47324-KK050iGUN112,KUN112,TGN11#201505-202005

main47324-KK060iTGN136..SSC201906-202105

main47318-KK010iTGN11#..L201505-201708

SRS AIR BAG-WITHOUT

main47318-KK020iKUN122..PKN201505-201901

SRS AIR BAG-WITHOUT

47325TUBE, REAR BRAKE, NO.5

main47325-KK030iGGN120,GUN120,122,123,KUN122,TGN120,121201505-202105

main47325-KK040iGUN135..L..GEN201708-202005

main47325-KK080iGUN112,KUN112,TGN11#201505-202005

main47325-KK090iGUN135..H;GUN135..L..MA;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN135..ARL,BZAGT,KEN,LA,PH,SA,TH,VN;GGN125,135,GUN125,126,136,KUN125,126,13#,LAN125,TGN126,128,138201505-202105

main47325-KK010iTGN11#..L201505-201708

SRS AIR BAG-WITHOUT

main47325-KK020iKUN122..PKN201505-201901

SRS AIR BAG-WITHOUT

47327TUBE, REAR BRAKE, NO.7

main47327-KK030iKUN112,122,TGN110,120;GUN112,122,123,TGN121..5F..(IDN,PH,TH)201505-202009

main47327-KK060iGUN120,122..6F,6FC;GGN120,GUN112,122,123,TGN111,121..ARL,GCC,GEN,PKN,SA201505-202105

main47327-KK090iTGN136..6FC201505-201805

main47327-KK120iGUN135..L..MA;GUN135..ADC,ASC,TDC,TSC,TXT;TGN136..5F..(BZAGT,GEN,LA,TH);GGN125,GUN125,126,136,KUN125,126,13#,TGN126,128,138..ADC,ASC,MDC,MSC,PDC,PSC,TDC,TSC,TXT201505-202105

main47327-KK130supersedes 47327-KK080iTGN136..SDC;GGN125,135,GUN125,126,13#,KUN125,126,135,TGN126..KEN,SA201601-202102

main47327-KK010iTGN110,120..GCC201505-201708

SRS AIR BAG-WITHOUT

main47327-KK040iTGN111,121..L..GCC201505-201708

SRS AIR BAG-WITHOUT

47328TUBE, REAR BRAKE, NO.8

main47328-KK030iGGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121201505-202105

main47328-KK080iTGN136..SSC201906-202102

main47328-KK090iGUN135..L..MA;GUN135..ADC,ASC,TDC,TSC,TXT;GGN125,GUN125,126,136,KUN125,126,13#,TGN126,128,13#..ADC,ASC,MDC,MSC,PDC,PSC,TDC,TSC,TXT201505-202105

main47328-KK010iTGN11#,120,121..L..GCC201505-201708

SRS AIR BAG-WITHOUT

47329TUBE, REAR BRAKE, NO.9

main47329-KK020iKUN122..PKN201505-201902

SRS AIR BAG-WITHOUT

47353ABRACKET, FLEXIBLE HOSE, FRONT RH NO.2

main47353-0K011iGGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121201505-202105

main47353-KK010iGUN135..L..MA;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN135..ARL,BZAGT,GEN,KEN,LA,PH,SA,TH,VN;GGN125,135,GUN125,126,136,KUN125,126,13#,LAN125,TGN126,128,138201505-202105

47354ABRACKET, FLEXIBLE HOSE, FRONT LH NO.2

main47354-0K010iGGN120,GUN112,120,122,123,KUN112,122,TGN11#,120,121201505-202105

main47354-KK010iTGN136..SSC201505-201807

47371ACLAMP, BRAKE TUBE, NO.1

main90461-T0007×2iTGN136..SSC201505-201807

47371DCLAMP, BRAKE TUBE, NO.8

main90949-T1006×7iTGN136..SSC201505-201807

47371ECLAMP, BRAKE TUBE, NO.9

main90461-T0001×4iTGN136..SSC201906-202105

47372CLAMP, BRAKE TUBE, NO.2

main90949-T1003iTGN136..SSC201906-202105

main90949-T1028supersedes 90949-T1029iGUN126..M..BZAGT;GUN126..ADC..(L,S,X);GUN125,135..X..BZAGT;TGN136..X..(BZAGT,LA);GUN136..ADC..6F..(M,S);GUN125,135,TGN126,128,138..ADC201907-202010

main90949-T1029supersedes 90949-T1029iTGN138..L;TGN136..ADC..M;KUN125,135..LHD;GUN125,135..LHD..IV3;GUN126..LHD..(GEN,SA);GUN125,126..6F..M..(PH,VN);GUN122,KUN122..LHD..(GEN,PH,SA);GUN135,TGN121..LHD..(201505-202010

main90949-T1030×4iKUN122..LHD..SSC201505-201808

SRS AIR BAG-WITHOUT

47373ABRACKET, TUBE CLAMP

main90949-T2003iGGN125,GUN112,122,125,126,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13#..LHD201505-202010

47373BCLAMP, BRAKE TUBE, NO.3

main90949-T1016×3iTGN136..SSC201906-202105

main90949-T1030×4iGGN125,GUN112,122,125,126,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13#..LHD201505-202010

main90949-T1032iTGN11#,120,121..L..GCC201505-201708

SRS AIR BAG-WITHOUT

47375CLAMP, BRAKE TUBE, NO.5

main90949-T1028supersedes 90949-T1029iGUN126..(H,M)..PKN201902-202105

main90949-T1029iGUN126..(H,M)..PKN201505-201902

main90949-T1031iGGN125,GUN112,122,125,126,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13#..LHD201505-202010

47391WAY, BRAKE TUBE

main90414-10057iTGN11#,120,121..L..GCC201505-201708

SRS AIR BAG-WITHOUT

7751

9011908868

main90119-08868

90119T0126

main90119-T0126

90119T0127

main90119-T0127

90119T0319

main90119-T0319

90119T0423

main90119-T0423

90468T0004

main90468-T0004

39 parts on this diagram · 18 diagrams in section
