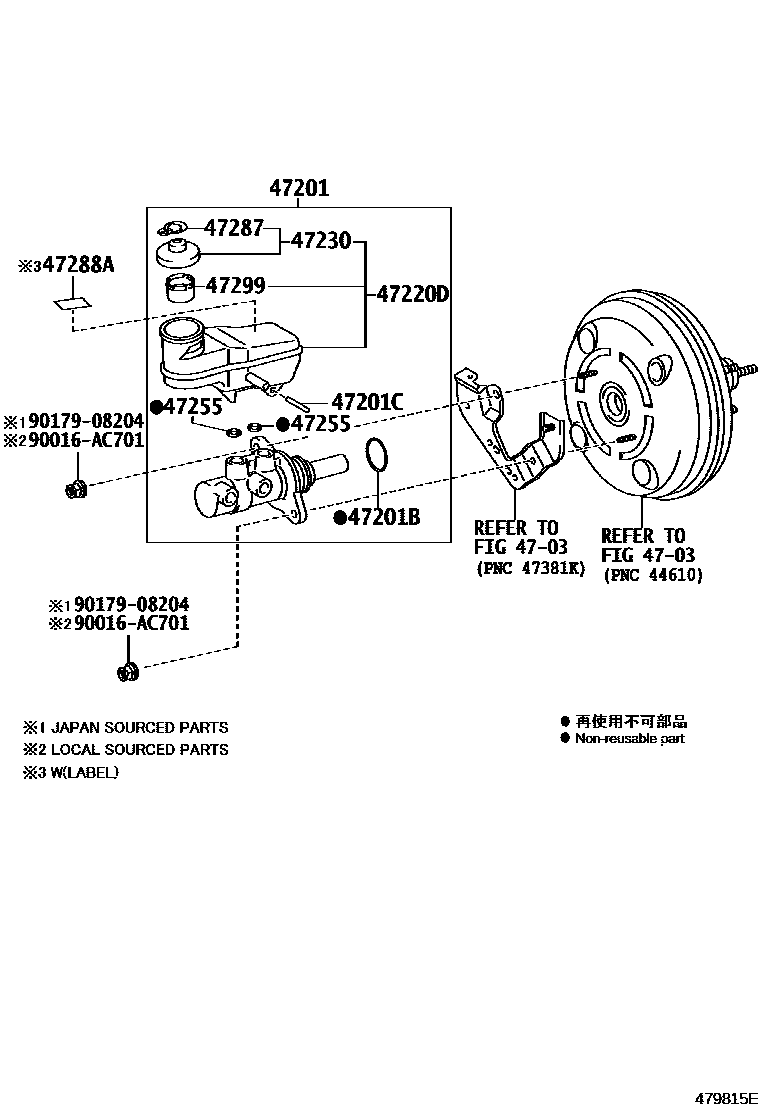

BRAKE MASTER CYLINDER
4703
47201CYLINDER SUB-ASSY, BRAKE MASTER
main47201-0K380iGUN126..6FC..S..SA;GUN136..6FC..(H,S)..(SA,TH);GUN126,136..RHD..(SSC,TDC)..6FC..(GEN,SA);GUN120,125,135,KUN126,TGN126,136..RHD..ATM..(GEN,MA,PKN,SA,TH)201505-202012
main47201-0K410iTGN126..TSC..(S,X);TGN126..5F..L..GCC..CBU;GUN125..LHD..TDC..S..GEN;KUN112,122,TGN11#,120..GCC;GUN125..TDC..6F..(L,M)..GCC;TGN121..5F..(L,S)..GCC..CBU201708-202009
VEHICLE STABILITY CONTROL-WITHOUT
main47201-0K410iGUN125,126,135..TDC..6F..(S,X)..LA;GUN136,TGN126..TDC..MTM..(M,S,X)..(GEN,LA)201505-202009
VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)
sub47201-0K441
VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC)
sub47201-0K441
main47201-0K441iGUN126..6FC..M..BZAGT;GUN126..ADC..6FC..(S,X);GUN125,TGN128,138..ADC..6FC201902-202010
main47201-0K450iTGN126..ADC;GUN126..6F..M..IART;TGN136..(ADC,ASC)..(M,X);GUN126..(ADC,ASC)..6F..(L,S,X);GUN125,13#,KUN125,126,13#,TGN138..(ADC,ASC)..MTM..(L,M,S,X)201511-201901
VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC)
sub47201-0K451
VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)
sub47201-0K451
sub47201-0K451
main47201-0K451iTGN136..X..(BZAGT,LA);GUN126..ADC..6F..(L,S,X);GUN125,126,135..6F..(M,X)..HDCR..BZAGT;GUN125,13#,TGN126,138..ADC..MTM..(L,M,S,X)201902-202010
VEHICLE STABILITY CONTROL-WITHOUT
VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC)
main47201-0K580iTGN126..M..GEN;TGN126..6FC..S..GCC;GUN126..TDC..6FC..M..LA;GGN125,GUN126,KUN126..ATM..(GCC,PH,TAIW,VN)201505-202005
main47201-0K590iGUN125,126,135..TDC..6F..(S,X)..LA;GUN136,TGN126..TDC..MTM..(M,S,X)..(GEN,LA)201905-202009
VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)
VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)&TIRE & DISC WHEEL-225/70R17C STEEL
main47201-0K600iGUN136..6FC..S..ARL;GUN126..RHD..SDC..6FC..M;GUN125,135..6FC..(ARL,IDN);GUN136..(SDC,SXT,TDC)..6FC..M;GGN12#,135,KUN125,TGN121..RHD..ATM;GUN126..(KDC,MDC,PDC,SXT,TD201505-202105
main47201-0K610iGUN126..SDC..6F..M;GUN136..RHD..(SDC,SXT,TDC)..6F..M;GUN122,123,125,13#,TGN121..MTM..(S,X)..ARL;GUN126..(KDC,PDC,SXT,TDC,TSC,TXT)..6F..(M,S)..(ARL,KEN,PKN,SA)201505-202105
47201BRING, O(FOR BRAKE MASTER CYLINDER)
main90016-AH903iGGN12#..M,S;GGN135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,120,121,126,136..KDC,KSC,MDC,MSC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT201505-202105
47201CRING PIN, BRAKE MASTER CYLINDER
47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER
main47220-0K130iGUN112,122,125,126,13#,KUN112,12#,13#,LAN125,TGN11#,120,121,126,136..LHD..(SDC,SSC,SXT,TDC,TSC,TXT)..MTM201505-202009
sub47220-0K201
main47220-0K210iGUN125,135..BZAGT..IV3;TGN136..(ADC,ASC)..(M,X);GUN126,TGN126..ADC..MTM..(M,S,X)..(HTWC,IART);GUN136,KUN125,126,13#,TGN138..(ADC,ASC)..MTM..(DCR,HTWCF,IART)201511-201906
sub47220-0K211
47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47255GROMMET, MASTER CYLINDER RESERVOIR
main90016-AT001iGGN12#..M,S;GGN135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,120,121,126,136..KDC,KSC,MDC,MSC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT201505-202105
sub90016-AT001
47287LABEL, BRAKE FLUID INFORMATION
main47287-02360iTGN126..5F;TGN126..6FC..(M,S);GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,120,121,128,13#201505-202105
47288ALABEL, BRAKE FLUID NOTICE
VEHICLE STABILITY CONTROL-W(*HSAC)
VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)
47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR
main47299-0D100iTGN138..L;KUN125,126,13#;TGN13#..ADC..5F..M;TGN126..6FC..(M,S);GUN125,135..BZAGT..IV3;TGN126..(SDC,TDC,TSC)..5F;GUN126,136,TGN126..MTM..(M,S)..(HTWC,IART)..BZAGT;TG201505-202105
90016AC701
main90016-AC701
9017908204
main90179-08204
12 parts on this diagram · 2 diagrams in section
