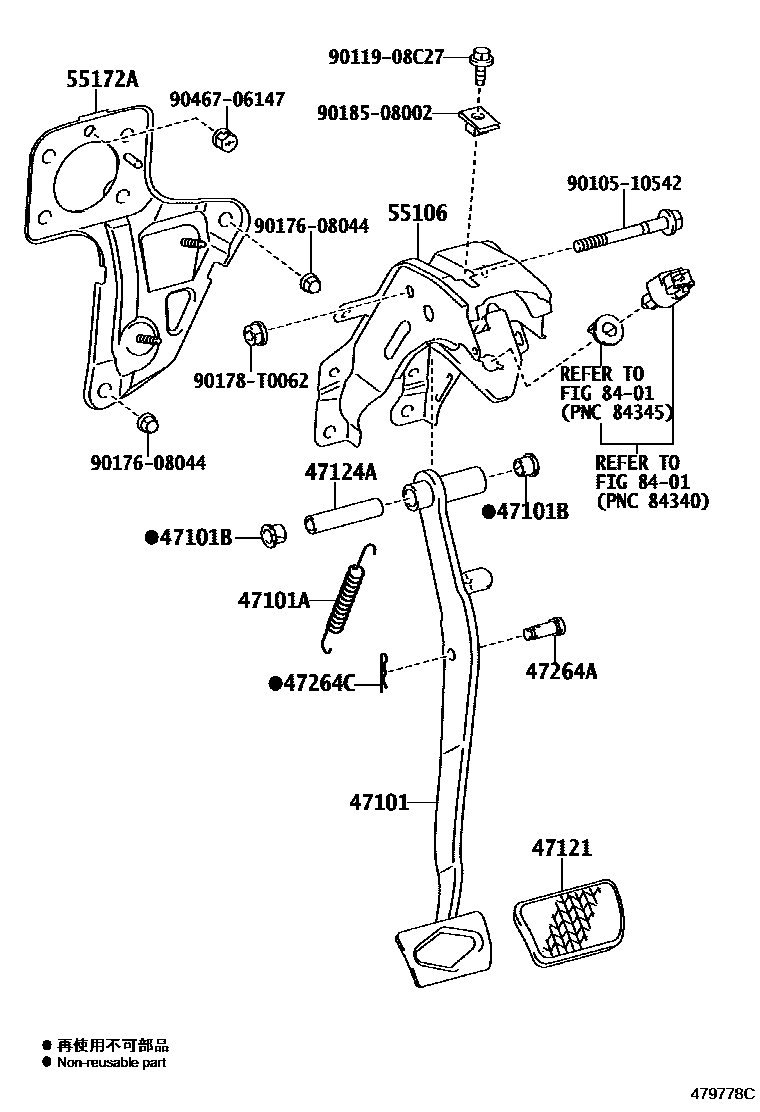

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-KK010iTGN136..SSC201505-202105

main47101-KK020iGUN112,122,125,126,13#,KUN112,12#,13#,LAN125,TGN11#,120,121,126,13#..LHD..MTM201505-202010

main47101-KK030iGUN135..6FC..L;GUN135..6FC..(ARL,SA,TH);GGN12#,135,GUN120,125,126,136,KUN125,126,TGN121,126,136..RHD..ATM201505-202105

main47101-KK040iGGN125,GUN125,126,13#,KUN126,TGN121,126,128,138..LHD..ATM201505-202010

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-T0002iTGN136..SSC201505-202105

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iGUN135..L..MA;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN135..ARL,BZAGT,GEN,KEN,LA,PH,SA,TH,VN;GGN12#,135,GUN112,12#,136,KUN112,12#,13#,LAN125,TGN11#,12#,138201505-202105

47121PAD, BRAKE PEDAL

main31321-02020iTGN136..SSC201505-202105

main47121-02030iGUN135..6FC..L;GUN135..(SDC,SSC,SXT,TDC,TXT)..6FC;GGN12#,135,GUN120,125,126,136,KUN125,126,TGN121,126,128,13#..ATM201505-202105

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10121iTGN136..SSC201505-202105

47264APIN(FOR PUSH ROD)

main47148-35010iGUN135..L..MA;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;GUN135..ARL,BZAGT,GEN,KEN,LA,PH,SA,TH,VN;GGN12#,135,GUN112,12#,136,KUN112,12#,13#,LAN125,TGN11#,12#,138201505-202105

47264CCLIP(FOR PUSH ROD CLEVIS PIN)

main90468-16012iTGN136..SSC201505-202105

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-KK010iTGN136..SSC201505-202105

main55106-KK030iGUN135..L..MA;GUN125,126..MA201604-202012

55172ABASE, BRAKE PEDAL SUPPORT

main55172-KK010iTGN136..SSC201505-202105

main55172-KK020iGUN122..M..GCC;GUN125..TSC..GCC;GUN125..6FC..L..GCC201708-201710

QATAR SPEC(EURO 4 REGULATION),TYPE A:REFER ILLUST.

main55172-KK020iGUN122..M..GCC;GUN125..TSC..GCC;GUN125..6FC..L..GCC201708-201710

GCC SPEC(EURO 4 REGULATION),TYPE A:REFER ILLUST.

main55172-KK020iGUN125..TSC..GCC;GUN125..6FC..L..GCC201708-201710

QATAR SPEC,TYPE A:REFER ILLUST.

main55172-KK020iGUN125..TSC..GCC;GUN125..6FC..L..GCC201505-202010

TYPE A:REFER ILLUST.

main55172-KK030iTGN126..TSC..S;TGN126..(L,M)..GCC;GUN122..(L,S)..GCC;GUN125..TDC..(M,S)..GCC;GUN125..TDC..6F..L..GCC;GGN125,GUN112,TGN11#,120,121..GCC201708-202005

TYPE B:REFER ILLUST.

main55172-KK030iTGN126..TSC..S;TGN126..(L,M)..GCC;GUN122..(L,S)..GCC;GUN125..TDC..(M,S)..GCC;GUN125..TDC..6F..L..GCC;GGN125,GUN112,TGN11#,120,121..GCC201708-201710

SAUDI ARABIA SPEC,TYPE B:REFER ILLUST.

main55172-KK030iTGN126..TSC..S;TGN126..(L,M)..GCC;GUN122..(L,S)..GCC;GUN125..TDC..(M,S)..GCC;GUN125..TDC..6F..L..GCC;GGN125,GUN112,TGN11#,120,121..GCC201708-201710

SAUDI ARABIA SPEC(EURO4 REGULATION),TYPE B:REFER ILLUST.

8401

9010510542

main90105-10542

9011908C27

main90119-08C27

9017608044

main90176-08044

90178T0062

main90178-T0062

9018508002

main90185-08002

9046706147

main90467-06147

16 parts on this diagram · 2 diagrams in section
