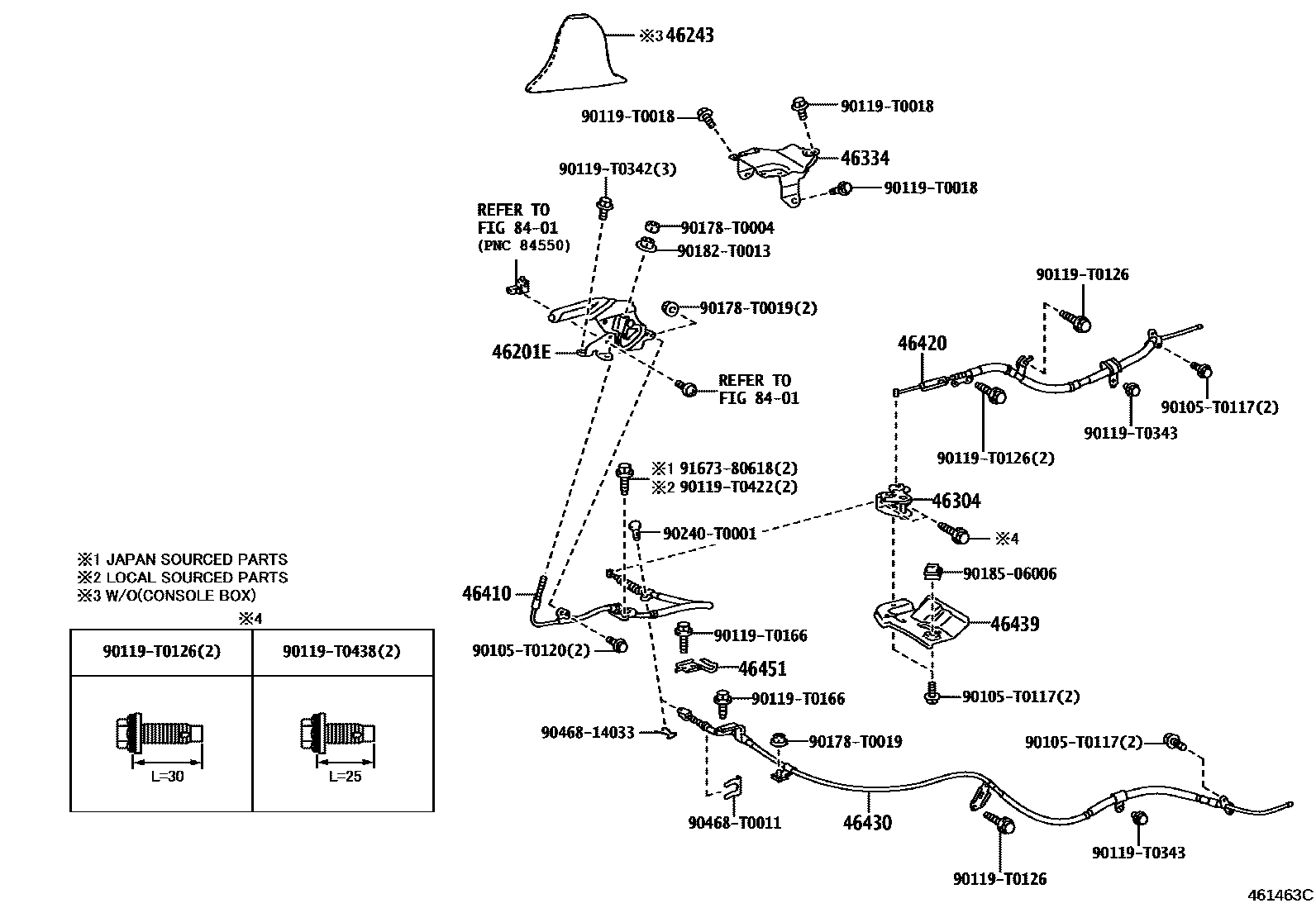

PARKING BRAKE & CABLE

0001 1 0002 1 0004 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-0K190-C0iGUN126..S..IART;GUN136..6FC..M..BZAGT;GUN125,126,135..ADC..S..LA;GGN125,GUN136,KUN125,126,135,TGN126,13#..ADC..(H,S)..(DCR,HTWC,HTWCF,IART)201511-202010

BLACK,TRIM2#

main46201-0K190-C0iGUN136..H..BZAGT;GUN136..ADC..6F..M;GUN126,KUN126,136,TGN126,128,13#..ADC..(H,M)201511-202010

BLACK,TRIM2#,4#

main46201-0K210-C0iGUN126..KEN201601-202102

BLACK,TRIM2#

main46201-0K230-C0iGUN126,KUN122..RHD..MTM..H..GEN;GGN125,GUN126,136..(H,M)..(ARL,MA,TAIW);GUN122,125,KUN122,125..(TSC,TXT)..M..GEN;GUN125,126,135,KUN125,126,135,TGN126,136..TDC..S..L201505-202012

BLACK,TRIM2#

main46201-0K230-C0iGUN122..6F..(M,S);GUN122..5F..M..TH;GUN126..LHD..6F..H..GEN;GUN126..6FC..(H,M)..(GEN,PKN);KUN126..(PDC,TDC)..5FC..(H,M);GUN126,KUN122..TDC..MTM..M..GEN;GUN126..(TDC201505-202105

BLACK,TRIM2#,4#

main46201-0K250-C0iGUN125..PH;GUN125..LHD..(L,X)..GEN;GUN125..TDC..6FC..L..GEN;GUN125..TDC..(L,X)..(ARL,IDN,LA);GUN126,KUN125..TDC..(L,X)..(GEN,IDN,LA);GUN135,KUN122..(L,S,X)..(ARL,GE201505-202105

BLACK,TRIM2#,4#

main46201-0K250-C0iGUN125..VN;GUN122..5F..S..TH;GUN125..LHD..TDC..S..GEN;GUN126,KUN126..6F..M..PKN;KUN125..TDC..S..(GEN,IDN);GUN122..(TDC,TXT)..(L,X)..TH;GUN125..RHD..TDC..6F..L..GEN;201505-202105

BLACK,TRIM2#

main46201-0K250-C0iGUN125..VN;GUN122..5F..S..TH;GUN125..LHD..TDC..S..GEN;GUN126,KUN126..6F..M..PKN;KUN125..TDC..S..(GEN,IDN);GUN122..(TDC,TXT)..(L,X)..TH;GUN125..RHD..TDC..6F..L..GEN;201505-202105

BLACK,TRIM2#,3#

main46201-0K260-C0iGUN135..S..BZAGT;GUN125..(ADC,ASC)..X..LA;GUN125,126,136..(L,S,X)..HDCR..BZAGT;GUN126,135,KUN125,126,135,TGN126,13#..(ADC,ASC)..(L,X)201511-202010

BLACK,TRIM2#

main46201-0K280-C0iTGN136..SDC;GUN122,125,126,13#,KUN122,125,135,LAN125,TGN120,121,126..(S,X)..(KEN,SA)201601-202102

BLACK,TRIM2#

46243COVER, PARKING BRAKE LEVER

main46243-0K020-C0iTGN126..(TDC,TSC)..X;GUN125,TGN121..TSC..X..GEN;GUN125,126,135..TDC..6F..X..LA201505-202005

BLACK,TRIM2#

main46243-0K020-C0iTGN126..(TDC,TSC)..X;GUN125,TGN121..TSC..X..GEN;GUN125,126,135..TDC..6F..X..LA201505-201905

CONSOLE BOX-SMALL TYPE,BLACK,TRIM2#

main46243-0K020-C0iTGN126..(TDC,TSC)..X;GUN125,TGN121..TSC..X..GEN;GUN125,126,135..TDC..6F..X..LA201505-202005

FRONT SEAT-BENCH TYPE(FOR THREE PERSONS),BLACK,TRIM2#

main46243-0K020-C0iTGN126..(TDC,TSC)..X;GUN125,TGN121..TSC..X..GEN;GUN125,126,135..TDC..6F..X..LA201505-202005

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

main46243-0K020-C0iTGN126..TSC..S;TGN126..5F..L..GCC;GUN125..TDC..6F..L..GCC;GUN125..(MSC,TSC)..(GCC,MA);GUN112,122,126,KUN112,122,125,TGN11#,120,121..MTM..(L,S)..GCC201505-202012

BLACK,TRIM2#,3#

main46243-0K020-C0iGUN122..TDC..HDCR;KUN122..LHD..TDC..X;GUN122..TSC..X..DCR..GEN201505-202005

FRONT SEAT-BENCH TYPE(FOR TWO PERSONS),BLACK,TRIM2#

main46243-0K020-C0iKUN122..TSC..X;KUN125..TSC..L;KUN122..RHD..TDC..(L,X);KUN125,126,135..(TDC,TSC)..6F..X;GUN122,125,135..LHD..TSC..X..HDCR;GUN122,KUN112,TGN136..(TDC,TSC)..5F..X..(ID201505-202005

CONSOLE BOX-SMALL TYPE,BLACK,TRIM2#,3#

main46243-0K030iGUN125,135..X..KEN202011-202102

main46243-0K030-C0iGUN122..RHD..SA;GUN125,135,KUN122,125,LAN125,TGN120,121,126..(KDC,KSC,SDC,SSC)..MTM..X201601-202011

BLACK,TRIM2#

main46243-0K040-C0iGUN125..X..BZAGT;GUN135,TGN136..ASC;KUN125,126,135..(ADC,ASC)..6F..X201511-202010

CONSOLE BOX-SMALL TYPE,BLACK,TRIM2#

main46243-0K040-C0iTGN126,136..ADC..X..LA201511-202010

BLACK,TRIM2#

main46243-0K040-C0iGUN135,TGN136..ADC..X..LA;GUN125,126,TGN126..(ADC,ASC)..MTM..X..LA201511-202010

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC),BLACK,TRIM2#

main46243-0K050-C0iGUN126,KUN122,126..PSC201610-202105

BLACK,TRIM2#,3#

main46243-0K050-C0iGUN126,KUN122,126..PSC201610-202105

BLACK,TRIM2#

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-0K050iTGN136..ADC,ASC,SDC,TDC,TSC,TXT;GGN12#,135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,12#,138201505-202105

46334PROTECTOR, INTERMEDIATE LEVER

main46334-0K010iGGN12#,135,GUN12#,13#,KUN12#,13#,LAN125,TGN12#,13#..ADC,KDC,MDC,PDC,SDC,SXT,TDC,TXT201505-202105

main46334-0K020iTGN136..ASC,TSC;GUN112,12#,13#,KUN112,12#,135,LAN125,TGN11#,120,121,126..ASC,KSC,MSC,PSC,SSC,TSC201505-202105

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-0K100iGUN112,KUN112,TGN11#201505-202005

main46410-0K120iTGN136..SSC201505-202105

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0K150iGUN112,KUN112,TGN11#201505-202005

main46420-0K160iGGN120,GUN120,122,123,KUN122,TGN120,121201505-202105

main46420-0K210iTGN126..L..GEN;GUN125..M..(GCC,VN);TGN126..BZAGT,GCC,LA;GUN125..LHD..TDC..(L,S,X);GUN125..LHD..(ADC,ASC,TSC,TXT);GUN125..RHD..(ARL,GEN,IDN,MA,TH);GUN126,13#,KUN125,201505-202105

main46420-0K220iTGN136..SSC201601-202102

main46420-0K280iGGN125..ADC,TDC201505-202010

main46420-0K290iGUN125..S..GEN201505-201708

KAZAKHSTAN SPEC(EURO 2 REGULATION)

main46420-0K290iGUN125..M..GEN201505-201708

KAZAKHSTAN SPEC(EURO 4 REGULATION)

main46420-0K290iTGN126..M..GEN201505-202005

ASIA COLD COUNTRY SPEC

main46420-0K290iTGN126..S..GEN201905-202005

main46420-0K300iGGN125,135..SA201601-202009

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0K120iGUN125..M..GEN201505-201708

KAZAKHSTAN SPEC(EURO 2 REGULATION)

main46430-0K120iGUN125..M..GEN201505-201708

KAZAKHSTAN SPEC(EURO 4 REGULATION)

main46430-0K120iTGN126..S..GEN201905-202005

main46430-0K120iTGN126..M..GEN201505-202005

ASIA COLD COUNTRY SPEC

main46430-0K150iGUN112,KUN112,TGN11#201505-202005

main46430-0K160iGGN120,GUN120,122,123,KUN122,TGN120,121201505-202105

main46430-0K210iTGN126..S..GEN201505-202105

main46430-0K220iTGN136..SSC201601-202102

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46439-0K060iTGN136..SSC201505-202105

46451BRACKET, CABLE SUPPORT

main46451-0K040iTGN136..ADC,ASC,SDC,TDC,TSC,TXT;GGN12#,135,GUN12#,13#,KUN12#,13#,LAN125,TGN12#,138201505-202105

main46451-0K050iGUN112,KUN112,TGN11#201505-202005

sub46451-0K051

8401

90105T0117

main90105-T0117

90105T0120

main90105-T0120

90119T0018

main90119-T0018

90119T0126

main90119-T0126

90119T0166

main90119-T0166

90119T0342

main90119-T0342

90119T0343

main90119-T0343

90119T0422

main90119-T0422

90119T0438

main90119-T0438

90178T0004

main90178-T0004

90178T0019

main90178-T0019

90182T0013

main90182-T0013

9018506006

main90185-06006

90240T0001

main90240-T0001

9046814033

main90468-14033

90468T0011

main90468-T0011

9167380618

main91673-80618

27 parts on this diagram · 3 diagrams in section
