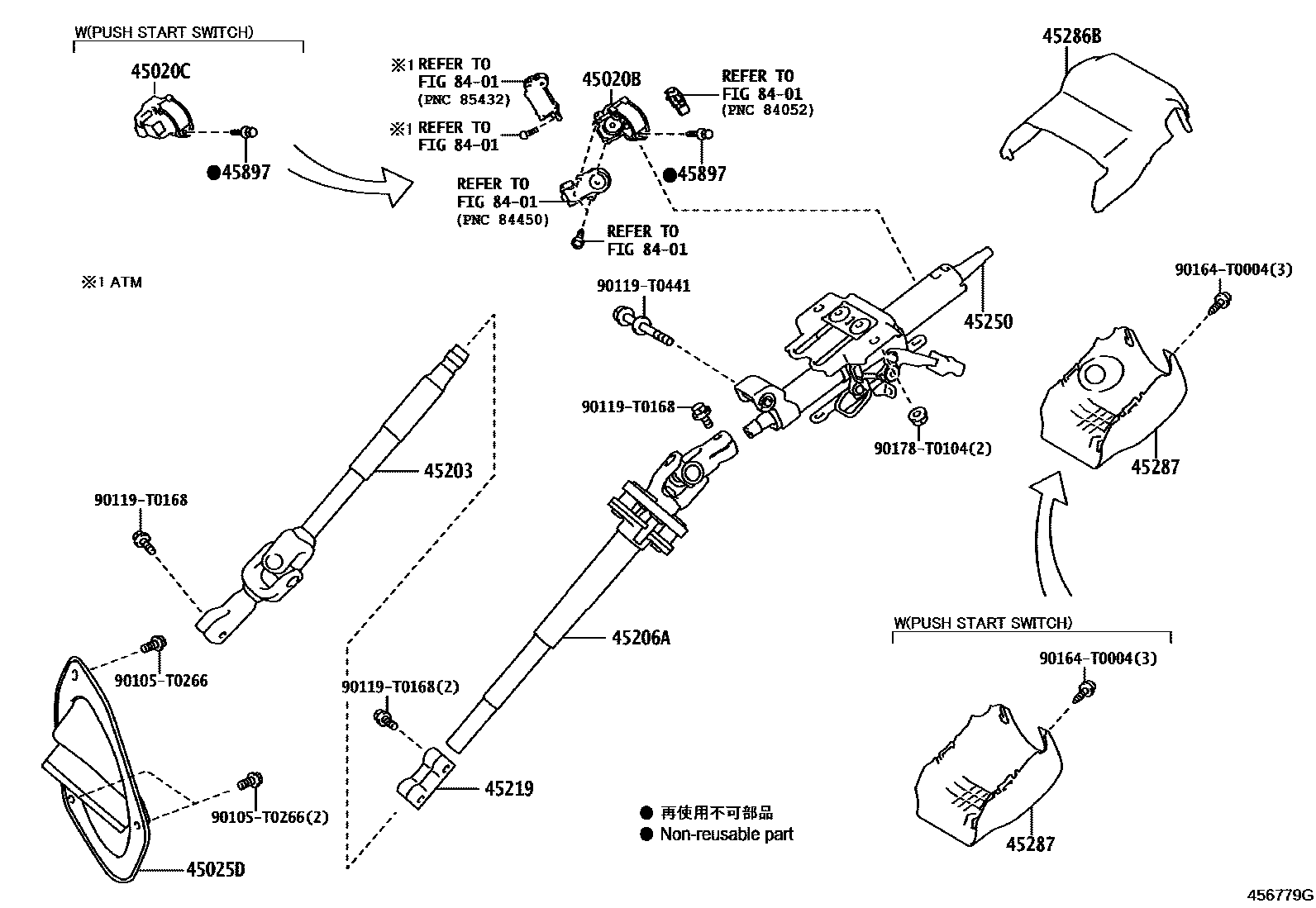

STEERING COLUMN & SHAFT
45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45020CACTUATOR ASSY, STEERING LOCK(W/ECU)
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
main45025-KK010iKUN126..5FC..PKN;KUN126..RHD..(PSC,SDC,SSC,SXT,TDC);KUN126,TGN136..(PDC,SDC,TDC,TXT)..(L,S)..(PKN,SA,TH);GGN12#,135,GUN112,12#,13#,KUN112,122,125,13#,TGN110,120,121201505-202105
main45025-KK020iGGN125,GUN112,122,125,126,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13#..LHD201505-202010
45203SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2
45206AYOKE SUB-ASSY, STEERING SLIDING W/COUPLING
sub45206-0K140
main45206-0K090iGGN125,GUN112,122,125,126,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13#..LHD201505-202010
sub45206-0K120
45219YOKE, STEERING SLIDING
main45219-0K090iKUN126..PDC..L;KUN126..5FC..PKN;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;KUN126..ADC,PSC,SDC,SSC,SXT,TDC;GGN12#,135,GUN112,12#,13#,KUN112,122,125,13#,LAN125,TGN11#,12#,138201505-202105
45250COLUMN ASSY, STEERING
45286BCOVER, STEERING COLUMN, UPR
main45286-0K040-C0iKUN122..TDC..M;KUN126..TDC..M..LA;GUN126..6F..(M,S)..GEN;GUN126..LHD..6F..H..GEN;GUN126..6FC..(H,M,S)..GEN;GUN125..RHD..TDC..6F..L..GEN;KUN125..TDC..(H,M,S)..(GEN,I201505-202105
BLACK,TRIM2#
main45286-0K040-C0iKUN122..(H,L,S,X)..GEN;GUN125..LHD..(L,X)..GEN;GUN126..RHD..6F..H..GEN;GUN126,136..ARL,MA,TAIW;KUN125..TXT..(L,M)..GEN;KUN125..TDC..L..(GEN,IDN);GUN125,126..TDC..S.201505-202105
BLACK,TRIM2#,3#
main45286-0K040-C0iKUN122..(H,L,S,X)..GEN;GUN125..LHD..(L,X)..GEN;GUN126..RHD..6F..H..GEN;GUN126,136..ARL,MA,TAIW;KUN125..TXT..(L,M)..GEN;KUN125..TDC..L..(GEN,IDN);GUN125,126..TDC..S.201505-202105
BLACK,TRIM2#,4#
main45286-0K080-C0iGUN136..H..BZAGT;GUN136..ADC..6F..M;GUN126,KUN126,136,TGN126,128,13#..ADC..(H,M)201511-202010
BLACK,TRIM2#,4#
main45286-0K080-C0iGUN136..H..BZAGT;GUN136..ADC..6F..M;GUN126,KUN126,136,TGN126,128,13#..ADC..(H,M)201511-202010
BLACK,TRIM2#
BLACK,TRIM2#
45287COVER, STEERING COLUMN, LWR
main45287-0K050-C0iKUN125..(TDC,TSC)..LA;GUN125..LHD..(L,X)..GEN;KUN125..TXT..(L,M)..GEN;KUN125..TDC..L..(GEN,IDN);GUN125,135..TDC..S..(LA,PH);GUN125..LHD..(TSC,TXT)..(M,X);GUN122,KUN201505-202105
BLACK,TRIM2#,3#
BLACK,TRIM2#,4#
main45287-0K050-C0iGUN125..RHD..TDC..6F..L..GEN;GUN125..RHD..(TDC,TXT)..(M,S);GUN125..LHD..TDC..(M,S)..(GEN,VN);GUN126..(M,S)..(GEN,PH,PKN,TH,VN);GUN126,KUN126..TDC..(6F,6FC)..M..LA;K201505-202105
BLACK,TRIM2#
main45287-0K060-C0iGUN126..6F..H..TH;GUN126..TDC..6FC..H;GUN126..LHD..6F..H..GEN;GUN125,13#,KUN125,126,135..TDC..H201505-202105
BLACK,TRIM2#,4#
main45287-0K060-C0iGUN125,135..S..MA;GUN126,KUN122..RHD..MTM..H..GEN;GGN125,GUN126,136..(H,M)..(ARL,MA,TAIW)201505-202012
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM2#
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),BLACK,TRIM2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#
WIRELESS DOOR LOCK-WITH(*SES & ANSWER BACK & PANIC BUTTON),BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
45897BOLT, STEERING LOCK SET
main45897-12020iKUN126..PDC..L;KUN126..5FC..PKN;TGN136..ADC,ASC,SDC,TDC,TSC,TXT;KUN126..ADC,PSC,SDC,SSC,SXT,TDC;GGN12#,135,GUN112,12#,13#,KUN112,122,125,13#,LAN125,TGN11#,12#,138201505-202105
8401
90105T0266
main90105-T0266
90119T0168
main90119-T0168
90119T0441
main90119-T0441
90164T0004
main90164-T0004
90178T0104
main90178-T0104
16 parts on this diagram · 1 diagram in section
