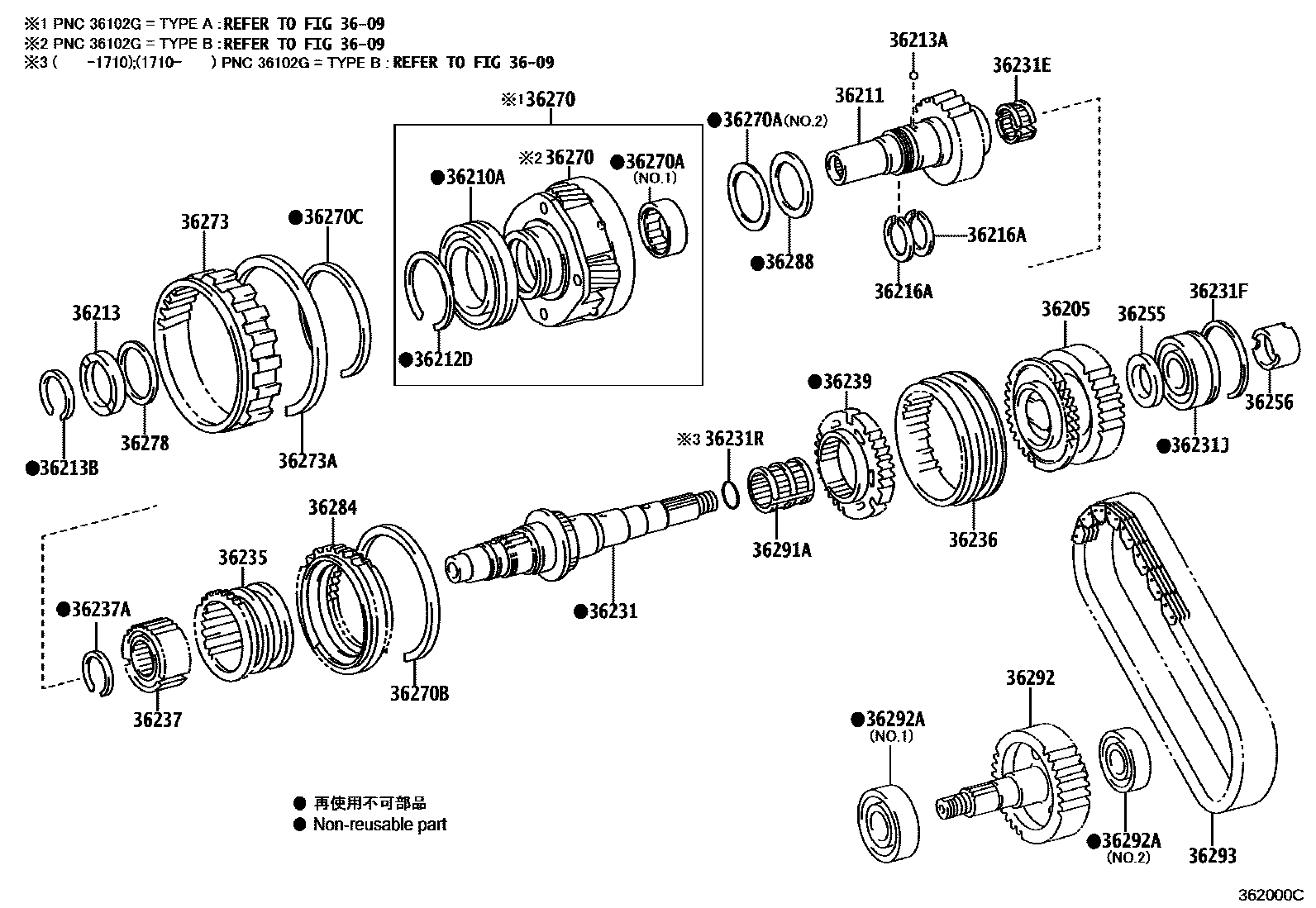

36205SPROCKET SUB-ASSY, TRANSFER DRIVE
main36205-0K040iKUN125..RHD..SA;KUN125..LHD..SDC201505-202010 AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,*382
main36205-0K040iKUN125..RHD..SA;KUN125..LHD..SDC201505-202102 *382
main36205-0K050iGUN125..TSC..GCC;GUN125..6F..L..GEN;GUN125..6FC..L..GCC201505-202105 *382
main36205-0K050iGUN125..LHD..TSC;GUN125..RHD..TDC..6F..L..GEN;GUN125..LHD..TDC..6F..(M,S)..(GEN,LA)201505-202010 AUTOMATIC DISCONNECTING DIFFERENTIAL-WITHOUT,*382
main36205-71010iGUN125..TSC..GCC;GUN125..RHD..TDC..6F..L..GEN201505-202102 *381
AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,*381
AUTOMATIC DISCONNECTING DIFFERENTIAL-WITHOUT,*381
36210ABEARING (FOR TRANSFER INPUT SHAFT)
main90363-75001iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 *381
main90363-T0038iKUN125..LHD..SSC;KUN125..ASC,SXT,TDC,TSC,TXT;GGN125,GUN125,126,KUN126,LAN125,TGN126,128201505-202105 *382
36211SHAFT, TRANSFER INPUT
main36201-0K050iGGN125,GUN125,126,KUN125,126,TGN126..ATM201505-201607 *382
main36201-0K070iKUN125..LHD..SSC;GUN125,126,KUN126..6F;KUN125..(ASC,SXT,TDC,TSC,TXT)..6F201505-202105 *382
main36201-0K080iGGN125,GUN125,126,KUN125,126,TGN126,128..ATM201607-202105 *382
main36201-71010iGGN125,GUN125,126,KUN125,126,TGN126,128..ATM201505-202105 *381
36212DRING, SHAFT SNAP (FOR TRANSFER INPUT BEARING)
main90520-72001iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 T=1.45,MARK 1,*381
main90520-72002iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 T=1.50,MARK 2,*381
main90520-72003iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 T=1.55,MARK 3,*381
main90520-72004iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 T=1.60,MARK 4,*381
main90520-72005iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 T=1.65,MARK 5,*381
main90520-T0136iKUN125..LHD..SSC;KUN125..ASC,SXT,TDC,TSC,TXT;GGN125,GUN125,126,KUN126,LAN125,TGN126,128201505-202105 T=1.45,MARK 1,*382
main90520-T0137iKUN125..LHD..SSC;KUN125..ASC,SXT,TDC,TSC,TXT;GGN125,GUN125,126,KUN126,LAN125,TGN126,128201505-202105 T=1.50,MARK 2,*382
main90520-T0138iKUN125..LHD..SSC;KUN125..ASC,SXT,TDC,TSC,TXT;GGN125,GUN125,126,KUN126,LAN125,TGN126,128201505-202105 T=1.55,MARK 3,*382
main90520-T0139iKUN125..RHD..SA;KUN125..LHD..(ADC,SDC)201505-202105 T=1.60,MARK 4,*382
main90520-T0140iKUN125..RHD..SA;KUN125..LHD..(ADC,SDC)201505-202105 T=1.65,MARK 5,*382
36213STOPPER, TRANSFER INPUT GEAR
main36213-0K010iKUN125..RHD..SA;KUN125..LHD..(ADC,SDC)201505-202105 *382
main36213-35020iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 *381
36213ABALL (FOR TRANSFER INPUT GEAR STOPPER)
main90360-05012iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 *381
main90360-T0010iKUN125..RHD..SA;KUN125..LHD..(ADC,SDC)201505-202105 *382
36213BRING, SHAFT SNAP (FOR TRANSFER INPUT GEAR STOPPER)
main90520-44003iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 T=2.10-2.15,*381
main90520-44004iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 T=2.15-2.20,*381
main90520-44005iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 T=2.20-2.25,*381
main90520-44006iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 T=2.25-2.30,*381
main90520-44007iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 T=2.30-2.35,*381
main90520-44008iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 T=2.35-2.40,*381
main90520-44009iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 T=2.40-2.45,*381
main90520-44010iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 T=2.45-2.50,*381
main90520-44011iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 T=2.50-2.55,*381
main90520-44012iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 T=2.55-2.60,*381
main90520-44013iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 T=2.60-2.65,*381
main90520-44014iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 T=2.65-2.70,*381
main90520-44015iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 T=2.70-2.75,*381
main90520-44016iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 T=2.75-2.80,*381
main90520-44017iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 T=2.80-2.85,*381
main90520-44018iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 T=2.85-2.90,*381
main90520-44019iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 T=2.90-2.95,*381
main90520-44020iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 T=2.95-3.00,*381
main90520-44021iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 T=3.00-3.05,*381
main90520-T0202iKUN125..RHD..SA;KUN125..LHD..(ADC,SDC)201505-202105 T=2.10-2.15,*382
main90520-T0203iKUN125..LHD..SSC;KUN125..ASC,SXT,TDC,TSC,TXT;GGN125,GUN125,126,KUN126,LAN125,TGN126,128201505-202105 T=2.15-2.20,*382
main90520-T0204iKUN125..RHD..SA;KUN125..LHD..(ADC,SDC)201505-202105 T=2.20-2.25,*382
main90520-T0205iKUN125..RHD..SA;KUN125..LHD..(ADC,SDC)201505-202105 T=2.25-2.30,*382
main90520-T0206iKUN125..LHD..SSC;KUN125..ASC,SXT,TDC,TSC,TXT;GGN125,GUN125,126,KUN126,LAN125,TGN126,128201505-202105 T=2.30-2.35,*382
main90520-T0207iKUN125..RHD..SA;KUN125..LHD..(ADC,SDC)201505-202105 T=2.35-2.40,*382
main90520-T0208iKUN125..LHD..SSC;KUN125..ASC,SXT,TDC,TSC,TXT;GGN125,GUN125,126,KUN126,LAN125,TGN126,128201505-202105 T=2.40-2.45,*382
main90520-T0209iKUN125..LHD..SSC;KUN125..ASC,SXT,TDC,TSC,TXT;GGN125,GUN125,126,KUN126,LAN125,TGN126,128201505-202105 T=2.45-2.50,*382
main90520-T0210iKUN125..RHD..SA;KUN125..LHD..(ADC,SDC)201505-202105 T=2.50-2.55,*382
main90520-T0211iKUN125..LHD..SSC;KUN125..ASC,SXT,TDC,TSC,TXT;GGN125,GUN125,126,KUN126,LAN125,TGN126,128201505-202105 T=2.55-2.60,*382
main90520-T0212iKUN125..RHD..SA;KUN125..LHD..(ADC,SDC)201505-202105 T=2.60-2.65,*382
main90520-T0213iKUN125..LHD..SSC;KUN125..ASC,SXT,TDC,TSC,TXT;GGN125,GUN125,126,KUN126,LAN125,TGN126,128201505-202105 T=2.65-2.70,*382
main90520-T0214iKUN125..RHD..SA;KUN125..LHD..(ADC,SDC)201505-202105 T=2.70-2.75,*382
main90520-T0215iKUN125..RHD..SA;KUN125..LHD..(ADC,SDC)201505-202105 T=2.75-2.80,*382
main90520-T0216iKUN125..LHD..SSC;KUN125..ASC,SXT,TDC,TSC,TXT;GGN125,GUN125,126,KUN126,LAN125,TGN126,128201505-202105 T=2.80-2.85,*382
main90520-T0217iKUN125..LHD..SSC;KUN125..ASC,SXT,TDC,TSC,TXT;GGN125,GUN125,126,KUN126,LAN125,TGN126,128201505-202105 T=2.85-2.90,*382
main90520-T0218iKUN125..RHD..SA;KUN125..LHD..(ADC,SDC)201505-202105 T=2.90-2.95,*382
main90520-T0219iKUN125..LHD..SSC;KUN125..ASC,SXT,TDC,TSC,TXT;GGN125,GUN125,126,KUN126,LAN125,TGN126,128201505-202105 T=2.95-3.00,*382
main90520-T0220iKUN125..RHD..SA;KUN125..LHD..(ADC,SDC)201505-202105 T=3.00-3.05,*382
36216ARING, TRANSFER INPUT SHAFT SEAL, NO.1
main36216-35012iKUN125..RHD..SA;KUN125..LHD..(ADC,SDC)201505-202105 *382
main36216-35012iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 *381
36231SHAFT, TRANSFER OUTPUT, REAR
main36231-0K030iKUN125..RHD..SA;KUN125..LHD..(ADC,SDC)201505-202105 *382
main36231-71020iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-201709 *381
main36231-71021iGGN125,GUN125,126,KUN126,LAN125,TGN126,128201710-202101 *381
36231EBEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)
main90364-28004iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 *381
main90364-C0016iKUN125..RHD..SA;KUN125..LHD..(ADC,SDC)201505-202105 *382
36231FRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)
main90520-78002iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 T=1.65,*381
main90520-T0187iKUN125..RHD..SA;KUN125..LHD..(ADC,SDC)201505-202105 T=1.65,ID=78.1,*382
36231JBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR)
main90363-37011iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 *381
main90363-T0042iKUN125..RHD..SA;KUN125..LHD..(ADC,SDC)201505-202105 *382
36231RRING, O (FOR TRANSFER OUTPUT SHAFT)
main90301-31003iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-201710 *381
main90301-T0053iKUN125..LHD..SSC;KUN125..ASC,SXT,TDC,TSC,TXT;GGN125,GUN125,126,KUN126,LAN125,TGN126,128201505-202105 *382
36235SLEEVE, TRANSFER HIGH & LOW CLUTCH
main36235-0K030iKUN125..RHD..SA;KUN125..LHD..(ADC,SDC)201505-202105 *382
main36235-35022iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 *381
36236SLEEVE, FRONT DRIVE CLUTCH
main36236-0K040iTGN126..M..GCC;TGN126..TSC..LA;KUN126..ADC..5FC..(S,X);KUN125..(ASC,TDC,TSC)..X;KUN126..RHD..5FC..(L,M,S)..GEN;KUN125..(TDC,TXT)..(L,S)..(GEN,LA);TGN126..(ADC,ASC,T201505-202010 AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,*382
main36236-0K040iGUN125..TSC..GCC;GUN125..RHD..TDC..6F..L..GEN201505-202102 *382
AUTOMATIC DISCONNECTING DIFFERENTIAL-WITHOUT,*382
main36236-35070iGUN125..6F..L..GEN;GUN125..6FC..L..GCC201505-202010 AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,*381
main36236-71010iGUN125..ASC..LA;GUN125..ADC..6F..S..LA201505-202010 AUTOMATIC DISCONNECTING DIFFERENTIAL-WITHOUT,*381
main36236-71010iGUN125..TSC..GCC;GUN125..6F..L..GEN;GUN125..6FC..L..GCC201505-202105 *381
36237HUB, TRANSFER CLUTCH
main36237-0K020iKUN125..RHD..SA;KUN125..LHD..(ADC,SDC)201505-202105 *382
main36237-35030iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 *381
36237ARING, SHAFT SNAP (FOR TRANSFER CLUTCH HUB)
main90520-39004iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 T=2.10-2.15,MARK A,*381
main90520-39005iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 T=2.15-2.20,MARK B,*381
main90520-39006iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 T=2.20-2.25,MARK C,*381
main90520-39007iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 T=2.25-2.30,MARK D,*381
main90520-39008iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 T=2.30-2.35,MARK E,*381
main90520-39009iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 T=2.35-2.40,MARK F,*381
main90520-39010iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 T=2.40-2.45,MARK G,*381
main90520-39011iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 T=2.45-2.50,MARK H,*381
main90520-39012iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 T=2.50-2.55,MARK J,*381
main90520-39013iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 T=2.00-2.05,MARK K,*381
main90520-39014iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 T=2.05-2.10,MARK L,*381
main90520-T0191iKUN125..RHD..SA;KUN125..LHD..(ADC,SDC)201505-202105 T=2.10-2.15,*382
main90520-T0192iKUN125..LHD..SSC;KUN125..ASC,SXT,TDC,TSC,TXT;GGN125,GUN125,126,KUN126,LAN125,TGN126,128201505-202105 T=2.15-2.20,*382
main90520-T0193iKUN125..LHD..SSC;KUN125..ASC,SXT,TDC,TSC,TXT;GGN125,GUN125,126,KUN126,LAN125,TGN126,128201505-202105 T=2.20-2.25,*382
main90520-T0194iKUN125..RHD..SA;KUN125..LHD..(ADC,SDC)201505-202105 T=2.25-2.30,*382
main90520-T0195iKUN125..LHD..SSC;KUN125..ASC,SXT,TDC,TSC,TXT;GGN125,GUN125,126,KUN126,LAN125,TGN126,128201505-202105 T=2.30-2.35,*382
main90520-T0196iKUN125..RHD..SA;KUN125..LHD..(ADC,SDC)201505-202105 T=2.35-2.40,*382
main90520-T0197iKUN125..RHD..SA;KUN125..LHD..(ADC,SDC)201505-202105 T=2.40-2.45,*382
main90520-T0198iKUN125..LHD..SSC;KUN125..ASC,SXT,TDC,TSC,TXT;GGN125,GUN125,126,KUN126,LAN125,TGN126,128201505-202105 T=2.45-2.50,*382
main90520-T0199iKUN125..RHD..SA;KUN125..LHD..(ADC,SDC)201505-202105 T=2.50-2.55,*382
main90520-T0200iKUN125..RHD..SA;KUN125..LHD..(ADC,SDC)201505-202105 T=2.00-2.05,*382
main90520-T0201iKUN125..RHD..SA;KUN125..LHD..(ADC,SDC)201505-202105 T=2.05-2.10,*382
36239HUB, TRANSFER DRIVE CLUTCH
main36239-0K050iKUN125..LHD..SSC;KUN125..ASC,SXT,TDC,TSC,TXT;GGN125,GUN125,126,KUN126,LAN125,TGN126,128201505-202105 *382
main36239-71010iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 *381
36255SPACER, TRANSFER OUTPUT SHAFT, NO.1
main36255-0K020iKUN125..RHD..SA;KUN125..LHD..(ADC,SDC)201505-202105 *382
main36255-71010iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 *381
36256SPACER, TRANSFER OUTPUT SHAFT, NO.2
main36256-0K010iKUN125..LHD..SSC;KUN125..ASC,SXT,TDC,TSC,TXT;GGN125,GUN125,126,KUN126,LAN125,TGN126,128201505-202105 *382
main36256-71010iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 *381
36270GEAR ASSY, TRANSFER LOW PLANETARY
main36270-0K020iKUN125..RHD..SA;KUN125..LHD..(ADC,SDC)201505-202105 *382
main36270-35900iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 *381
36270ABEARING (FOR TRANSFER LOW PLANETARY GEAR)
main90364-47001iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 *381,NO.1:REFER ILL.
main90364-T0033iKUN125..LHD..SSC;KUN125..ASC,SXT,TDC,TSC,TXT;GGN125,GUN125,126,KUN126,LAN125,TGN126,128201505-202105 *382,NO.1:REFER ILL.
main90374-49001iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 *381,NO.2:REFER ILL.
main90374-C0017iKUN125..LHD..SSC;KUN125..ASC,SXT,TDC,TSC,TXT;GGN125,GUN125,126,KUN126,LAN125,TGN126,128201505-202105 *382,NO.2:REFER ILL.
36270BRING, SHAFT SNAP (FOR TRANSFER LOW PLANETARY GEAR)
main90521-99056iKUN125..RHD..SA;KUN125..LHD..(ADC,SDC)201505-202105 T=1.8,*382
main90521-99056iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 T=1.8,*381
36270CRING, SHAFT SNAP(FOR TRANSFER LOW PLANETARY GEAR BEARING)
main90520-99072iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 *381
main90520-T0188iKUN125..RHD..SA;KUN125..LHD..(ADC,SDC)201505-202105 *382
36273GEAR, TRANSFER LOW PLANETARY RING
main36273-0K010iKUN125..LHD..SSC;KUN125..ASC,SXT,TDC,TSC,TXT;GGN125,GUN125,126,KUN126,LAN125,TGN126,128201505-202105 *382
main36273-35030iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 *381
36273ARING, HOLE SNAP (FOR TRANSFER LOW PLANETARY RING GEAR)
main90520-99078iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 *382
main90520-99078iKUN125..LHD..SSC;KUN125..ASC,SXT,TDC,TSC,TXT;GGN125,GUN125,126,KUN126,LAN125,TGN126,128201505-202105 *381
36278WASHER, MANUAL TRANSFER PLANETARY CARRIER
main36278-0K010iKUN125..RHD..SA;KUN125..LHD..(ADC,SDC)201505-202105 T=0.95-1.05,*382
main36278-35020iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 T=0.95-1.05,*381
36284PIECE, TRANSFER LOW PLANETARY GEAR SPLINE
main36284-0K030iKUN125..RHD..SA;KUN125..LHD..(ADC,SDC)201505-202105 *382
main36284-34011iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 *381
36288RACE, TRANSFER THRUST BEARING, NO.1
main36288-0K010iKUN125..RHD..SA;KUN125..LHD..(ADC,SDC)201505-202105 *382
main36288-28010iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 *381
36291ABEARING (FOR TRANSFER DRIVE SPROCKET)
main90364-42008iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 *381
main90364-T0043iKUN125..RHD..SA;KUN125..LHD..(ADC,SDC)201505-202105 *382
36292SPROCKET, TRANSFER DRIVEN
main36292-0K020iKUN125..LHD..SSC;KUN125..ASC,SXT,TDC,TSC,TXT;GGN125,GUN125,126,KUN126,LAN125,TGN126,128201505-202105 *382
main36292-35070iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 *381
36292ABEARING (FOR TRANSFER DRIVEN SPROCKET)
main90363-28004iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 *381,NO.2:REFER ILL.
main90363-32037iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 *381,NO.1:REFER ILL.
main90363-T0036iKUN125..RHD..SA;KUN125..LHD..(ADC,SDC)201505-202105 *382,NO.1:REFER ILL.
main90363-T0037iKUN125..LHD..SSC;KUN125..ASC,SXT,TDC,TSC,TXT;GGN125,GUN125,126,KUN126,LAN125,TGN126,128201505-202105 *382,NO.2:REFER ILL.
36293CHAIN, TRANSFER FRONT DRIVE
main36293-35050iKUN125..LHD..SSC;KUN125..ASC,SXT,TDC,TSC,TXT;GGN125,GUN125,126,KUN126,LAN125,TGN126,128201505-202105 *382
main36293-35050iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128201505-202105 *381
