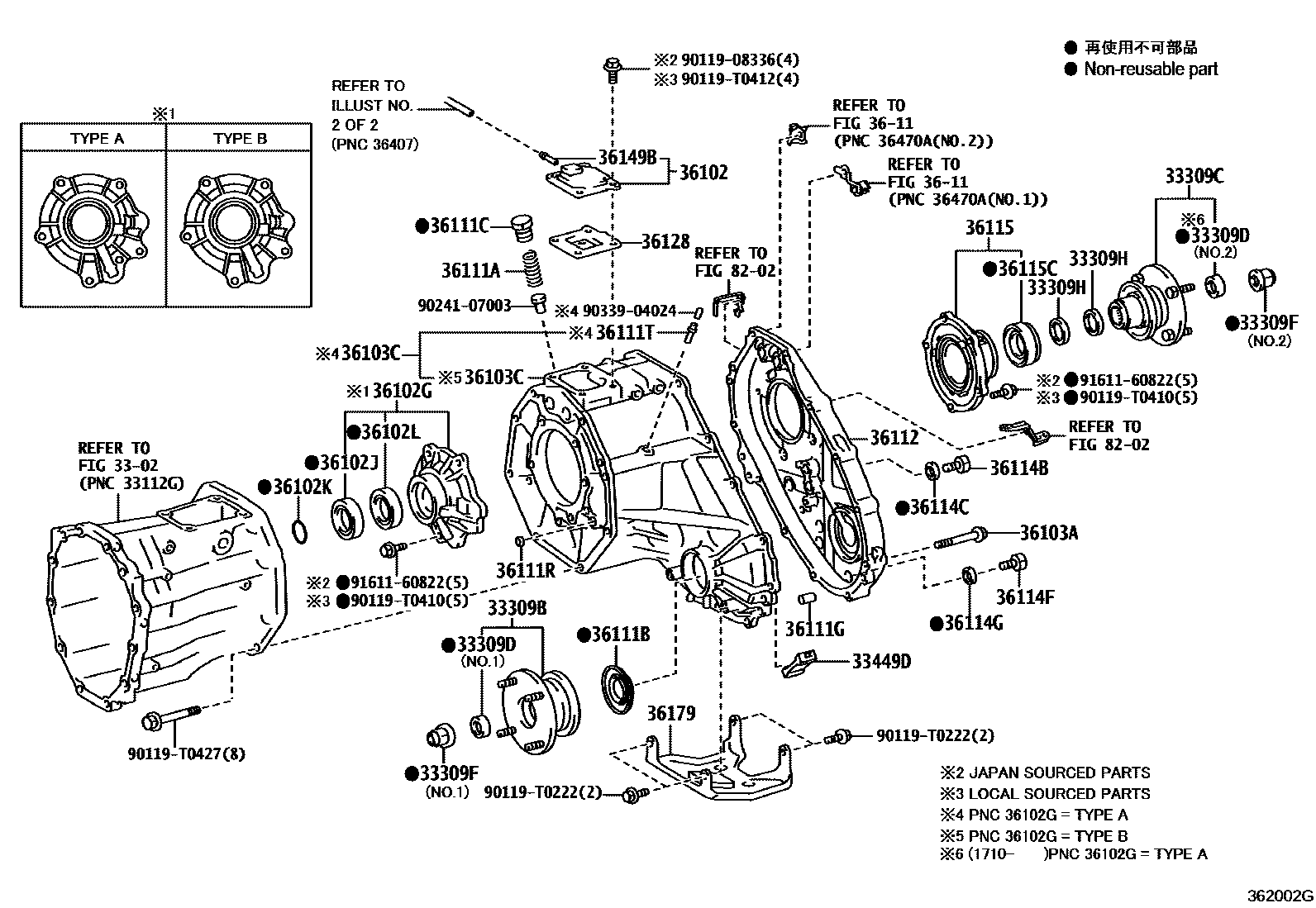

TRANSFER CASE & EXTENSION HOUSING
3302
33309BFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION
main33309-0K011iKUN125..LHD..SSC;KUN125..ASC,SXT,TDC,TSC,TXT;GGN125,GUN125,126,KUN126,LAN125,TGN126,128201505-201901
PNC 36102G=TYPE B
sub33309-0K012
PNC 36102G=TYPE B
PNC 36102G=TYPE A
sub33309-35113
PNC 36102G=TYPE A
33309CFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION
PNC 36102G=TYPE B
PNC 36102G=TYPE A
PNC 36102G=TYPE A
main36204-0K010iKUN125..LHD..SSC;GUN125,126,KUN126..6F;KUN125..(ASC,SXT,TDC,TSC,TXT)..6F201505-202105
PNC 36102G=TYPE B
PNC 36102G=TYPE A
PNC 36102G=TYPE A
33309DSEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
main90312-23001iGUN126..6FC..M..GCC;GUN126..RHD..6FC..(M,S)..GEN;GUN125..6FC..(M,S)..(GCC,GEN,LA);GUN126..(ADC,TSC)..6FC..(S,X)..HDCR..CBU201905-202010
AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,PNC36102G=T/P A,NO.1
main90312-23001iGUN126..6FC..M..GCC;GUN126..RHD..6FC..(M,S)..GEN;GUN125..6FC..(M,S)..(GCC,GEN,LA);GUN126..(ADC,TSC)..6FC..(S,X)..HDCR..CBU201905-202010
AUTOMATIC DISCONNECTING DIFFERENTIAL-WITHOUT,PNC 36102G=TYPE A
main90312-23001iTGN126..M..LA;GUN126..PDC..6F;GUN125..6F..GCC;TGN126..6FC..L..GEN;GUN125..6FC..(M,S)..GCC;GGN125,KUN125,126,LAN125,TGN128;TGN126..(M,S,X)..(BZAGT,GEN,SA);GUN125..AR201505-202105
PNC36102G=T/P A,NO.1
main90312-23001iTGN126..M..GCC;TGN126..L..GEN;GUN126..6FC..PKN;GUN125..6FC..L..GCC;TGN126..(L,S,X)..(GCC,LA)201905-202105
PNC 36102G=TYPE A
PNC36102G=T/P A,NO.2
main90312-T0004iKUN125..LHD..SSC;KUN125..ASC,SXT,TDC,TSC,TXT;GGN125,GUN125,126,KUN126,LAN125,TGN126,128201505-202105
PNC36102G=T/P B,NO.1
33309FNUT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
PNC36102G=T/P A,NO.1
PNC36102G=T/P B,NO.1
PNC36102G=T/P A,NO.2
PNC36102G=T/P B,NO.2
33309HWASHER, TRANSFER OUTPUT SHAFT
T=0.8,PNC 36102G=TYPE B
T=0.8,PNC 36102G=TYPE A
33449DMAGNET (FOR TRANSFER CASE)
main33449-32020iKUN125..LHD..SSC;KUN125..ASC,SXT,TDC,TSC,TXT;GGN125,GUN125,126,KUN126,LAN125,TGN126,128201505-202105
PNC 36102G=TYPE A
PNC 36102G=TYPE B
36102COVER SUB-ASSY, TRANSFER CASE
PNC 36102G=TYPE B
PNC 36102G=TYPE A
36102GRETAINER SUB-ASSY, TRANSFER FRONT BEARING
TYPE B:REFER ILLUST.
main36102-0K030iKUN125..LHD..SSC;GUN125,126,KUN126..6F;KUN125..(ASC,SXT,TDC,TSC,TXT)..6F201505-202105
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
36102JSEAL, TYPE T OIL (FOR TRANSFER COVER)
VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC),PNC 36102G=TYPE A
TOYOTA STOP & START SYSTEM-WITH,PNC 36102G=TYPE A
OCEANIA GENERAL SPEC&VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC),PNC 36102G=TYPE A
PNC 36102G=TYPE A
PNC 36102G=TYPE B
36102KRING, O
OCEANIA GENERAL SPEC&VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC),PNC 36102G=TYPE B
VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC),PNC 36102G=TYPE B
TOYOTA STOP & START SYSTEM-WITH,PNC 36102G=TYPE B
PNC 36102G=TYPE B
PNC 36102G=TYPE A
36102LSEAL, TYPE T OIL(FOR TRANSFER FRONT BEARING)
PNC 36102G=TYPE A
PNC 36102G=TYPE B
36103ABOLT (FOR TRANSFER CASE)
*8-1.25PX55-30,PNC 36102G=TYPE A
*8-1.25PX55-30,PNC 36102G=TYPE B
36103CCASE, TRANSFER, FRONT
PNC 36102G=TYPE A
sub36101-71020
3611
36111ASPRING, COMPRESSION (FOR TRANSFER CASE)
PNC 36102G=TYPE A
main90501-T0034iKUN125..LHD..SSC;KUN125..ASC,SXT,TDC,TSC,TXT;GGN125,GUN125,126,KUN126,LAN125,TGN126,128201505-202105
PNC 36102G=TYPE B
36111BSEAL, OIL (FOR TRANSFER CASE)
PNC 36102G=TYPE A
main90311-T0082iKUN125..LHD..SSC;KUN125..ASC,SXT,TDC,TSC,TXT;GGN125,GUN125,126,KUN126,LAN125,TGN126,128201505-202105
PNC 36102G=TYPE B
36111CPLUG (FOR TRANSFER CASE)
PNC 36102G=TYPE A
PNC 36102G=TYPE B
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
L=14,OD=10,PNC 36102G=TYPE A
L=14,OD=10,PNC 36102G=TYPE B
36111RPLUG, TIGHT (FOR TRANSFER CASE)
PNC 36102G=TYPE B
PNC 36102G=TYPE A
36111TTUBE (FOR TRANSFER CASE)
PNC 36102G=TYPE A
sub90406-T0007
36112CASE, TRANSFER, REAR
PNC 36102G=TYPE B
PNC 36102G=TYPE A
36114BPLUG, NO.1 (FOR TRANSFER CASE)
PNC 36102G=TYPE A
PNC 36102G=TYPE B
36114CGASKET, NO.1 (FOR TRANSFER CASE)
PNC 36102G=TYPE A
main90430-T0021iKUN125..LHD..SSC;KUN125..ASC,SXT,TDC,TSC,TXT;GGN125,GUN125,126,KUN126,LAN125,TGN126,128201505-202105
PNC 36102G=TYPE B
36114FPLUG (FOR TRANSFER DRAIN)
PNC 36102G=TYPE B
PNC 36102G=TYPE A
36114GGASKET (FOR TRANSFER DRAIN PLUG)
PNC 36102G=TYPE A
PNC 36102G=TYPE B
36115HOUSING, TRANSFER EXTENSION
PNC 36102G=TYPE B
PNC 36102G=TYPE A
36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
PNC 36102G=TYPE A
PNC 36102G=TYPE B
36128DEFLECTOR, BREATHER OIL
PNC 36102G=TYPE B
PNC 36102G=TYPE A
36149BTUBE, TRANSFER BREATHER
main90406-T0007iKUN125..LHD..SSC;KUN125..ASC,SXT,TDC,TSC,TXT;GGN125,GUN125,126,KUN126,LAN125,TGN126,128201505-202105
PNC 36102G=TYPE B
PNC 36102G=TYPE A
sub90406-T0007
36179PROTECTOR, TRANSFER CASE LOWER
8202
9011908336
main90119-08336
90119T0222
main90119-T0222
90119T0410
main90119-T0410
90119T0412
main90119-T0412
90119T0427
main90119-T0427
9024107003
main90241-07003
9033904024
main90339-04024
9161160822
main91611-60822
40 parts on this diagram · 6 diagrams in section
