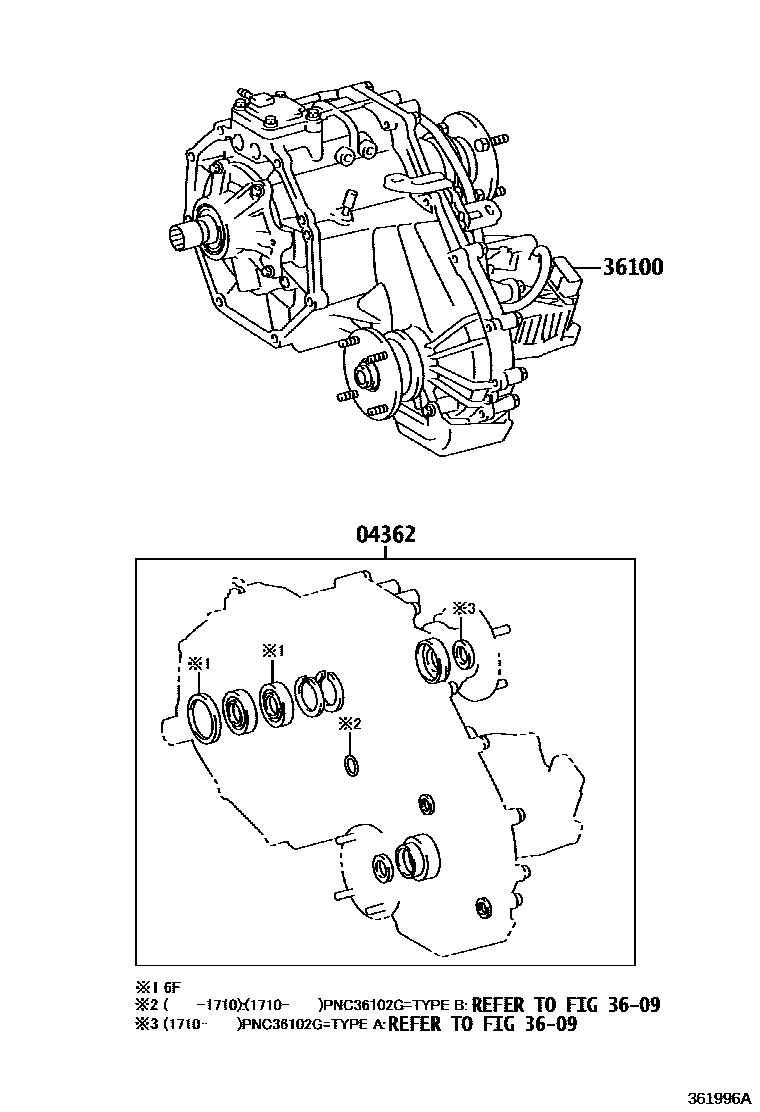

TRANSFER ASSEMBLY & GASKET KIT

04362GASKET KIT, TRANSFER OVERHAUL

main04362-0K020iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128..5F,5FC,6FC201505-202105

*382

main04362-0K030iKUN125..LHD..SSC;GUN125,126,KUN126..6F;KUN125..(ASC,SXT,TDC,TSC,TXT)..6F201505-202105

*382

main04362-71130iGGN125,GUN125,126,KUN125,126,LAN125,TGN126,128..5F,5FC,6FC201505-201710

*381

main04362-71140iGUN125,126,KUN125,126..6F201505-201710

*381

main04362-71170iGGN125,GUN125,126,KUN126,LAN125,TGN126,128..5F,5FC,6FC201710-202105

*381

main04362-71180iGUN125,126,KUN126..6F201710-202105

*381

3609

36100TRANSFER ASSY

main36100-0K400iKUN126..TDC..5FC..S..LA;KUN126..LHD..5FC..M..GEN;TGN126..LHD..6FC..(GEN,SA);KUN126..5FC..(H,M)..(LA,SA,VN);KUN126..TDC..5FC..(H,X)..(GEN,LA);GUN125,126,KUN125,TGN12201505-201610

AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,*382

main36100-0K400iGUN125..6FC..L;TGN126..6FC..GCC;KUN126..ADC..5FC..(S,X);KUN126..RHD..5FC..(L,M,S)..GEN201505-202010

*382

main36100-0K410iGUN125..6FC..L..GCC201505-202105

*382

main36100-0K410iGUN126..6FC..M..GCC;GUN126..RHD..6FC..(L,M,S)..GEN;GUN125..6FC..(M,S)..(GCC,GEN,LA);GUN126..(ADC,TSC)..6FC..(S,X)..HDCR..CBU201505-202010

AUTOMATIC DISCONNECTING DIFFERENTIAL-WITHOUT,*382

main36100-0K420iKUN125..H;KUN125..LHD..SSC;KUN125..LHD..M..GEN;GUN125..LHD..L..GEN;KUN125..(SXT,TSC)..(M,S);GUN125..TDC..6F..(H,M,S,X);KUN126..6F..(GEN,LA,SA,VN);GUN125..TDC..6F..L201505-202102

*382

main36100-0K420iKUN125..(ASC,TDC,TSC)..X;KUN125..(TDC,TXT)..(L,S)..(GEN,LA)201505-201709

AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,*382

main36100-0K430iKUN125..M..GCC;GUN126,KUN126..6F..PKN;KUN125..RHD..TDC..M..GEN;KUN125..(TDC,TXT)..S..DCR;KUN125..(ASC,TDC,TSC,TXT)..(L,X)..DCR201505-202105

*382

sub36100-0K431

main36100-0K430iGUN126..6F..GCC;GUN125..TXT..S..GEN;KUN125..LHD..TDC..M..GEN;GUN125..RHD..TDC..6F..(M,S)..GEN;GUN125..TDC..6F..(M,S)..(GCC,PH);GUN125..(SSC,SXT,TSC)..6F..(L,X)..(GE201505-202010

AUTOMATIC DISCONNECTING DIFFERENTIAL-WITHOUT,*382

sub36100-0K431

main36100-0K440iTGN126..TSC..LA;TGN126..5F..M..GCC;TGN126..(ADC,ASC,TDC)..5F..(L,S,X)..(GCC,LA)201505-202010

AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,*382

main36100-0K440iTGN126..M..LA;LAN125,TGN126..5F..(M,S,X)..(BZAGT,GEN,SA)201505-202010

*382

main36100-0K450iTGN126..5F..M..GCC;TGN126..5F..L..GEN;TGN126..5F..(L,S,X)..(GCC,LA)201505-202010

*382

main36100-0K460iKUN126..TDC..5FC..S..LA;TGN126..LHD..6FC..(GEN,SA);KUN126..5FC..(H,M)..(LA,SA,VN);KUN126..TDC..5FC..(H,X)..(GEN,LA);GUN125,KUN126..LHD..ATM..(M,S)..(GCC,GEN);GUN126201610-202102

*382

main36100-0K460iTGN126..6FC..L..GEN201610-202005

AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,*382

main36100-71370iKUN126..TDC..5FC..S..LA;KUN126..LHD..5FC..M..GEN;TGN126..LHD..6FC..(GEN,SA);KUN126..5FC..(H,M)..(LA,SA,VN);KUN126..TDC..5FC..(H,X)..(GEN,LA);GUN125,126,KUN125,TGN12201505-202010

*381

main36100-71370iKUN126..TDC..5FC..S..LA;KUN126..LHD..5FC..M..GEN;TGN126..LHD..6FC..(GEN,SA);KUN126..5FC..(H,M)..(LA,SA,VN);KUN126..TDC..5FC..(H,X)..(GEN,LA);GUN125,126,KUN125,TGN12201505-201610

AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,*381

main36100-71380iGUN125..6FC..L..GCC201505-202010

AUTOMATIC DISCONNECTING DIFFERENTIAL-WITHOUT,*381

main36100-71380iGUN125..6FC..L..GCC201505-202105

*381

main36100-71420iKUN125..X..(GEN,LA);KUN125..(ADC,TDC,TXT)..(L,S)..(GEN,LA)201505-201709

AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,*381

sub36100-71421

main36100-71420iGUN125..TSC..GCC;GUN125..RHD..TDC..6F..L..GEN201505-202102

*381

sub36100-71421

main36100-71430iGUN125..LHD..TSC;GUN125..RHD..TDC..6F..L..GEN;GUN125..LHD..TDC..6F..(M,S)..(GEN,LA)201505-202010

AUTOMATIC DISCONNECTING DIFFERENTIAL-WITHOUT,*381

sub36100-71431

main36100-71430iKUN125..M..GCC;GUN126,KUN126..6F..PKN;KUN125..RHD..TDC..M..GEN;KUN125..(L,X)..(GCC,GEN,LA);KUN125..(ADC,TDC,TXT)..S..DCR201505-202105

*381

sub36100-71431

main36100-71440iTGN126..M..LA;LAN125,TGN126..5F..(M,S,X)..(BZAGT,GEN,SA)201505-202010

AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,*381

main36100-71440iTGN126..M..LA;LAN125,TGN126..5F..(M,S,X)..(BZAGT,GEN,SA)201505-202010

*381

main36100-71450iTGN126..5F..M..GCC;TGN126..5F..L..GEN;TGN126..5F..(L,S,X)..(GCC,LA)201505-202010

*381

main36100-71460iTGN126..6FC..GCC;KUN126..ADC..5FC..(S,X);KUN126..RHD..5FC..(L,M,S)..GEN201610-202005

AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,*381

main36100-71460iKUN126..TDC..5FC..S..LA;TGN126..LHD..6FC..(GEN,SA);KUN126..5FC..(H,M)..(LA,SA,VN);KUN126..TDC..5FC..(H,X)..(GEN,LA);GUN125,KUN126..LHD..ATM..(M,S)..(GCC,GEN);GUN126201610-202102

*381

3 parts on this diagram · 1 diagram in section
