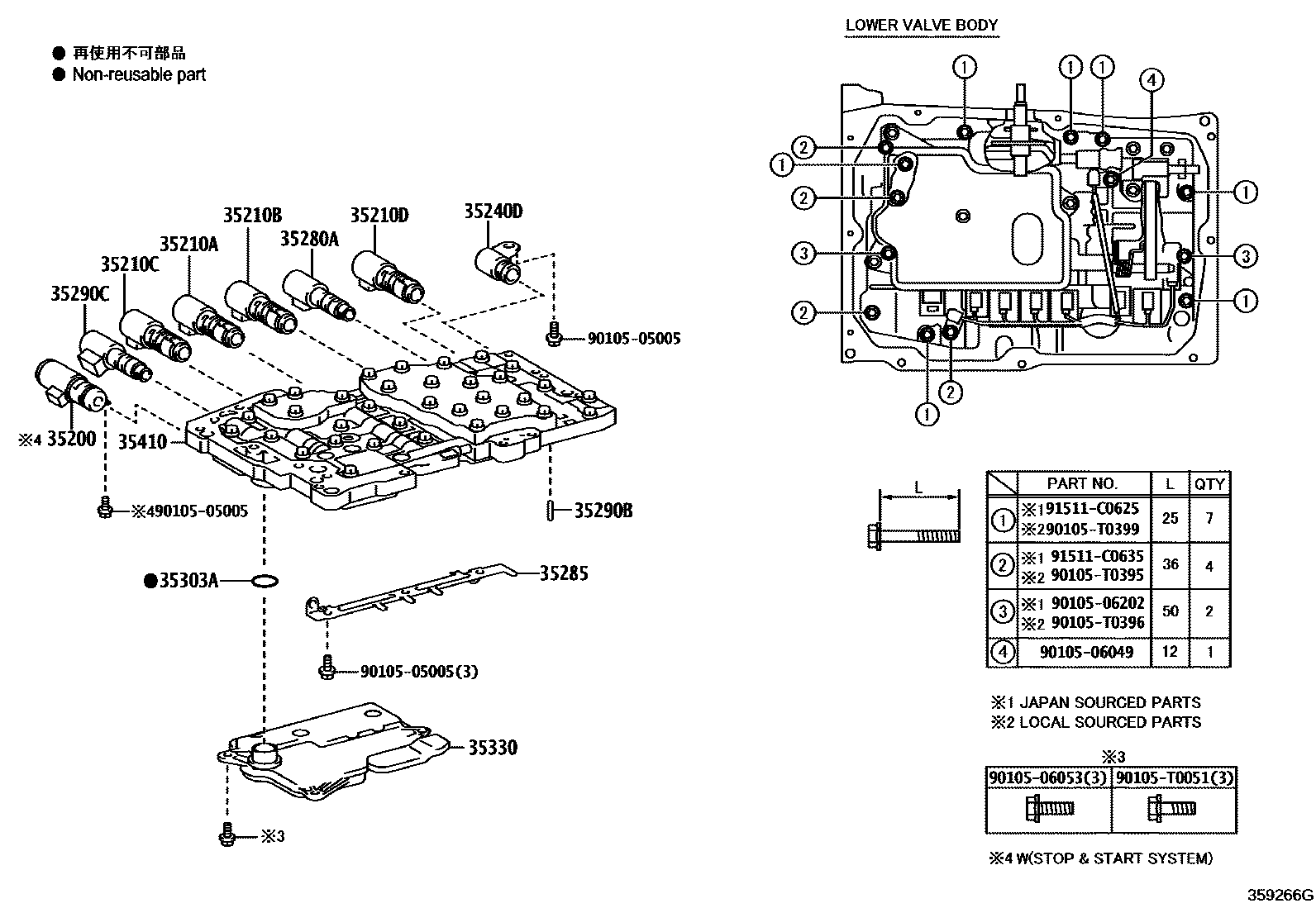

VALVE BODY & OIL STRAINER (ATM)

0001 1AC60E,AC60F 0002 1AC60E,AC60F 0003 1A750F 0004 1A750F

35200PUMP ASSY, OIL, W/SOLENOID

main35200-71010iGUN13#..TDC..6FC..(H,M)..TH201505-202005

TOYOTA STOP & START SYSTEM-WITH

35210AVALVE, SOLENOID(SL1)

main35210-50010iKUN125,126..5FC201505-201801

main35210-71010iGUN126..6FC..KEN201505-202007

35210BVALVE, SOLENOID(SL3)

main35210-71010iGUN126..6FC..KEN201505-202007

35210CVALVE, SOLENOID(SL2)

main35210-50010iKUN125,126..5FC201505-201801

main35210-71010iGUN126..6FC..KEN201505-202007

35210DVALVE, SOLENOID(SL4)

main35210-71010iGUN126..6FC..KEN201505-202007

35240DVALVE, SOLENOID(SL)

main35240-71010iGUN126..6FC..KEN201505-202007

35280AVALVE, SOLENOID(SLU)

main35280-30050iKUN125,126..5FC201505-201801

main35280-71010iGGN12#,135,GUN120,125,126,13#,TGN121,126,128,13#..(ADC,MDC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC201505-202105

sub35280-71020

35285PLATE, SOLENOID LOCK

main35285-0K010iGUN135..TDC..6FC..M..TH201708-202005

(L)

main35285-34010×2iKUN125,126..5FC201505-201801

main35285-71010iGUN120,135..(TDC,TSC,TXT)..6FC;GUN126..(TDC,TSC,TXT)..6FC..(ARL,GCC,GEN,LA,PH,TAIW,VN)201708-202005

(J)

35290BPIN, STRAIGHT (FOR LINE PRESSURE CONTOROL SOLENOID)

main90250-03045×4iKUN125,126..5FC201505-201801

35290CVALVE, SOLENOID(SLT)

main35290-34010iKUN125,126..5FC201505-201801

main35290-71020iGUN126..6FC..KEN201505-202007

35303ARING, O (FOR OIL STRAINER)

main90301-27010iGUN125,126..6FC..MA201505-202001

main90301-T0071iGUN135..TDC..6FC..M..TH201708-202005

(L)

35330STRAINER ASSY, VALVE BODY OIL

main35330-60050iKUN125,126..5FC201505-201801

main35330-71010iGUN126..6FC..KEN201505-202007

35410BODY ASSY, TRANSMISSION VALVE

main35410-0K010iGUN120,125,13#,TGN121,126,136..(TDC,TSC,TXT)..6FC;GUN126..(TDC,TSC,TXT)..6FC..(ARL,GCC,GEN,LA,PH,TAIW,VN)201708-201911

(L)

main35410-0K020iGUN13#..TDC..6FC..(H,M)..TH201708-201911

TOYOTA STOP & START SYSTEM-WITH

main35410-0K030iGUN120,135..(TDC,TSC,TXT)..6FC;GUN126..(TDC,TSC,TXT)..6FC..(ARL,GCC,GEN,LA,PH,TAIW,VN)201912-202005

(L)

sub35410-0K031

main35410-0K040iGUN13#..TDC..6FC..(H,M)..TH201912-202005

TOYOTA STOP & START SYSTEM-WITH

sub35410-0K041

main35410-60620iKUN125,126..5FC201505-201801

sub35410-35880

main35410-71101iGUN135..TXT..6FC201505-201507

main35410-71102iGUN126..6FC..KEN201507-202007

sub35410-71103

main35410-71111iGUN13#..TDC..6FC..(H,M)..TH201506-201507

TOYOTA STOP & START SYSTEM-WITH

main35410-71112iGUN13#..TDC..6FC..(H,M)..TH201507-201708

TOYOTA STOP & START SYSTEM-WITH

sub35410-71113

9010505005

main90105-05005

9010506049

main90105-06049

9010506053

main90105-06053

9010506202

main90105-06202

90105T0051

main90105-T0051

90105T0395

main90105-T0395

90105T0396

main90105-T0396

90105T0399

main90105-T0399

91511C0625

main91511-C0625

91511C0635

main91511-C0635

23 parts on this diagram · 4 diagrams in section
