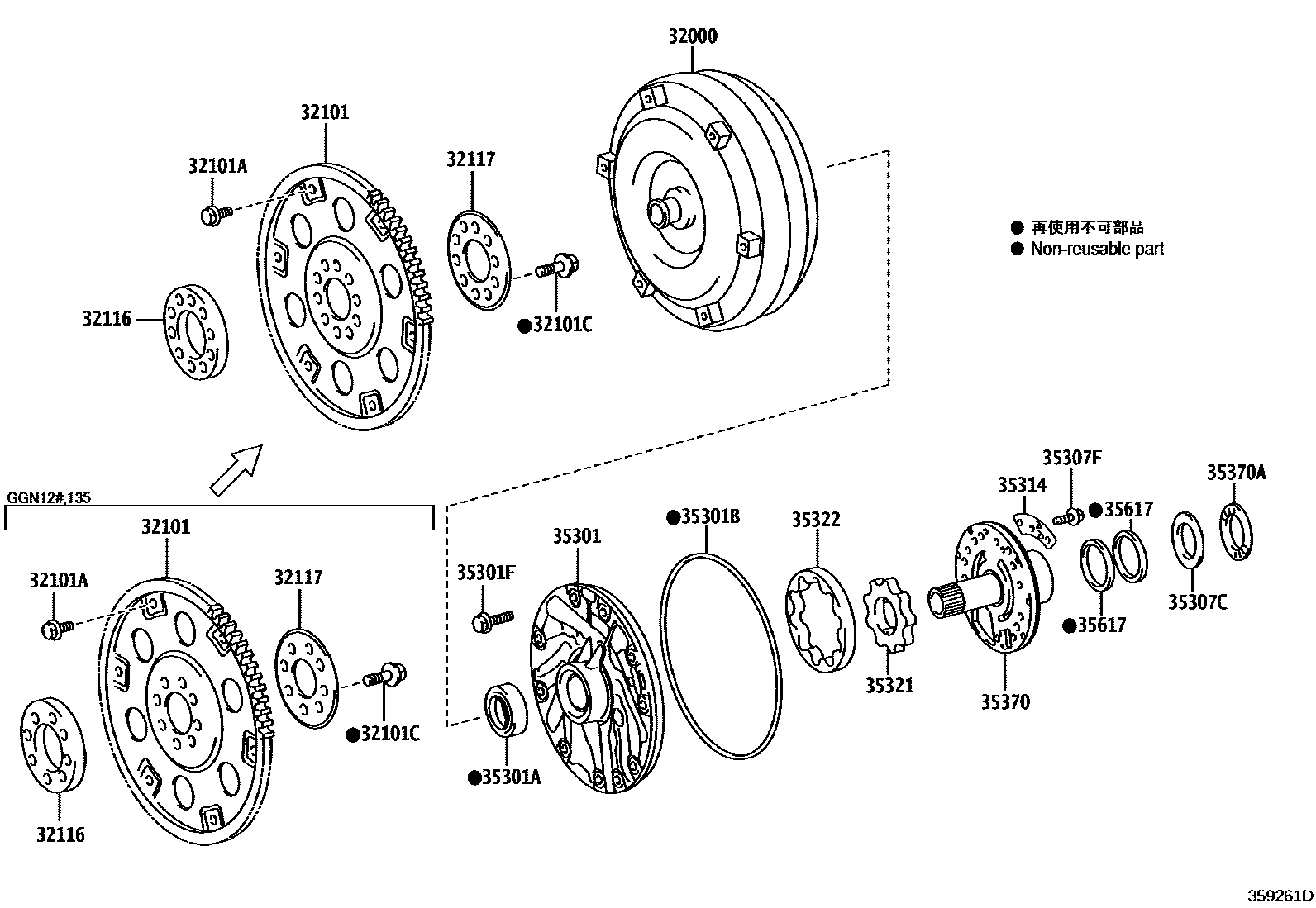

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1AC60E,AC60F 0002 1AC60E,AC60F 0003 1A750F

32000CONVERTER ASSY, TORQUE

main32000-0K010iGUN126..MA201912-202012

(L)

main32000-0K020iGUN120,125,135..(TDC,TSC,TXT)..6FC201912-202012

(L)

main32000-0K030iTGN121,126..(TDC,TSC)..6FC201912-202005

(L)

main32000-0K040iGGN125..GCC201912-202005

(L)

main32000-60270iKUN125,126..5FC¥120,000201505-201801

main32000-71040iGUN125..(TDC,TSC)..6FC..CBU;GUN125..(TDC,TXT)..6FC..IV3;GUN120,135..(TDC,TSC,TXT)..6FC¥90,200201505-202010

main32000-71040iGUN120,125,135..(TDC,TSC,TXT)..6FC¥90,200201912-202012

(J)

main32000-71050iTGN128,13#..6FC;TGN126..6FC..(L,S)..(GEN,SA)¥81,300201505-202010

main32000-71050iTGN121,126..(TDC,TSC)..6FC¥81,300201912-202005

(J)

main32000-71060iGGN125..GCC201505-202010

main32000-71060iGGN125..GCC201912-202005

(J)

main32000-71070iGUN126..6FC..KEN¥90,200201505-202105

main32000-71070iGUN126,136..(TDC,TSC,TXT)..6FC¥90,200201912-202012

(J)

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-26010iTGN121,126,128,13#..6FC¥12,900201505-202010

main32101-60060iGGN12#,135¥14,400201505-202010

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90105-10413iGUN120,125,126,13#,KUN125,126..ATM¥80201505-202105

*10-1.5PX11-8,(J),SILVER WHITE

main90105-10413iGUN126..6FC¥80202104

*10-1.5PX11-8,SILVER WHITE

main90105-10546iGUN120,125,126,13#,KUN125,126..ATM¥100201505

*10-1.5PX11-8,BLACK

main90105-T0237iGUN120,125,126,13#,KUN125,126..ATM201505-202105

*10-1.5PX11-8,(L),SILVER WHITE

main90119-09026iGGN12#,135,TGN121,126,128,13#..6FC¥80201505-202010

*9-1.25PX12.8-9,BLACK

main90119-09027iGGN12#,135,TGN121,126,128,13#..6FC¥80201505-202010

*9-1.25PX12.8-8.8,SILVER WHITE

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10276iTGN121,126,128,13#..6FC¥570201505-202010

*10-1.25PX30-17.5

main90105-10543iGGN12#,135¥100201505-202010

*10-1.25PX22-15

main90105-13015iGUN126..6FC¥190202104-202105

*13-1.5PX43.5-23.5,(J)

main90105-T0113iGUN125,126,13#,KUN125,126..ATM201505-201805

*13-1.5PX43.5-23.5

main90105-T0203iGUN120,125,126,13#..6FC201806-202105

*13-1.5PX43.5-23.5

main90105-T0203iGUN126..6FC202104-202105

*13-1.5PX43.5-23.5,(L)

32116SPACER, DRIVE PLATE, FRONT

main32116-26010iTGN121,126,128,13#..6FC¥1,250201505-202010

main32116-60050iGGN12#,135¥2,170201505-202010

32117SPACER, DRIVE PLATE, REAR

main32117-26010iTGN121,126,128,13#..6FC¥880201505-202010

main32117-60050iGUN120,125,126,13#,KUN125,126..ATM¥950201505-202105

main32117-60060iGGN12#,135¥940201505-202010

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-0K010iGUN120,125,126,13#,TGN121,126,136..(TDC,TSC,TXT)..6FC201708-202012

(L)

main35301-60030iKUN125,126..5FC¥13,000201505-201801

main35301-71010iGUN120,135..(TDC,TSC,TXT)..6FC;GUN126..(TDC,TSC,TXT)..6FC..(ARL,GCC,GEN,LA,PH,TAIW,VN)¥18,200201708-202012

(J)

main35301-71010iGUN125,126,13#,TGN121,126,136..(TDC,TSC,TXT)..6FC¥18,200201505-202105

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38083iKUN125,126..5FC¥290201505-201801

main90311-38101iGUN126..6FC..KEN¥400201505-202105

35301BRING, O (FOR FRONT OIL PUMP BODY)

main35697-60010iGGN12#,135,GUN120,125,126,13#,TGN121,126,128,13#..(ADC,MDC,PDC,SDC,SSC,SXT,TDC,TSC,TXT)..6FC¥280201505-202105

main35697-60010iKUN125,126..5FC¥280201505-201801

OUTER

main90301-99148iKUN125,126..5FC¥200201505-201801

INNER

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08091iGUN126..6FC..KEN¥140201505-202105

*8-1.25PX35-35

main90105-08451iKUN125,126..5FC¥100201505-201801

*8-1.25PX40-30

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-71070iGUN126..6FC..KEN¥700201505-202105

35307FBOLT (FOR STATOR SHAFT)

main90148-60079iGUN120,135..(TDC,TSC,TXT)..6FC;GUN126..(TDC,TSC,TXT)..6FC..(ARL,GCC,GEN,LA,PH,TAIW,VN)¥60201708-202012

(J)

main90148-60079iGUN125,126,13#,TGN121,126,136..(TDC,TSC,TXT)..6FC¥60201505-202105

main90148-T0024iGGN125..GCC201708-202012

(L)

35314PLATE, FRONT OIL PUMP

main35314-0K010iTGN126..LHD..TDC..6FC;GUN125..(TDC,TXT)..6FC..IV3;GUN125..(TDC,TSC)..6FC..CBU;GUN126..(TDC,TSC,TXT)..6FC..(H,M,S,X);GUN120,13#,TGN121..(TDC,TSC,TXT)..6FC201708-201906

(L)

sub35314-0K020

main35314-0K020iGUN120,125,126,13#,TGN121,126..(TDC,TSC,TXT)..6FC201906-202012

(L)

main35314-71010iGUN125,126,13#,TGN121,126,136..(TDC,TSC,TXT)..6FC¥260201505-201909

sub35314-71020¥200

main35314-71010iGUN120,135..(TDC,TSC,TXT)..6FC;GUN126..(TDC,TSC,TXT)..6FC..(ARL,GCC,GEN,LA,PH,TAIW,VN)¥260201708-201909

(J)

sub35314-71020¥200

main35314-71020iGUN120,135..(TDC,TSC,TXT)..6FC;GUN126..(TDC,TSC,TXT)..6FC..(ARL,GCC,GEN,LA,PH,TAIW,VN)¥200201910-202012

(J)

main35314-71020iGUN126..6FC..KEN¥200201910-202105

35321GEAR, FRONT OIL PUMP DRIVE

main35321-0K010iGUN120,125,126,13#,TGN121,126,136..(TDC,TSC,TXT)..6FC201708-202012

(L)

main35321-50010iKUN125,126..5FC¥2,940201505-201801

T=10.736-10.742

main35321-50020iKUN125,126..5FC¥2,940201505-201801

T=10.743-10.749

main35321-50030iKUN125,126..5FC¥2,940201505-201801

T=10.750-10.756

main35321-50040iKUN125,126..5FC¥2,940201505-201801

T=10.757-10.763

main35321-50050iKUN125,126..5FC¥2,940201505-201801

T=10.764-10.770

main35321-50060iKUN125,126..5FC¥2,940201505-201801

T=10.771-10.777

main35321-50070iKUN125,126..5FC¥2,940201505-201801

T=10.778-10.784

main35321-71010iGUN125,126..6FC..MA¥3,030201505-202105

T=9.977-9.983

main35321-71010iGUN120,135..(TDC,TSC,TXT)..6FC;GUN126..(TDC,TSC,TXT)..6FC..(ARL,GCC,GEN,LA,PH,TAIW,VN)¥3,030201708-202012

T=9.977-9.983,(J)

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-0K010iGUN125,126..6FC..MA201708-202012

T=9.977-9.983,(L)

main35322-50010iKUN125,126..5FC¥2,500201505-201801

T=10.736-10.742

main35322-50020iKUN125,126..5FC¥2,500201505-201801

T=10.743-10.749

main35322-50030iKUN125,126..5FC¥2,500201505-201801

T=10.750-10.756

main35322-50040iKUN125,126..5FC¥2,500201505-201801

T=10.757-10.763

main35322-50050iKUN125,126..5FC¥2,500201505-201801

T=10.764-10.770

main35322-50060iKUN125,126..5FC¥2,500201505-201801

T=10.771-10.777

main35322-50070iKUN125,126..5FC¥2,500201505-201801

T=10.778-10.784

main35322-71010iGUN125,126,13#,TGN121,126,136..(TDC,TSC,TXT)..6FC¥3,030201505-202105

T=9.977-9.983

main35322-71010iGUN120,135..(TDC,TSC,TXT)..6FC;GUN126..(TDC,TSC,TXT)..6FC..(ARL,GCC,GEN,LA,PH,TAIW,VN)¥3,030201708-202012

T=9.977-9.983,(J)

35370SHAFT ASSY, STATOR

main35370-0K010iGUN120,125,126,13#,TGN121,126,136..(TDC,TSC,TXT)..6FC201708-202012

(L)

main35370-50030iKUN125,126..5FC¥14,900201505-201801

main35370-71010iGUN120,135..(TDC,TSC,TXT)..6FC;GUN126..(TDC,TSC,TXT)..6FC..(ARL,GCC,GEN,LA,PH,TAIW,VN)¥14,900201708-202012

(J)

main35370-71010iGUN125,126,136..(ADC,PDC,SDC,SSC,SXT)..6FC;GGN12#,135,GUN135,TGN126,128,138..6FC..(H,L,M,S)..(ARL,BZAGT,LA,MA,SA)¥14,900201505-202105

35370ABEARING, THRUST NEEDLE ROLLER(FOR STATOR SHAFT)

main90374-71002iGUN126..6FC..KEN¥1,200201505-202105

35617RING, CLUTCH DRUM OIL SEAL

main35617-50030iGUN126..6FC..KEN¥280201505-202105

18 parts on this diagram · 3 diagrams in section
