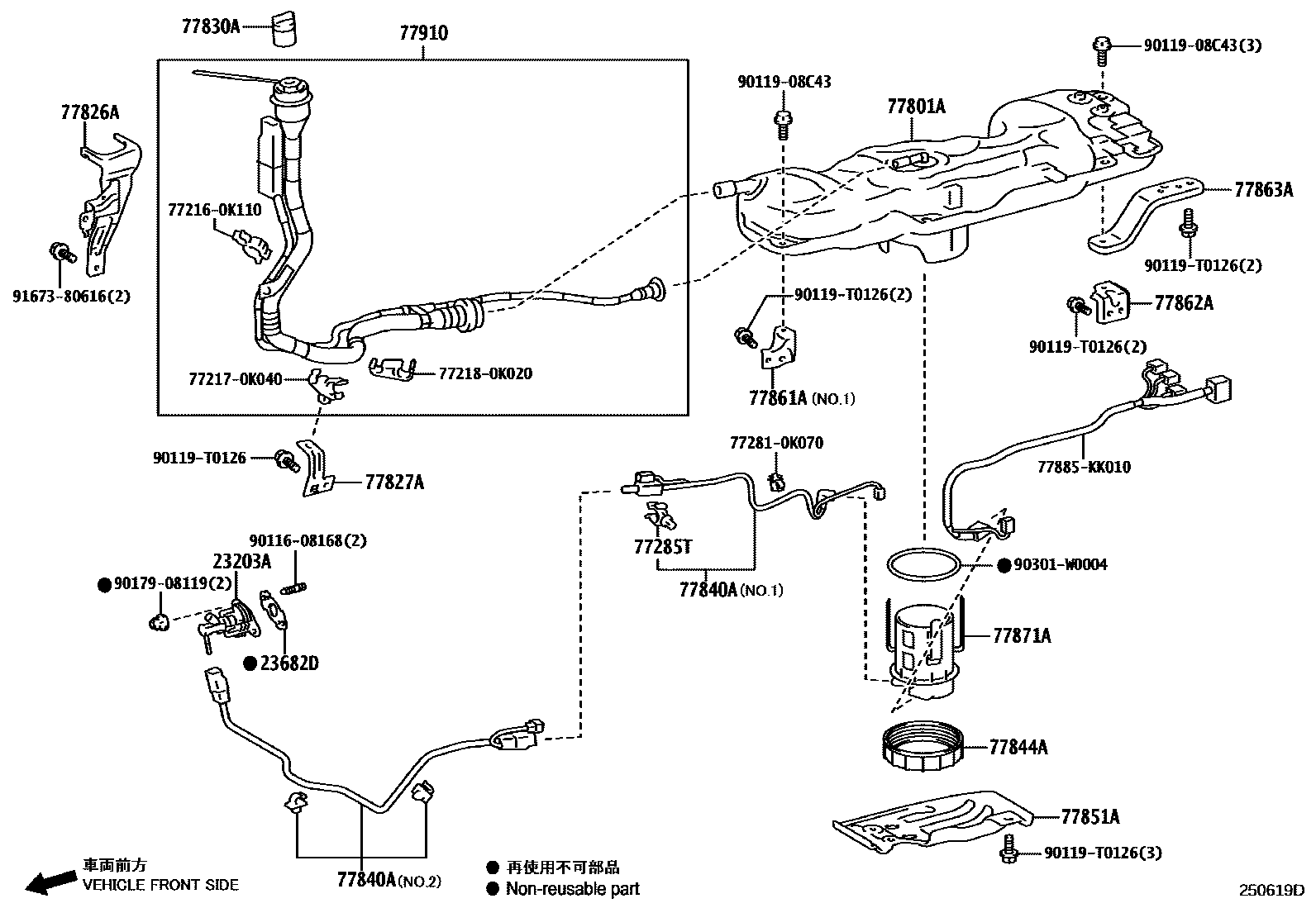

UREA TANK & TUBE
23682DGASKET, NOZZLE HOLDER
77285TCLAMP, UREA TUBE, NO.1
77801ATANK SUB-ASSY, UREA
77826ASUPPORT, UREA TANK FILLER PIPE, NO.1
77827ASUPPORT, UREA TANK FILLER PIPE, NO.2
77840ATUBE ASSY, UREA W/HEATER
77844ARETAINER, UREA PUMP GAGE
77851APROTECTOR, UREA TANK
77861ABRACKET, UREA TANK, NO.1
77862ABRACKET, UREA TANK, NO.2
77863ABRACKET, UREA TANK, NO.3
77871APUMP, UREA
772160K110COVER, FUEL PIPE
main77216-0K110
772170K040CONNECTOR, FUEL TANK INLET PIPE (FOR LPG)
main77217-0K040
772180K020PLATE, FUEL INLET PIPE SET
main77218-0K020
772810K070BRACKET, FUEL MAIN TUBE, NO.1
main77281-0K070
77885KK010HARNESS, UREA TANK
main77885-KK010
9011608168
main90116-08168
9011908C43
main90119-08C43
90119T0126
main90119-T0126
9017908119
main90179-08119
90301W0004
main90301-W0004
9167380616
main91673-80616
26 parts on this diagram · 1 diagram in section
