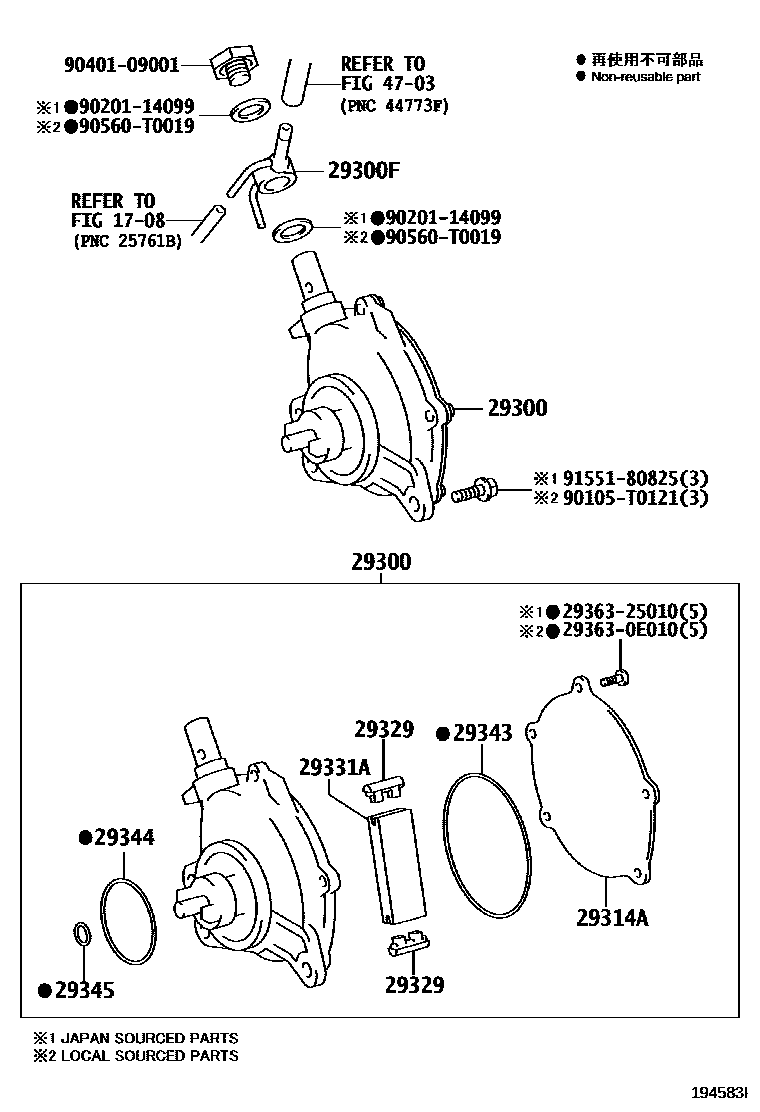

VACUUM PUMP

0001 1 0002 1 0003 1

1708

29300PUMP ASSY, VACUUM

main29300-0E010i2GDFTV..GUN125,135..ADC..6F..LA201610-201809

*468

sub29300-0E011

main29300-0E010i1GDFTV..GUN126..6F..IV3;2GDFTV..GUN125..6FC..CBU;2GDFTV..GUN135..(L,M)..VN;2GDFTV..GUN135..6FC..S..VN;1GDFTV..GUN126..6FC..(H,M,S,X);2GDFTV..GUN125..(ASC,TXT)..CBU;201612-201810

(L),*501

sub29300-0E011

main29300-0E010i1GDFTV..GUN126..ADC..6F..X201710-201809

PERU SPEC,*468

sub29300-0E011

main29300-0E010i1GDFTV,2GDFTV..GUN112,12#,13#201505-201612

*501

sub29300-0E011

main29300-0E011i1GDFTV..GUN126..ADC..X;2GDFTV..GUN135..ASC..LA;1GDFTV..GUN136..ADC..LA;1GDFTV..GUN126..ADC..6FC..S..LA201810-202010

MEXICO SPEC,*468

sub29300-08010

main29300-0E011i2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN122,123,125,126,13#..ARL,TAIW201807-202005

(L)

sub29300-08010

main29300-0E011i1GDFTV,2GDFTV..GUN112,12#,13#201810-202105

(L),*501

sub29300-08010

main29300-0L010i1KDFTV,2KDFTV..KUN112,12#,13#201505-202006

main29300-11020i2GDFTV..GUN125..LHD..SSC..S;2GDFTV..GUN125..LHD..SDC..(M,X)201703-201807

(J),*272

sub29300-11021

main29300-11020i1GDFTV,2GDFTV..GUN112,12#,13#201612-201807

(J),*501

sub29300-11021

main29300-11020i2GDFTV..GUN125..GCC201703-201806

SAUDI ARABIA SPEC(EURO4 REGULATION),(J),*272

sub29300-11021

main29300-11020i1GDFTV..GUN126..6F..(M,X)..LA201505-201703

SAUDI ARABIA SPEC(EURO4 REGULATION),*272

sub29300-11021

main29300-11021i1GDFTV..GUN126..6F..M..LA;1GDFTV..GUN126..TDC..6F..X201807-202010

(J),*272

main29300-11021i2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN122,123,125,126,13#..ARL,TAIW201807-202005

(J)

main29300-11021i2GDFTV..GUN122..SSC..CBU;2GDFTV..GUN122..PSC,SDC,TDC,TSC,TXT;1GDFTV,2GDFTV..GUN112,120,123,125,126,13#201807-202105

(J),*501

main29300-54180i5LE..LAN125201601-202009

29300FUNION

main90405-09180i5LE..LAN125201601-202009

main90405-09194i1GDFTV..GUN126..M..LA;1GDFTV..GUN126..S..GCC;1GDFTV..GUN126..6F..S..LA;1GDFTV..GUN126..TDC..6F..X;2GDFTV..GUN122..TSC..X..GEN;1GDFTV..GUN126..RHD..6F..H..GEN;2GDFTV201505-202010

(J)

main90405-09194i1GDFTV..GUN126..ADC..6F..X201710-202010

MEXICO SPEC,(J)

main90405-T0001i1GDFTV..GUN126..M..LA;1GDFTV..GUN126..S..GCC;1GDFTV..GUN126..6F..S..LA;1GDFTV..GUN126..TDC..6F..X;2GDFTV..GUN122..TSC..X..GEN;1GDFTV..GUN126..RHD..6F..H..GEN;2GDFTV201505-202010

(L)

main90405-T0001i1GDFTV..GUN126..ADC..6F..X201710-202010

PERU SPEC,(L)

main90405-T0003i1KDFTV,2KDFTV..KUN112,12#,13#201505-202006

main90405-T0005i2GDFTV..GUN122,125..LHD..SA201601-202105

main90405-T0005i2GDFTV..GUN125,135..TDC..LA201708-201806

ECUADOR SPEC

29314RING, STOP

main29314-64030i5LE..LAN125201601-202009

29314ACOVER, END

main29314-0E010i2GDFTV..GUN122..SA..IV3201505-202105

(L),*501

main29314-0E010i1GDFTV..GUN126..ADC..6F..X201810-202010

MEXICO SPEC,*468

main29314-0E010i2GDFTV..GUN125..TSC..6FC;2GDFTV..GUN125..(S,X)..(ARL,VN);1GDFTV,2GDFTV..GUN122,123,126,13#..ARL,TAIW201807-202010

(L)

main29314-0E010i1GDFTV..GUN126..ADC..X;2GDFTV..GUN135..ASC..LA;1GDFTV..GUN136..ADC..LA;1GDFTV..GUN126..ADC..6FC..S..LA201710-202010

PERU SPEC,*468

main29314-0E010i1GDFTV..GUN136..H..BZAGT;1GDFTV..GUN136..6FC..M..BZAGT;1GDFTV..GUN126..ADC..6F..(M,S)..LA201610-202010

*468

main29314-11020i2GDFTV..GUN135..GEN201505-202010

(J),*272

main29314-11020i2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN122,123,125,126,13#..ARL,TAIW201807-202005

(J)

main29314-11020i2GDFTV..GUN122..SSC..CBU;2GDFTV..GUN122..PSC,SDC,TDC,TSC,TXT;1GDFTV,2GDFTV..GUN112,120,123,125,126,13#201612-202105

(J),*501

29329CAP, VACUUM PUMP VANE

main29329-0E010i1GDFTV..GUN136..H..BZAGT;1GDFTV..GUN136..6FC..M..BZAGT;1GDFTV..GUN126..ADC..6F..(M,S)..LA201610-202010

*468

main29329-0E010i2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN122,123,125,126,13#..ARL,TAIW201807-202005

(L)

main29329-0E010i2GDFTV..GUN122..SA..IV3201505-202105

(L),*501

main29329-0E010i2GDFTV..GUN125..LHD..TDC..(S,X)..GEN;2GDFTV..GUN135..(ADC,TDC,TXT)..(LA,PH,TH,VN);2GDFTV..GUN120,125..(ADC,TDC,TSC,TXT)..(GCC,LA,PH,TH,VN)201810-202010

MEXICO SPEC,*468

main29329-0E010i1GDFTV..GUN126..ADC..X;2GDFTV..GUN135..ASC..LA;1GDFTV..GUN136..ADC..LA;1GDFTV..GUN126..ADC..6FC..S..LA201710-202010

PERU SPEC,*468

main29329-37010i2GDFTV..GUN125..LHD..SSC..S;2GDFTV..GUN125..LHD..SDC..(M,X)201505-202010

(J),*272

main29329-37010i2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN122,123,125,126,13#..ARL,TAIW201807-202005

(J)

main29329-37010i2GDFTV..GUN122..SSC..CBU;2GDFTV..GUN122..PSC,SDC,TDC,TSC,TXT;1GDFTV,2GDFTV..GUN112,120,123,125,126,13#201612-202105

(J),*501

29331BLADE, VACUUM PUMP, A

main29331-54130i5LE..LAN125201601-202009

main29331-67020i1KDFTV,2KDFTV..KUN112,12#,13#201505-202006

29331AVANE, VACUUM PUMP

main29331-0E010i1GDFTV..GUN136..H..BZAGT;1GDFTV..GUN136..6FC..M..BZAGT;1GDFTV..GUN126..ADC..6F..(M,S)..LA201610-202010

*468

main29331-0E010i1GDFTV..GUN126..ADC..X;2GDFTV..GUN135..ASC..LA;1GDFTV..GUN136..ADC..LA;1GDFTV..GUN126..ADC..6FC..S..LA201710-202010

PERU SPEC,*468

main29331-0E010i2GDFTV..GUN125..TSC..6FC;2GDFTV..GUN125..(S,X)..(ARL,VN);1GDFTV,2GDFTV..GUN122,123,126,13#..ARL,TAIW201807-202010

(L)

main29331-0E010i1GDFTV..GUN126..ADC..6F..X201810-202010

MEXICO SPEC,*468

main29331-0E010i2GDFTV..GUN122..SSC..CBU;2GDFTV..GUN122..PSC,SDC,TDC,TSC,TXT;1GDFTV,2GDFTV..GUN112,120,123,125,126,13#201505-202105

(L),*501

main29331-11020i2GDFTV..GUN122..SSC..CBU;2GDFTV..GUN122..PSC,SDC,TDC,TSC,TXT;1GDFTV,2GDFTV..GUN112,120,123,125,126,13#201612-202105

(J),*501

main29331-11020i2GDFTV..GUN125..LHD..SSC..S;2GDFTV..GUN125..LHD..SDC..(M,X)201505-202010

(J),*272

main29331-11020i2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN122,123,125,126,13#..ARL,TAIW201807-202005

(J)

29343RING, O VACUUM PUMP, NO.1

main29343-0E010i1GDFTV..GUN136..H..BZAGT;1GDFTV..GUN136..6FC..M..BZAGT;1GDFTV..GUN126..ADC..6F..(M,S)..LA201610-202010

*468

main29343-0E010i1GDFTV..GUN126..ADC..6F..X201810-202010

MEXICO SPEC,*468

main29343-0E010i2GDFTV..GUN125..TSC..6FC;2GDFTV..GUN125..(S,X)..(ARL,VN);1GDFTV,2GDFTV..GUN122,123,126,13#..ARL,TAIW201807-202010

(L)

main29343-0E010i1GDFTV..GUN126..ADC..X;2GDFTV..GUN135..ASC..LA;1GDFTV..GUN136..ADC..LA;1GDFTV..GUN126..ADC..6FC..S..LA201710-202010

PERU SPEC,*468

main29343-0E010i2GDFTV..GUN122..SA..IV3201505-202105

(L),*501

main29343-11020i2GDFTV..GUN125..LHD..SSC..S;2GDFTV..GUN125..LHD..SDC..(M,X)201505-202010

(J),*272

main29343-11020i2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN122,123,125,126,13#..ARL,TAIW201807-202005

(J)

main29343-11020i2GDFTV..GUN122..SSC..CBU;2GDFTV..GUN122..PSC,SDC,TDC,TSC,TXT;1GDFTV,2GDFTV..GUN112,120,123,125,126,13#201612-202105

(J),*501

29344RING, O VACUUM PUMP, NO.2

main29344-0E010i1GDFTV..GUN126..ADC..X;2GDFTV..GUN135..ASC..LA;1GDFTV..GUN136..ADC..LA;1GDFTV..GUN126..ADC..6FC..S..LA201710-202010

PERU SPEC,*468

main29344-0E010i1GDFTV..GUN136..H..BZAGT;1GDFTV..GUN136..6FC..M..BZAGT;1GDFTV..GUN126..ADC..6F..(M,S)..LA201610-202010

*468

main29344-0E010i2GDFTV..GUN122..SA..IV3201505-202105

(L),*501

main29344-0E010i1GDFTV..GUN126..ADC..6F..X201810-202010

MEXICO SPEC,*468

main29344-0E010i2GDFTV..GUN125..TSC..6FC;2GDFTV..GUN125..(S,X)..(ARL,VN);1GDFTV,2GDFTV..GUN122,123,126,13#..ARL,TAIW201807-202010

(L)

main29344-22011i2GDFTV..GUN125..LHD..SSC..S;2GDFTV..GUN125..LHD..SDC..(M,X)201505-202010

(J),*272

main29344-22011i2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN122,123,125,126,13#..ARL,TAIW201807-202005

(J)

main29344-22011i2GDFTV..GUN122..SSC..CBU;2GDFTV..GUN122..PSC,SDC,TDC,TSC,TXT;1GDFTV,2GDFTV..GUN112,120,123,125,126,13#201612-202105

(J),*501

29345RING, O VACUUM PUMP, NO.3

main29345-0E010i2GDFTV..GUN122..SSC..CBU;2GDFTV..GUN122..PSC,SDC,TDC,TSC,TXT;1GDFTV,2GDFTV..GUN112,120,123,125,126,13#201505-202105

(L),*501

main29345-0E010i2GDFTV..GUN125..LHD..TDC..(S,X)..GEN;2GDFTV..GUN135..(ADC,TDC,TXT)..(LA,PH,TH,VN);2GDFTV..GUN120,125..(ADC,TDC,TSC,TXT)..(GCC,LA,PH,TH,VN)201810-202010

MEXICO SPEC,*468

main29345-0E010i1GDFTV..GUN126..ADC..X;2GDFTV..GUN135..ASC..LA;1GDFTV..GUN136..ADC..LA;1GDFTV..GUN126..ADC..6FC..S..LA201710-202010

PERU SPEC,*468

main29345-0E010i1GDFTV..GUN136..H..BZAGT;1GDFTV..GUN136..6FC..M..BZAGT;1GDFTV..GUN126..ADC..6F..(M,S)..LA201610-202010

*468

main29345-0E010i2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN122,123,125,126,13#..ARL,TAIW201807-202005

(L)

main29345-22011i2GDFTV..GUN135..GEN201505-202010

(J),*272

main29345-22011i2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN122,123,125,126,13#..ARL,TAIW201807-202005

(J)

main29345-22011i2GDFTV..GUN122..SSC..CBU;2GDFTV..GUN122..PSC,SDC,TDC,TSC,TXT;1GDFTV,2GDFTV..GUN112,120,123,125,126,13#201612-202105

(J),*501

4703

293630E010SCREW, HOLLOW VACUUM PUMP

main29363-0E010

2936325010SCREW, HOLLOW VACUUM PUMP

main29363-25010

90105T0121

main90105-T0121

9020114099

main90201-14099

9040109001

main90401-09001

90560T0019

main90560-T0019

9155180825

main91551-80825

19 parts on this diagram · 3 diagrams in section
