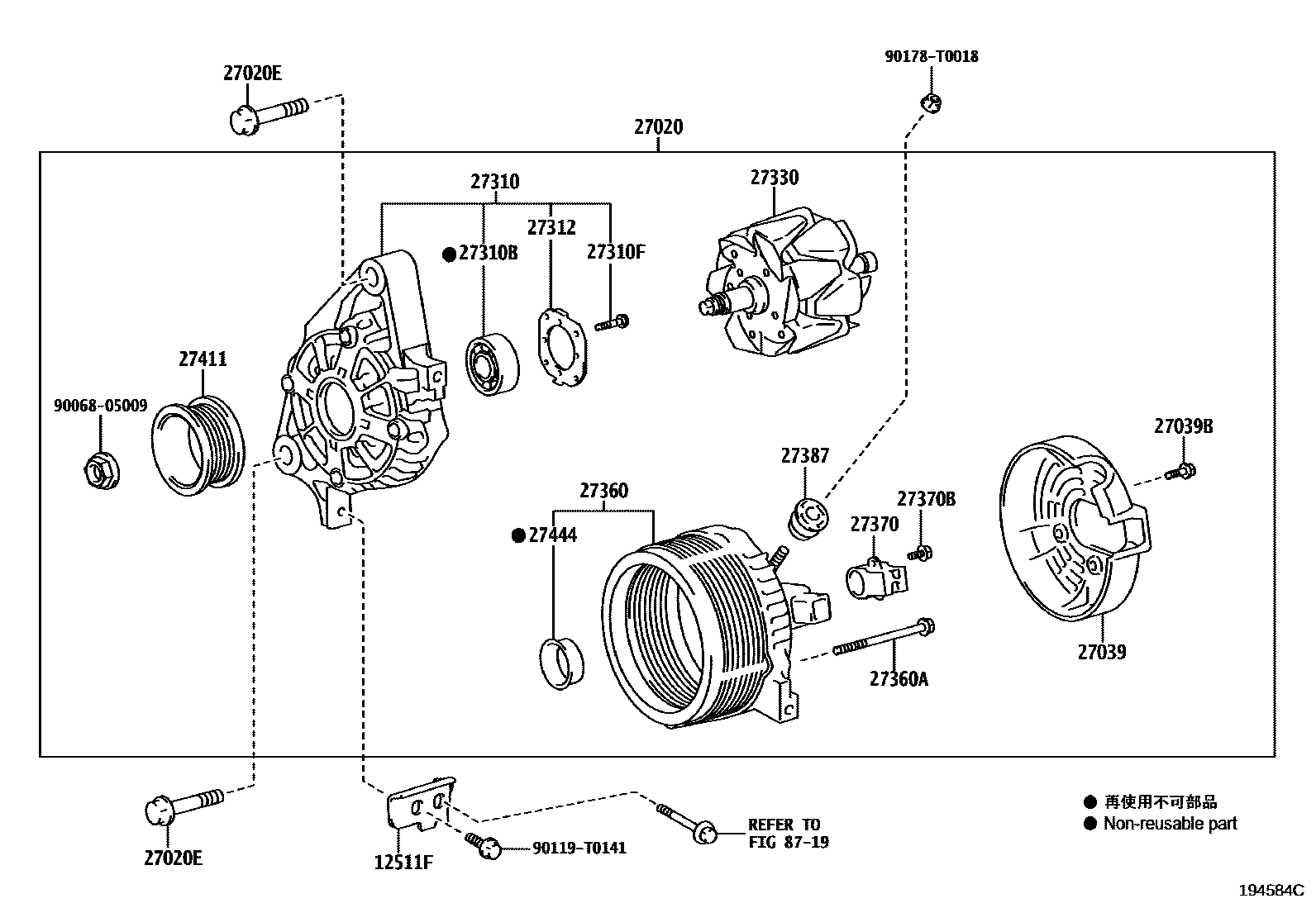

ALTERNATOR

0001 112V 100A(DENSO) 0002 112V 80A,100A,130A(DENSO) 0003 112V 80A,90A,100A 0004 112V 80A(DENSO) 0005 112V 90A(BOSCH) 0006 112V 90A(BOSCH) 0007 112V 90A(BOSCH) 0008 112V 90A(BOSCH) 0009 112V 90A 0010 112V 115A(BOSCH) 0011 112V 100A(DENSO)

12511FBRACKET, ALTERNATOR, NO.1

main12511-0P050i1GRFE..GGN12#,135201505-202010

27020ALTERNATOR ASSY

main27060-0C080i2TRFE..TGN121..6FC..M;2TRFE..TGN126..6FC..(M,S)..GCC201708-202005

12V 100A

main27060-0C110i2TRFE..TGN121..5F..M;2TRFE..TGN126..6FC..L;2TRFE..TGN126..M..GEN;2TRFE..TGN126..(TDC,TSC)..5F;2TRFE..TGN121..(TDC,TSC,TXT)..(L,S,X);1TRFE,2TRFE..TGN11#,120,136..TDC201505-202005

12V 80A

main27060-0C130i2TRFE..TGN126,128,13#..ADC,ASC201511-201911

12V 90A

sub27060-0C131

main27060-0C131i2TRFE..TGN126,128,13#..ADC,ASC201912-202010

12V 90A

main27060-0C150i1TRFE,2TRFE..TGN120,121,126,136..SA201601-202009

12V 90A

main27060-0L110i2GDFTV..GUN135..L..GEN201505-201802

12V 100A

sub27060-0L290

main27060-0L120i2KDFTV..KUN112,122,125..GCC201505-201904

12V 100A

main27060-0L150i1GDFTV,2GDFTV..GUN125,126,13#..ADC,ASC201511-202010

12V 90A,BOSCH

main27060-0L160i1GDFTV,2GDFTV..GUN125,126,13#..ADC,ASC201511-202010

12V 100A,DENSO

main27060-0L170i1GDFTV,2GDFTV..GUN122,125,126,13#..KEN,SA201601-202102

12V 90A,BOSCH

main27060-0L190i1GDFTV,2GDFTV..GUN122,125,126,13#..SA201601-201811

12V 80A,DENSO

sub27060-0L280

main27060-0L190i2GDFTV..GUN135..6F..L..MA;1GDFTV,2GDFTV..GUN125,126..MA,PKN;1GDFTV,2GDFTV..GUN126,135..6F..(M,S)..VN201505-201811

12V 80A

sub27060-0L280

main27060-0L200i1KDFTV,2KDFTV..KUN112,12#,13#..(PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(GEN,IDN,LA,PKN,SA,VN)201505-202006

12V 80A

main27060-0L210i1KDFTV,2KDFTV..KUN125,126,13#..ADC,ASC201511-201709

12V 90A

main27060-0L280i1GDFTV,2GDFTV..GUN125,126..MA,PKN201802-202105

12V 80A

main27060-0L280i1GDFTV,2GDFTV..GUN122,125,126,13#..KEN,SA201812-202102

12V 80A,DENSO

main27060-0L290i2GDFTV..GUN135..L..GEN;2GDFTV..GUN125..6F..GCC;2GDFTV..GUN125..6FC..L..GCC;1GDFTV,2GDFTV..GUN112,122,126..GCC;2GDFTV..GUN125..6FC..(M,S)..(GCC,GEN)201802-202005

12V 100A

main27060-0P290i1GRFE..GGN12#..ADC,TDC201505-202010

12V 100A

main27060-0P330i1GRFE..GGN125,135..SA201601-202009

12V 115A

main27060-30230i1GDFTV,2GDFTV..GUN13#..TDC..6FC..(H,M)..TH201505-202005

12V 130A,TOYOTA STOP & START SYSTEM-WITH

main27060-30230i1GDFTV..GUN126..6FC..TH201505-202005

12V 130A

main27060-54431i5LE..LAN125201601-202009

12V 90A

27020EBOLT(FOR ALTERNATOR)

main90105-10287i5LE..LAN125201601-202009

main90105-T0074i1KDFTV,2KDFTV..KUN112,12#,13#201505-202006

main90105-T0211i1TRFE,2TRFE..TGN11#,12#,13#201505-202010

(L)

main91552-81080i1TRFE,2TRFE..TGN11#,12#,13#201505-202010

(J)

main91672-81065i1GRFE..GGN12#,135201505-202010

27039COVER, ALTERNATOR REAR END

main27039-0C130i2TRFE..TGN126,128,13#..ADC,ASC201511-202010

main27039-0L150i2KDFTV..KUN112,122,125..GCC;1KDFTV,2KDFTV..KUN125,126,13#..ADC,ASC201505-201904

main27039-0L180i1GDFTV,2GDFTV..GUN125,126,13#..ADC,ASC201511-202010

BOSCH

main27039-0L230i1KDFTV,2KDFTV..KUN112,12#,13#..(PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(GEN,IDN,LA,PKN,SA,VN)201505-202006

main27039-0M100i2GDFTV..GUN135..H;2TRFE..TGN121..5F..M;2GDFTV..GUN135..L..MA;2TRFE..TGN126..6FC..L;1GDFTV..GUN126..6F..H..TH;2TRFE..TGN126..(TDC,TSC)..5F;2TRFE..TGN121..(TDC,TSC,TX201505-202105

main27039-0M100i1GDFTV,2GDFTV..GUN122,125,126,13#..KEN,SA201601-202102

DENSO

main27039-0T300i1GDFTV,2GDFTV..GUN125,126,13#..ADC,ASC201511-202010

DENSO

main27039-0V220i1GDFTV..GUN126..GCC;2GDFTV..GUN125..6F..GCC;2TRFE..TGN126..6FC..S..GCC;2GDFTV..GUN125..6FC..L..GCC;2GDFTV..GUN125..6FC..(M,S)..(GCC,GEN);1GRFE,2GDFTV..GGN12#,GUN112201505-202010

main27039-37220i1GDFTV,2GDFTV..GUN13#..TDC..6FC..(H,M)..TH201505-202005

TOYOTA STOP & START SYSTEM-WITH

27039BBOLT(FOR ALTERNATOR REAR END COVER)

main90068-04046i2TRFE..TGN126..6FC..M..GCC;2GDFTV,2TRFE..GUN135,TGN121..(6F,6FC)..(L,M)..(GCC,GEN)201505-202010

main90068-04047i2TRFE..TGN126..6FC..M..GCC;2GDFTV,2TRFE..GUN135,TGN121..(6F,6FC)..(L,M)..(GCC,GEN)201505-202105

main90068-04047i1GDFTV,2GDFTV..GUN122,125,126,13#..KEN,SA201812-202102

DENSO

main90068-04051i1GDFTV,2GDFTV,1KDFTV,2KDFTV..GUN125,126,13#,KUN125,126,13#..ADC,ASC201511-202010

main90099-04627i1GDFTV..GUN126..6FC..TH201505-202005

TOYOTA STOP & START SYSTEM-WITH

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0C080i2TRFE..TGN121..6FC..M;2TRFE..TGN126..6FC..(M,S)..GCC201708-202005

main27310-0C110i2TRFE..TGN121,126..6FC..M..GCC201505-202005

main27310-0L140i2GDFTV..GUN125..6F..GCC;2GDFTV..GUN125..6FC..L..GCC;1GDFTV,2GDFTV..GUN112,122,126..GCC;2GDFTV..GUN125..6FC..(M,S)..(GCC,GEN)201505-201802

main27310-0L150i2KDFTV..KUN112,122,125..GCC201505-201904

main27310-0L190i1GDFTV,2GDFTV..GUN125,126,13#..ADC,ASC201511-202010

DENSO

main27310-0L220i2GDFTV..GUN135..GEN201505-201811

main27310-0L220i1GDFTV,2GDFTV..GUN122,125,126,13#..SA201601-201812

DENSO

main27310-0L230i1KDFTV,2KDFTV..KUN112,12#,13#..(PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(GEN,IDN,LA,PKN,SA,VN)201505-202006

main27310-0L240i1KDFTV,2KDFTV..KUN125,126,13#..ADC,ASC201511-201709

main27310-0L310i1GDFTV,2GDFTV..GUN122,125,126,13#..KEN,SA201812-202102

DENSO

main27310-0L310i1GDFTV,2GDFTV..GUN125,126..MA,PKN201802-202105

main27310-0L320i2GDFTV..GUN135..L..GEN;2GDFTV..GUN125..6F..GCC;2GDFTV..GUN125..6FC..L..GCC;1GDFTV,2GDFTV..GUN112,122,126..GCC;2GDFTV..GUN125..6FC..(M,S)..(GCC,GEN)201802-202005

main27310-0P340i1GRFE..GGN12#..ADC,TDC201505-202010

main27310-30240i1GDFTV..GUN126..6FC..TH201505-202005

TOYOTA STOP & START SYSTEM-WITH

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10040i1GDFTV..GUN126..6F..H..TH;2GDFTV..GUN135..6FC..S..VN;1GDFTV..GUN126..H..(GEN,VN);2GDFTV..GUN135..LHD..(H,L,M)..(GEN,VN);2GDFTV..GUN125..RHD..TDC..6FC..(L,M,X);2GDFT201505-202006

main90068-10040i1GDFTV,2GDFTV..GUN122,125,126,13#..SA201601-201812

DENSO

main90068-10042i2GDFTV..GUN135..L..GEN201505-201904

main90068-10045i1KDFTV,2KDFTV..KUN125,126,13#..ADC,ASC201511-201709

sub90068-10049

main90068-10045i1GDFTV,2GDFTV..GUN125,126,13#..ADC,ASC201511-201812

DENSO

sub90068-10049

main90068-10047i2GDFTV..GUN135..6F..H;1GDFTV..GUN126..6F..H..TH;2GDFTV..GUN135..6FC..(H,L);1GDFTV..GUN126..H..(GEN,VN);2GDFTV..GUN125..TDC..6FC..LA;2GDFTV..GUN125..RHD..TDC..6FC..(201802-202009

sub90068-10029

main90068-10047i1GDFTV,2GDFTV..GUN122,125,126,13#..KEN,SA201812-202102

DENSO

sub90068-10029

main90068-10049i1GDFTV,2GDFTV..GUN125,126,13#..ADC,ASC201812-202010

sub90068-10033

main90068-10050i1GRFE..GGN125..BZAGT,GCC201802-202010

sub90068-10033

main90068-10052i1GDFTV,2GDFTV..GUN12#..MA,PKN202009-202105

sub90068-10029

main90099-10223i1GDFTV,2GDFTV..GUN13#..TDC..6FC..(H,M)..TH201505-202005

TOYOTA STOP & START SYSTEM-WITH

27310FSCREW(FOR ALTERNATOR DRIVE END FRAME)

main90068-00022i1GDFTV,2GDFTV..GUN122,125,126,13#..KEN,SA201812-202102

DENSO

main90068-00022i2GDFTV..GUN135..L..MA;1GDFTV..GUN126..6F..H..TH;2GDFTV..GUN135..TDC,TSC,TXT;1GDFTV..GUN126..MDC,PDC,PSC,TSC,TXT;1GDFTV..GUN126..TDC..(ARL,GCC,GEN,LA,PH,TAIW,VN);1KD201505-202105

main90068-00039i1GDFTV,2GDFTV,1KDFTV,2KDFTV..GUN125,126,13#,KUN125,126,13#..ADC,ASC201511-202010

main90099-00268i1GDFTV..GUN126..6FC..TH201505-202005

TOYOTA STOP & START SYSTEM-WITH

27312PLATE, RETAINER

main27312-0C020i1GDFTV,2GDFTV..GUN122,125,126,13#..KEN,SA201601-202102

DENSO

main27312-0C020i2GDFTV..GUN135..L..MA;1GDFTV..GUN126..6F..H..TH;2GDFTV..GUN135..TDC,TSC,TXT;1GDFTV..GUN126..MDC,PDC,PSC,TSC,TXT;1GDFTV..GUN126..TDC..(ARL,GCC,GEN,LA,PH,TAIW,VN);1KD201505-202105

main27312-0C130i1GDFTV,2GDFTV..GUN125,126,13#..ADC,ASC201511-202010

BOSCH

main27312-0C130i2TRFE..TGN126,128,13#..ADC,ASC201912-202010

main27312-0L030i2TRFE..TGN126,128,13#..ADC,ASC201511-201912

main27312-0T300i1KDFTV,2KDFTV..KUN125,126,13#..ADC,ASC201511-201709

main27312-0T300i1GDFTV,2GDFTV..GUN125,126,13#..ADC,ASC201511-202010

DENSO

main27312-72100i1GDFTV,2GDFTV..GUN13#..TDC..6FC..(H,M)..TH201505-202005

TOYOTA STOP & START SYSTEM-WITH

27330ROTOR ASSY, ALTERNATOR

main27330-0C130i2TRFE..TGN126,128,13#..ADC,ASC201511-202010

main27330-0L140i2GDFTV..GUN125..6F..GCC;2TRFE..TGN126..6FC..S..GCC;2GDFTV..GUN125..6FC..L..GCC;1GDFTV,2KDFTV..GUN126,KUN125..GCC;2GDFTV..GUN125..6FC..(M,S)..(GCC,GEN);1GRFE,2GDFTV,201505-202010

main27330-0L180i1GDFTV,2GDFTV..GUN125,126,13#..ADC,ASC201511-202010

BOSCH

main27330-0L240i1KDFTV,2KDFTV..KUN125,126,13#..ADC,ASC201511-201709

main27330-0M100i2GDFTV..GUN135..H;2TRFE..TGN121..5F..M;2GDFTV..GUN135..L..MA;2TRFE..TGN126..6FC..L;1GDFTV..GUN126..6F..H..TH;2TRFE..TGN126..(TDC,TSC)..5F;2TRFE..TGN121..(TDC,TSC,TX201505-202105

main27330-0M100i1GDFTV,2GDFTV..GUN122,125,126,13#..KEN,SA201601-202102

DENSO

main27330-0T300i1GDFTV,2GDFTV..GUN125,126,13#..ADC,ASC201511-202010

DENSO

main27330-37220i1GDFTV,2GDFTV..GUN13#..TDC..6FC..(H,M)..TH201505-202005

TOYOTA STOP & START SYSTEM-WITH

main27330-64300i5LE..LAN125201601-202009

27360COIL ASSY, ALTERNATOR

main27360-0C080i2TRFE..TGN121..6FC..M;2TRFE..TGN126..6FC..(M,S)..GCC201708-202005

main27360-0C110i2TRFE..TGN121..5F..M;2TRFE..TGN126..6FC..L;2TRFE..TGN126..M..GEN;2TRFE..TGN126..(TDC,TSC)..5F;2TRFE..TGN121..(TDC,TSC,TXT)..(L,S,X);1TRFE,2TRFE..TGN11#,120,136..TDC201505-202005

main27360-0L140i2GDFTV..GUN135..L..GEN201505-202005

main27360-0L150i2KDFTV..KUN112,122,125..GCC201505-201904

main27360-0L190i1GDFTV,2GDFTV..GUN125,126,13#..ADC,ASC201511-202010

DENSO

main27360-0L220i2GDFTV..GUN135..H;2GDFTV..GUN135..L..MA;1GDFTV..GUN126..6F..H..TH;2GDFTV..GUN125..TDC..6FC..LA;2GDFTV..GUN125..RHD..TDC..6FC..(L,M,X);1GDFTV..GUN126..TDC..(ARL,GEN,201505-202105

main27360-0L220i1GDFTV,2GDFTV..GUN122,125,126,13#..KEN,SA201601-202102

DENSO

main27360-0L230i1KDFTV,2KDFTV..KUN112,12#,13#..(PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT)..(GEN,IDN,LA,PKN,SA,VN)201505-202006

main27360-0L240i1KDFTV,2KDFTV..KUN125,126,13#..ADC,ASC201511-201709

main27360-0P340i1GRFE..GGN12#..ADC,TDC201505-202010

main27360-30240i1GDFTV..GUN126..6FC..TH201505-202005

TOYOTA STOP & START SYSTEM-WITH

27360ABOLT(FOR ALTERNATOR COIL)

main90068-04048i1GDFTV,2GDFTV..GUN122,125,126,13#..SA201505-202105

main90068-04048i1GDFTV,2GDFTV..GUN122,125,126,13#..KEN,SA201812-202102

DENSO

main90068-04050i1GDFTV,2GDFTV,1KDFTV,2KDFTV..GUN125,126,13#,KUN125,126,13#..ADC,ASC201511-202010

main90099-04626i1GDFTV,2GDFTV..GUN13#..TDC..6FC..(H,M)..TH201505-202005

TOYOTA STOP & START SYSTEM-WITH

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-0C020i1TRFE,2TRFE..TGN120,121,126,136..TDC,TSC,TXT;1KDFTV,2KDFTV,1TRFE,2TRFE..KUN112,12#,13#,TGN11#..PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT201505-202006

main27370-0L240i1KDFTV,2KDFTV..KUN125,126,13#..ADC,ASC201511-201709

main27370-0M040i1GDFTV,2GDFTV..GUN122,125,126,13#..KEN,SA201601-202102

DENSO

main27370-0M040i2GDFTV..GUN135..L..MA;1GDFTV..GUN126..6F..H..TH;2GDFTV..GUN135..TDC,TSC,TXT;1GDFTV..GUN126..MDC,PDC,PSC,TSC,TXT;1GDFTV,2GDFTV..GUN125,136..MDC,MSC,TDC,TSC,TXT;1GDFT201505-202105

main27370-0T300i1GDFTV,2GDFTV..GUN125,126,13#..ADC,ASC201511-202010

DENSO

main27370-31220i1GDFTV,2GDFTV..GUN13#..TDC..6FC..(H,M)..TH201505-202005

TOYOTA STOP & START SYSTEM-WITH

main27370-75060i5LE..LAN125201601-202009

27370BSCREW(FOR ALTERNATOR BRUSH HOLDER)

main90068-00023i1GDFTV,2GDFTV..GUN122,125,126,13#..KEN,SA201812-202102

DENSO

main90068-00023i2GDFTV..GUN135..L..MA;1GDFTV..GUN126..6F..H..TH;2GDFTV..GUN135..TDC,TSC,TXT;1GDFTV..GUN126..MDC,PDC,PSC,TSC,TXT;1GDFTV..GUN126..TDC..(ARL,GCC,GEN,LA,PH,TAIW,VN);1KD201505-202105

main90068-00037i1GDFTV,2GDFTV,1KDFTV,2KDFTV..GUN125,126,13#,KUN125,126,13#..ADC,ASC201511-202010

main90099-00197i1GDFTV..GUN126..6FC..TH201505-202005

TOYOTA STOP & START SYSTEM-WITH

27387INSULATOR, TERMINAL

main27387-0C020i1GDFTV,2GDFTV..GUN122,125,126,13#..KEN,SA201601-202102

DENSO

main27387-0C020i2GDFTV..GUN135..L..MA;1GDFTV..GUN126..6F..H..TH;2GDFTV..GUN135..TDC,TSC,TXT;1GDFTV..GUN126..MDC,PDC,PSC,TSC,TXT;1GDFTV..GUN126..TDC..(ARL,GCC,GEN,LA,PH,TAIW,VN);1KD201505-202105

main27387-0T300i1KDFTV,2KDFTV..KUN125,126,13#..ADC,ASC201511-201709

main27387-0T300i1GDFTV,2GDFTV..GUN125,126,13#..ADC,ASC201511-202010

DENSO

main27387-20130i1GDFTV,2GDFTV..GUN13#..TDC..6FC..(H,M)..TH201505-202005

TOYOTA STOP & START SYSTEM-WITH

27411PULLEY, ALTERNATOR

main27411-0C080i1GRFE..GGN12#..ADC,TDC201505-202010

27444PACKING, ALTERNATOR BEARING COVER

main27444-0T300i1GDFTV,2GDFTV..GUN125,126,13#..ADC,ASC201511-202010

DENSO

main27444-0T300i1KDFTV,2KDFTV..KUN125,126,13#..ADC,ASC201511-201709

main27444-0Y180i2GDFTV..GUN135..L..MA;1GDFTV..GUN126..6F..H..TH;2GDFTV..GUN135..TDC,TSC,TXT;1GDFTV..GUN126..MDC,PDC,PSC,TSC,TXT;1GDFTV..GUN126..TDC..(ARL,GCC,GEN,LA,PH,TAIW,VN);1KD201505-202105

main27444-0Y180i1GDFTV,2GDFTV..GUN122,125,126,13#..KEN,SA201601-202102

DENSO

main27444-21190i1GDFTV,2GDFTV..GUN13#..TDC..6FC..(H,M)..TH201505-202005

TOYOTA STOP & START SYSTEM-WITH

8719

9006805009

main90068-05009

90119T0141

main90119-T0141

90178T0018

main90178-T0018

21 parts on this diagram · 11 diagrams in section
