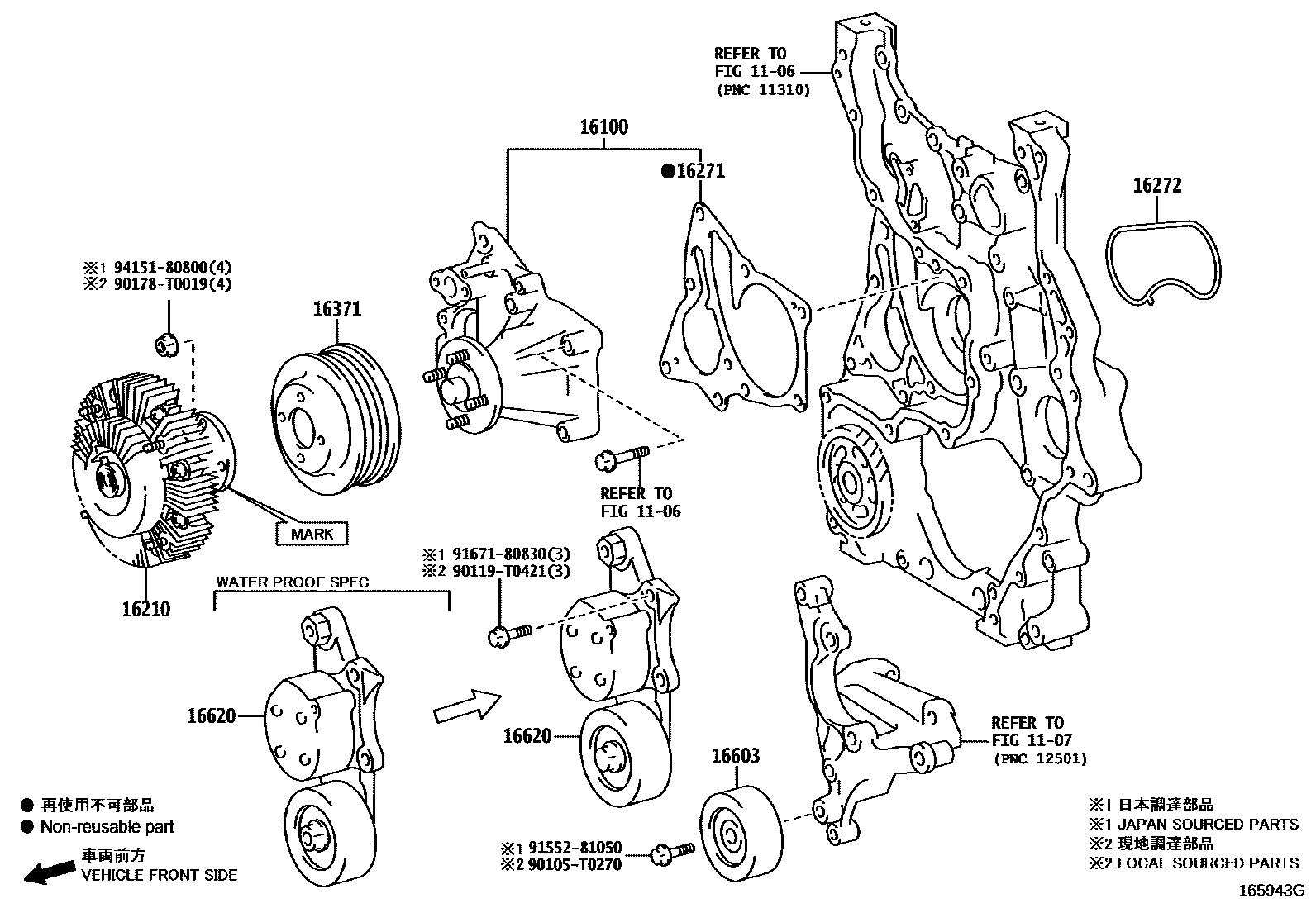

WATER PUMP
1106
1107
16100PUMP ASSY, ENGINE WATER
sub16100-09711
main16100-19365i2GDFTV..GUN125..PH;2GDFTV..GUN125..6FC..LA;2GDFTV..GUN135..(M,S)..(PH,VN)201505-202010
(J)
main16100-19365i2GDFTV..GUN125..ASC..CBU;2GDFTV..GUN125..RHD..S..SA;1GDFTV..GUN126,136..6F..M..SA;2GDFTV..GUN135..X..BZAGT..CBU;2GDFTV..GUN135..(L,S)..(BZAGT,SA);2GDFTV..GUN125..RH201505-201809
COLOMBIA SPEC,(J)
BOLIVIA URUGUAY SPEC,(J)
PERU SPEC,(J)
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)
16210COUPLING ASSY, FLUID
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-WITHOUT
LIGHT GRAY
main16210-0E010i2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN122,123,125,126,13#..ARL,TAIW201807-202005
main16210-0E010i1GDFTV..GUN126..TDC..M..LA;1GDFTV,2GDFTV..GUN125,126,135..TDC..6F..(S,X)..LA201505-201806
CHILE SPEC,LIGHT GRAY
GREEN
LIGHT PURPLE
sub16210-31021
16271GASKET, WATER PUMP
MADE IN THAILAND
MADE IN INDIA
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MADE IN INDIA
EXHAUST EMISSION CONTROL-WITHOUT,MADE IN INDIA
main16271-11010i2GDFTV..GUN120;2GDFTV..GUN135..6F..VN;2GDFTV..GUN125,135..BZAGT..IV3;2GDFTV..GUN125..LHD..TDC..(S,X)..GEN;2GDFTV..GUN135..(ADC,TDC,TXT)..(LA,TH);2GDFTV..GUN125..(TD201505-202010
MADE IN JAPAN
main16271-11010i2GDFTV..GUN125..ASC..CBU;2GDFTV..GUN125..RHD..S..SA;1GDFTV..GUN126,136..6F..M..SA;2GDFTV..GUN135..X..BZAGT..CBU;2GDFTV..GUN135..(L,S)..(BZAGT,SA);2GDFTV..GUN125..RH201505-201809
COLOMBIA SPEC,MADE IN JAPAN
BOLIVIA URUGUAY SPEC,MADE IN JAPAN
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MADE IN JAPAN
main16271-11010i2GDFTV..GUN125..PH;2GDFTV..GUN125..6FC..LA;2GDFTV..GUN135..(M,S)..(PH,VN)201809-202010
PERU SPEC,MADE IN JAPAN
16272GASKET, WATER PUMP, NO.2
MADE IN THAILAND
EXHAUST EMISSION CONTROL-WITHOUT,MADE IN INDIA
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MADE IN INDIA
main16272-0E020i2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN122,123,125,126,13#..ARL,TAIW201807-202005
MADE IN INDIA
main16272-11010i2GDFTV..GUN125..TXT..S..GEN;2GDFTV..GUN125..LHD..L..GEN;2GDFTV..GUN125..TSC..6F..L..GEN;2GDFTV..GUN125..RHD..TDC..(H,M)..GEN201708-201809
BOLIVIA URUGUAY SPEC,MADE IN JAPAN
main16272-11010i2GDFTV..GUN125..TXT..S..GEN;2GDFTV..GUN125..LHD..L..GEN;2GDFTV..GUN125..TSC..6F..L..GEN;2GDFTV..GUN125..RHD..TDC..(H,M)..GEN201708-201809
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MADE IN JAPAN
MADE IN JAPAN
main16272-11010i2GDFTV..GUN125..PH;2GDFTV..GUN125..6FC..LA;2GDFTV..GUN135..(M,S)..(PH,VN)201809-202010
PERU SPEC,MADE IN JAPAN
main16272-11010i2GDFTV..GUN125..ASC..CBU;2GDFTV..GUN125..RHD..S..SA;1GDFTV..GUN126,136..6F..M..SA;2GDFTV..GUN135..X..BZAGT..CBU;2GDFTV..GUN135..(L,S)..(BZAGT,SA);2GDFTV..GUN125..RH201505-201809
COLOMBIA SPEC,MADE IN JAPAN
16371PULLEY, FAN
(L)
main16371-0E010i2GDFTV..GUN125..6F..L;2GDFTV..GUN125..(M,S)..IDN;2GDFTV..GUN125..TDC..6FC..L;1GDFTV,2GDFTV..GUN112,120,122,123,126,13#;2GDFTV..GUN125..(H,M,S,X)..(ARL,BZAGT,GCC,GEN201505-202105
MADE IN THAILAND
main16371-0E020i2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN122,123,125,126,13#..ARL,TAIW201807-202005
MADE IN INDIA
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MADE IN INDIA
EXHAUST EMISSION CONTROL-WITHOUT,MADE IN INDIA
*272
QATAR SPEC(EURO 4 REGULATION),MADE IN JAPAN
SAUDI ARABIA SPEC(EURO4 REGULATION),MADE IN JAPAN
GCC SPEC(EURO 4 REGULATION),MADE IN JAPAN
PERU SPEC,MADE IN JAPAN
CHILE SPEC,*272
MADE IN JAPAN
COLOMBIA SPEC,MADE IN JAPAN
BOLIVIA URUGUAY SPEC,MADE IN JAPAN
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MADE IN JAPAN
(J)
16603PULLEY SUB-ASSY, IDLER, NO.1
main16603-0C013i2GDFTV..GUN125..ASC..LA;1GDFTV..GUN136..6F..(M,S)..HDCR..BZAGT;1GDFTV,2GDFTV..GUN125,126,135..HDCR..BZAGT201505-202105
MADE IN THAILAND
(L)
WATER PROOF SPEC,(L)
CHILE SPEC,WATER PROOF SPEC
CHILE SPEC,(L)
MADE IN THAILAND
EXHAUST EMISSION CONTROL-WITHOUT,MADE IN THAILAND
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MADE IN THAILAND
main16603-0E010i1GDFTV..GUN136..IV3;1GDFTV..GUN126..TAIW;2GDFTV..GUN135..6F..ARL;1GDFTV..GUN126,136..IART201710-202010
CS AMERICA SPEC,WATER PROOF SPEC
main16603-0E010i2GDFTV..GUN125..ASC..LA;2GDFTV..GUN135..L..BZAGT;1GDFTV..GUN136..ARL,BZAGT,LA;2GDFTV..GUN135..(ASC,TSC)..LA;1GDFTV..GUN126..ADC..6F..(H,X);2GDFTV..GUN122..(M,S)..DC201505-202102
WATER PROOF SPEC
main16603-31040i2GDFTV..GUN125..PH;2GDFTV..GUN125..6FC..LA;2GDFTV..GUN135..(M,S)..(PH,VN)201505-202010
MADE IN JAPAN
main16603-31040i1GDFTV..GUN136..LA;1GDFTV..GUN126..6F..X..LA;2GDFTV..GUN135..(ASC,TSC)..LA;1GDFTV..GUN126..TDC..6F..(M,S)..LA201708-201809
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MADE IN JAPAN
main16603-31040i2GDFTV..GUN125..TXT..S..GEN;2GDFTV..GUN125..LHD..L..GEN;2GDFTV..GUN125..TSC..6F..L..GEN;2GDFTV..GUN125..RHD..TDC..(H,M)..GEN201708-201809
BOLIVIA URUGUAY SPEC,MADE IN JAPAN
main16603-31040i1GDFTV..GUN126,136..6F..M..SA;2GDFTV..GUN125,135..RHD..S..SA;2GDFTV..GUN125..RHD..TDC..6F..L..GEN201505-201809
COLOMBIA SPEC,MADE IN JAPAN
main16603-31040i2GDFTV..GUN120;2GDFTV..GUN135..6F..VN;2GDFTV..GUN125..LHD..TDC..(S,X)..GEN;2GDFTV..GUN135..(ADC,TDC,TXT)..(LA,TH);2GDFTV..GUN125..(ADC,TDC,TXT)..6F..(LA,TH,VN)201505-202010
PERU SPEC,MADE IN JAPAN
(J)
16620TENSIONER ASSY, V-RIBBED BELT
main16620-0E010i2GDFTV..GUN125..LHD..SSC..X;1GDFTV..GUN126,136..6F..S..SA;2GDFTV..GUN125,135..RHD..X..SA;2GDFTV..GUN125..LHD..(SDC,SXT)..6F..S201505-202105
MADE IN THAILAND
main16620-0E020i2GDFTV..GUN125..LHD..SSC..X;1GDFTV..GUN126,136..6F..S..SA;2GDFTV..GUN125,135..RHD..6F..X..SA;2GDFTV..GUN125..LHD..(SDC,SXT)..6F..S201505-202102
WATER PROOF SPEC
CHILE SPEC,WATER PROOF SPEC
main16620-11010i1GDFTV..GUN136..LA;1GDFTV..GUN126..6F..X..LA;2GDFTV..GUN135..(ASC,TSC)..LA;1GDFTV..GUN126..TDC..6F..(M,S)..LA201505-202010
MADE IN JAPAN
main16620-11010i1GDFTV..GUN136..LA;1GDFTV..GUN126..6F..X..LA;2GDFTV..GUN135..(ASC,TSC)..LA;1GDFTV..GUN126..TDC..6F..(M,S)..LA201708-201809
BOLIVIA URUGUAY SPEC,MADE IN JAPAN
main16620-11010i1GDFTV..GUN136..LA;1GDFTV..GUN126..6F..X..LA;2GDFTV..GUN135..(ASC,TSC)..LA;1GDFTV..GUN126..TDC..6F..(M,S)..LA201708-201809
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MADE IN JAPAN
main16620-11010i2GDFTV..GUN120;2GDFTV..GUN135..6F..VN;2GDFTV..GUN125..LHD..TDC..(S,X)..GEN;2GDFTV..GUN135..(ADC,TDC,TXT)..(LA,TH);2GDFTV..GUN125..(ADC,TDC,TXT)..6F..(LA,TH,VN)201505-202010
PERU SPEC,MADE IN JAPAN
main16620-11010i1GDFTV..GUN126,136..6F..M..SA;2GDFTV..GUN125,135..RHD..S..SA;2GDFTV..GUN125..RHD..TDC..6F..L..GEN201505-201809
COLOMBIA SPEC,MADE IN JAPAN
sub16620-31013
90105T0270
main90105-T0270
90119T0421
main90119-T0421
90178T0019
main90178-T0019
9155281050
main91552-81050
9167180830
main91671-80830
9415180800
main94151-80800
15 parts on this diagram · 5 diagrams in section
