CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
STD
STD,(L)
STD,(J)
STD
STD
O/S 0.125
O/S 0.125
O/S 0.250
O/S 0.250
11702BEARING SET, CRANKSHAFT
CHILE SPEC,MARK 2,NO.1,*652
KAZAKHSTAN SPEC(EURO 4 REGULATION),MARK 2,NO.1,*652
main11701-0E010-02i1GDFTV..GUN126..TDC..6FC..M..(LA,PH);2GDFTV..GUN135..(TDC,TXT)..6FC..(M,S);1GDFTV,2GDFTV..GUN126,135..6F..(M,S)..VN;1GDFTV,2GDFTV..GUN120,126,136..6FC..(H,L,S,X)..(201505-202105
MARK 2,NO.1,*652
MARK 3,NO.1,*652
QATAR SPEC(EURO 4 REGULATION),MARK 3,NO.1,*652
COLOMBIA SPEC,MARK 3,NO.1,*652
KAZAKHSTAN SPEC(EURO 4 REGULATION),MARK 4,NO.1,*652
MARK 4,NO.1,*652
COLOMBIA SPEC,MARK 4,NO.1,*652
GCC SPEC(EURO 4 REGULATION),MARK 5,NO.1,*652
COLOMBIA SPEC,MARK 5,NO.1,*652
MARK 5,NO.1,*652
MARK 6,NO.1,*652
main11701-0E020-02i2GDFTV..GUN135..(TDC,TXT)..6FC..(M,S);1GDFTV,2GDFTV..GUN126,135..6F..(M,S)..VN;1GDFTV..GUN126,136..6FC..(H,M)..(LA,PH,TH,VN);1GDFTV,2GDFTV..GUN120,126..6FC..(L,S,X)201505-202010
MARK 2,NO.2,*652
QATAR SPEC(EURO 4 REGULATION),MARK 2,NO.2,*652
main11701-0E020-03i2GDFTV..GUN135..(TDC,TXT)..6FC..(M,S);1GDFTV,2GDFTV..GUN126,135..6F..(M,S)..VN;1GDFTV..GUN126,136..6FC..(H,M)..(LA,PH,TH,VN);1GDFTV,2GDFTV..GUN120,126..6FC..(L,S,X)201505-202010
MARK 3,NO.2,*652
PERU SPEC,MARK 3,NO.2,*652
SAUDI ARABIA SPEC(EURO4 REGULATION),MARK 4,NO.2,*652
main11701-0E020-04i2GDFTV..GUN135..(TDC,TXT)..6FC..(M,S);1GDFTV,2GDFTV..GUN126,135..6F..(M,S)..VN;1GDFTV..GUN126,136..6FC..(H,M)..(LA,PH,TH,VN);1GDFTV,2GDFTV..GUN120,126..6FC..(L,S,X)201505-202010
MARK 4,NO.2,*652
PERU SPEC,MARK 4,NO.2,*652
QATAR SPEC(EURO 4 REGULATION),MARK 5,NO.2,*652
main11701-0E020-05i2GDFTV..GUN135..(TDC,TXT)..6FC..(M,S);1GDFTV,2GDFTV..GUN126,135..6F..(M,S)..VN;1GDFTV..GUN126,136..6FC..(H,M)..(LA,PH,TH,VN);1GDFTV,2GDFTV..GUN120,126..6FC..(L,S,X)201505-202010
MARK 5,NO.2,*652
PERU SPEC,MARK 5,NO.2,*652
MARK 6,NO.2,*652
SAUDI ARABIA SPEC(EURO4 REGULATION),MARK 6,NO.2,*652
main11701-0E030-02i2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN122,123,125,126,13#..ARL,TAIW201807-202005
MARK 2,NO.1,*650
main11701-0E030-03i2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN122,123,125,126,13#..ARL,TAIW201807-202005
MARK 3,NO.1,*650
main11701-0E030-04i2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN122,123,125,126,13#..ARL,TAIW201807-202005
MARK 4,NO.1,*650
main11701-0E030-05i2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN122,123,125,126,13#..ARL,TAIW201807-202005
MARK 5,NO.1,*650
main11701-0E030-06i2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN122,123,125,126,13#..ARL,TAIW201807-202005
MARK 6,NO.1,*650
PERU SPEC,MARK 2,NO.1,(J)
main11701-11030-02i2GDFTV..GUN125..LHD..TDC..(S,X)..GEN;2GDFTV..GUN125,135..(TDC,TXT)..6F..(LA,TH)201505-202010
MARK 2,NO.1,(J)
BOLIVIA URUGUAY SPEC,MARK 2,NO.1,(J)
main11701-11030-02i2GDFTV..GUN125..TXT..S..GEN;2GDFTV..GUN125..LHD..L..GEN;2GDFTV..GUN125..TSC..6F..L..GEN;2GDFTV..GUN125..RHD..TDC..(H,M)..GEN201708-201809
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK 2,NO.1,(J)
COLOMBIA SPEC,MARK 2,NO.1,(J)
MARK 3,NO.1,(J)
main11701-11030-03i2GDFTV..GUN125..TXT..S..GEN;2GDFTV..GUN125..LHD..L..GEN;2GDFTV..GUN125..TSC..6F..L..GEN;2GDFTV..GUN125..RHD..TDC..(H,M)..GEN201708-201809
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK 3,NO.1,(J)
COLOMBIA SPEC,MARK 4,NO.1,(J)
MARK 4,NO.1,(J)
BOLIVIA URUGUAY SPEC,MARK 4,NO.1,(J)
main11701-11030-04i2GDFTV..GUN125..TXT..S..GEN;2GDFTV..GUN125..LHD..L..GEN;2GDFTV..GUN125..TSC..6F..L..GEN;2GDFTV..GUN125..RHD..TDC..(H,M)..GEN201708-201809
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK 4,NO.1,(J)
COLOMBIA SPEC,MARK 5,NO.1,(J)
main11701-11030-05i2GDFTV..GUN125..TXT..S..GEN;2GDFTV..GUN125..LHD..L..GEN;2GDFTV..GUN125..TSC..6F..L..GEN;2GDFTV..GUN125..RHD..TDC..(H,M)..GEN201708-201809
BOLIVIA URUGUAY SPEC,MARK 5,NO.1,(J)
main11701-11030-05i2GDFTV..GUN125..VN;2GDFTV..GUN135..L..VN;2GDFTV..GUN125..TSC..LA;2GDFTV..GUN125,135..(ASC,TXT)..6F..IV3201505-202010
MARK 5,NO.1,(J)
SAUDI ARABIA SPEC(EURO4 REGULATION),MARK 5,NO.1,(J)
PERU SPEC,MARK 5,NO.1,(J)
GCC SPEC(EURO 4 REGULATION),MARK 6,NO.1,(J)
MARK 6,NO.1,(J)
main11701-11030-06i2GDFTV..GUN125..TXT..S..GEN;2GDFTV..GUN125..LHD..L..GEN;2GDFTV..GUN125..TSC..6F..L..GEN;2GDFTV..GUN125..RHD..TDC..(H,M)..GEN201708-201809
BOLIVIA URUGUAY SPEC,MARK 6,NO.1,(J)
main11701-11040-02i2GDFTV..GUN135..(TDC,TXT)..6F..(LA,TH);2GDFTV..GUN125..(TDC,TXT)..(S,X)..(GEN,LA,TH)201505-202010
MARK 2,NO.2,(J)
sub11701-35040
main11701-11040-03i2GDFTV..GUN135..(TDC,TXT)..6F..(LA,TH);2GDFTV..GUN125..(TDC,TXT)..(S,X)..(GEN,LA,TH)201505-201708
QATAR SPEC(EURO 4 REGULATION),MARK 3,NO.2,(J)
sub11701-35040
main11701-11040-04i2GDFTV..GUN135..(TDC,TXT)..6F..(LA,TH);2GDFTV..GUN125..(TDC,TXT)..(S,X)..(GEN,LA,TH)201505-201708
GCC SPEC(EURO 4 REGULATION),MARK 4,NO.2,(J)
sub11701-35040
MARK 4,NO.2,(J)
sub11701-35040
MARK 5,NO.2,(J)
sub11701-35040
GCC SPEC(EURO 4 REGULATION),MARK 6,NO.2,(J)
sub11701-35040
U/S 0.25
U/S 0.25
main11704-75032i2TRFE..TGN126..L..GEN;2TRFE..TGN126..(TDC,TSC)..(GCC,LA);1TRFE,2TRFE..TGN11#,120,121,136..TDC,TSC,TXT201505-202005
U/S 0.25,REFER REPAIR MANUAL
sub11704-75033
main11704-75032i2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,1201505-202010
U/S 0.25
sub11704-75033
U/S 0.50
U/S 0.50
13011RING SET, PISTON
STD,#,(L)
STD,(L)
main13011-0C090i2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;2TRFE..TGN111,121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH)201505-202010
STD,(L)
main13011-0C090i2TRFE..TGN126..L..GEN;2TRFE..TGN126..(TDC,TSC)..(GCC,LA);2TRFE..TGN111,121,136..TDC,TSC,TXT201505-202005
STD,#,(L)
STD,CHILE SPEC,MARK=1G,(L)
sub13011-0E022
main13011-0E020i1GDFTV..GUN126..GCC;2GDFTV..GUN122..TDC..GEN;2GDFTV..GUN125..TDC..6F..S..GCC201505-202005
STD,MARK=1G,(L)
sub13011-0E022
STD,ECUADOR SPEC&EXHAUST EMISSION CONTROL-EURO 2 WITHOUT(ON BOARD DIAGNOSIS),MARK=1G,(L)
sub13011-0E022
main13011-0E022i1GDFTV..GUN126..6FC..S..LA;2GDFTV..GUN135..ADC..BZAGT;1GDFTV..GUN136..ADC..6F..M;2GDFTV..GUN125,135..6FC..S..SA;2GDFTV..GUN135..(ASC,KSC,SDC,SSC)..X;2GDFTV..GUN125.202005-202105
STD,MARK=1G,(L)
main13011-0E030i2GDFTV..GUN125..TDC..6FC..ARL;2GDFTV..GUN125..(TSC,TXT)..6FC;1GDFTV,2GDFTV..GUN122,123,135..(5F,6FC)..ARL201807-202005
STD,MARK=G1,*650
sub13011-0E031
STD
STD
STD
main13011-11200i2GDFTV..GUN120;2GDFTV..GUN135..6F..VN;2GDFTV..GUN125..LHD..TDC..(S,X)..GEN;2GDFTV..GUN135..(ADC,TDC,TXT)..(LA,TH);2GDFTV..GUN125..(ADC,TDC,TXT)..6F..(LA,TH,VN)201505-202010
STD,PERU SPEC,MARK=G1,(J)
sub13011-11201
STD,MARK=G1,(J)
sub13011-11201
STD
STD
STD
main13011-75200i2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;2TRFE..TGN111,121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH)201505-202010
STD,(J)
main13011-75200i2TRFE..TGN126..L..GEN;2TRFE..TGN126..(TDC,TSC)..(GCC,LA);2TRFE..TGN111,121,136..TDC,TSC,TXT201505-202005
STD,#,(J)
STD,#,(J)
STD,(J)
STD,*555
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.75
O/S 1.00
13041BEARING, CONNECTING ROD
MARK 5,REFER REPAIR MANUAL
sub13041-0C060
MARK 4,(L),REFER R/M
MARK 5,(L),REFER R/M
MARK 6,(L),REFER R/M
MARK 2,THA SOURCED PARTS
sub13041-0E011
MARK 3,THA SOURCED PARTS
sub13041-0E011
MARK 4,THA SOURCED PARTS
sub13041-0E011
MARK 5,THA SOURCED PARTS
sub13041-0E011
MARK 6,THA SOURCED PARTS
sub13041-0E011
MARK 2,THA SOURCED PARTS
MARK 3,THA SOURCED PARTS
MARK 4,THA SOURCED PARTS
MARK 5,THA SOURCED PARTS
MARK 6,THA SOURCED PARTS
MARK 2,THA SOURCED PARTS
MARK 3,THA SOURCED PARTS
MARK 4,THA SOURCED PARTS
MARK 5,THA SOURCED PARTS
MARK 6,THA SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MARK 2,IND SOURCED PARTS
sub13041-0E031
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MARK 3,IND SOURCED PARTS
sub13041-0E031
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS),MARK 4,IND SOURCED PARTS
sub13041-0E031
MARK 5,IND SOURCED PARTS
sub13041-0E031
MARK 6,IND SOURCED PARTS
sub13041-0E031
MARK2,REFER R/M
MARK3,REFER R/M
MARK4,REFER R/M
MARK5,REFER R/M
MARK6,REFER R/M
MARK 2,(J)
sub13041-11051
main13041-11050-02i2GDFTV..GUN125..PH;2GDFTV..GUN125..6FC..LA;2GDFTV..GUN135..(M,S)..(PH,VN)201809-202010
PERU SPEC,MARK 2,(J)
sub13041-11051
MARK 3,(J)
sub13041-11051
main13041-11050-03i2GDFTV..GUN125..PH;2GDFTV..GUN125..6FC..LA;2GDFTV..GUN135..(M,S)..(PH,VN)201809-202010
PERU SPEC,MARK 3,(J)
sub13041-11051
main13041-11050-04i2GDFTV..GUN125..ASC..CBU;2GDFTV..GUN125..RHD..S..SA;2GDFTV..GUN135..X..BZAGT..CBU;2GDFTV..GUN135..(L,S)..(BZAGT,SA);2GDFTV..GUN125..RHD..TDC..6F..L..GEN;2GDFTV..GUN201505-202010
MARK 4,(J)
sub13041-11051
main13041-11050-04i2GDFTV..GUN125..PH;2GDFTV..GUN125..6FC..LA;2GDFTV..GUN135..(M,S)..(PH,VN)201809-202010
PERU SPEC,MARK 4,(J)
sub13041-11051
MARK 5,(J)
sub13041-11051
MARK 1
MARK 2
MARK 3
MARK 4
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK 4,(J),REFER R/M
MARK 5,(J),REFER R/M
MARK 6,(J),REFER R/M
13101PISTON SUB-ASSY, W/PIN
STD,*555
main13101-0C070i2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;2TRFE..TGN111,121,126..5F..(BZAGT,GCC,GEN,LA,SA,TH)201505-202010
STD,*555
STD,*163
main13101-0C090i2TRFE..TGN126..L..GEN;2TRFE..TGN126..(TDC,TSC)..(GCC,LA);2TRFE..TGN111,121,136..TDC,TSC,TXT201505-202005
STD,*163
STD,*555
STD,MARK=2GD10
sub13101-0E011
STD,MARK 1,MARK=1GD20
sub13101-0E021
STD,MARK 1,REFER R/M
STD,MARK 2,REFER R/M
STD,MARK 3,REFER R/M
STD,MARK1,REFER R/M
STD,MARK2,REFER R/M
STD,MARK3,REFER R/M
STD,MARK 1,REFER R/M
STD,MARK 2,REFER R/M
STD,MARK 3,REFER R/M
STD,MARK 1,MARK=2GD80
main13101-11180-02i2GDFTV..GUN125..PH;2GDFTV..GUN125..6FC..LA;2GDFTV..GUN135..(M,S)..(PH,VN)201505-202010
STD,MARK 2,MARK=2GD80
STD,MARK 1,MARK=1GD20,(J)
sub13101-11191
STD,MARK 2,MARK=1GD20,(J)
sub13101-11191
STD,MARK 1,REFER REPAIR MANUAL
STD,MARK 2,REFER REPAIR MANUAL
STD,MARK 3,REFER REPAIR MANUAL
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.75
O/S 1.00
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
sub13201-09B71
sub13201-09B81
main13201-09B81i2TRFE..TGN126..5F;2TRFE..TGN126..6FC..SA;2TRFE..TGN126..6FC..(L,M);2TRFE..TGN111,121,128,13#201603-202010
MARK A,THA SOURCED PARTS
MARK B,THA SOURCED PARTS
MARK C,THA SOURCED PARTS
MARK A,THA SOURCED PARTS
MARK B,THA SOURCED PARTS
MARK C,THA SOURCED PARTS
MARK A,IND SOURCED PARTS
MARK B,IND SOURCED PARTS
MARK C,IND SOURCED PARTS
MARK A,IND SOURCED PARTS
MARK B,IND SOURCED PARTS
MARK C,IND SOURCED PARTS
main13201-11040-A0i2GDFTV..GUN135..PH;2GDFTV..GUN125..LHD..TDC..M..GEN;2GDFTV..GUN125..TDC..6F..(L,M)..GCC;2GDFTV..GUN122,125..TSC..(5F,6FC)..(ARL,PH);2GDFTV..GUN122,125..LHD..TSC..HD201505-202105
MARK A,(J)
main13201-11040-B0i2GDFTV..GUN135..PH;2GDFTV..GUN125..LHD..TDC..M..GEN;2GDFTV..GUN125..TDC..6F..(L,M)..GCC;2GDFTV..GUN122,125..TSC..(5F,6FC)..(ARL,PH);2GDFTV..GUN122,125..LHD..TSC..HD201505-202105
MARK B,(J)
main13201-11040-C0i2GDFTV..GUN135..PH;2GDFTV..GUN125..LHD..TDC..M..GEN;2GDFTV..GUN125..TDC..6F..(L,M)..GCC;2GDFTV..GUN122,125..TSC..(5F,6FC)..(ARL,PH);2GDFTV..GUN122,125..LHD..TSC..HD201505-202105
MARK C,(J)
MARK A,(J)
MARK B,(J)
MARK C,(J)
(J)
(J)
13201ABUSH(FOR CONNECTING ROD SMALL END)
13265BOLT, CONNECTING ROD
main13265-0C010i2TRFE..TGN126..6FC..(GEN,SA);2TRFE..TGN121,126..5F..(GCC,GEN,LA,SA,TH);1TRFE,2TRFE..TGN11#,120,128,13#..BZAGT,GCC,LA,SA201904-202010
(L),MADE IN IDN
(L),MADE IN THAILAND
sub13265-28020
main13265-28020i2TRFE..TGN136..ADC..LA;2TRFE..TGN136..BZAGT,GEN,SA;1TRFE,2TRFE..TGN11#,12#,138..ADC,ASC,SDC,SSC,TDC,TSC201901-201906
(J)
13411CRANKSHAFT
main13401-0C022i2TRFE..TGN111,128,138;2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;2TRFE..TGN121,126..5F..(BZAGT,GCC,GEN,L201505-202010
main13401-0C022i2TRFE..TGN126..L..GEN;2TRFE..TGN126..(TDC,TSC)..(GCC,LA);2TRFE..TGN111,121,136..TDC,TSC,TXT201505-202005
#,(L)
THA SOURCED PARTS
THA SOURCED PARTS
IND SOURCED PARTS
IND SOURCED PARTS
(J)
PERU SPEC,(J)
(J)
(J)
main13401-75021i2TRFE..TGN126..L..GEN;2TRFE..TGN126..(TDC,TSC)..(GCC,LA);2TRFE..TGN111,121,136..TDC,TSC,TXT201505-202005
#,(J)
sub13401-0C022
13471PULLEY, CRANKSHAFT
main13408-0C030i2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,1201505-202010
*555
main13408-0C040i2TRFE..TGN126..L..GEN;2TRFE..TGN126..(TDC,TSC)..(GCC,LA);1TRFE,2TRFE..TGN11#,120,121,136..TDC,TSC,TXT201505-202005
*163
sub13408-0C030
main13408-0E020i2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN122,123,125,126,13#..ARL,TAIW201807-202005
IND SOURCED PARTS
main13408-11060i2GDFTV..GUN125..PH;2GDFTV..GUN125..6FC..LA;2GDFTV..GUN135..(M,S)..(PH,VN)201809-202010
PERU SPEC,(J)
sub13408-11061
COLOMBIA SPEC,(J)
sub13408-11061
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
#,(J)
#,(L)
main90119-18003i2GDFTV..GUN120;2GDFTV..GUN135..6F..VN;2GDFTV..GUN125,135..BZAGT..IV3;2GDFTV..GUN125..LHD..TDC..(S,X)..GEN;2GDFTV..GUN135..(ADC,TDC,TXT)..(LA,TH);2GDFTV..GUN125..(TD201505-202010
(J)
main90119-18003i2GDFTV..GUN125..PH;2GDFTV..GUN125..6FC..LA;2GDFTV..GUN135..(M,S)..(PH,VN)201809-202010
PERU SPEC,(J)
COLOMBIA SPEC,(J)
(L)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
main13521-0C011i2TRFE..TGN126..L..GEN;2TRFE..TGN126..(TDC,TSC)..(GCC,LA);1TRFE,2TRFE..TGN11#,120,121,136..TDC,TSC,TXT201505-202005
(L),MADE IN THAILAND
main13521-0C030i2TRFE..TGN136..(M,X)..(BZAGT,LA);2TRFE..TGN126..LHD..6FC..(GEN,SA);2TRFE..TGN136..(ADC,SDC,SSC,TXT)..S;1TRFE,2TRFE..TGN11#,120,128,138..BZAGT,GCC,SA;2TRFE..TGN121,1201707-202010
(L),MADE IN IDN
THA SOURCED PARTS
main13521-0E020i2GDFTV..GUN125..TSC..6FC;1GDFTV,2GDFTV..GUN122,123,125,126,13#..ARL,TAIW201807-202005
IND SOURCED PARTS
JAPAN SOURCED PARTS
#,(J)
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
(L)
PERU SPEC,(J)
main95161-30516i2GDFTV..GUN125..PH;2GDFTV..GUN125..6FC..LA;2GDFTV..GUN135..(M,S)..(PH,VN)201505-202010
(J)
COLOMBIA SPEC,(J)
13581SHAFT, IDLE GEAR, NO.1
13582SHAFT, IDLE GEAR, NO.2

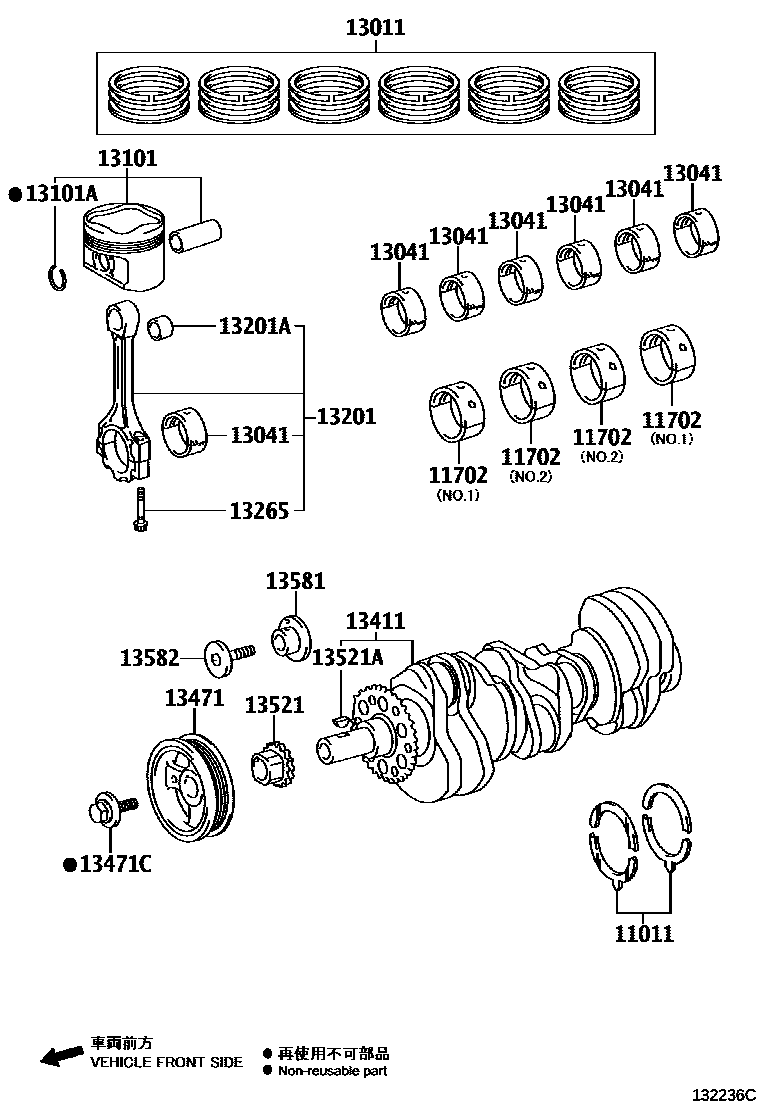

16 parts on this diagram · 7 diagrams in section
